The flight data package contains information describing all details associated with
the flight. It is a central package of the FIXM logical model.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0

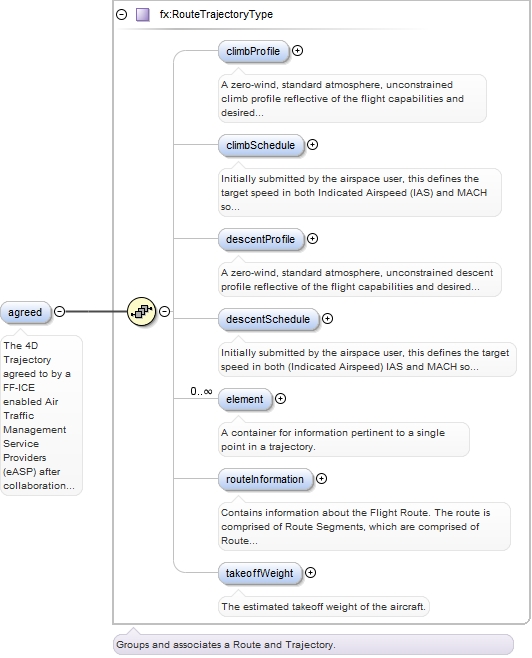

Element fx:FlightType / fx:agreed
Namespace http://www.fixm.aero/flight/4.0
Annotations

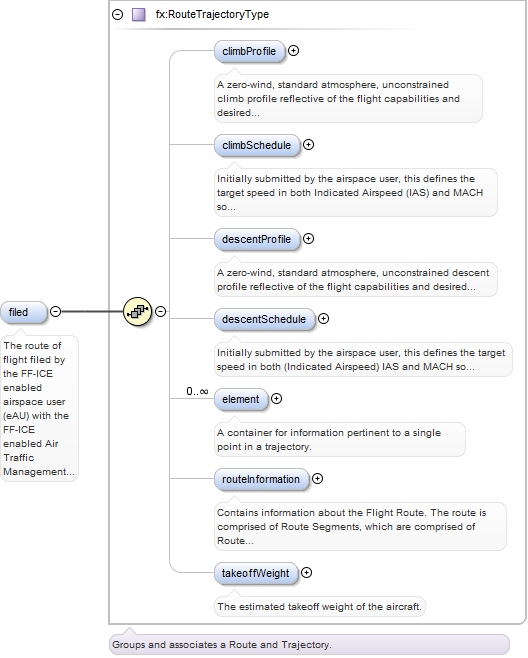

The 4D Trajectory agreed to by a FF-ICE enabled Air Traffic Management Service Providers
(eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the
eASP.
The route of flight agreed to by a FF-ICE enabled Air Traffic Management Service
Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU)
and the eASP.
Diagram
Diagram RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_element RouteTrajectory_xsd.tmp#RouteTrajectoryType_routeInformation RouteTrajectory_xsd.tmp#RouteTrajectoryType_takeoffWeight RouteTrajectory_xsd.tmp#RouteTrajectoryType
Type fx:RouteTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:climbProfile{0,1} , fx:climbSchedule{0,1} , fx:descentProfile{0,1} , fx:descentSchedule{0,1} , fx:element* , fx:routeInformation{0,1} , fx:takeoffWeight{0,1}
Children fx:climbProfile, fx:climbSchedule, fx:descentProfile, fx:descentSchedule, fx:element, fx:routeInformation, fx:takeoffWeight
Instance

<fx:agreed>
  <fx:climbProfile>{0,1}</fx:climbProfile>
  <fx:climbSchedule>{0,1}</fx:climbSchedule>
  <fx:descentProfile>{0,1}</fx:descentProfile>
  <fx:descentSchedule>{0,1}</fx:descentSchedule>
  <fx:element flightRulesChange="" modified="" modifiedRouteItemReference="" routeTerminationIndicator="">{0,unbounded}</fx:element>
  <fx:routeInformation flightRulesCategory="" routeText="" totalEstimatedElapsedTime="">{0,1}</fx:routeInformation>
  <fx:takeoffWeight uom="">{0,1}</fx:takeoffWeight>
</fx:agreed>
Source

<element name="agreed" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The 4D Trajectory agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP. The route of flight agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:aircraft
Namespace http://www.fixm.aero/flight/4.0
Annotations

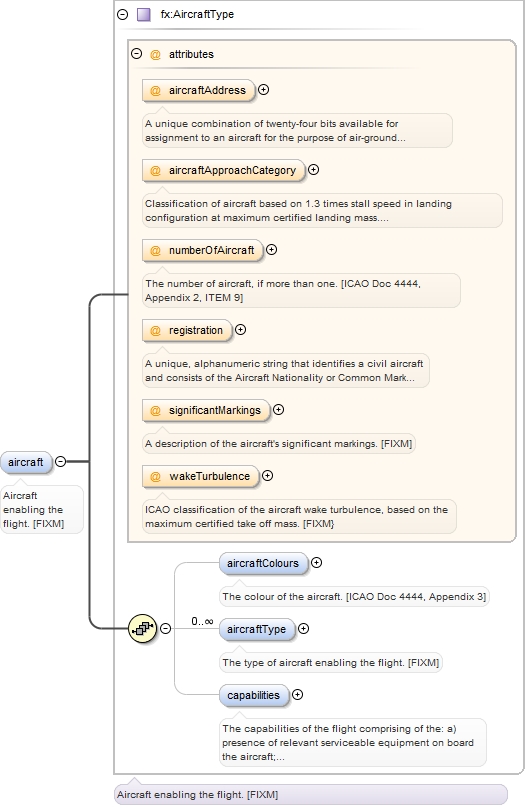

Aircraft enabling the flight. [FIXM]
Diagram
Diagram Aircraft_xsd.tmp#AircraftType_aircraftAddress Aircraft_xsd.tmp#AircraftType_aircraftApproachCategory Aircraft_xsd.tmp#AircraftType_numberOfAircraft Aircraft_xsd.tmp#AircraftType_registration Aircraft_xsd.tmp#AircraftType_significantMarkings Aircraft_xsd.tmp#AircraftType_wakeTurbulence Aircraft_xsd.tmp#AircraftType_aircraftColours Aircraft_xsd.tmp#AircraftType_aircraftType Aircraft_xsd.tmp#AircraftType_capabilities Aircraft_xsd.tmp#AircraftType
Type fx:AircraftType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:aircraftColours{0,1} , fx:aircraftType* , fx:capabilities{0,1}
Children fx:aircraftColours, fx:aircraftType, fx:capabilities
Instance

<fx:aircraft aircraftAddress="" aircraftApproachCategory="" numberOfAircraft="" registration="" significantMarkings="" wakeTurbulence="">
  <fx:aircraftColours>{0,1}</fx:aircraftColours>
  <fx:aircraftType numberOfAircraft="">{0,unbounded}</fx:aircraftType>
  <fx:capabilities standardCapabilities="">{0,1}</fx:capabilities>
</fx:aircraft>
Attributes
QName Type Fixed Default Use Annotation
aircraftAddress fx:AircraftAddressType optional
A unique combination of twenty-four bits available for assignment to an aircraft
for the purpose of air-ground communications, navigation and surveillance. [ICAO
Doc 4444]
aircraftApproachCategory fx:AircraftApproachCategoryType optional
Classification of aircraft based on 1.3 times stall speed in landing configuration
at maximum certified landing mass. [AIXM 5.1]
numberOfAircraft fb:CountType optional
The number of aircraft, if more than one. [ICAO Doc 4444, Appendix 2, ITEM 9]
registration fx:AircraftRegistrationType optional
A unique, alphanumeric string that identifies a civil aircraft and consists of the
Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration
mark, assigned by the state of registry or common mark registering authority. [FIXM]
significantMarkings fb:CharacterStringType optional
A description of the aircraft's significant markings. [FIXM]
wakeTurbulence fx:WakeTurbulenceCategoryType optional
ICAO classification of the aircraft wake turbulence, based on the maximum certified
take off mass. [FIXM}
Source

<element name="aircraft" type="fx:AircraftType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Aircraft enabling the flight. [FIXM]</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:arrival
Namespace http://www.fixm.aero/flight/4.0
Annotations

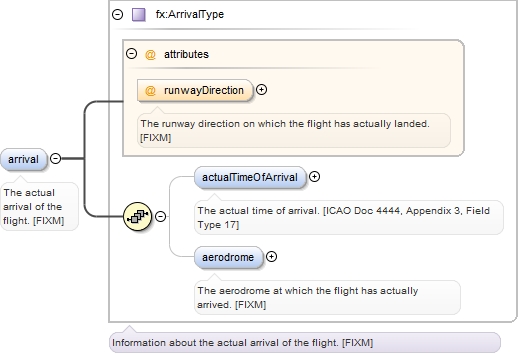

The actual arrival of the flight. [FIXM]
Diagram
Diagram Arrival_xsd.tmp#ArrivalType_runwayDirection Arrival_xsd.tmp#ArrivalType_actualTimeOfArrival Arrival_xsd.tmp#ArrivalType_aerodrome Arrival_xsd.tmp#ArrivalType
Type fx:ArrivalType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:actualTimeOfArrival{0,1} , fx:aerodrome{0,1}
Children fx:actualTimeOfArrival, fx:aerodrome
Instance

<fx:arrival runwayDirection="">
  <fx:actualTimeOfArrival timeReference="UTC">{0,1}</fx:actualTimeOfArrival>
  <fx:aerodrome>{0,1}</fx:aerodrome>
</fx:arrival>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction on which the flight has actually landed. [FIXM]
Source

<element name="arrival" type="fx:ArrivalType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The actual arrival of the flight. [FIXM]</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:current
Namespace http://www.fixm.aero/flight/4.0
Annotations

Represents the current flight plan concept described by EICAO PANS-ATM Doc 4444.
Diagram
Diagram RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_element RouteTrajectory_xsd.tmp#RouteTrajectoryType_routeInformation RouteTrajectory_xsd.tmp#RouteTrajectoryType_takeoffWeight RouteTrajectory_xsd.tmp#RouteTrajectoryType
Type fx:RouteTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:climbProfile{0,1} , fx:climbSchedule{0,1} , fx:descentProfile{0,1} , fx:descentSchedule{0,1} , fx:element* , fx:routeInformation{0,1} , fx:takeoffWeight{0,1}
Children fx:climbProfile, fx:climbSchedule, fx:descentProfile, fx:descentSchedule, fx:element, fx:routeInformation, fx:takeoffWeight
Instance

<fx:current>
  <fx:climbProfile>{0,1}</fx:climbProfile>
  <fx:climbSchedule>{0,1}</fx:climbSchedule>
  <fx:descentProfile>{0,1}</fx:descentProfile>
  <fx:descentSchedule>{0,1}</fx:descentSchedule>
  <fx:element flightRulesChange="" modified="" modifiedRouteItemReference="" routeTerminationIndicator="">{0,unbounded}</fx:element>
  <fx:routeInformation flightRulesCategory="" routeText="" totalEstimatedElapsedTime="">{0,1}</fx:routeInformation>
  <fx:takeoffWeight uom="">{0,1}</fx:takeoffWeight>
</fx:current>
Source

<element name="current" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Represents the current flight plan concept described by EICAO PANS-ATM Doc 4444.</documentation>
  </annotation>
</element>

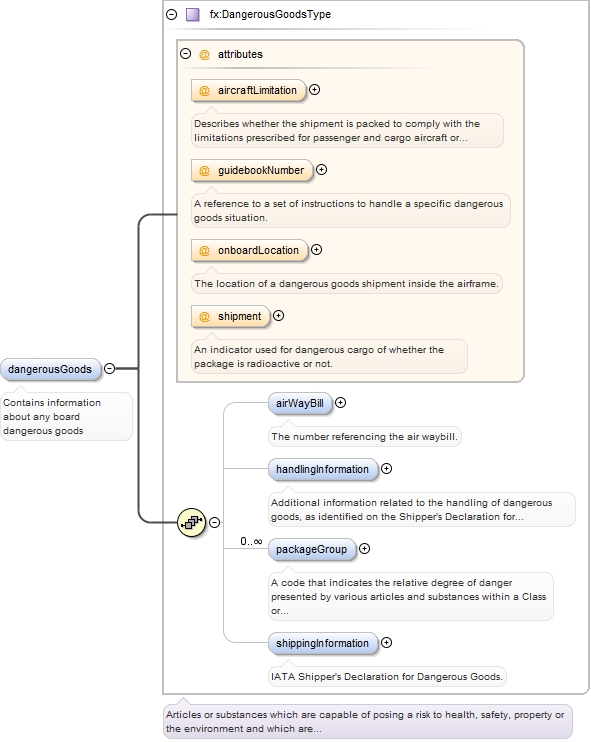

Element fx:FlightType / fx:dangerousGoods
Namespace http://www.fixm.aero/flight/4.0
Annotations

Contains information about any board dangerous goods
Diagram
Diagram DangerousGoods_xsd.tmp#DangerousGoodsType_aircraftLimitation DangerousGoods_xsd.tmp#DangerousGoodsType_guidebookNumber DangerousGoods_xsd.tmp#DangerousGoodsType_onboardLocation DangerousGoods_xsd.tmp#DangerousGoodsType_shipment DangerousGoods_xsd.tmp#DangerousGoodsType_airWayBill DangerousGoods_xsd.tmp#DangerousGoodsType_handlingInformation DangerousGoods_xsd.tmp#DangerousGoodsType_packageGroup DangerousGoods_xsd.tmp#DangerousGoodsType_shippingInformation DangerousGoods_xsd.tmp#DangerousGoodsType
Type fx:DangerousGoodsType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model fx:airWayBill{0,1} , fx:handlingInformation{0,1} , fx:packageGroup* , fx:shippingInformation{0,1}
Children fx:airWayBill, fx:handlingInformation, fx:packageGroup, fx:shippingInformation
Instance

<fx:dangerousGoods aircraftLimitation="" guidebookNumber="" onboardLocation="" shipment="">
  <fx:airWayBill airWaybillNumber="">{0,1}</fx:airWayBill>
  <fx:handlingInformation>{0,1}</fx:handlingInformation>
  <fx:packageGroup shipmentUseIndicator="">{0,unbounded}</fx:packageGroup>
  <fx:shippingInformation dangerousGoodsScreeningLocation="" departureCountry="" destinationCountry="" originCountry="" shipmentAuthorizations="" subsidiaryHazardClassAndDivision="" supplementaryInformation="">{0,1}</fx:shippingInformation>
</fx:dangerousGoods>
Attributes
QName Type Fixed Default Use Annotation
aircraftLimitation fx:AircraftDangerousGoodsLimitationType optional
Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
guidebookNumber restriction of fb:CharacterStringType optional
A reference to a set of instructions to handle a specific dangerous goods situation.
onboardLocation fb:CharacterStringType optional
The location of a dangerous goods shipment inside the airframe.
shipment fx:ShipmentTypeType optional
An indicator used for dangerous cargo of whether the package is radioactive or not.
Source

<element name="dangerousGoods" type="fx:DangerousGoodsType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Contains information about any board dangerous goods</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:departure
Namespace http://www.fixm.aero/flight/4.0
Annotations

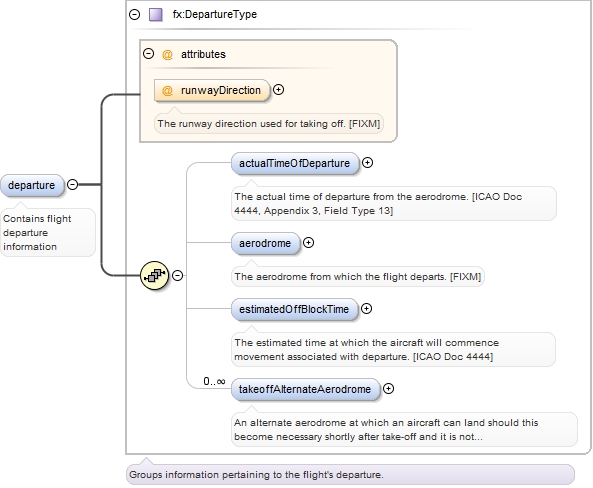

Contains flight departure information
Diagram
Diagram Departure_xsd.tmp#DepartureType_runwayDirection Departure_xsd.tmp#DepartureType_actualTimeOfDeparture Departure_xsd.tmp#DepartureType_aerodrome Departure_xsd.tmp#DepartureType_estimatedOffBlockTime Departure_xsd.tmp#DepartureType_takeoffAlternateAerodrome Departure_xsd.tmp#DepartureType
Type fx:DepartureType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:actualTimeOfDeparture{0,1} , fx:aerodrome{0,1} , fx:estimatedOffBlockTime{0,1} , fx:takeoffAlternateAerodrome*
Children fx:actualTimeOfDeparture, fx:aerodrome, fx:estimatedOffBlockTime, fx:takeoffAlternateAerodrome
Instance

<fx:departure runwayDirection="">
  <fx:actualTimeOfDeparture timeReference="UTC">{0,1}</fx:actualTimeOfDeparture>
  <fx:aerodrome>{0,1}</fx:aerodrome>
  <fx:estimatedOffBlockTime timeReference="UTC">{0,1}</fx:estimatedOffBlockTime>
  <fx:takeoffAlternateAerodrome>{0,unbounded}</fx:takeoffAlternateAerodrome>
</fx:departure>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction used for taking off. [FIXM]
Source

<element name="departure" type="fx:DepartureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Contains flight departure information</documentation>
  </annotation>
</element>

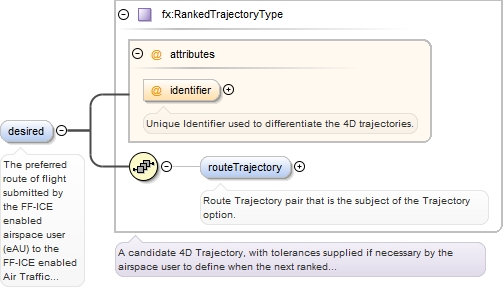

Element fx:FlightType / fx:desired
Namespace http://www.fixm.aero/flight/4.0
Annotations

The preferred route of flight submitted by the FF-ICE enabled airspace user (eAU)
to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to
required constraints.
This trajectory indicates the preferred 4D trajectory submitted by the FF-ICE enabled
airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers
(eASP) subject to required constraints.
Diagram
Diagram RankedTrajectory_xsd.tmp#RankedTrajectoryType_identifier RankedTrajectory_xsd.tmp#RankedTrajectoryType_routeTrajectory RankedTrajectory_xsd.tmp#RankedTrajectoryType
Type fx:RankedTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:routeTrajectory{0,1}
Children fx:routeTrajectory
Instance

<fx:desired identifier="">
  <fx:routeTrajectory>{0,1}</fx:routeTrajectory>
</fx:desired>
Attributes
QName Type Fixed Default Use Annotation
identifier restriction of fb:CharacterStringType optional
Unique Identifier used to differentiate the 4D trajectories.
Source

<element name="desired" type="fx:RankedTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The preferred route of flight submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints. This trajectory indicates the preferred 4D trajectory submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.</documentation>
  </annotation>
</element>

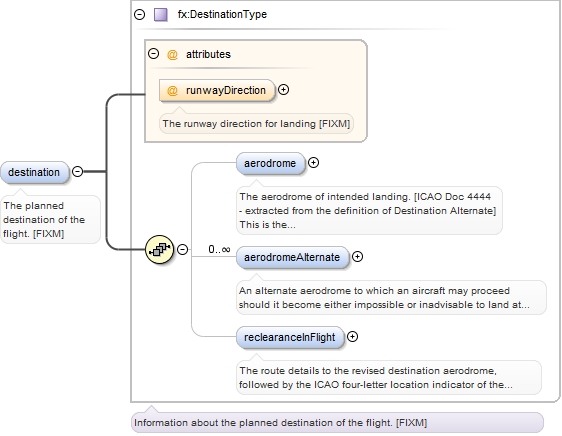

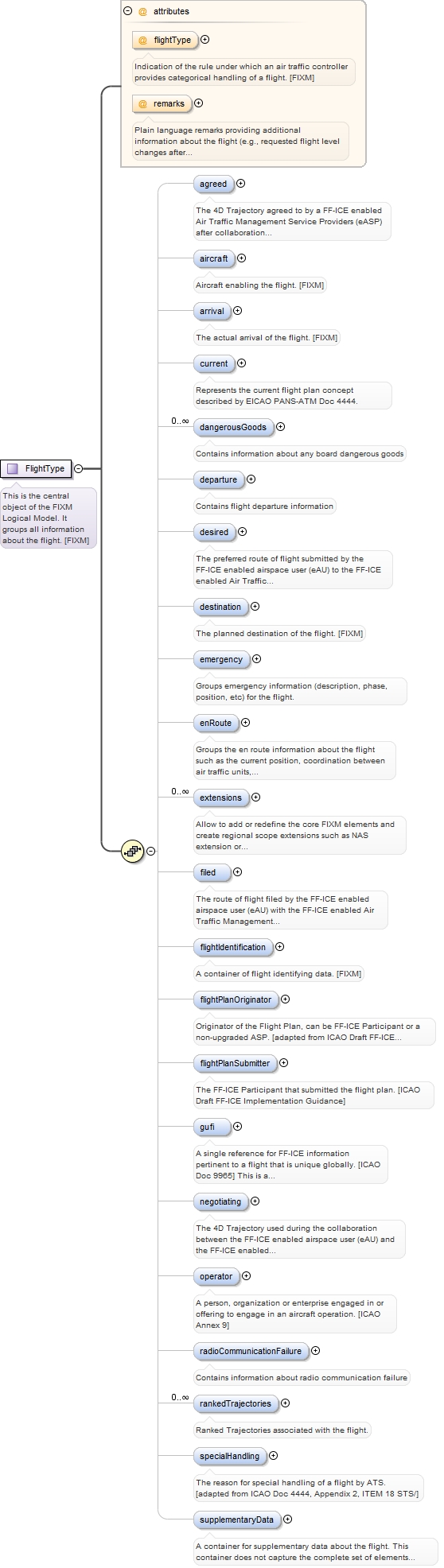

Element fx:FlightType / fx:destination
Namespace http://www.fixm.aero/flight/4.0
Annotations

The planned destination of the flight. [FIXM]
Diagram
Diagram Arrival_xsd.tmp#DestinationType_runwayDirection Arrival_xsd.tmp#DestinationType_aerodrome Arrival_xsd.tmp#DestinationType_aerodromeAlternate Arrival_xsd.tmp#DestinationType_reclearanceInFlight Arrival_xsd.tmp#DestinationType
Type fx:DestinationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:aerodrome{0,1} , fx:aerodromeAlternate* , fx:reclearanceInFlight{0,1}
Children fx:aerodrome, fx:aerodromeAlternate, fx:reclearanceInFlight
Instance

<fx:destination runwayDirection="">
  <fx:aerodrome>{0,1}</fx:aerodrome>
  <fx:aerodromeAlternate>{0,unbounded}</fx:aerodromeAlternate>
  <fx:reclearanceInFlight routeToRevisedDestination="">{0,1}</fx:reclearanceInFlight>
</fx:destination>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction for landing [FIXM]
Source

<element name="destination" type="fx:DestinationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The planned destination of the flight. [FIXM]</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:emergency
Namespace http://www.fixm.aero/flight/4.0
Annotations

Groups emergency information (description, phase, position, etc) for the flight.
Diagram
Diagram Emergency_xsd.tmp#FlightEmergencyType_actionTaken Emergency_xsd.tmp#FlightEmergencyType_emergencyDescription Emergency_xsd.tmp#FlightEmergencyType_otherInformation Emergency_xsd.tmp#FlightEmergencyType_phase Emergency_xsd.tmp#FlightEmergencyType_lastContact Emergency_xsd.tmp#FlightEmergencyType_originator Emergency_xsd.tmp#FlightEmergencyType
Type fx:FlightEmergencyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:lastContact{0,1} , fx:originator{0,1}
Children fx:lastContact, fx:originator
Instance

<fx:emergency actionTaken="" emergencyDescription="" otherInformation="" phase="">
  <fx:lastContact lastContactUnit="">{0,1}</fx:lastContact>
  <fx:originator controlSectorDesignator="" locationIndicator="">{0,1}</fx:originator>
</fx:emergency>
Attributes
QName Type Fixed Default Use Annotation
actionTaken fb:CharacterStringType optional
A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
emergencyDescription fb:CharacterStringType optional
A short, plain-language description of the nature of the emergency.
otherInformation fb:CharacterStringType optional
Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.
phase fx:EmergencyPhaseType optional
A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Source

<element name="emergency" type="fx:FlightEmergencyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Groups emergency information (description, phase, position, etc) for the flight.</documentation>
  </annotation>
</element>

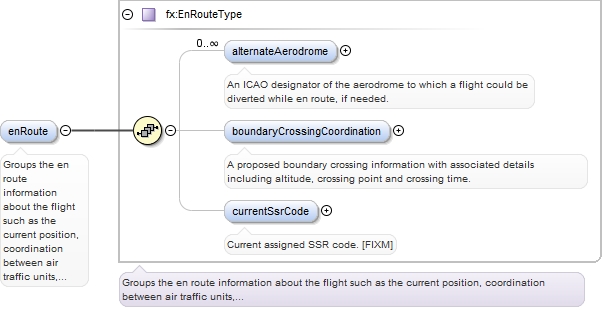

Element fx:FlightType / fx:enRoute
Namespace http://www.fixm.aero/flight/4.0
Annotations

Groups the en route information about the flight such as the current position, coordination
between air traffic units, and boundary crossing throughout the duration of the flight.
Diagram
Diagram EnRoute_xsd.tmp#EnRouteType_alternateAerodrome EnRoute_xsd.tmp#EnRouteType_boundaryCrossingCoordination EnRoute_xsd.tmp#EnRouteType_currentSsrCode EnRoute_xsd.tmp#EnRouteType
Type fx:EnRouteType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:alternateAerodrome* , fx:boundaryCrossingCoordination{0,1} , fx:currentSsrCode{0,1}
Children fx:alternateAerodrome, fx:boundaryCrossingCoordination, fx:currentSsrCode
Instance

<fx:enRoute>
  <fx:alternateAerodrome>{0,unbounded}</fx:alternateAerodrome>
  <fx:boundaryCrossingCoordination>{0,1}</fx:boundaryCrossingCoordination>
  <fx:currentSsrCode ssrMode="">{0,1}</fx:currentSsrCode>
</fx:enRoute>
Source

<element name="enRoute" type="fx:EnRouteType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Groups the en route information about the flight such as the current position, coordination between air traffic units, and boundary crossing throughout the duration of the flight.</documentation>
  </annotation>
</element>

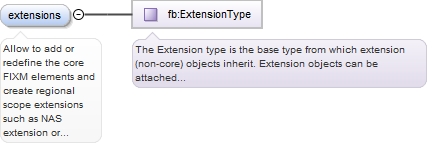

Element fx:FlightType / fx:extensions
Namespace http://www.fixm.aero/flight/4.0
Annotations

Allow to add or redefine the core FIXM elements and create regional scope extensions
such as NAS extension or Eurocontrol extension. This approach is not recommended,
however as the preferred method is to extend individual classes and replace the core
classes where appropriate as described in the FIXM Modeling Best Practices Guide.
Diagram
Diagram Extension_xsd.tmp#ExtensionType
Type fb:ExtensionType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Source

<element name="extensions" type="fb:ExtensionType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Allow to add or redefine the core FIXM elements and create regional scope extensions such as NAS extension or Eurocontrol extension. This approach is not recommended, however as the preferred method is to extend individual classes and replace the core classes where appropriate as described in the FIXM Modeling Best Practices Guide.</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:filed
Namespace http://www.fixm.aero/flight/4.0
Annotations

The route of flight filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE
enabled Air Traffic Management Service Providers (eASP).
This trajectory expresses the 4D trajectory filed by the FF-ICE enabled airspace
user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
Diagram
Diagram RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_element RouteTrajectory_xsd.tmp#RouteTrajectoryType_routeInformation RouteTrajectory_xsd.tmp#RouteTrajectoryType_takeoffWeight RouteTrajectory_xsd.tmp#RouteTrajectoryType
Type fx:RouteTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:climbProfile{0,1} , fx:climbSchedule{0,1} , fx:descentProfile{0,1} , fx:descentSchedule{0,1} , fx:element* , fx:routeInformation{0,1} , fx:takeoffWeight{0,1}
Children fx:climbProfile, fx:climbSchedule, fx:descentProfile, fx:descentSchedule, fx:element, fx:routeInformation, fx:takeoffWeight
Instance

<fx:filed>
  <fx:climbProfile>{0,1}</fx:climbProfile>
  <fx:climbSchedule>{0,1}</fx:climbSchedule>
  <fx:descentProfile>{0,1}</fx:descentProfile>
  <fx:descentSchedule>{0,1}</fx:descentSchedule>
  <fx:element flightRulesChange="" modified="" modifiedRouteItemReference="" routeTerminationIndicator="">{0,unbounded}</fx:element>
  <fx:routeInformation flightRulesCategory="" routeText="" totalEstimatedElapsedTime="">{0,1}</fx:routeInformation>
  <fx:takeoffWeight uom="">{0,1}</fx:takeoffWeight>
</fx:filed>
Source

<element name="filed" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The route of flight filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP). This trajectory expresses the 4D trajectory filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).</documentation>
  </annotation>
</element>

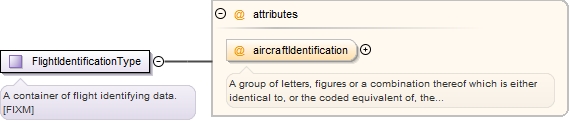

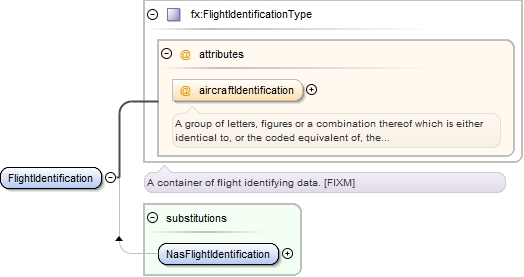

Element fx:FlightType / fx:flightIdentification
Namespace http://www.fixm.aero/flight/4.0
Annotations

A container of flight identifying data. [FIXM]
Diagram
Diagram FlightData_xsd.tmp#FlightIdentificationType_aircraftIdentification FlightData_xsd.tmp#FlightIdentificationType
Type fx:FlightIdentificationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
aircraftIdentification fb:AircraftIdentificationType optional
A group of letters, figures or a combination thereof which is either identical to,
or the coded equivalent of, the aircraft call sign to be used in air-ground communications,
and which is used to identify the aircraft in ground-ground air traffic services
communications. [ICAO Doc 4444]
Source

<element name="flightIdentification" type="fx:FlightIdentificationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A container of flight identifying data. [FIXM]</documentation>
  </annotation>
</element>

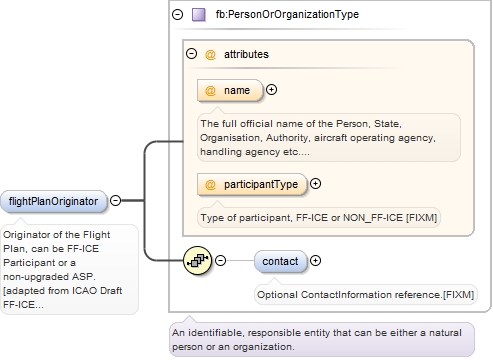

Element fx:FlightType / fx:flightPlanOriginator
Namespace http://www.fixm.aero/flight/4.0
Annotations

Originator of the Flight Plan, can be FF-ICE Participant or a non-upgraded ASP. [adapted
from ICAO Draft FF-ICE Implementation Guidance] Equivalent to ATS 18 ORGN/.
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:contact{0,1}
Children fb:contact
Instance

<fx:flightPlanOriginator name="" participantType="">
  <fb:contact name="" title="">{0,1}</fb:contact>
</fx:flightPlanOriginator>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="flightPlanOriginator" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Originator of the Flight Plan, can be FF-ICE Participant or a non-upgraded ASP. [adapted from ICAO Draft FF-ICE Implementation Guidance] Equivalent to ATS 18 ORGN/.</documentation>
  </annotation>
</element>

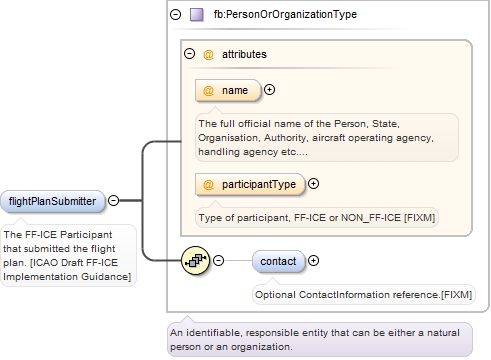

Element fx:FlightType / fx:flightPlanSubmitter
Namespace http://www.fixm.aero/flight/4.0
Annotations

The FF-ICE Participant that submitted the flight plan. [ICAO Draft FF-ICE Implementation
Guidance]
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:contact{0,1}
Children fb:contact
Instance

<fx:flightPlanSubmitter name="" participantType="">
  <fb:contact name="" title="">{0,1}</fb:contact>
</fx:flightPlanSubmitter>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="flightPlanSubmitter" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The FF-ICE Participant that submitted the flight plan. [ICAO Draft FF-ICE Implementation Guidance]</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:gufi
Namespace http://www.fixm.aero/flight/4.0
Annotations

A single reference for FF-ICE information pertinent to a flight that is unique globally.
[ICAO Doc 9965]
This is a reference that uniquely identifies a specific flight and is independent
of any particular system. [FIXM]
Diagram
Diagram Types_xsd.tmp#RestrictedGloballyUniqueFlightIdentifierType Types_xsd.tmp#GloballyUniqueFlightIdentifierType_codeSpace Types_xsd.tmp#GloballyUniqueFlightIdentifierType
Type fb:GloballyUniqueFlightIdentifierType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace string urn:uuid required
Code Space of the GUFI
Source

<element name="gufi" type="fb:GloballyUniqueFlightIdentifierType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A single reference for FF-ICE information pertinent to a flight that is unique globally. [ICAO Doc 9965] This is a reference that uniquely identifies a specific flight and is independent of any particular system. [FIXM]</documentation>
  </annotation>
</element>

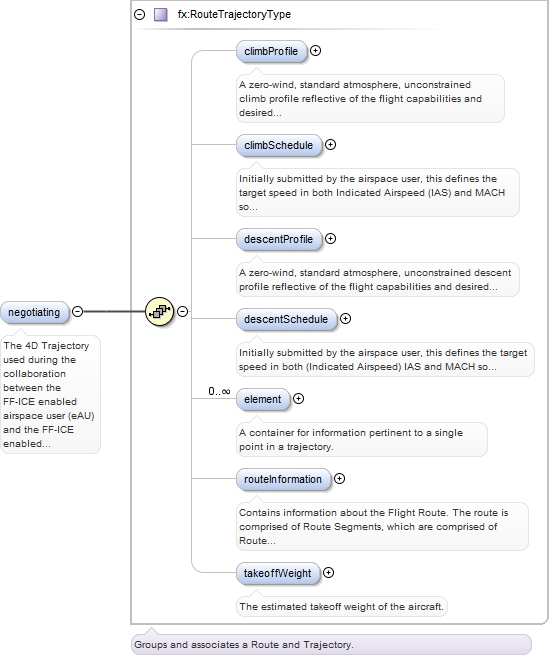

Element fx:FlightType / fx:negotiating
Namespace http://www.fixm.aero/flight/4.0
Annotations

The 4D Trajectory used during the collaboration between the FF-ICE enabled airspace
user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP)
in order to agree on a 4D trajectory. This trajectory is intended to be transitory.

This Route is used during collaboration between the FF-ICE enabled airspace user
(eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order
to agree on a route. This route field is intended to be transitory.
Diagram
Diagram RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_element RouteTrajectory_xsd.tmp#RouteTrajectoryType_routeInformation RouteTrajectory_xsd.tmp#RouteTrajectoryType_takeoffWeight RouteTrajectory_xsd.tmp#RouteTrajectoryType
Type fx:RouteTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:climbProfile{0,1} , fx:climbSchedule{0,1} , fx:descentProfile{0,1} , fx:descentSchedule{0,1} , fx:element* , fx:routeInformation{0,1} , fx:takeoffWeight{0,1}
Children fx:climbProfile, fx:climbSchedule, fx:descentProfile, fx:descentSchedule, fx:element, fx:routeInformation, fx:takeoffWeight
Instance

<fx:negotiating>
  <fx:climbProfile>{0,1}</fx:climbProfile>
  <fx:climbSchedule>{0,1}</fx:climbSchedule>
  <fx:descentProfile>{0,1}</fx:descentProfile>
  <fx:descentSchedule>{0,1}</fx:descentSchedule>
  <fx:element flightRulesChange="" modified="" modifiedRouteItemReference="" routeTerminationIndicator="">{0,unbounded}</fx:element>
  <fx:routeInformation flightRulesCategory="" routeText="" totalEstimatedElapsedTime="">{0,1}</fx:routeInformation>
  <fx:takeoffWeight uom="">{0,1}</fx:takeoffWeight>
</fx:negotiating>
Source

<element name="negotiating" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The 4D Trajectory used during the collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a 4D trajectory. This trajectory is intended to be transitory. This Route is used during collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a route. This route field is intended to be transitory.</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:operator
Namespace http://www.fixm.aero/flight/4.0
Annotations

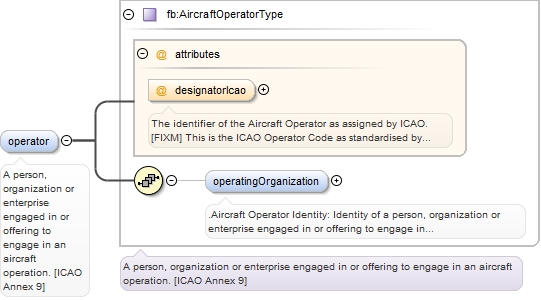

A person, organization or enterprise engaged in or offering to engage in an aircraft
operation. [ICAO Annex 9]
Diagram
Diagram Organization_xsd.tmp#AircraftOperatorType_designatorIcao Organization_xsd.tmp#AircraftOperatorType_operatingOrganization Organization_xsd.tmp#AircraftOperatorType
Type fb:AircraftOperatorType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:operatingOrganization{0,1}
Children fb:operatingOrganization
Instance

<fx:operator designatorIcao="">
  <fb:operatingOrganization name="" participantType="">{0,1}</fb:operatingOrganization>
</fx:operator>
Attributes
QName Type Fixed Default Use Annotation
designatorIcao fb:AircraftOperatorDesignatorType optional
The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Source

<element name="operator" type="fb:AircraftOperatorType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A person, organization or enterprise engaged in or offering to engage in an aircraft operation. [ICAO Annex 9]</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:radioCommunicationFailure
Namespace http://www.fixm.aero/flight/4.0
Annotations

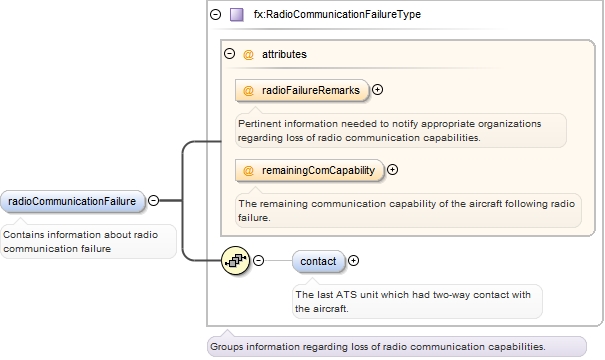

Contains information about radio communication failure
Diagram
Diagram Emergency_xsd.tmp#RadioCommunicationFailureType_radioFailureRemarks Emergency_xsd.tmp#RadioCommunicationFailureType_remainingComCapability Emergency_xsd.tmp#RadioCommunicationFailureType_contact Emergency_xsd.tmp#RadioCommunicationFailureType
Type fx:RadioCommunicationFailureType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:contact{0,1}
Children fx:contact
Instance

<fx:radioCommunicationFailure radioFailureRemarks="" remainingComCapability="">
  <fx:contact lastContactUnit="">{0,1}</fx:contact>
</fx:radioCommunicationFailure>
Attributes
QName Type Fixed Default Use Annotation
radioFailureRemarks fb:CharacterStringType optional
Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
remainingComCapability fb:CharacterStringType optional
The remaining communication capability of the aircraft following radio failure.
Source

<element name="radioCommunicationFailure" type="fx:RadioCommunicationFailureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Contains information about radio communication failure</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:rankedTrajectories
Namespace http://www.fixm.aero/flight/4.0
Annotations

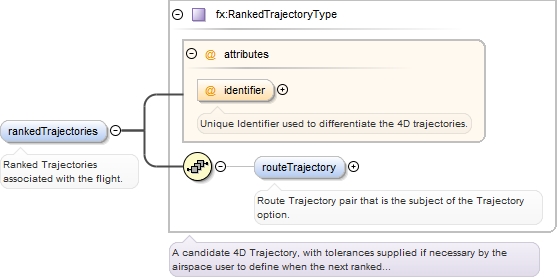

Ranked Trajectories associated with the flight.
Diagram
Diagram RankedTrajectory_xsd.tmp#RankedTrajectoryType_identifier RankedTrajectory_xsd.tmp#RankedTrajectoryType_routeTrajectory RankedTrajectory_xsd.tmp#RankedTrajectoryType
Type fx:RankedTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model fx:routeTrajectory{0,1}
Children fx:routeTrajectory
Instance

<fx:rankedTrajectories identifier="">
  <fx:routeTrajectory>{0,1}</fx:routeTrajectory>
</fx:rankedTrajectories>
Attributes
QName Type Fixed Default Use Annotation
identifier restriction of fb:CharacterStringType optional
Unique Identifier used to differentiate the 4D trajectories.
Source

<element name="rankedTrajectories" type="fx:RankedTrajectoryType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Ranked Trajectories associated with the flight.</documentation>
  </annotation>
</element>
Element fx:FlightType / fx:specialHandling
Namespace http://www.fixm.aero/flight/4.0
Annotations

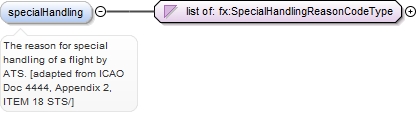

The reason for special handling of a flight by ATS. [adapted from ICAO Doc 4444,
Appendix 2, ITEM 18 STS/]
Diagram
Diagram
Type list of fx:SpecialHandlingReasonCodeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="specialHandling" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The reason for special handling of a flight by ATS. [adapted from ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
  </annotation>
  <simpleType>
    <list itemType="fx:SpecialHandlingReasonCodeType"/>
  </simpleType>
</element>
Element fx:FlightType / fx:supplementaryData
Namespace http://www.fixm.aero/flight/4.0
Annotations

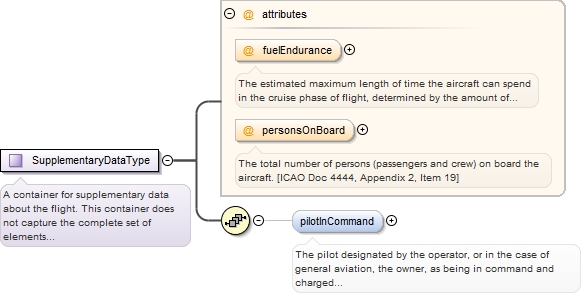

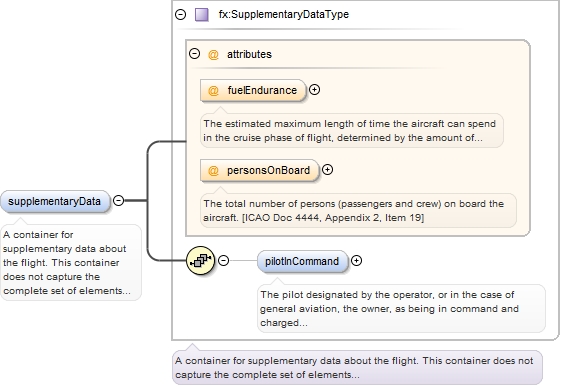

A container for supplementary data about the flight. This container does not capture
the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information";
it only contains those elements that could not be modeled more logically in other
FIXM structures. [FIXM]
Diagram
Diagram FlightData_xsd.tmp#SupplementaryDataType_fuelEndurance FlightData_xsd.tmp#SupplementaryDataType_personsOnBoard FlightData_xsd.tmp#SupplementaryDataType_pilotInCommand FlightData_xsd.tmp#SupplementaryDataType
Type fx:SupplementaryDataType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:pilotInCommand{0,1}
Children fx:pilotInCommand
Instance

<fx:supplementaryData fuelEndurance="" personsOnBoard="">
  <fx:pilotInCommand name="" participantType="">{0,1}</fx:pilotInCommand>
</fx:supplementaryData>
Attributes
QName Type Fixed Default Use Annotation
fuelEndurance fb:DurationType optional
The estimated maximum length of time the aircraft can spend in the cruise phase of
flight, determined by the amount of fuel at takeoff. [FIXM]
personsOnBoard fb:CountType optional
The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc
4444, Appendix 2, Item 19]
Source

<element name="supplementaryData" type="fx:SupplementaryDataType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A container for supplementary data about the flight. This container does not capture the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information"; it only contains those elements that could not be modeled more logically in other FIXM structures. [FIXM]</documentation>
  </annotation>
</element>
Element fx:SupplementaryDataType / fx:pilotInCommand
Namespace http://www.fixm.aero/flight/4.0
Annotations

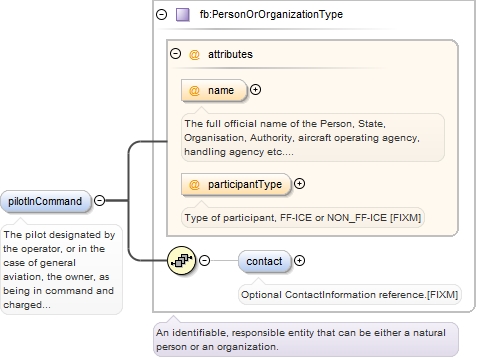

The pilot designated by the operator, or in the case of general aviation, the owner,
as being in command and charged with the safe conduct of a flight. [ICAO Doc 4444]
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:contact{0,1}
Children fb:contact
Instance

<fx:pilotInCommand name="" participantType="">
  <fb:contact name="" title="">{0,1}</fb:contact>
</fx:pilotInCommand>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="pilotInCommand" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The pilot designated by the operator, or in the case of general aviation, the owner, as being in command and charged with the safe conduct of a flight. [ICAO Doc 4444]</documentation>
  </annotation>
</element>
Element fx:Flight
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram FlightData_xsd.tmp#FlightType_flightType FlightData_xsd.tmp#FlightType_remarks FlightData_xsd.tmp#FlightType_agreed FlightData_xsd.tmp#FlightType_aircraft FlightData_xsd.tmp#FlightType_arrival FlightData_xsd.tmp#FlightType_current FlightData_xsd.tmp#FlightType_dangerousGoods FlightData_xsd.tmp#FlightType_departure FlightData_xsd.tmp#FlightType_desired FlightData_xsd.tmp#FlightType_destination FlightData_xsd.tmp#FlightType_emergency FlightData_xsd.tmp#FlightType_enRoute FlightData_xsd.tmp#FlightType_extensions FlightData_xsd.tmp#FlightType_filed FlightData_xsd.tmp#FlightType_flightIdentification FlightData_xsd.tmp#FlightType_flightPlanOriginator FlightData_xsd.tmp#FlightType_flightPlanSubmitter FlightData_xsd.tmp#FlightType_gufi FlightData_xsd.tmp#FlightType_negotiating FlightData_xsd.tmp#FlightType_operator FlightData_xsd.tmp#FlightType_radioCommunicationFailure FlightData_xsd.tmp#FlightType_rankedTrajectories FlightData_xsd.tmp#FlightType_specialHandling FlightData_xsd.tmp#FlightType_supplementaryData FlightData_xsd.tmp#FlightType NasFlightData_xsd.tmp#NasFlight NasTfdm_xsd.tmp#TfdmFlight
Type fx:FlightType
Properties
content: complex
Substitution Group
Model fx:agreed{0,1} , fx:aircraft{0,1} , fx:arrival{0,1} , fx:current{0,1} , fx:dangerousGoods* , fx:departure{0,1} , fx:desired{0,1} , fx:destination{0,1} , fx:emergency{0,1} , fx:enRoute{0,1} , fx:extensions* , fx:filed{0,1} , fx:flightIdentification{0,1} , fx:flightPlanOriginator{0,1} , fx:flightPlanSubmitter{0,1} , fx:gufi{0,1} , fx:negotiating{0,1} , fx:operator{0,1} , fx:radioCommunicationFailure{0,1} , fx:rankedTrajectories* , fx:specialHandling{0,1} , fx:supplementaryData{0,1}
Children fx:agreed, fx:aircraft, fx:arrival, fx:current, fx:dangerousGoods, fx:departure, fx:desired, fx:destination, fx:emergency, fx:enRoute, fx:extensions, fx:filed, fx:flightIdentification, fx:flightPlanOriginator, fx:flightPlanSubmitter, fx:gufi, fx:negotiating, fx:operator, fx:radioCommunicationFailure, fx:rankedTrajectories, fx:specialHandling, fx:supplementaryData
Instance

<fx:Flight flightType="" remarks="">
  <fx:agreed>{0,1}</fx:agreed>
  <fx:aircraft aircraftAddress="" aircraftApproachCategory="" numberOfAircraft="" registration="" significantMarkings="" wakeTurbulence="">{0,1}</fx:aircraft>
  <fx:arrival runwayDirection="">{0,1}</fx:arrival>
  <fx:current>{0,1}</fx:current>
  <fx:dangerousGoods aircraftLimitation="" guidebookNumber="" onboardLocation="" shipment="">{0,unbounded}</fx:dangerousGoods>
  <fx:departure runwayDirection="">{0,1}</fx:departure>
  <fx:desired identifier="">{0,1}</fx:desired>
  <fx:destination runwayDirection="">{0,1}</fx:destination>
  <fx:emergency actionTaken="" emergencyDescription="" otherInformation="" phase="">{0,1}</fx:emergency>
  <fx:enRoute>{0,1}</fx:enRoute>
  <fx:extensions>{0,unbounded}</fx:extensions>
  <fx:filed>{0,1}</fx:filed>
  <fx:flightIdentification aircraftIdentification="">{0,1}</fx:flightIdentification>
  <fx:flightPlanOriginator name="" participantType="">{0,1}</fx:flightPlanOriginator>
  <fx:flightPlanSubmitter name="" participantType="">{0,1}</fx:flightPlanSubmitter>
  <fx:gufi codeSpace="urn:uuid">{0,1}</fx:gufi>
  <fx:negotiating>{0,1}</fx:negotiating>
  <fx:operator designatorIcao="">{0,1}</fx:operator>
  <fx:radioCommunicationFailure radioFailureRemarks="" remainingComCapability="">{0,1}</fx:radioCommunicationFailure>
  <fx:rankedTrajectories identifier="">{0,unbounded}</fx:rankedTrajectories>
  <fx:specialHandling>{0,1}</fx:specialHandling>
  <fx:supplementaryData fuelEndurance="" personsOnBoard="">{0,1}</fx:supplementaryData>
</fx:Flight>
Attributes
QName Type Fixed Default Use Annotation
flightType fx:TypeOfFlightType optional
Indication of the rule under which an air traffic controller provides categorical
handling of a flight. [FIXM]
remarks fb:CharacterStringType optional
Plain language remarks providing additional information about the flight (e.g., requested
flight level changes after takeoff).
Source

<element name="Flight" type="fx:FlightType"/>
Element fx:FlightIdentification
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram FlightData_xsd.tmp#FlightIdentificationType_aircraftIdentification FlightData_xsd.tmp#FlightIdentificationType NasFlightData_xsd.tmp#NasFlightIdentification
Type fx:FlightIdentificationType
Properties
content: complex
Substitution Group
Attributes
QName Type Fixed Default Use Annotation
aircraftIdentification fb:AircraftIdentificationType optional
A group of letters, figures or a combination thereof which is either identical to,
or the coded equivalent of, the aircraft call sign to be used in air-ground communications,
and which is used to identify the aircraft in ground-ground air traffic services
communications. [ICAO Doc 4444]
Source

<element name="FlightIdentification" type="fx:FlightIdentificationType"/>
Element fx:SupplementaryData
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram FlightData_xsd.tmp#SupplementaryDataType_fuelEndurance FlightData_xsd.tmp#SupplementaryDataType_personsOnBoard FlightData_xsd.tmp#SupplementaryDataType_pilotInCommand FlightData_xsd.tmp#SupplementaryDataType
Type fx:SupplementaryDataType
Properties
content: complex
Model fx:pilotInCommand{0,1}
Children fx:pilotInCommand
Instance

<fx:SupplementaryData fuelEndurance="" personsOnBoard="">
  <fx:pilotInCommand name="" participantType="">{0,1}</fx:pilotInCommand>
</fx:SupplementaryData>
Attributes
QName Type Fixed Default Use Annotation
fuelEndurance fb:DurationType optional
The estimated maximum length of time the aircraft can spend in the cruise phase of
flight, determined by the amount of fuel at takeoff. [FIXM]
personsOnBoard fb:CountType optional
The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc
4444, Appendix 2, Item 19]
Source

<element name="SupplementaryData" type="fx:SupplementaryDataType"/>
Complex Type fx:FlightType
Namespace http://www.fixm.aero/flight/4.0
Annotations

This is the central object of the FIXM Logical Model. It groups all information about
the flight. [FIXM]
Diagram
Diagram FlightData_xsd.tmp#FlightType_flightType FlightData_xsd.tmp#FlightType_remarks FlightData_xsd.tmp#FlightType_agreed FlightData_xsd.tmp#FlightType_aircraft FlightData_xsd.tmp#FlightType_arrival FlightData_xsd.tmp#FlightType_current FlightData_xsd.tmp#FlightType_dangerousGoods FlightData_xsd.tmp#FlightType_departure FlightData_xsd.tmp#FlightType_desired FlightData_xsd.tmp#FlightType_destination FlightData_xsd.tmp#FlightType_emergency FlightData_xsd.tmp#FlightType_enRoute FlightData_xsd.tmp#FlightType_extensions FlightData_xsd.tmp#FlightType_filed FlightData_xsd.tmp#FlightType_flightIdentification FlightData_xsd.tmp#FlightType_flightPlanOriginator FlightData_xsd.tmp#FlightType_flightPlanSubmitter FlightData_xsd.tmp#FlightType_gufi FlightData_xsd.tmp#FlightType_negotiating FlightData_xsd.tmp#FlightType_operator FlightData_xsd.tmp#FlightType_radioCommunicationFailure FlightData_xsd.tmp#FlightType_rankedTrajectories FlightData_xsd.tmp#FlightType_specialHandling FlightData_xsd.tmp#FlightType_supplementaryData
Used by
Model fx:agreed{0,1} , fx:aircraft{0,1} , fx:arrival{0,1} , fx:current{0,1} , fx:dangerousGoods* , fx:departure{0,1} , fx:desired{0,1} , fx:destination{0,1} , fx:emergency{0,1} , fx:enRoute{0,1} , fx:extensions* , fx:filed{0,1} , fx:flightIdentification{0,1} , fx:flightPlanOriginator{0,1} , fx:flightPlanSubmitter{0,1} , fx:gufi{0,1} , fx:negotiating{0,1} , fx:operator{0,1} , fx:radioCommunicationFailure{0,1} , fx:rankedTrajectories* , fx:specialHandling{0,1} , fx:supplementaryData{0,1}
Children fx:agreed, fx:aircraft, fx:arrival, fx:current, fx:dangerousGoods, fx:departure, fx:desired, fx:destination, fx:emergency, fx:enRoute, fx:extensions, fx:filed, fx:flightIdentification, fx:flightPlanOriginator, fx:flightPlanSubmitter, fx:gufi, fx:negotiating, fx:operator, fx:radioCommunicationFailure, fx:rankedTrajectories, fx:specialHandling, fx:supplementaryData
Attributes
QName Type Fixed Default Use Annotation
flightType fx:TypeOfFlightType optional
Indication of the rule under which an air traffic controller provides categorical
handling of a flight. [FIXM]
remarks fb:CharacterStringType optional
Plain language remarks providing additional information about the flight (e.g., requested
flight level changes after takeoff).
Source

<complexType name="FlightType">
  <annotation>
    <documentation>This is the central object of the FIXM Logical Model. It groups all information about the flight. [FIXM]</documentation>
  </annotation>
  <sequence>
    <element name="agreed" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The 4D Trajectory agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP. The route of flight agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.</documentation>
      </annotation>
    </element>
    <element name="aircraft" type="fx:AircraftType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Aircraft enabling the flight. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="arrival" type="fx:ArrivalType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The actual arrival of the flight. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="current" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Represents the current flight plan concept described by EICAO PANS-ATM Doc 4444.</documentation>
      </annotation>
    </element>
    <element name="dangerousGoods" type="fx:DangerousGoodsType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>Contains information about any board dangerous goods</documentation>
      </annotation>
    </element>
    <element name="departure" type="fx:DepartureType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Contains flight departure information</documentation>
      </annotation>
    </element>
    <element name="desired" type="fx:RankedTrajectoryType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The preferred route of flight submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints. This trajectory indicates the preferred 4D trajectory submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.</documentation>
      </annotation>
    </element>
    <element name="destination" type="fx:DestinationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The planned destination of the flight. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="emergency" type="fx:FlightEmergencyType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Groups emergency information (description, phase, position, etc) for the flight.</documentation>
      </annotation>
    </element>
    <element name="enRoute" type="fx:EnRouteType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Groups the en route information about the flight such as the current position, coordination between air traffic units, and boundary crossing throughout the duration of the flight.</documentation>
      </annotation>
    </element>
    <element name="extensions" type="fb:ExtensionType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>Allow to add or redefine the core FIXM elements and create regional scope extensions such as NAS extension or Eurocontrol extension. This approach is not recommended, however as the preferred method is to extend individual classes and replace the core classes where appropriate as described in the FIXM Modeling Best Practices Guide.</documentation>
      </annotation>
    </element>
    <element name="filed" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The route of flight filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP). This trajectory expresses the 4D trajectory filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).</documentation>
      </annotation>
    </element>
    <element name="flightIdentification" type="fx:FlightIdentificationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A container of flight identifying data. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="flightPlanOriginator" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Originator of the Flight Plan, can be FF-ICE Participant or a non-upgraded ASP. [adapted from ICAO Draft FF-ICE Implementation Guidance] Equivalent to ATS 18 ORGN/.</documentation>
      </annotation>
    </element>
    <element name="flightPlanSubmitter" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The FF-ICE Participant that submitted the flight plan. [ICAO Draft FF-ICE Implementation Guidance]</documentation>
      </annotation>
    </element>
    <element name="gufi" type="fb:GloballyUniqueFlightIdentifierType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A single reference for FF-ICE information pertinent to a flight that is unique globally. [ICAO Doc 9965] This is a reference that uniquely identifies a specific flight and is independent of any particular system. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="negotiating" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The 4D Trajectory used during the collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a 4D trajectory. This trajectory is intended to be transitory. This Route is used during collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a route. This route field is intended to be transitory.</documentation>
      </annotation>
    </element>
    <element name="operator" type="fb:AircraftOperatorType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A person, organization or enterprise engaged in or offering to engage in an aircraft operation. [ICAO Annex 9]</documentation>
      </annotation>
    </element>
    <element name="radioCommunicationFailure" type="fx:RadioCommunicationFailureType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Contains information about radio communication failure</documentation>
      </annotation>
    </element>
    <element name="rankedTrajectories" type="fx:RankedTrajectoryType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>Ranked Trajectories associated with the flight.</documentation>
      </annotation>
    </element>
    <element name="specialHandling" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The reason for special handling of a flight by ATS. [adapted from ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
      <simpleType>
        <list itemType="fx:SpecialHandlingReasonCodeType"/>
      </simpleType>
    </element>
    <element name="supplementaryData" type="fx:SupplementaryDataType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A container for supplementary data about the flight. This container does not capture the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information"; it only contains those elements that could not be modeled more logically in other FIXM structures. [FIXM]</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="flightType" type="fx:TypeOfFlightType" use="optional">
    <annotation>
      <documentation>Indication of the rule under which an air traffic controller provides categorical handling of a flight. [FIXM]</documentation>
    </annotation>
  </attribute>
  <attribute name="remarks" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Plain language remarks providing additional information about the flight (e.g., requested flight level changes after takeoff).</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:FlightIdentificationType
Namespace http://www.fixm.aero/flight/4.0
Annotations

A container of flight identifying data. [FIXM]
Diagram
Diagram FlightData_xsd.tmp#FlightIdentificationType_aircraftIdentification
Used by
Attributes
QName Type Fixed Default Use Annotation
aircraftIdentification fb:AircraftIdentificationType optional
A group of letters, figures or a combination thereof which is either identical to,
or the coded equivalent of, the aircraft call sign to be used in air-ground communications,
and which is used to identify the aircraft in ground-ground air traffic services
communications. [ICAO Doc 4444]
Source

<complexType name="FlightIdentificationType">
  <annotation>
    <documentation>A container of flight identifying data. [FIXM]</documentation>
  </annotation>
  <attribute name="aircraftIdentification" type="fb:AircraftIdentificationType" use="optional">
    <annotation>
      <documentation>A group of letters, figures or a combination thereof which is either identical to, or the coded equivalent of, the aircraft call sign to be used in air-ground communications, and which is used to identify the aircraft in ground-ground air traffic services communications. [ICAO Doc 4444]</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:SupplementaryDataType
Namespace http://www.fixm.aero/flight/4.0
Annotations

A container for supplementary data about the flight. This container does not capture
the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information";
it only contains those elements that could not be modeled more logically in other
FIXM structures. [FIXM]
Diagram
Diagram FlightData_xsd.tmp#SupplementaryDataType_fuelEndurance FlightData_xsd.tmp#SupplementaryDataType_personsOnBoard FlightData_xsd.tmp#SupplementaryDataType_pilotInCommand
Used by
Model fx:pilotInCommand{0,1}
Children fx:pilotInCommand
Attributes
QName Type Fixed Default Use Annotation
fuelEndurance fb:DurationType optional
The estimated maximum length of time the aircraft can spend in the cruise phase of
flight, determined by the amount of fuel at takeoff. [FIXM]
personsOnBoard fb:CountType optional
The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc
4444, Appendix 2, Item 19]
Source

<complexType name="SupplementaryDataType">
  <annotation>
    <documentation>A container for supplementary data about the flight. This container does not capture the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information"; it only contains those elements that could not be modeled more logically in other FIXM structures. [FIXM]</documentation>
  </annotation>
  <sequence>
    <element name="pilotInCommand" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The pilot designated by the operator, or in the case of general aviation, the owner, as being in command and charged with the safe conduct of a flight. [ICAO Doc 4444]</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="fuelEndurance" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The estimated maximum length of time the aircraft can spend in the cruise phase of flight, determined by the amount of fuel at takeoff. [FIXM]</documentation>
    </annotation>
  </attribute>
  <attribute name="personsOnBoard" type="fb:CountType" use="optional">
    <annotation>
      <documentation>The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc 4444, Appendix 2, Item 19]</documentation>
    </annotation>
  </attribute>
</complexType>

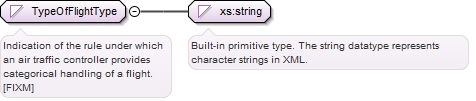

Simple Type fx:TypeOfFlightType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Indication of the rule under which an air traffic controller provides categorical
handling of a flight. [FIXM]
Diagram
Diagram
Type restriction of string
Facets
enumeration M
Military [ICAO Doc 4444, Item 8]
enumeration G
General aviation [ICAO Doc 4444, Item 8]
enumeration N
Non-scheduled air transport operation [ICAO Doc 4444, Item 8]
enumeration S
Scheduled air service [ICAO Doc 4444, Item 8]
enumeration X
Other than any of the defined categories above. [ICAO Doc 4444, Item 8]
Used by
Source

<simpleType name="TypeOfFlightType">
  <annotation>
    <documentation>Indication of the rule under which an air traffic controller provides categorical handling of a flight. [FIXM]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="M">
      <annotation>
        <documentation>Military [ICAO Doc 4444, Item 8]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="G">
      <annotation>
        <documentation>General aviation [ICAO Doc 4444, Item 8]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="N">
      <annotation>
        <documentation>Non-scheduled air transport operation [ICAO Doc 4444, Item 8]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="S">
      <annotation>
        <documentation>Scheduled air service [ICAO Doc 4444, Item 8]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="X">
      <annotation>
        <documentation>Other than any of the defined categories above. [ICAO Doc 4444, Item 8]</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:SpecialHandlingReasonCodeType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The reason for special handling of a flight by ATS. [adapted from ICAO Doc 4444,
Appendix 2, ITEM 18 STS/]
Diagram
Diagram
Type restriction of string
Facets
enumeration ALTRV
for a flight operated in accordance with an altitude reservation [ICAO Doc 4444,
Appendix 2, ITEM 18 STS/]
enumeration ATFMX
for a flight approved for exemption from ATFM measures by the appropriate ATS authority;
[ICAO Doc 4444, Appendix 2, ITEM 18 STS/]
enumeration FFR
fire-fighting; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]
enumeration FLTCK
flight check for calibration of navaids; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]
enumeration HAZMAT
for a flight carrying hazardous material; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]
enumeration HEAD
a flight with Head of State status; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]
enumeration HOSP
for a medical flight declared by medical authorities; [ICAO Doc 4444, Appendix 2,
ITEM 18 STS/]
enumeration HUM
for a flight operating on a humanitarian mission; [ICAO Doc 4444, Appendix 2, ITEM
18 STS/]
enumeration MARSA
for a flight for which a military entity assumes responsibility for separation of
military aircraft; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]
enumeration MEDEVAC
for a life critical medical emergency evacuation; [ICAO Doc 4444, Appendix 2, ITEM
18 STS/]
enumeration NONRVSM
for a non-RVSM capable flight intending to operate in RVSM airspace; [ICAO Doc 4444,
Appendix 2, ITEM 18 STS/]
enumeration SAR
for a flight engaged in a search and rescue mission; [ICAO Doc 4444, Appendix 2,
ITEM 18 STS/]
enumeration STATE
for a flight engaged in military, customs or police services. [ICAO Doc 4444, Appendix
2, ITEM 18 STS/]
Source

<simpleType name="SpecialHandlingReasonCodeType">
  <annotation>
    <documentation>The reason for special handling of a flight by ATS. [adapted from ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="ALTRV">
      <annotation>
        <documentation>for a flight operated in accordance with an altitude reservation [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="ATFMX">
      <annotation>
        <documentation>for a flight approved for exemption from ATFM measures by the appropriate ATS authority; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="FFR">
      <annotation>
        <documentation>fire-fighting; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="FLTCK">
      <annotation>
        <documentation>flight check for calibration of navaids; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="HAZMAT">
      <annotation>
        <documentation>for a flight carrying hazardous material; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="HEAD">
      <annotation>
        <documentation>a flight with Head of State status; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="HOSP">
      <annotation>
        <documentation>for a medical flight declared by medical authorities; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="HUM">
      <annotation>
        <documentation>for a flight operating on a humanitarian mission; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="MARSA">
      <annotation>
        <documentation>for a flight for which a military entity assumes responsibility for separation of military aircraft; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="MEDEVAC">
      <annotation>
        <documentation>for a life critical medical emergency evacuation; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="NONRVSM">
      <annotation>
        <documentation>for a non-RVSM capable flight intending to operate in RVSM airspace; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="SAR">
      <annotation>
        <documentation>for a flight engaged in a search and rescue mission; [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="STATE">
      <annotation>
        <documentation>for a flight engaged in military, customs or police services. [ICAO Doc 4444, Appendix 2, ITEM 18 STS/]</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Attribute fx:FlightIdentificationType / @aircraftIdentification
Namespace No namespace
Annotations

A group of letters, figures or a combination thereof which is either identical to,
or the coded equivalent of, the aircraft call sign to be used in air-ground communications,
and which is used to identify the aircraft in ground-ground air traffic services
communications. [ICAO Doc 4444]
Type fb:AircraftIdentificationType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z0-9]{1,7}
Used by
Source

<attribute name="aircraftIdentification" type="fb:AircraftIdentificationType" use="optional">
  <annotation>
    <documentation>A group of letters, figures or a combination thereof which is either identical to, or the coded equivalent of, the aircraft call sign to be used in air-ground communications, and which is used to identify the aircraft in ground-ground air traffic services communications. [ICAO Doc 4444]</documentation>
  </annotation>
</attribute>
Attribute fx:SupplementaryDataType / @fuelEndurance
Namespace No namespace
Annotations

The estimated maximum length of time the aircraft can spend in the cruise phase of
flight, determined by the amount of fuel at takeoff. [FIXM]
Type fb:DurationType
Properties
use: optional
Used by
Source

<attribute name="fuelEndurance" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The estimated maximum length of time the aircraft can spend in the cruise phase of flight, determined by the amount of fuel at takeoff. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:SupplementaryDataType / @personsOnBoard
Namespace No namespace
Annotations

The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc
4444, Appendix 2, Item 19]
Type fb:CountType
Properties
use: optional
Facets
minInclusive 0
Used by
Source

<attribute name="personsOnBoard" type="fb:CountType" use="optional">
  <annotation>
    <documentation>The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc 4444, Appendix 2, Item 19]</documentation>
  </annotation>
</attribute>
Attribute fx:FlightType / @flightType
Namespace No namespace
Annotations

Indication of the rule under which an air traffic controller provides categorical
handling of a flight. [FIXM]
Type fx:TypeOfFlightType
Properties
use: optional
Facets
enumeration M
Military [ICAO Doc 4444, Item 8]
enumeration G
General aviation [ICAO Doc 4444, Item 8]
enumeration N
Non-scheduled air transport operation [ICAO Doc 4444, Item 8]
enumeration S
Scheduled air service [ICAO Doc 4444, Item 8]
enumeration X
Other than any of the defined categories above. [ICAO Doc 4444, Item 8]
Used by
Complex Type fx:FlightType
Source

<attribute name="flightType" type="fx:TypeOfFlightType" use="optional">
  <annotation>
    <documentation>Indication of the rule under which an air traffic controller provides categorical handling of a flight. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:FlightType / @remarks
Namespace No namespace
Annotations

Plain language remarks providing additional information about the flight (e.g., requested
flight level changes after takeoff).
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightType
Source

<attribute name="remarks" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Plain language remarks providing additional information about the flight (e.g., requested flight level changes after takeoff).</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
