Included schema DangerousGoods.xsd
Namespace http://www.faa.aero/nas/4.1
Annotations

Copyright (c) 2016 Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the disclaimer
  in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited, NavCanada, SESAR Joint Undertaking
  & US FAA nor the names of their contributors may be used to endorse or promote products derived from this specification
  without specific prior written permission.


       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

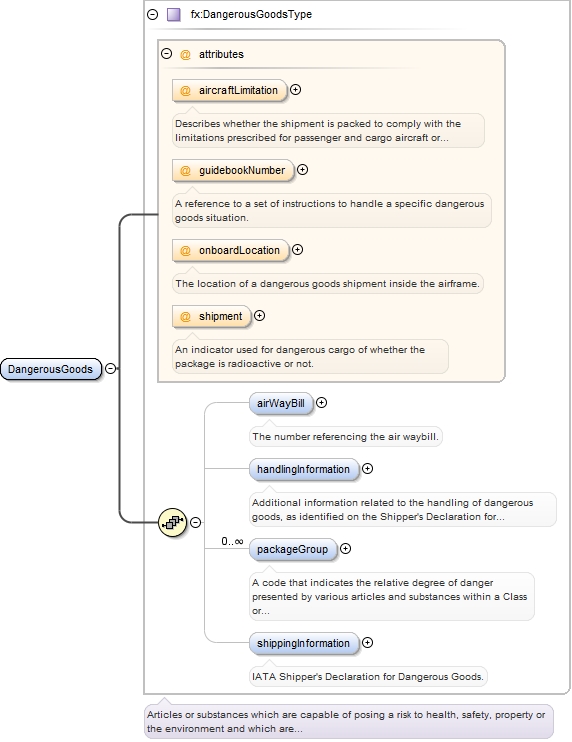

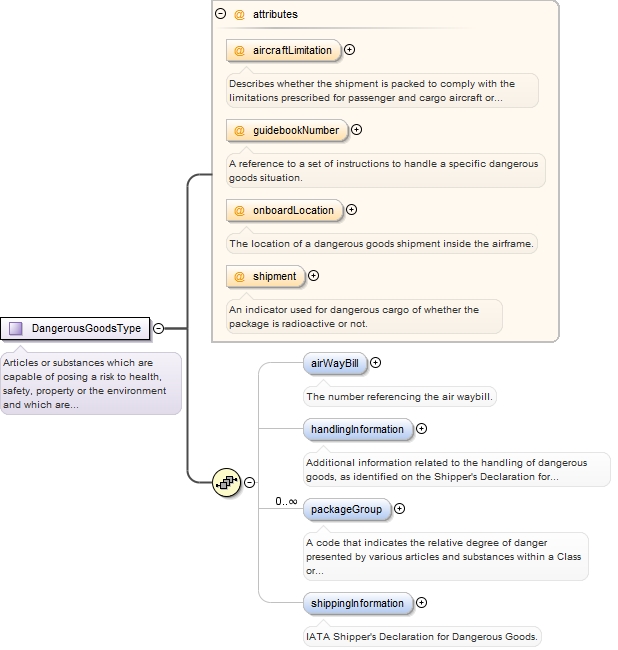

The Dangerous Goods schema contains the information required for the shipment of
dangerous goods.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0

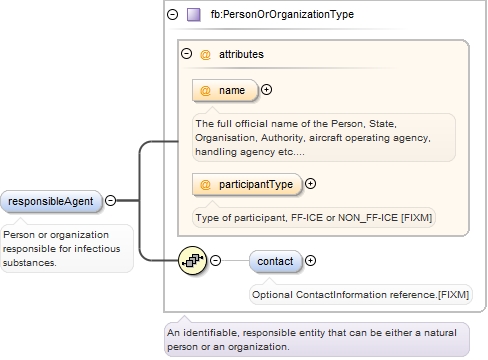

Element fx:AdditionalHandlingInformationType / fx:responsibleAgent
Namespace http://www.fixm.aero/flight/4.0
Annotations

Person or organization responsible for infectious substances.
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:contact{0,1}
Children fb:contact
Instance

<fx:responsibleAgent name="" participantType="">
  <fb:contact name="" title="">{0,1}</fb:contact>
</fx:responsibleAgent>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="responsibleAgent" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Person or organization responsible for infectious substances.</documentation>
  </annotation>
</element>

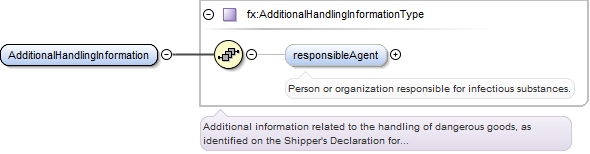

Element fx:AdditionalHandlingInformation
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram DangerousGoods_xsd.tmp#AdditionalHandlingInformationType_responsibleAgent DangerousGoods_xsd.tmp#AdditionalHandlingInformationType
Type fx:AdditionalHandlingInformationType
Properties
content: complex
Model fx:responsibleAgent{0,1}
Children fx:responsibleAgent
Instance

<fx:AdditionalHandlingInformation>
  <fx:responsibleAgent name="" participantType="">{0,1}</fx:responsibleAgent>
</fx:AdditionalHandlingInformation>
Source

<element name="AdditionalHandlingInformation" type="fx:AdditionalHandlingInformationType"/>

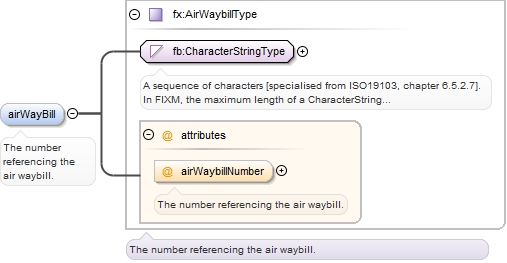

Element fx:DangerousGoodsType / fx:airWayBill
Namespace http://www.fixm.aero/flight/4.0
Annotations

The number referencing the air waybill.
Diagram
Diagram Types_xsd.tmp#CharacterStringType DangerousGoods_xsd.tmp#AirWaybillType_airWaybillNumber DangerousGoods_xsd.tmp#AirWaybillType

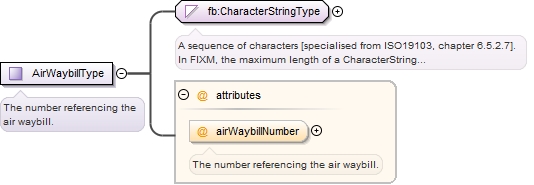

Type fx:AirWaybillType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
airWaybillNumber fb:CharacterStringType optional
The number referencing the air waybill.
Source

<element name="airWayBill" type="fx:AirWaybillType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The number referencing the air waybill.</documentation>
  </annotation>
</element>

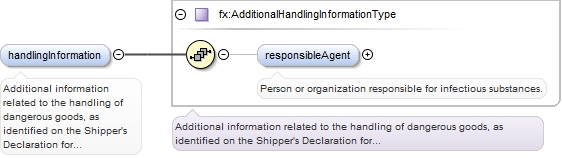

Element fx:DangerousGoodsType / fx:handlingInformation
Namespace http://www.fixm.aero/flight/4.0
Annotations

Additional information related to the handling of dangerous goods, as identified
on the Shipper's Declaration for Dangerous Goods.
Diagram
Diagram DangerousGoods_xsd.tmp#AdditionalHandlingInformationType_responsibleAgent DangerousGoods_xsd.tmp#AdditionalHandlingInformationType
Type fx:AdditionalHandlingInformationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:responsibleAgent{0,1}
Children fx:responsibleAgent
Instance

<fx:handlingInformation>
  <fx:responsibleAgent name="" participantType="">{0,1}</fx:responsibleAgent>
</fx:handlingInformation>
Source

<element name="handlingInformation" type="fx:AdditionalHandlingInformationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Additional information related to the handling of dangerous goods, as identified on the Shipper's Declaration for Dangerous Goods.</documentation>
  </annotation>
</element>

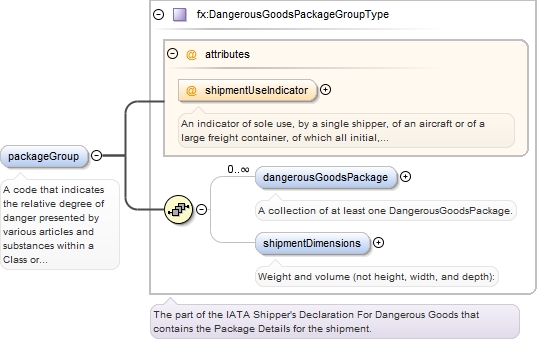

Element fx:DangerousGoodsType / fx:packageGroup
Namespace http://www.fixm.aero/flight/4.0
Annotations

A code that indicates the relative degree of danger presented by various articles
and substances within a Class or Division.
Diagram
Diagram Packaging_xsd.tmp#DangerousGoodsPackageGroupType_shipmentUseIndicator Packaging_xsd.tmp#DangerousGoodsPackageGroupType_dangerousGoodsPackage Packaging_xsd.tmp#DangerousGoodsPackageGroupType_shipmentDimensions Packaging_xsd.tmp#DangerousGoodsPackageGroupType
Type fx:DangerousGoodsPackageGroupType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model fx:dangerousGoodsPackage* , fx:shipmentDimensions{0,1}
Children fx:dangerousGoodsPackage, fx:shipmentDimensions
Instance

<fx:packageGroup shipmentUseIndicator="">
  <fx:dangerousGoodsPackage compatibilityGroup="" dangerousGoodsLimitation="" dangerousGoodsQuantity="" marinePollutantIndicator="" overpackIndicator="" packingGroup="" packingInstructionNumber="" productName="" properShippingName="" reportableQuantity="" shipmentType="" supplementaryInformation="" technicalName="" typeOfPackaging="" unNumber="">{0,unbounded}</fx:dangerousGoodsPackage>
  <fx:shipmentDimensions>{0,1}</fx:shipmentDimensions>
</fx:packageGroup>
Attributes
QName Type Fixed Default Use Annotation
shipmentUseIndicator fx:ShipmentUseType optional
An indicator of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.
Source

<element name="packageGroup" type="fx:DangerousGoodsPackageGroupType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A code that indicates the relative degree of danger presented by various articles and substances within a Class or Division.</documentation>
  </annotation>
</element>

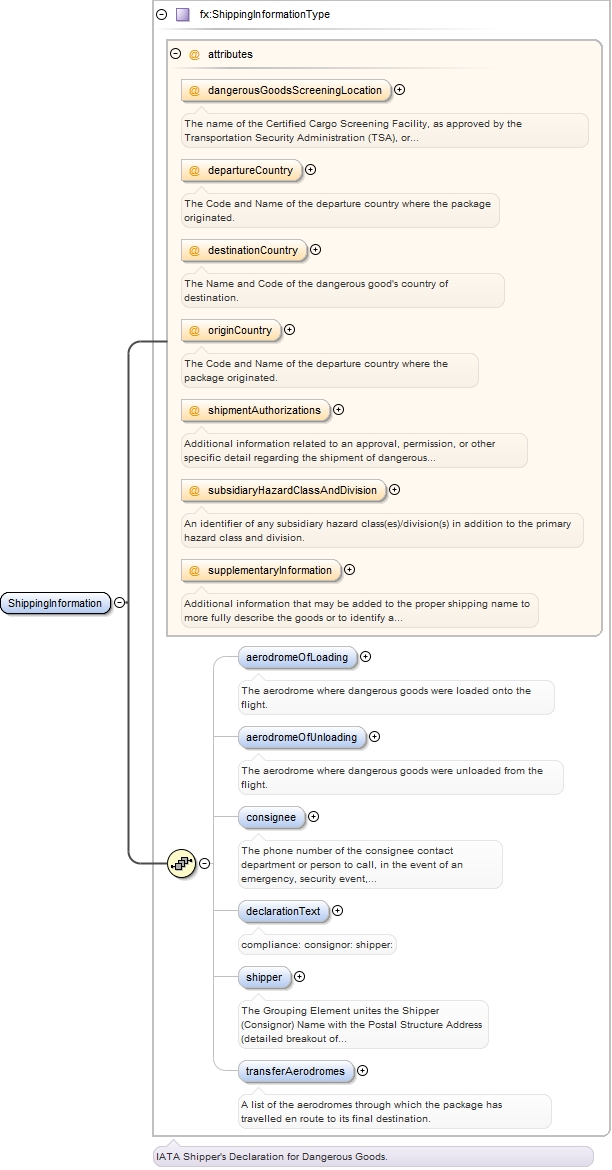

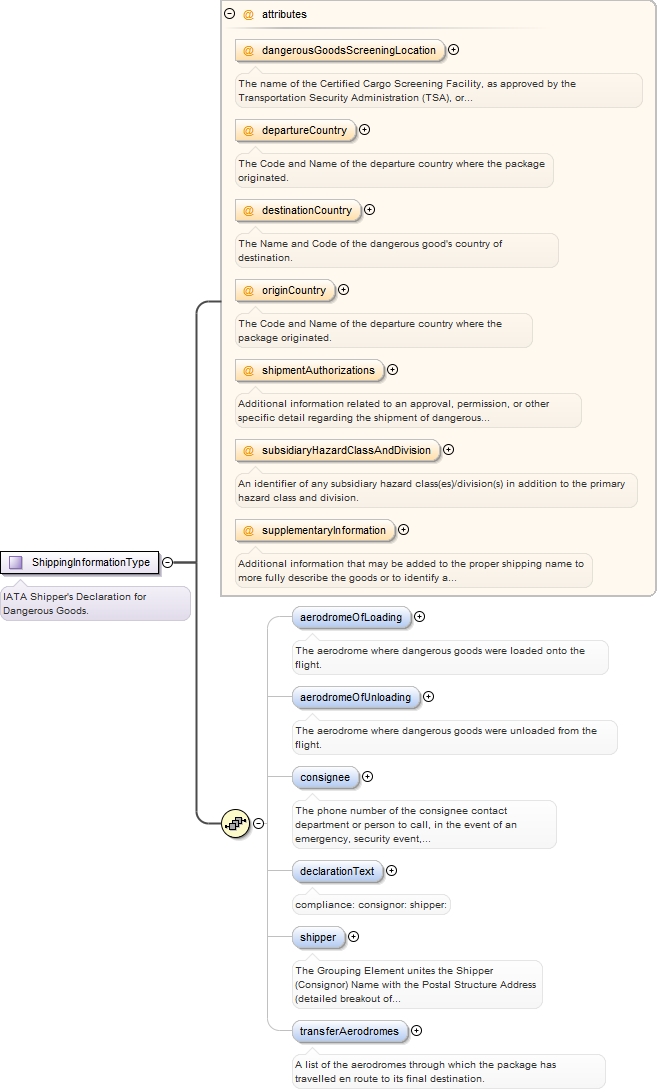

Element fx:DangerousGoodsType / fx:shippingInformation
Namespace http://www.fixm.aero/flight/4.0
Annotations

IATA Shipper's Declaration for Dangerous Goods.
Diagram
Diagram DangerousGoods_xsd.tmp#ShippingInformationType_dangerousGoodsScreeningLocation DangerousGoods_xsd.tmp#ShippingInformationType_departureCountry DangerousGoods_xsd.tmp#ShippingInformationType_destinationCountry DangerousGoods_xsd.tmp#ShippingInformationType_originCountry DangerousGoods_xsd.tmp#ShippingInformationType_shipmentAuthorizations DangerousGoods_xsd.tmp#ShippingInformationType_subsidiaryHazardClassAndDivision DangerousGoods_xsd.tmp#ShippingInformationType_supplementaryInformation DangerousGoods_xsd.tmp#ShippingInformationType_aerodromeOfLoading DangerousGoods_xsd.tmp#ShippingInformationType_aerodromeOfUnloading DangerousGoods_xsd.tmp#ShippingInformationType_consignee DangerousGoods_xsd.tmp#ShippingInformationType_declarationText DangerousGoods_xsd.tmp#ShippingInformationType_shipper DangerousGoods_xsd.tmp#ShippingInformationType_transferAerodromes DangerousGoods_xsd.tmp#ShippingInformationType
Type fx:ShippingInformationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:aerodromeOfLoading{0,1} , fx:aerodromeOfUnloading{0,1} , fx:consignee{0,1} , fx:declarationText{0,1} , fx:shipper{0,1} , fx:transferAerodromes{0,1}
Children fx:aerodromeOfLoading, fx:aerodromeOfUnloading, fx:consignee, fx:declarationText, fx:shipper, fx:transferAerodromes
Instance

<fx:shippingInformation dangerousGoodsScreeningLocation="" departureCountry="" destinationCountry="" originCountry="" shipmentAuthorizations="" subsidiaryHazardClassAndDivision="" supplementaryInformation="">
  <fx:aerodromeOfLoading>{0,1}</fx:aerodromeOfLoading>
  <fx:aerodromeOfUnloading>{0,1}</fx:aerodromeOfUnloading>
  <fx:consignee name="" title="">{0,1}</fx:consignee>
  <fx:declarationText compliance="" consignor="" shipper="">{0,1}</fx:declarationText>

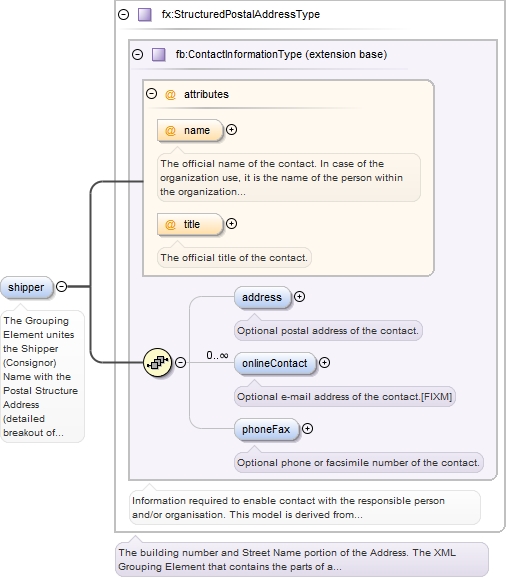

  <fx:shipper name="" title="">{0,1}</fx:shipper>
  <fx:transferAerodromes>{0,1}</fx:transferAerodromes>
</fx:shippingInformation>
Attributes
QName Type Fixed Default Use Annotation
dangerousGoodsScreeningLocation fb:CharacterStringType optional
The name of the Certified Cargo Screening Facility, as approved by the Transportation
Security Administration (TSA), or the location/name of any screening performed.
departureCountry fb:TextCountryNameType optional
The Code and Name of the departure country where the package originated.
destinationCountry fb:TextCountryNameType optional
The Name and Code of the dangerous good's country of destination.
originCountry fb:TextCountryNameType optional
The Code and Name of the departure country where the package originated.
shipmentAuthorizations fb:CharacterStringType optional
Additional information related to an approval, permission, or other specific detail
regarding the shipment of dangerous goods.
subsidiaryHazardClassAndDivision fb:CharacterStringType optional
An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary
hazard class and division.
supplementaryInformation fb:CharacterStringType optional
Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.
Source

<element name="shippingInformation" type="fx:ShippingInformationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>IATA Shipper's Declaration for Dangerous Goods.</documentation>
  </annotation>
</element>
Element fx:ShippingInformationType / fx:aerodromeOfLoading
Namespace http://www.fixm.aero/flight/4.0
Annotations

The aerodrome where dangerous goods were loaded onto the flight.
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="aerodromeOfLoading" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome where dangerous goods were loaded onto the flight.</documentation>
  </annotation>
</element>
Element fx:ShippingInformationType / fx:aerodromeOfUnloading
Namespace http://www.fixm.aero/flight/4.0
Annotations

The aerodrome where dangerous goods were unloaded from the flight.
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="aerodromeOfUnloading" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome where dangerous goods were unloaded from the flight.</documentation>
  </annotation>
</element>

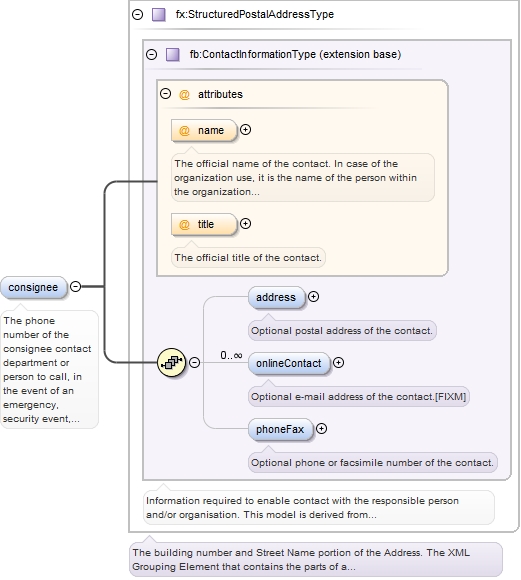

Element fx:ShippingInformationType / fx:consignee
Namespace http://www.fixm.aero/flight/4.0
Annotations

The phone number of the consignee contact department or person to call, in the event
of an emergency, security event, or when further information about the shipment is
needed.
The name of the consignee contact department or person responsible in the event of
an emergency, security event, or when further information about the shipment is needed.

Specifies the consignee's mailing address.
Contains the name or legal identity of the organization or person receiving the package.

The XML Grouping Element unites the Consignee Name with the Postal Structure Address
(detailed breakout of address components).
Diagram
Diagram Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType DangerousGoods_xsd.tmp#StructuredPostalAddressType

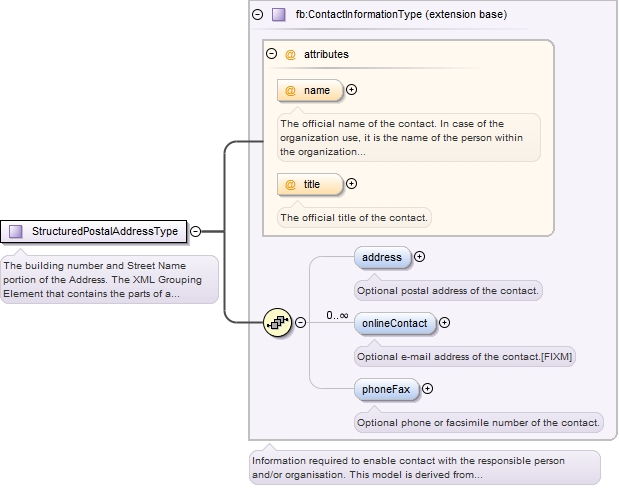

Type fx:StructuredPostalAddressType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:address{0,1} , fb:onlineContact* , fb:phoneFax{0,1}
Children fb:address, fb:onlineContact, fb:phoneFax
Instance

<fx:consignee name="" title="">
  <fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">{0,1}</fb:address>
  <fb:onlineContact email="" linkage="" network="">{0,unbounded}</fb:onlineContact>
  <fb:phoneFax facsimile="" voice="">{0,1}</fb:phoneFax>
</fx:consignee>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<element name="consignee" type="fx:StructuredPostalAddressType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The phone number of the consignee contact department or person to call, in the event of an emergency, security event, or when further information about the shipment is needed. The name of the consignee contact department or person responsible in the event of an emergency, security event, or when further information about the shipment is needed. Specifies the consignee's mailing address. Contains the name or legal identity of the organization or person receiving the package. The XML Grouping Element unites the Consignee Name with the Postal Structure Address (detailed breakout of address components).</documentation>
  </annotation>
</element>
Element fx:ShippingInformationType / fx:declarationText
Namespace http://www.fixm.aero/flight/4.0
Annotations

compliance:

consignor:

shipper:
Diagram
Diagram DangerousGoods_xsd.tmp#DeclarationTextType_compliance DangerousGoods_xsd.tmp#DeclarationTextType_consignor DangerousGoods_xsd.tmp#DeclarationTextType_shipper DangerousGoods_xsd.tmp#DeclarationTextType

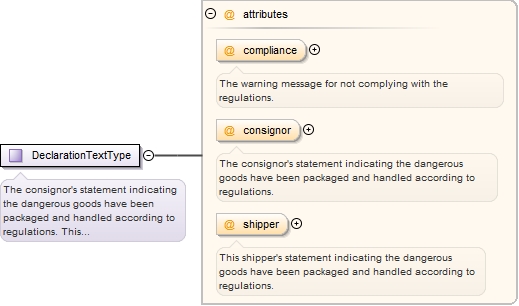

Type fx:DeclarationTextType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
compliance fb:CharacterStringType optional
The warning message for not complying with the regulations.
consignor fb:CharacterStringType optional
The consignor's statement indicating the dangerous goods have been packaged and handled
according to regulations.
shipper fb:CharacterStringType optional
This shipper's statement indicating the dangerous goods have been packaged and handled
according to regulations.
Source

<element name="declarationText" type="fx:DeclarationTextType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>compliance: consignor: shipper:</documentation>
  </annotation>
</element>
Element fx:ShippingInformationType / fx:shipper
Namespace http://www.fixm.aero/flight/4.0
Annotations

The  Grouping Element unites the Shipper (Consignor) Name with the Postal Structure
Address (detailed breakout of address components).
The Shipper's name, legal identity, and/or organization.
Phone number of the shipper or someone who is not on board the aircraft and who can
be reached in an emergency involving the dangerous good.
The shipper's mailing address.
Diagram
Diagram Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType DangerousGoods_xsd.tmp#StructuredPostalAddressType
Type fx:StructuredPostalAddressType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:address{0,1} , fb:onlineContact* , fb:phoneFax{0,1}
Children fb:address, fb:onlineContact, fb:phoneFax
Instance

<fx:shipper name="" title="">
  <fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">{0,1}</fb:address>
  <fb:onlineContact email="" linkage="" network="">{0,unbounded}</fb:onlineContact>
  <fb:phoneFax facsimile="" voice="">{0,1}</fb:phoneFax>
</fx:shipper>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<element name="shipper" type="fx:StructuredPostalAddressType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The Grouping Element unites the Shipper (Consignor) Name with the Postal Structure Address (detailed breakout of address components). The Shipper's name, legal identity, and/or organization. Phone number of the shipper or someone who is not on board the aircraft and who can be reached in an emergency involving the dangerous good. The shipper's mailing address.</documentation>
  </annotation>
</element>
Element fx:ShippingInformationType / fx:transferAerodromes
Namespace http://www.fixm.aero/flight/4.0
Annotations

A list of the aerodromes through which the package has travelled en route to its
final destination.
Diagram
Diagram
Type list of fb:LocationIndicatorType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="transferAerodromes" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A list of the aerodromes through which the package has travelled en route to its final destination.</documentation>
  </annotation>
  <simpleType>
    <list itemType="fb:LocationIndicatorType"/>
  </simpleType>
</element>
Element fx:DangerousGoods
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram DangerousGoods_xsd.tmp#DangerousGoodsType_aircraftLimitation DangerousGoods_xsd.tmp#DangerousGoodsType_guidebookNumber DangerousGoods_xsd.tmp#DangerousGoodsType_onboardLocation DangerousGoods_xsd.tmp#DangerousGoodsType_shipment DangerousGoods_xsd.tmp#DangerousGoodsType_airWayBill DangerousGoods_xsd.tmp#DangerousGoodsType_handlingInformation DangerousGoods_xsd.tmp#DangerousGoodsType_packageGroup DangerousGoods_xsd.tmp#DangerousGoodsType_shippingInformation DangerousGoods_xsd.tmp#DangerousGoodsType
Type fx:DangerousGoodsType
Properties
content: complex
Model fx:airWayBill{0,1} , fx:handlingInformation{0,1} , fx:packageGroup* , fx:shippingInformation{0,1}
Children fx:airWayBill, fx:handlingInformation, fx:packageGroup, fx:shippingInformation
Instance

<fx:DangerousGoods aircraftLimitation="" guidebookNumber="" onboardLocation="" shipment="">
  <fx:airWayBill airWaybillNumber="">{0,1}</fx:airWayBill>
  <fx:handlingInformation>{0,1}</fx:handlingInformation>
  <fx:packageGroup shipmentUseIndicator="">{0,unbounded}</fx:packageGroup>
  <fx:shippingInformation dangerousGoodsScreeningLocation="" departureCountry="" destinationCountry="" originCountry="" shipmentAuthorizations="" subsidiaryHazardClassAndDivision="" supplementaryInformation="">{0,1}</fx:shippingInformation>
</fx:DangerousGoods>
Attributes
QName Type Fixed Default Use Annotation
aircraftLimitation fx:AircraftDangerousGoodsLimitationType optional
Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
guidebookNumber restriction of fb:CharacterStringType optional
A reference to a set of instructions to handle a specific dangerous goods situation.
onboardLocation fb:CharacterStringType optional
The location of a dangerous goods shipment inside the airframe.
shipment fx:ShipmentTypeType optional
An indicator used for dangerous cargo of whether the package is radioactive or not.
Source

<element name="DangerousGoods" type="fx:DangerousGoodsType"/>

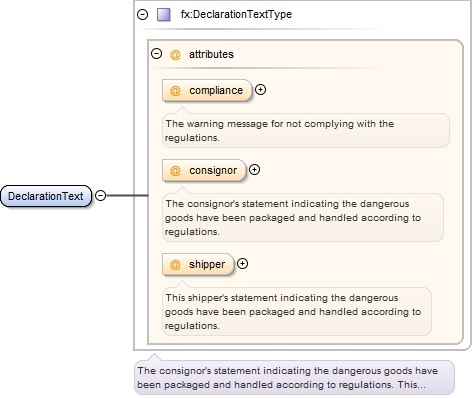

Element fx:DeclarationText
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram DangerousGoods_xsd.tmp#DeclarationTextType_compliance DangerousGoods_xsd.tmp#DeclarationTextType_consignor DangerousGoods_xsd.tmp#DeclarationTextType_shipper DangerousGoods_xsd.tmp#DeclarationTextType
Type fx:DeclarationTextType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
compliance fb:CharacterStringType optional
The warning message for not complying with the regulations.
consignor fb:CharacterStringType optional
The consignor's statement indicating the dangerous goods have been packaged and handled
according to regulations.
shipper fb:CharacterStringType optional
This shipper's statement indicating the dangerous goods have been packaged and handled
according to regulations.
Source

<element name="DeclarationText" type="fx:DeclarationTextType"/>
Element fx:ShippingInformation
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram DangerousGoods_xsd.tmp#ShippingInformationType_dangerousGoodsScreeningLocation DangerousGoods_xsd.tmp#ShippingInformationType_departureCountry DangerousGoods_xsd.tmp#ShippingInformationType_destinationCountry DangerousGoods_xsd.tmp#ShippingInformationType_originCountry DangerousGoods_xsd.tmp#ShippingInformationType_shipmentAuthorizations DangerousGoods_xsd.tmp#ShippingInformationType_subsidiaryHazardClassAndDivision DangerousGoods_xsd.tmp#ShippingInformationType_supplementaryInformation DangerousGoods_xsd.tmp#ShippingInformationType_aerodromeOfLoading DangerousGoods_xsd.tmp#ShippingInformationType_aerodromeOfUnloading DangerousGoods_xsd.tmp#ShippingInformationType_consignee DangerousGoods_xsd.tmp#ShippingInformationType_declarationText DangerousGoods_xsd.tmp#ShippingInformationType_shipper DangerousGoods_xsd.tmp#ShippingInformationType_transferAerodromes DangerousGoods_xsd.tmp#ShippingInformationType
Type fx:ShippingInformationType
Properties
content: complex
Model fx:aerodromeOfLoading{0,1} , fx:aerodromeOfUnloading{0,1} , fx:consignee{0,1} , fx:declarationText{0,1} , fx:shipper{0,1} , fx:transferAerodromes{0,1}
Children fx:aerodromeOfLoading, fx:aerodromeOfUnloading, fx:consignee, fx:declarationText, fx:shipper, fx:transferAerodromes
Instance

<fx:ShippingInformation dangerousGoodsScreeningLocation="" departureCountry="" destinationCountry="" originCountry="" shipmentAuthorizations="" subsidiaryHazardClassAndDivision="" supplementaryInformation="">
  <fx:aerodromeOfLoading>{0,1}</fx:aerodromeOfLoading>
  <fx:aerodromeOfUnloading>{0,1}</fx:aerodromeOfUnloading>
  <fx:consignee name="" title="">{0,1}</fx:consignee>
  <fx:declarationText compliance="" consignor="" shipper="">{0,1}</fx:declarationText>
  <fx:shipper name="" title="">{0,1}</fx:shipper>
  <fx:transferAerodromes>{0,1}</fx:transferAerodromes>
</fx:ShippingInformation>
Attributes
QName Type Fixed Default Use Annotation
dangerousGoodsScreeningLocation fb:CharacterStringType optional
The name of the Certified Cargo Screening Facility, as approved by the Transportation
Security Administration (TSA), or the location/name of any screening performed.
departureCountry fb:TextCountryNameType optional
The Code and Name of the departure country where the package originated.
destinationCountry fb:TextCountryNameType optional
The Name and Code of the dangerous good's country of destination.
originCountry fb:TextCountryNameType optional
The Code and Name of the departure country where the package originated.
shipmentAuthorizations fb:CharacterStringType optional
Additional information related to an approval, permission, or other specific detail
regarding the shipment of dangerous goods.
subsidiaryHazardClassAndDivision fb:CharacterStringType optional
An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary
hazard class and division.
supplementaryInformation fb:CharacterStringType optional
Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.
Source

<element name="ShippingInformation" type="fx:ShippingInformationType"/>
Element fx:StructuredPostalAddress
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType DangerousGoods_xsd.tmp#StructuredPostalAddressType Address_xsd.tmp#ContactInformation
Type fx:StructuredPostalAddressType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:address{0,1} , fb:onlineContact* , fb:phoneFax{0,1}
Children fb:address, fb:onlineContact, fb:phoneFax
Instance

<fx:StructuredPostalAddress name="" title="">
  <fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">{0,1}</fb:address>
  <fb:onlineContact email="" linkage="" network="">{0,unbounded}</fb:onlineContact>
  <fb:phoneFax facsimile="" voice="">{0,1}</fb:phoneFax>
</fx:StructuredPostalAddress>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<element name="StructuredPostalAddress" type="fx:StructuredPostalAddressType" substitutionGroup="fb:ContactInformation"/>
Complex Type fx:AdditionalHandlingInformationType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Additional information related to the handling of dangerous goods, as identified
on the Shipper's Declaration for Dangerous Goods.
Diagram
Diagram DangerousGoods_xsd.tmp#AdditionalHandlingInformationType_responsibleAgent
Used by
Model fx:responsibleAgent{0,1}
Children fx:responsibleAgent
Source

<complexType name="AdditionalHandlingInformationType">
  <annotation>
    <documentation>Additional information related to the handling of dangerous goods, as identified on the Shipper's Declaration for Dangerous Goods.</documentation>
  </annotation>
  <sequence>
    <element name="responsibleAgent" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Person or organization responsible for infectious substances.</documentation>
      </annotation>
    </element>
  </sequence>
</complexType>
Simple Type fx:AircraftDangerousGoodsLimitationType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
Diagram
Diagram
Type restriction of string
Facets
enumeration PASSENGER_AND_CARGO_AIRCRAFT
Specified that the shipment is packed to comply with the limitations prescribed for
passenger and cargo aircraft.
enumeration CARGO_AIRCRAFT_ONLY
Specified that the shipment is packed to comply with the limitations prescribed for
the limitations for cargo aircraft only.
Used by
Source

<simpleType name="AircraftDangerousGoodsLimitationType">
  <annotation>
    <documentation>Describes whether the shipment is packed to comply with the limitations prescribed for passenger and cargo aircraft or the limitations for cargo aircraft only.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="PASSENGER_AND_CARGO_AIRCRAFT">
      <annotation>
        <documentation>Specified that the shipment is packed to comply with the limitations prescribed for passenger and cargo aircraft.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="CARGO_AIRCRAFT_ONLY">
      <annotation>
        <documentation>Specified that the shipment is packed to comply with the limitations prescribed for the limitations for cargo aircraft only.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type fx:AirWaybillType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The number referencing the air waybill.
Diagram
Diagram Types_xsd.tmp#CharacterStringType DangerousGoods_xsd.tmp#AirWaybillType_airWaybillNumber
Type extension of fb:CharacterStringType
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
airWaybillNumber fb:CharacterStringType optional
The number referencing the air waybill.
Source

<complexType name="AirWaybillType">
  <annotation>
    <documentation>The number referencing the air waybill.</documentation>
  </annotation>
  <simpleContent>
    <extension base="fb:CharacterStringType">
      <attribute name="airWaybillNumber" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The number referencing the air waybill.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Complex Type fx:DangerousGoodsType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Articles or substances which are capable of posing a risk to health, safety, property
or the environment and which are shown in the list of dangerous goods in the Technical
Instructions or which are classified according to those Instructions. [ICAO Annex
18]
Diagram
Diagram DangerousGoods_xsd.tmp#DangerousGoodsType_aircraftLimitation DangerousGoods_xsd.tmp#DangerousGoodsType_guidebookNumber DangerousGoods_xsd.tmp#DangerousGoodsType_onboardLocation DangerousGoods_xsd.tmp#DangerousGoodsType_shipment DangerousGoods_xsd.tmp#DangerousGoodsType_airWayBill DangerousGoods_xsd.tmp#DangerousGoodsType_handlingInformation DangerousGoods_xsd.tmp#DangerousGoodsType_packageGroup DangerousGoods_xsd.tmp#DangerousGoodsType_shippingInformation
Used by
Model fx:airWayBill{0,1} , fx:handlingInformation{0,1} , fx:packageGroup* , fx:shippingInformation{0,1}
Children fx:airWayBill, fx:handlingInformation, fx:packageGroup, fx:shippingInformation
Attributes
QName Type Fixed Default Use Annotation
aircraftLimitation fx:AircraftDangerousGoodsLimitationType optional
Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
guidebookNumber restriction of fb:CharacterStringType optional
A reference to a set of instructions to handle a specific dangerous goods situation.
onboardLocation fb:CharacterStringType optional
The location of a dangerous goods shipment inside the airframe.
shipment fx:ShipmentTypeType optional
An indicator used for dangerous cargo of whether the package is radioactive or not.
Source

<complexType name="DangerousGoodsType">
  <annotation>
    <documentation>Articles or substances which are capable of posing a risk to health, safety, property or the environment and which are shown in the list of dangerous goods in the Technical Instructions or which are classified according to those Instructions. [ICAO Annex 18]</documentation>
  </annotation>
  <sequence>
    <element name="airWayBill" type="fx:AirWaybillType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The number referencing the air waybill.</documentation>
      </annotation>
    </element>
    <element name="handlingInformation" type="fx:AdditionalHandlingInformationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Additional information related to the handling of dangerous goods, as identified on the Shipper's Declaration for Dangerous Goods.</documentation>
      </annotation>
    </element>
    <element name="packageGroup" type="fx:DangerousGoodsPackageGroupType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>A code that indicates the relative degree of danger presented by various articles and substances within a Class or Division.</documentation>
      </annotation>
    </element>
    <element name="shippingInformation" type="fx:ShippingInformationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>IATA Shipper's Declaration for Dangerous Goods.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="aircraftLimitation" type="fx:AircraftDangerousGoodsLimitationType" use="optional">
    <annotation>
      <documentation>Describes whether the shipment is packed to comply with the limitations prescribed for passenger and cargo aircraft or the limitations for cargo aircraft only.</documentation>
    </annotation>
  </attribute>
  <attribute name="guidebookNumber" use="optional">
    <annotation>
      <documentation>A reference to a set of instructions to handle a specific dangerous goods situation.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <pattern value="[#\d+|\d+]"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="onboardLocation" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The location of a dangerous goods shipment inside the airframe.</documentation>
    </annotation>
  </attribute>
  <attribute name="shipment" type="fx:ShipmentTypeType" use="optional">
    <annotation>
      <documentation>An indicator used for dangerous cargo of whether the package is radioactive or not.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type fx:ShipmentTypeType
Namespace http://www.fixm.aero/flight/4.0
Annotations

An indicator used for dangerous cargo of whether the package is radioactive or not.
Diagram
Diagram
Type restriction of string
Facets
enumeration RADIOACTIVE
When present, indicates cargo is radioactive.
Used by
Source

<simpleType name="ShipmentTypeType">
  <annotation>
    <documentation>An indicator used for dangerous cargo of whether the package is radioactive or not.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="RADIOACTIVE">
      <annotation>
        <documentation>When present, indicates cargo is radioactive.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type fx:ShippingInformationType
Namespace http://www.fixm.aero/flight/4.0
Annotations

IATA Shipper's Declaration for Dangerous Goods.
Diagram
Diagram DangerousGoods_xsd.tmp#ShippingInformationType_dangerousGoodsScreeningLocation DangerousGoods_xsd.tmp#ShippingInformationType_departureCountry DangerousGoods_xsd.tmp#ShippingInformationType_destinationCountry DangerousGoods_xsd.tmp#ShippingInformationType_originCountry DangerousGoods_xsd.tmp#ShippingInformationType_shipmentAuthorizations DangerousGoods_xsd.tmp#ShippingInformationType_subsidiaryHazardClassAndDivision DangerousGoods_xsd.tmp#ShippingInformationType_supplementaryInformation DangerousGoods_xsd.tmp#ShippingInformationType_aerodromeOfLoading DangerousGoods_xsd.tmp#ShippingInformationType_aerodromeOfUnloading DangerousGoods_xsd.tmp#ShippingInformationType_consignee DangerousGoods_xsd.tmp#ShippingInformationType_declarationText DangerousGoods_xsd.tmp#ShippingInformationType_shipper DangerousGoods_xsd.tmp#ShippingInformationType_transferAerodromes
Used by
Model fx:aerodromeOfLoading{0,1} , fx:aerodromeOfUnloading{0,1} , fx:consignee{0,1} , fx:declarationText{0,1} , fx:shipper{0,1} , fx:transferAerodromes{0,1}
Children fx:aerodromeOfLoading, fx:aerodromeOfUnloading, fx:consignee, fx:declarationText, fx:shipper, fx:transferAerodromes
Attributes
QName Type Fixed Default Use Annotation
dangerousGoodsScreeningLocation fb:CharacterStringType optional
The name of the Certified Cargo Screening Facility, as approved by the Transportation
Security Administration (TSA), or the location/name of any screening performed.
departureCountry fb:TextCountryNameType optional
The Code and Name of the departure country where the package originated.
destinationCountry fb:TextCountryNameType optional
The Name and Code of the dangerous good's country of destination.
originCountry fb:TextCountryNameType optional
The Code and Name of the departure country where the package originated.
shipmentAuthorizations fb:CharacterStringType optional
Additional information related to an approval, permission, or other specific detail
regarding the shipment of dangerous goods.
subsidiaryHazardClassAndDivision fb:CharacterStringType optional
An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary
hazard class and division.
supplementaryInformation fb:CharacterStringType optional
Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.
Source

<complexType name="ShippingInformationType">
  <annotation>
    <documentation>IATA Shipper's Declaration for Dangerous Goods.</documentation>
  </annotation>
  <sequence>
    <element name="aerodromeOfLoading" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The aerodrome where dangerous goods were loaded onto the flight.</documentation>
      </annotation>
    </element>
    <element name="aerodromeOfUnloading" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The aerodrome where dangerous goods were unloaded from the flight.</documentation>
      </annotation>
    </element>
    <element name="consignee" type="fx:StructuredPostalAddressType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The phone number of the consignee contact department or person to call, in the event of an emergency, security event, or when further information about the shipment is needed. The name of the consignee contact department or person responsible in the event of an emergency, security event, or when further information about the shipment is needed. Specifies the consignee's mailing address. Contains the name or legal identity of the organization or person receiving the package. The XML Grouping Element unites the Consignee Name with the Postal Structure Address (detailed breakout of address components).</documentation>
      </annotation>
    </element>
    <element name="declarationText" type="fx:DeclarationTextType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>compliance: consignor: shipper:</documentation>
      </annotation>
    </element>
    <element name="shipper" type="fx:StructuredPostalAddressType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The Grouping Element unites the Shipper (Consignor) Name with the Postal Structure Address (detailed breakout of address components). The Shipper's name, legal identity, and/or organization. Phone number of the shipper or someone who is not on board the aircraft and who can be reached in an emergency involving the dangerous good. The shipper's mailing address.</documentation>
      </annotation>
    </element>
    <element name="transferAerodromes" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A list of the aerodromes through which the package has travelled en route to its final destination.</documentation>
      </annotation>
      <simpleType>
        <list itemType="fb:LocationIndicatorType"/>
      </simpleType>
    </element>
  </sequence>
  <attribute name="dangerousGoodsScreeningLocation" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The name of the Certified Cargo Screening Facility, as approved by the Transportation Security Administration (TSA), or the location/name of any screening performed.</documentation>
    </annotation>
  </attribute>
  <attribute name="departureCountry" type="fb:TextCountryNameType" use="optional">
    <annotation>
      <documentation>The Code and Name of the departure country where the package originated.</documentation>
    </annotation>
  </attribute>
  <attribute name="destinationCountry" type="fb:TextCountryNameType" use="optional">
    <annotation>
      <documentation>The Name and Code of the dangerous good's country of destination.</documentation>
    </annotation>
  </attribute>
  <attribute name="originCountry" type="fb:TextCountryNameType" use="optional">
    <annotation>
      <documentation>The Code and Name of the departure country where the package originated.</documentation>
    </annotation>
  </attribute>
  <attribute name="shipmentAuthorizations" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.</documentation>
    </annotation>
  </attribute>
  <attribute name="subsidiaryHazardClassAndDivision" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</documentation>
    </annotation>
  </attribute>
  <attribute name="supplementaryInformation" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Additional information that may be added to the proper shipping name to more fully describe the goods or to identify a particular condition.</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:StructuredPostalAddressType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The building number and Street Name portion of the Address.
The XML Grouping Element that contains the parts of a Postal Address broken into
its component parts (Structured).
he Post Office (PO) Box number portion of a structured postal address.
The ZIP/Postal Code corresponding to the street address.
The name of the city the package is being shipped to.
Contains the Department Name portion of the Address.
The name of the region within a country specific to this address.
A code that indicates a country.
The name of a country.
Diagram
Diagram Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType
Type extension of fb:ContactInformationType
Type hierarchy
Used by
Model fb:address{0,1} , fb:onlineContact* , fb:phoneFax{0,1}
Children fb:address, fb:onlineContact, fb:phoneFax
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<complexType name="StructuredPostalAddressType">
  <annotation>
    <documentation>The building number and Street Name portion of the Address. The XML Grouping Element that contains the parts of a Postal Address broken into its component parts (Structured). he Post Office (PO) Box number portion of a structured postal address. The ZIP/Postal Code corresponding to the street address. The name of the city the package is being shipped to. Contains the Department Name portion of the Address. The name of the region within a country specific to this address. A code that indicates a country. The name of a country.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ContactInformationType"/>
  </complexContent>
</complexType>
Complex Type fx:DeclarationTextType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The consignor's statement indicating the dangerous goods have been packaged and handled
according to regulations.
This shipper's statement indicating the dangerous goods have been packaged and handled
according to regulations.
The warning message for not complying with the regulations.
Diagram
Diagram DangerousGoods_xsd.tmp#DeclarationTextType_compliance DangerousGoods_xsd.tmp#DeclarationTextType_consignor DangerousGoods_xsd.tmp#DeclarationTextType_shipper
Used by
Attributes
QName Type Fixed Default Use Annotation
compliance fb:CharacterStringType optional
The warning message for not complying with the regulations.
consignor fb:CharacterStringType optional
The consignor's statement indicating the dangerous goods have been packaged and handled
according to regulations.
shipper fb:CharacterStringType optional
This shipper's statement indicating the dangerous goods have been packaged and handled
according to regulations.
Source

<complexType name="DeclarationTextType">
  <annotation>
    <documentation>The consignor's statement indicating the dangerous goods have been packaged and handled according to regulations. This shipper's statement indicating the dangerous goods have been packaged and handled according to regulations. The warning message for not complying with the regulations.</documentation>
  </annotation>
  <attribute name="compliance" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The warning message for not complying with the regulations.</documentation>
    </annotation>
  </attribute>
  <attribute name="consignor" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The consignor's statement indicating the dangerous goods have been packaged and handled according to regulations.</documentation>
    </annotation>
  </attribute>
  <attribute name="shipper" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>This shipper's statement indicating the dangerous goods have been packaged and handled according to regulations.</documentation>
    </annotation>
  </attribute>
</complexType>
Attribute fx:AirWaybillType / @airWaybillNumber
Namespace No namespace
Annotations

The number referencing the air waybill.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:AirWaybillType
Source

<attribute name="airWaybillNumber" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The number referencing the air waybill.</documentation>
  </annotation>
</attribute>
Attribute fx:DeclarationTextType / @compliance
Namespace No namespace
Annotations

The warning message for not complying with the regulations.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:DeclarationTextType
Source

<attribute name="compliance" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The warning message for not complying with the regulations.</documentation>
  </annotation>
</attribute>
Attribute fx:DeclarationTextType / @consignor
Namespace No namespace
Annotations

The consignor's statement indicating the dangerous goods have been packaged and handled
according to regulations.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:DeclarationTextType
Source

<attribute name="consignor" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The consignor's statement indicating the dangerous goods have been packaged and handled according to regulations.</documentation>
  </annotation>
</attribute>
Attribute fx:DeclarationTextType / @shipper
Namespace No namespace
Annotations

This shipper's statement indicating the dangerous goods have been packaged and handled
according to regulations.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:DeclarationTextType
Source

<attribute name="shipper" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>This shipper's statement indicating the dangerous goods have been packaged and handled according to regulations.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @dangerousGoodsScreeningLocation
Namespace No namespace
Annotations

The name of the Certified Cargo Screening Facility, as approved by the Transportation
Security Administration (TSA), or the location/name of any screening performed.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="dangerousGoodsScreeningLocation" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The name of the Certified Cargo Screening Facility, as approved by the Transportation Security Administration (TSA), or the location/name of any screening performed.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @departureCountry
Namespace No namespace
Annotations

The Code and Name of the departure country where the package originated.
Type fb:TextCountryNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="departureCountry" type="fb:TextCountryNameType" use="optional">
  <annotation>
    <documentation>The Code and Name of the departure country where the package originated.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @destinationCountry
Namespace No namespace
Annotations

The Name and Code of the dangerous good's country of destination.
Type fb:TextCountryNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="destinationCountry" type="fb:TextCountryNameType" use="optional">
  <annotation>
    <documentation>The Name and Code of the dangerous good's country of destination.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @originCountry
Namespace No namespace
Annotations

The Code and Name of the departure country where the package originated.
Type fb:TextCountryNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="originCountry" type="fb:TextCountryNameType" use="optional">
  <annotation>
    <documentation>The Code and Name of the departure country where the package originated.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @shipmentAuthorizations
Namespace No namespace
Annotations

Additional information related to an approval, permission, or other specific detail
regarding the shipment of dangerous goods.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="shipmentAuthorizations" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @subsidiaryHazardClassAndDivision
Namespace No namespace
Annotations

An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary
hazard class and division.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="subsidiaryHazardClassAndDivision" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</documentation>
  </annotation>
</attribute>
Attribute fx:ShippingInformationType / @supplementaryInformation
Namespace No namespace
Annotations

Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="supplementaryInformation" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Additional information that may be added to the proper shipping name to more fully describe the goods or to identify a particular condition.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsType / @aircraftLimitation
Namespace No namespace
Annotations

Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
Type fx:AircraftDangerousGoodsLimitationType
Properties
use: optional
Facets
enumeration PASSENGER_AND_CARGO_AIRCRAFT
Specified that the shipment is packed to comply with the limitations prescribed for
passenger and cargo aircraft.
enumeration CARGO_AIRCRAFT_ONLY
Specified that the shipment is packed to comply with the limitations prescribed for
the limitations for cargo aircraft only.
Used by
Complex Type fx:DangerousGoodsType
Source

<attribute name="aircraftLimitation" type="fx:AircraftDangerousGoodsLimitationType" use="optional">
  <annotation>
    <documentation>Describes whether the shipment is packed to comply with the limitations prescribed for passenger and cargo aircraft or the limitations for cargo aircraft only.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsType / @guidebookNumber
Namespace No namespace
Annotations

A reference to a set of instructions to handle a specific dangerous goods situation.
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [#\d+|\d+]
Used by
Complex Type fx:DangerousGoodsType
Source

<attribute name="guidebookNumber" use="optional">
  <annotation>
    <documentation>A reference to a set of instructions to handle a specific dangerous goods situation.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="[#\d+|\d+]"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:DangerousGoodsType / @onboardLocation
Namespace No namespace
Annotations

The location of a dangerous goods shipment inside the airframe.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:DangerousGoodsType
Source

<attribute name="onboardLocation" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The location of a dangerous goods shipment inside the airframe.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsType / @shipment
Namespace No namespace
Annotations

An indicator used for dangerous cargo of whether the package is radioactive or not.
Type fx:ShipmentTypeType
Properties
use: optional
Facets
enumeration RADIOACTIVE
When present, indicates cargo is radioactive.
Used by
Complex Type fx:DangerousGoodsType
Source

<attribute name="shipment" type="fx:ShipmentTypeType" use="optional">
  <annotation>
    <documentation>An indicator used for dangerous cargo of whether the package is radioactive or not.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
