Included schema Organization.xsd
Namespace http://www.faa.aero/nas/4.1
Annotations

Copyright (c) 2016 Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the disclaimer
  in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited, NavCanada, SESAR Joint Undertaking
  & US FAA nor the names of their contributors may be used to endorse or promote products derived from this specification
  without specific prior written permission.


       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

This package contains classes that model information about organizations and units,
including contact information. [FIXM]
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0

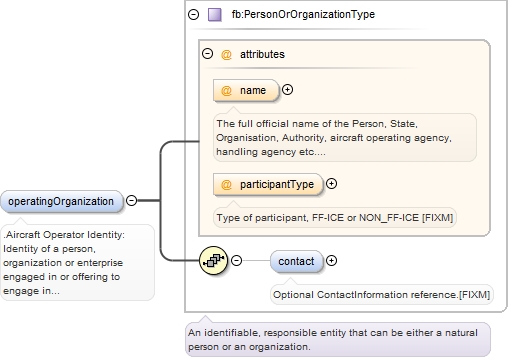

Element fb:AircraftOperatorType / fb:operatingOrganization
Namespace http://www.fixm.aero/base/4.0
Annotations

.Aircraft Operator Identity: Identity of a person, organization or enterprise engaged
in or offering to engage in aircraft operation.
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:contact{0,1}
Children fb:contact
Instance

<fb:operatingOrganization name="" participantType="">
  <fb:contact name="" title="">{0,1}</fb:contact>
</fb:operatingOrganization>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="operatingOrganization" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Aircraft Operator Identity: Identity of a person, organization or enterprise engaged in or offering to engage in aircraft operation.</documentation>
  </annotation>
</element>
Element fb:PersonOrOrganizationType / fb:contact
Namespace http://www.fixm.aero/base/4.0
Annotations

Optional ContactInformation reference.[FIXM]
Diagram
Diagram Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType
Type fb:ContactInformationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:address{0,1} , fb:onlineContact* , fb:phoneFax{0,1}
Children fb:address, fb:onlineContact, fb:phoneFax
Instance

<fb:contact name="" title="">
  <fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">{0,1}</fb:address>
  <fb:onlineContact email="" linkage="" network="">{0,unbounded}</fb:onlineContact>
  <fb:phoneFax facsimile="" voice="">{0,1}</fb:phoneFax>
</fb:contact>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<element name="contact" type="fb:ContactInformationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Optional ContactInformation reference.[FIXM]</documentation>
  </annotation>
</element>

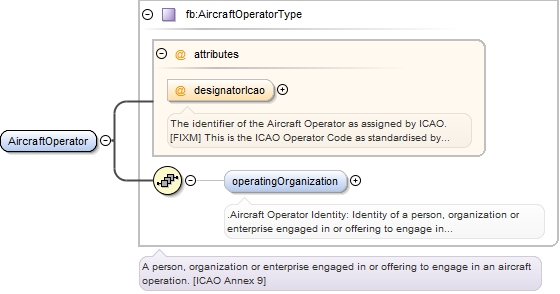

Element fb:AircraftOperator
Namespace http://www.fixm.aero/base/4.0
Diagram
Diagram Organization_xsd.tmp#AircraftOperatorType_designatorIcao Organization_xsd.tmp#AircraftOperatorType_operatingOrganization Organization_xsd.tmp#AircraftOperatorType
Type fb:AircraftOperatorType
Properties
content: complex
Model fb:operatingOrganization{0,1}
Children fb:operatingOrganization
Instance

<fb:AircraftOperator designatorIcao="">
  <fb:operatingOrganization name="" participantType="">{0,1}</fb:operatingOrganization>
</fb:AircraftOperator>
Attributes
QName Type Fixed Default Use Annotation
designatorIcao fb:AircraftOperatorDesignatorType optional
The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Source

<element name="AircraftOperator" type="fb:AircraftOperatorType"/>

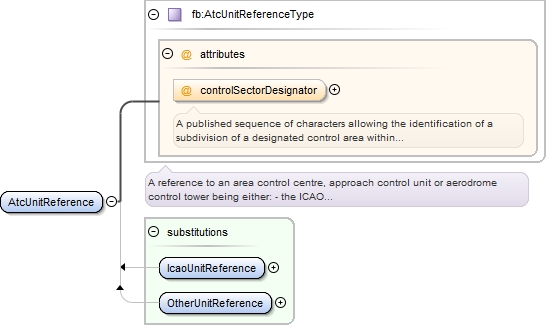

Element fb:AtcUnitReference
Namespace http://www.fixm.aero/base/4.0
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReference Organization_xsd.tmp#OtherUnitReference
Type fb:AtcUnitReferenceType
Properties
content: complex
Substitution Group
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<element name="AtcUnitReference" type="fb:AtcUnitReferenceType"/>

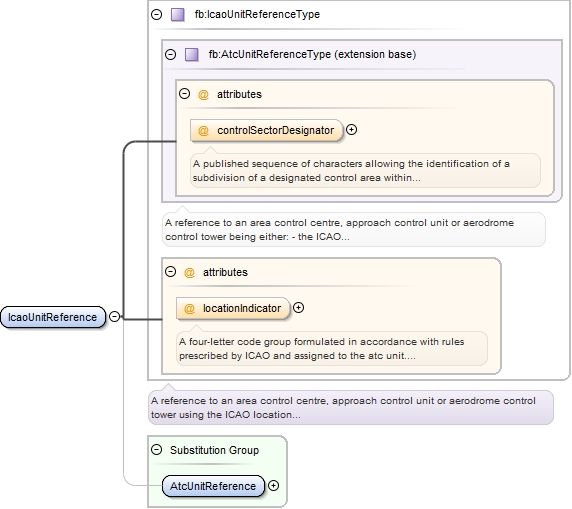

Element fb:IcaoUnitReference
Namespace http://www.fixm.aero/base/4.0
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReferenceType_locationIndicator Organization_xsd.tmp#IcaoUnitReferenceType Organization_xsd.tmp#AtcUnitReference
Type fb:IcaoUnitReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
locationIndicator fb:LocationIndicatorType optional
A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Source

<element name="IcaoUnitReference" type="fb:IcaoUnitReferenceType" substitutionGroup="fb:AtcUnitReference"/>

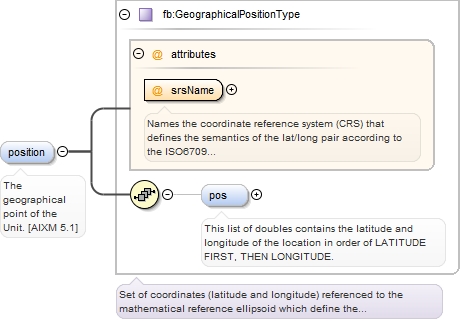

Element fb:OtherUnitReferenceType / fb:position
Namespace http://www.fixm.aero/base/4.0
Annotations

The geographical point of the Unit. [AIXM 5.1]
Diagram
Diagram Airspace_xsd.tmp#GeographicalPositionType_srsName Airspace_xsd.tmp#GeographicalPositionType_pos Airspace_xsd.tmp#GeographicalPositionType
Type fb:GeographicalPositionType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:pos{0,1}
Children fb:pos
Instance

<fb:position srsName="urn:ogc:def:crs:EPSG::4326">
  <fb:pos>{0,1}</fb:pos>
</fb:position>
Attributes
QName Type Fixed Default Use Annotation
srsName string urn:ogc:def:crs:EPSG::4326 required
Names the coordinate reference system (CRS) that defines the semantics of the
lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
Source

<element name="position" type="fb:GeographicalPositionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The geographical point of the Unit. [AIXM 5.1]</documentation>
  </annotation>
</element>

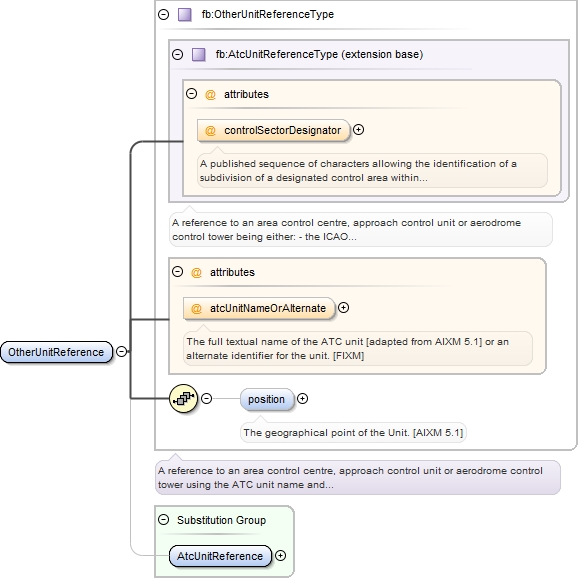

Element fb:OtherUnitReference
Namespace http://www.fixm.aero/base/4.0
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#OtherUnitReferenceType_atcUnitNameOrAlternate Organization_xsd.tmp#OtherUnitReferenceType_position Organization_xsd.tmp#OtherUnitReferenceType Organization_xsd.tmp#AtcUnitReference
Type fb:OtherUnitReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:position{0,1}
Children fb:position
Instance

<fb:OtherUnitReference atcUnitNameOrAlternate="" controlSectorDesignator="">
  <fb:position srsName="urn:ogc:def:crs:EPSG::4326">{0,1}</fb:position>
</fb:OtherUnitReference>
Attributes
QName Type Fixed Default Use Annotation
atcUnitNameOrAlternate fb:TextNameType optional
The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier
for the unit. [FIXM]
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<element name="OtherUnitReference" type="fb:OtherUnitReferenceType" substitutionGroup="fb:AtcUnitReference"/>

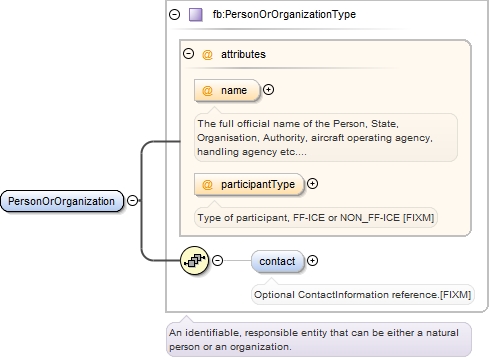

Element fb:PersonOrOrganization
Namespace http://www.fixm.aero/base/4.0
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Properties
content: complex
Model fb:contact{0,1}
Children fb:contact
Instance

<fb:PersonOrOrganization name="" participantType="">
  <fb:contact name="" title="">{0,1}</fb:contact>
</fb:PersonOrOrganization>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="PersonOrOrganization" type="fb:PersonOrOrganizationType"/>

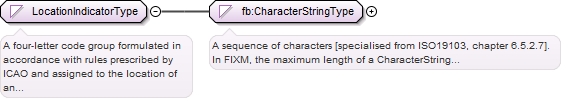

Simple Type fb:LocationIndicatorType
Namespace http://www.fixm.aero/base/4.0
Annotations

A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the location of an aeronautical fixed station. [ICAO Doc 4444]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Z]{4}
Used by
Source

<simpleType name="LocationIndicatorType">
  <annotation>
    <documentation>A four-letter code group formulated in accordance with rules prescribed by ICAO and assigned to the location of an aeronautical fixed station. [ICAO Doc 4444]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Z]{4}"/>
  </restriction>
</simpleType>

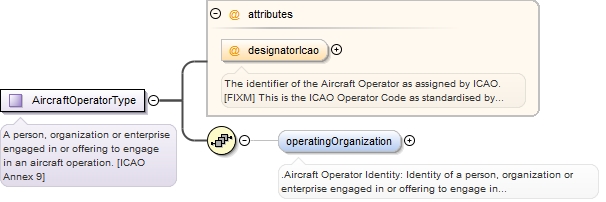

Complex Type fb:AircraftOperatorType
Namespace http://www.fixm.aero/base/4.0
Annotations

A person, organization or enterprise engaged in or offering to engage in an aircraft
operation. [ICAO Annex 9]
Diagram
Diagram Organization_xsd.tmp#AircraftOperatorType_designatorIcao Organization_xsd.tmp#AircraftOperatorType_operatingOrganization
Used by
Model fb:operatingOrganization{0,1}
Children fb:operatingOrganization
Attributes
QName Type Fixed Default Use Annotation
designatorIcao fb:AircraftOperatorDesignatorType optional
The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Source

<complexType name="AircraftOperatorType">
  <annotation>
    <documentation>A person, organization or enterprise engaged in or offering to engage in an aircraft operation. [ICAO Annex 9]</documentation>
  </annotation>
  <sequence>
    <element name="operatingOrganization" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>.Aircraft Operator Identity: Identity of a person, organization or enterprise engaged in or offering to engage in aircraft operation.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="designatorIcao" type="fb:AircraftOperatorDesignatorType" use="optional">
    <annotation>
      <documentation>The identifier of the Aircraft Operator as assigned by ICAO. [FIXM] This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators for Aircraft Operating Agencies, Aeronautical Authorities and Services.</documentation>
    </annotation>
  </attribute>
</complexType>

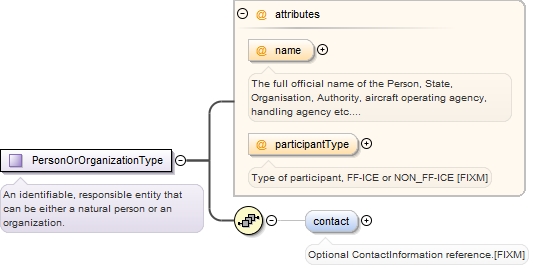

Complex Type fb:PersonOrOrganizationType
Namespace http://www.fixm.aero/base/4.0
Annotations

An identifiable, responsible entity that can be either a natural person or an organization.
Diagram
Diagram Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact
Used by
Model fb:contact{0,1}
Children fb:contact
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<complexType name="PersonOrOrganizationType">
  <annotation>
    <documentation>An identifiable, responsible entity that can be either a natural person or an organization.</documentation>
  </annotation>
  <sequence>
    <element name="contact" type="fb:ContactInformationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Optional ContactInformation reference.[FIXM]</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="name" type="fb:TextNameType" use="optional">
    <annotation>
      <documentation>The full official name of the Person, State, Organisation, Authority, aircraft operating agency, handling agency etc. [FIXM]</documentation>
    </annotation>
  </attribute>
  <attribute name="participantType" type="fb:ParticipantTypeType" use="optional">
    <annotation>
      <documentation>Type of participant, FF-ICE or NON_FF-ICE [FIXM]</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type fb:ParticipantTypeType
Namespace http://www.fixm.aero/base/4.0
Annotations

Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Diagram
Diagram
Type restriction of string
Facets
enumeration FFICE_PARTICIPANT
enumeration NON_FFICE_PARTICIPANT
Used by
Source

<simpleType name="ParticipantTypeType">
  <annotation>
    <documentation>Type of participant, FF-ICE or NON_FF-ICE [FIXM]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="FFICE_PARTICIPANT"/>
    <enumeration value="NON_FFICE_PARTICIPANT"/>
  </restriction>
</simpleType>
Simple Type fb:AircraftOperatorDesignatorType
Namespace http://www.fixm.aero/base/4.0
Annotations

The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Z]{3}
Used by
Source

<simpleType name="AircraftOperatorDesignatorType">
  <annotation>
    <documentation>The identifier of the Aircraft Operator as assigned by ICAO. [FIXM] This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators for Aircraft Operating Agencies, Aeronautical Authorities and Services.</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Z]{3}"/>
  </restriction>
</simpleType>

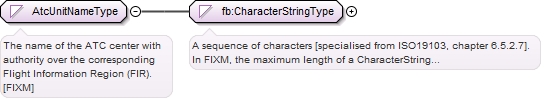

Simple Type fb:AtcUnitNameType
Namespace http://www.fixm.aero/base/4.0
Annotations

The name of the ATC center with authority over the corresponding Flight Information
Region (FIR). [FIXM]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern ([A-Z]{4})|([A-Za-z0-9]{1,})
Used by
Source

<simpleType name="AtcUnitNameType">
  <annotation>
    <documentation>The name of the ATC center with authority over the corresponding Flight Information Region (FIR). [FIXM]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="([A-Z]{4})|([A-Za-z0-9]{1,})"/>
  </restriction>
</simpleType>
Complex Type fb:AtcUnitReferenceType
Namespace http://www.fixm.aero/base/4.0
Annotations

A reference to an area control centre, approach control unit or aerodrome control
tower being either:
- the ICAO location indicator of the atc unit, as listed in ICAO Doc 7910
- if no ICAO location indicator is available, the ATC unit name and optionally its
geographical position. [FIXM]
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator
Properties
abstract: true
Used by
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<complexType abstract="true" name="AtcUnitReferenceType">
  <annotation>
    <documentation>A reference to an area control centre, approach control unit or aerodrome control tower being either: - the ICAO location indicator of the atc unit, as listed in ICAO Doc 7910 - if no ICAO location indicator is available, the ATC unit name and optionally its geographical position. [FIXM]</documentation>
  </annotation>
  <attribute name="controlSectorDesignator" type="fb:AirspaceDesignatorType" use="optional">
    <annotation>
      <documentation>A published sequence of characters allowing the identification of a subdivision of a designated control area within which responsibility is assigned to one controller or to a small group of controllers.</documentation>
    </annotation>
  </attribute>
</complexType>

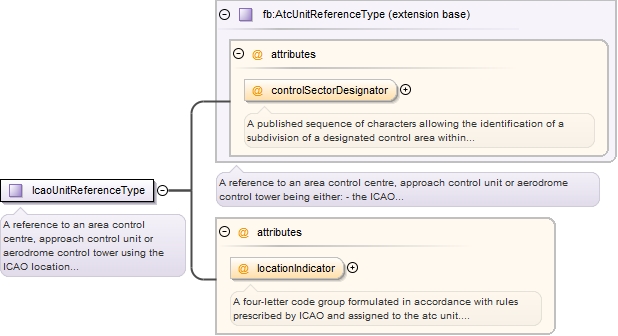

Complex Type fb:IcaoUnitReferenceType
Namespace http://www.fixm.aero/base/4.0
Annotations

A reference to an area control centre, approach control unit or aerodrome control
tower using the ICAO location indicator of the atc unit, as listed in ICAO DOC 7910.
[FIXM]
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReferenceType_locationIndicator
Type extension of fb:AtcUnitReferenceType
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
locationIndicator fb:LocationIndicatorType optional
A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Source

<complexType name="IcaoUnitReferenceType">
  <annotation>
    <documentation>A reference to an area control centre, approach control unit or aerodrome control tower using the ICAO location indicator of the atc unit, as listed in ICAO DOC 7910. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:AtcUnitReferenceType">
      <attribute name="locationIndicator" type="fb:LocationIndicatorType" use="optional">
        <annotation>
          <documentation>A four-letter code group formulated in accordance with rules prescribed by ICAO and assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location indicators is provided by ICAO Doc 7910.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:OtherUnitReferenceType
Namespace http://www.fixm.aero/base/4.0
Annotations

A reference to an area control centre, approach control unit or aerodrome control
tower using the ATC unit name and optionally its geographical position, if no ICAO
location indicator is available. [FIXM]
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#OtherUnitReferenceType_atcUnitNameOrAlternate Organization_xsd.tmp#OtherUnitReferenceType_position
Type extension of fb:AtcUnitReferenceType
Type hierarchy
Used by
Model fb:position{0,1}
Children fb:position
Attributes
QName Type Fixed Default Use Annotation
atcUnitNameOrAlternate fb:TextNameType optional
The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier
for the unit. [FIXM]
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<complexType name="OtherUnitReferenceType">
  <annotation>
    <documentation>A reference to an area control centre, approach control unit or aerodrome control tower using the ATC unit name and optionally its geographical position, if no ICAO location indicator is available. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:AtcUnitReferenceType">
      <sequence>
        <element name="position" type="fb:GeographicalPositionType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The geographical point of the Unit. [AIXM 5.1]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="atcUnitNameOrAlternate" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier for the unit. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fb:PersonOrOrganizationType / @name
Namespace No namespace
Annotations

The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="name" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The full official name of the Person, State, Organisation, Authority, aircraft operating agency, handling agency etc. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:PersonOrOrganizationType / @participantType
Namespace No namespace
Annotations

Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Type fb:ParticipantTypeType
Properties
use: optional
Facets
enumeration FFICE_PARTICIPANT
enumeration NON_FFICE_PARTICIPANT
Used by
Source

<attribute name="participantType" type="fb:ParticipantTypeType" use="optional">
  <annotation>
    <documentation>Type of participant, FF-ICE or NON_FF-ICE [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:AircraftOperatorType / @designatorIcao
Namespace No namespace
Annotations

The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Type fb:AircraftOperatorDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z]{3}
Used by
Source

<attribute name="designatorIcao" type="fb:AircraftOperatorDesignatorType" use="optional">
  <annotation>
    <documentation>The identifier of the Aircraft Operator as assigned by ICAO. [FIXM] This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators for Aircraft Operating Agencies, Aeronautical Authorities and Services.</documentation>
  </annotation>
</attribute>
Attribute fb:AtcUnitReferenceType / @controlSectorDesignator
Namespace No namespace
Annotations

A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Type fb:AirspaceDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 10
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="controlSectorDesignator" type="fb:AirspaceDesignatorType" use="optional">
  <annotation>
    <documentation>A published sequence of characters allowing the identification of a subdivision of a designated control area within which responsibility is assigned to one controller or to a small group of controllers.</documentation>
  </annotation>
</attribute>
Attribute fb:IcaoUnitReferenceType / @locationIndicator
Namespace No namespace
Annotations

A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Type fb:LocationIndicatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z]{4}
Used by
Source

<attribute name="locationIndicator" type="fb:LocationIndicatorType" use="optional">
  <annotation>
    <documentation>A four-letter code group formulated in accordance with rules prescribed by ICAO and assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location indicators is provided by ICAO Doc 7910.</documentation>
  </annotation>
</attribute>
Attribute fb:OtherUnitReferenceType / @atcUnitNameOrAlternate
Namespace No namespace
Annotations

The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier
for the unit. [FIXM]
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="atcUnitNameOrAlternate" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier for the unit. [FIXM]</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
