Included schema Emergency.xsd
Namespace http://www.faa.aero/nas/4.1
Annotations

Copyright (c) 2016 Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the disclaimer
  in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited, NavCanada, SESAR Joint Undertaking
  & US FAA nor the names of their contributors may be used to endorse or promote products derived from this specification
  without specific prior written permission.


       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

The Emergency Package describes any emergency filed during the flight.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0

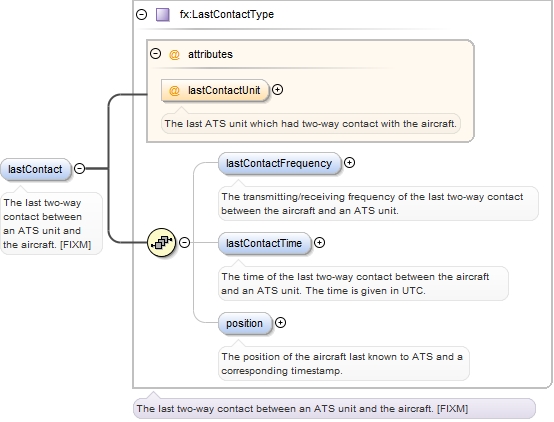

Element fx:FlightEmergencyType / fx:lastContact
Namespace http://www.fixm.aero/flight/4.0
Annotations

The last two-way contact between an ATS unit and the aircraft. [FIXM]
Diagram
Diagram Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_position Emergency_xsd.tmp#LastContactType
Type fx:LastContactType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:lastContactFrequency{0,1} , fx:lastContactTime{0,1} , fx:position{0,1}
Children fx:lastContactFrequency, fx:lastContactTime, fx:position
Instance

<fx:lastContact lastContactUnit="">
  <fx:lastContactFrequency uom="">{0,1}</fx:lastContactFrequency>
  <fx:lastContactTime timeReference="UTC">{0,1}</fx:lastContactTime>
  <fx:position determinationMethod="">{0,1}</fx:position>
</fx:lastContact>
Attributes
QName Type Fixed Default Use Annotation
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<element name="lastContact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The last two-way contact between an ATS unit and the aircraft. [FIXM]</documentation>
  </annotation>
</element>
Element fx:LastContactType / fx:lastContactFrequency
Namespace http://www.fixm.aero/flight/4.0
Annotations

The transmitting/receiving frequency of the last two-way contact between the aircraft
and an ATS unit.
Diagram
Diagram Measures_xsd.tmp#RestrictedFrequencyType Measures_xsd.tmp#FrequencyType_uom Measures_xsd.tmp#FrequencyType
Type fb:FrequencyType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomFrequencyType required
Unit of measure
Source

<element name="lastContactFrequency" type="fb:FrequencyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The transmitting/receiving frequency of the last two-way contact between the aircraft and an ATS unit.</documentation>
  </annotation>
</element>

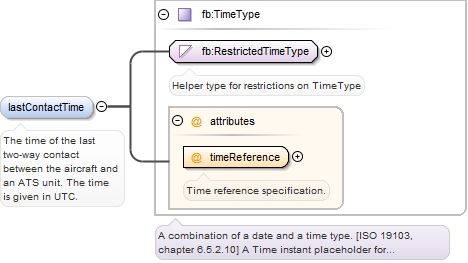

Element fx:LastContactType / fx:lastContactTime
Namespace http://www.fixm.aero/flight/4.0
Annotations

The time of the last two-way contact between the aircraft and an ATS unit. The time
is given in UTC.
Diagram
Diagram Types_xsd.tmp#RestrictedTimeType Types_xsd.tmp#TimeType_timeReference Types_xsd.tmp#TimeType
Type fb:TimeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
timeReference string UTC required
Time reference specification.
Source

<element name="lastContactTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The time of the last two-way contact between the aircraft and an ATS unit. The time is given in UTC.</documentation>
  </annotation>
</element>

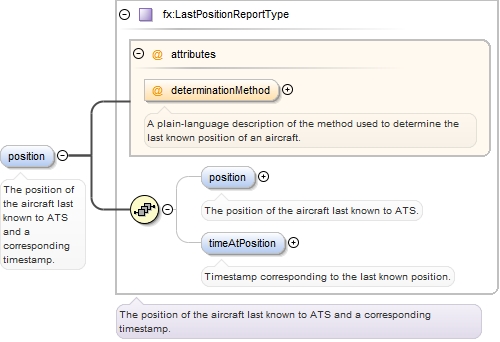

Element fx:LastContactType / fx:position
Namespace http://www.fixm.aero/flight/4.0
Annotations

The position of the aircraft last known to ATS and a corresponding timestamp.
Diagram
Diagram Emergency_xsd.tmp#LastPositionReportType_determinationMethod Emergency_xsd.tmp#LastPositionReportType_position Emergency_xsd.tmp#LastPositionReportType_timeAtPosition Emergency_xsd.tmp#LastPositionReportType
Type fx:LastPositionReportType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:position{0,1} , fx:timeAtPosition{0,1}
Children fx:position, fx:timeAtPosition
Instance

<fx:position determinationMethod="">
  <fx:position>{0,1}</fx:position>
  <fx:timeAtPosition timeReference="UTC">{0,1}</fx:timeAtPosition>
</fx:position>
Attributes
QName Type Fixed Default Use Annotation
determinationMethod fb:CharacterStringType optional
A plain-language description of the method used to determine the last known position
of an aircraft.
Source

<element name="position" type="fx:LastPositionReportType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</documentation>
  </annotation>
</element>
Element fx:LastPositionReportType / fx:position
Namespace http://www.fixm.aero/flight/4.0
Annotations

The position of the aircraft last known to ATS.
Diagram
Diagram Airspace_xsd.tmp#SignificantPointType
Type fb:SignificantPointType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="position" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The position of the aircraft last known to ATS.</documentation>
  </annotation>
</element>

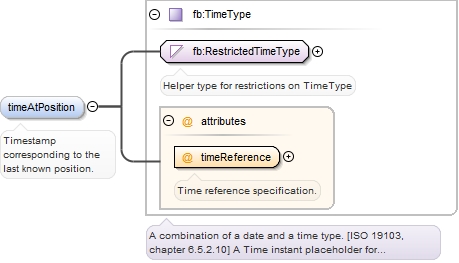

Element fx:LastPositionReportType / fx:timeAtPosition
Namespace http://www.fixm.aero/flight/4.0
Annotations

Timestamp corresponding to the last known position.
Diagram
Diagram Types_xsd.tmp#RestrictedTimeType Types_xsd.tmp#TimeType_timeReference Types_xsd.tmp#TimeType
Type fb:TimeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
timeReference string UTC required
Time reference specification.
Source

<element name="timeAtPosition" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Timestamp corresponding to the last known position.</documentation>
  </annotation>
</element>

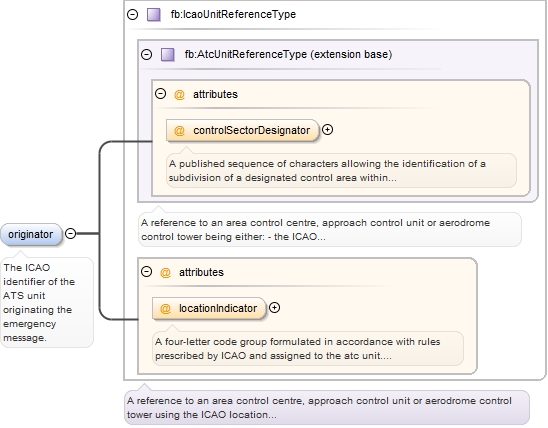

Element fx:FlightEmergencyType / fx:originator
Namespace http://www.fixm.aero/flight/4.0
Annotations

The ICAO identifier of the ATS unit originating the emergency message.
Diagram
Diagram Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReferenceType_locationIndicator Organization_xsd.tmp#IcaoUnitReferenceType
Type fb:IcaoUnitReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
locationIndicator fb:LocationIndicatorType optional
A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Source

<element name="originator" type="fb:IcaoUnitReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The ICAO identifier of the ATS unit originating the emergency message.</documentation>
  </annotation>
</element>

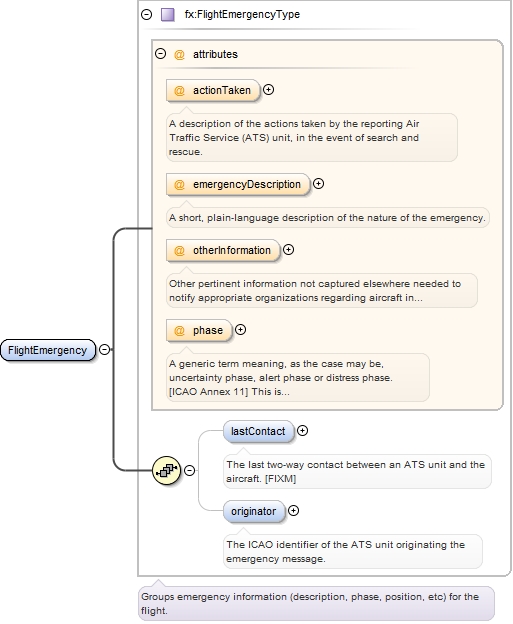

Element fx:FlightEmergency
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Emergency_xsd.tmp#FlightEmergencyType_actionTaken Emergency_xsd.tmp#FlightEmergencyType_emergencyDescription Emergency_xsd.tmp#FlightEmergencyType_otherInformation Emergency_xsd.tmp#FlightEmergencyType_phase Emergency_xsd.tmp#FlightEmergencyType_lastContact Emergency_xsd.tmp#FlightEmergencyType_originator Emergency_xsd.tmp#FlightEmergencyType
Type fx:FlightEmergencyType
Properties
content: complex
Model fx:lastContact{0,1} , fx:originator{0,1}
Children fx:lastContact, fx:originator
Instance

<fx:FlightEmergency actionTaken="" emergencyDescription="" otherInformation="" phase="">
  <fx:lastContact lastContactUnit="">{0,1}</fx:lastContact>
  <fx:originator controlSectorDesignator="" locationIndicator="">{0,1}</fx:originator>
</fx:FlightEmergency>
Attributes
QName Type Fixed Default Use Annotation
actionTaken fb:CharacterStringType optional
A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
emergencyDescription fb:CharacterStringType optional
A short, plain-language description of the nature of the emergency.
otherInformation fb:CharacterStringType optional
Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.

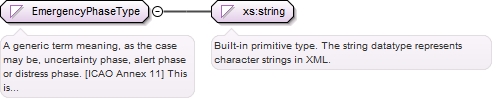

phase fx:EmergencyPhaseType optional
A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Source

<element name="FlightEmergency" type="fx:FlightEmergencyType"/>
Element fx:LastContact
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_position Emergency_xsd.tmp#LastContactType
Type fx:LastContactType
Properties
content: complex
Model fx:lastContactFrequency{0,1} , fx:lastContactTime{0,1} , fx:position{0,1}
Children fx:lastContactFrequency, fx:lastContactTime, fx:position
Instance

<fx:LastContact lastContactUnit="">
  <fx:lastContactFrequency uom="">{0,1}</fx:lastContactFrequency>
  <fx:lastContactTime timeReference="UTC">{0,1}</fx:lastContactTime>
  <fx:position determinationMethod="">{0,1}</fx:position>
</fx:LastContact>
Attributes
QName Type Fixed Default Use Annotation
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<element name="LastContact" type="fx:LastContactType"/>

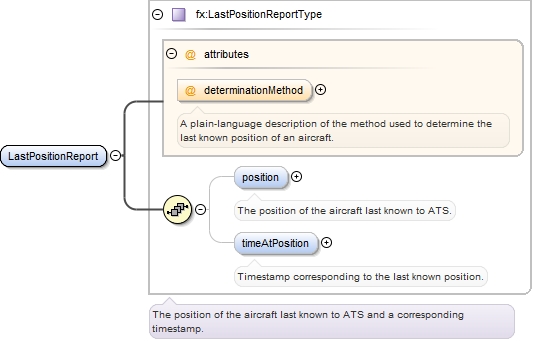

Element fx:LastPositionReport
Namespace http://www.fixm.aero/flight/4.0
Diagram

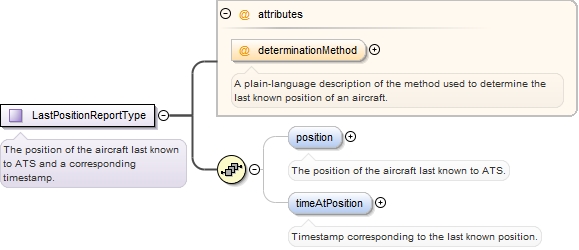

Diagram Emergency_xsd.tmp#LastPositionReportType_determinationMethod Emergency_xsd.tmp#LastPositionReportType_position Emergency_xsd.tmp#LastPositionReportType_timeAtPosition Emergency_xsd.tmp#LastPositionReportType
Type fx:LastPositionReportType
Properties
content: complex
Model fx:position{0,1} , fx:timeAtPosition{0,1}
Children fx:position, fx:timeAtPosition
Instance

<fx:LastPositionReport determinationMethod="">
  <fx:position>{0,1}</fx:position>
  <fx:timeAtPosition timeReference="UTC">{0,1}</fx:timeAtPosition>
</fx:LastPositionReport>
Attributes
QName Type Fixed Default Use Annotation
determinationMethod fb:CharacterStringType optional
A plain-language description of the method used to determine the last known position
of an aircraft.
Source

<element name="LastPositionReport" type="fx:LastPositionReportType"/>

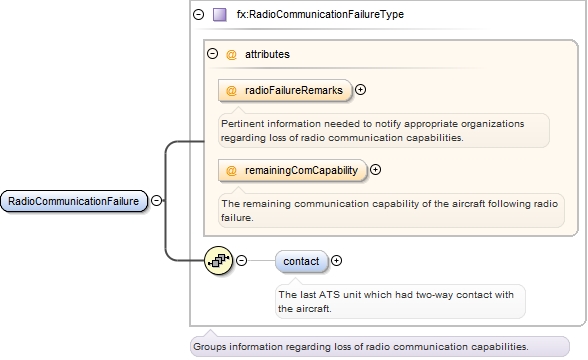

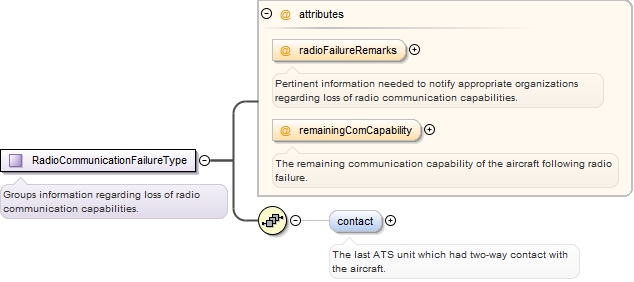

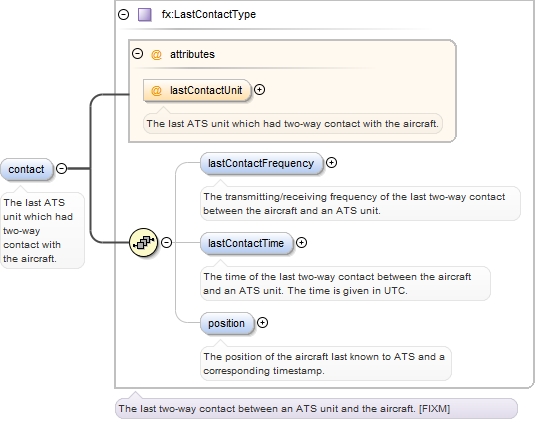

Element fx:RadioCommunicationFailureType / fx:contact
Namespace http://www.fixm.aero/flight/4.0
Annotations

The last ATS unit which had two-way contact with the aircraft.
Diagram
Diagram Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_position Emergency_xsd.tmp#LastContactType
Type fx:LastContactType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:lastContactFrequency{0,1} , fx:lastContactTime{0,1} , fx:position{0,1}
Children fx:lastContactFrequency, fx:lastContactTime, fx:position
Instance

<fx:contact lastContactUnit="">
  <fx:lastContactFrequency uom="">{0,1}</fx:lastContactFrequency>
  <fx:lastContactTime timeReference="UTC">{0,1}</fx:lastContactTime>
  <fx:position determinationMethod="">{0,1}</fx:position>
</fx:contact>
Attributes
QName Type Fixed Default Use Annotation
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<element name="contact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
  </annotation>
</element>
Element fx:RadioCommunicationFailure
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Emergency_xsd.tmp#RadioCommunicationFailureType_radioFailureRemarks Emergency_xsd.tmp#RadioCommunicationFailureType_remainingComCapability Emergency_xsd.tmp#RadioCommunicationFailureType_contact Emergency_xsd.tmp#RadioCommunicationFailureType
Type fx:RadioCommunicationFailureType
Properties
content: complex
Model fx:contact{0,1}
Children fx:contact
Instance

<fx:RadioCommunicationFailure radioFailureRemarks="" remainingComCapability="">
  <fx:contact lastContactUnit="">{0,1}</fx:contact>
</fx:RadioCommunicationFailure>
Attributes
QName Type Fixed Default Use Annotation
radioFailureRemarks fb:CharacterStringType optional
Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
remainingComCapability fb:CharacterStringType optional
The remaining communication capability of the aircraft following radio failure.
Source

<element name="RadioCommunicationFailure" type="fx:RadioCommunicationFailureType"/>
Simple Type fx:EmergencyPhaseType
Namespace http://www.fixm.aero/flight/4.0
Annotations

A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]
This is the stage of emergency the flight is currently under, as designated by an
ATS unit. [FIXM]
Diagram
Diagram
Type restriction of string
Facets
enumeration INCERFA
The code word used to designate an uncertainty phase. [ICAO Annex 11]
enumeration ALERFA
The code word used to designate an alert phase. [ICAO Annex 11]
enumeration DETRESFA
The code word used to designate a distress phase. [ICAO Annex 11]
Used by
Source

<simpleType name="EmergencyPhaseType">
  <annotation>
    <documentation>A generic term meaning, as the case may be, uncertainty phase, alert phase or distress phase. [ICAO Annex 11] This is the stage of emergency the flight is currently under, as designated by an ATS unit. [FIXM]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="INCERFA">
      <annotation>
        <documentation>The code word used to designate an uncertainty phase. [ICAO Annex 11]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="ALERFA">
      <annotation>
        <documentation>The code word used to designate an alert phase. [ICAO Annex 11]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="DETRESFA">
      <annotation>
        <documentation>The code word used to designate a distress phase. [ICAO Annex 11]</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type fx:FlightEmergencyType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Groups emergency information (description, phase, position, etc) for the flight.
Diagram
Diagram Emergency_xsd.tmp#FlightEmergencyType_actionTaken Emergency_xsd.tmp#FlightEmergencyType_emergencyDescription Emergency_xsd.tmp#FlightEmergencyType_otherInformation Emergency_xsd.tmp#FlightEmergencyType_phase Emergency_xsd.tmp#FlightEmergencyType_lastContact Emergency_xsd.tmp#FlightEmergencyType_originator
Used by
Model fx:lastContact{0,1} , fx:originator{0,1}
Children fx:lastContact, fx:originator
Attributes
QName Type Fixed Default Use Annotation
actionTaken fb:CharacterStringType optional
A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
emergencyDescription fb:CharacterStringType optional
A short, plain-language description of the nature of the emergency.
otherInformation fb:CharacterStringType optional
Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.
phase fx:EmergencyPhaseType optional
A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Source

<complexType name="FlightEmergencyType">
  <annotation>
    <documentation>Groups emergency information (description, phase, position, etc) for the flight.</documentation>
  </annotation>
  <sequence>
    <element name="lastContact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The last two-way contact between an ATS unit and the aircraft. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="originator" type="fb:IcaoUnitReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The ICAO identifier of the ATS unit originating the emergency message.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="actionTaken" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>A description of the actions taken by the reporting Air Traffic Service (ATS) unit, in the event of search and rescue.</documentation>
    </annotation>
  </attribute>
  <attribute name="emergencyDescription" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>A short, plain-language description of the nature of the emergency.</documentation>
    </annotation>
  </attribute>
  <attribute name="otherInformation" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Other pertinent information not captured elsewhere needed to notify appropriate organizations regarding aircraft in need of search and rescue.</documentation>
    </annotation>
  </attribute>
  <attribute name="phase" type="fx:EmergencyPhaseType" use="optional">
    <annotation>
      <documentation>A generic term meaning, as the case may be, uncertainty phase, alert phase or distress phase. [ICAO Annex 11] This is the stage of emergency the flight is currently under or an indication the emergency has been cancelled, as designated by an ATS unit. [FIXM]</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:LastContactType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The last two-way contact between an ATS unit and the aircraft. [FIXM]
Diagram
Diagram Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_position
Used by
Model fx:lastContactFrequency{0,1} , fx:lastContactTime{0,1} , fx:position{0,1}
Children fx:lastContactFrequency, fx:lastContactTime, fx:position
Attributes
QName Type Fixed Default Use Annotation
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<complexType name="LastContactType">
  <annotation>
    <documentation>The last two-way contact between an ATS unit and the aircraft. [FIXM]</documentation>
  </annotation>
  <sequence>
    <element name="lastContactFrequency" type="fb:FrequencyType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The transmitting/receiving frequency of the last two-way contact between the aircraft and an ATS unit.</documentation>
      </annotation>
    </element>
    <element name="lastContactTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The time of the last two-way contact between the aircraft and an ATS unit. The time is given in UTC.</documentation>
      </annotation>
    </element>
    <element name="position" type="fx:LastPositionReportType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="lastContactUnit" type="fb:AtcUnitNameType" use="optional">
    <annotation>
      <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:LastPositionReportType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The position of the aircraft last known to ATS and a corresponding timestamp.
Diagram
Diagram Emergency_xsd.tmp#LastPositionReportType_determinationMethod Emergency_xsd.tmp#LastPositionReportType_position Emergency_xsd.tmp#LastPositionReportType_timeAtPosition
Used by
Model fx:position{0,1} , fx:timeAtPosition{0,1}
Children fx:position, fx:timeAtPosition
Attributes
QName Type Fixed Default Use Annotation
determinationMethod fb:CharacterStringType optional
A plain-language description of the method used to determine the last known position
of an aircraft.
Source

<complexType name="LastPositionReportType">
  <annotation>
    <documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</documentation>
  </annotation>
  <sequence>
    <element name="position" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The position of the aircraft last known to ATS.</documentation>
      </annotation>
    </element>
    <element name="timeAtPosition" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Timestamp corresponding to the last known position.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="determinationMethod" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>A plain-language description of the method used to determine the last known position of an aircraft.</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:RadioCommunicationFailureType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Groups information regarding loss of radio communication capabilities.
Diagram
Diagram Emergency_xsd.tmp#RadioCommunicationFailureType_radioFailureRemarks Emergency_xsd.tmp#RadioCommunicationFailureType_remainingComCapability Emergency_xsd.tmp#RadioCommunicationFailureType_contact
Used by
Model fx:contact{0,1}
Children fx:contact
Attributes
QName Type Fixed Default Use Annotation
radioFailureRemarks fb:CharacterStringType optional
Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
remainingComCapability fb:CharacterStringType optional
The remaining communication capability of the aircraft following radio failure.
Source

<complexType name="RadioCommunicationFailureType">
  <annotation>
    <documentation>Groups information regarding loss of radio communication capabilities.</documentation>
  </annotation>
  <sequence>
    <element name="contact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="radioFailureRemarks" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.</documentation>
    </annotation>
  </attribute>
  <attribute name="remainingComCapability" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The remaining communication capability of the aircraft following radio failure.</documentation>
    </annotation>
  </attribute>
</complexType>
Attribute fx:LastPositionReportType / @determinationMethod
Namespace No namespace
Annotations

A plain-language description of the method used to determine the last known position
of an aircraft.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="determinationMethod" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A plain-language description of the method used to determine the last known position of an aircraft.</documentation>
  </annotation>
</attribute>
Attribute fx:LastContactType / @lastContactUnit
Namespace No namespace
Annotations

The last ATS unit which had two-way contact with the aircraft.
Type fb:AtcUnitNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern ([A-Z]{4})|([A-Za-z0-9]{1,})
Used by
Complex Type fx:LastContactType
Source

<attribute name="lastContactUnit" type="fb:AtcUnitNameType" use="optional">
  <annotation>
    <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @actionTaken
Namespace No namespace
Annotations

A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="actionTaken" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A description of the actions taken by the reporting Air Traffic Service (ATS) unit, in the event of search and rescue.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @emergencyDescription
Namespace No namespace
Annotations

A short, plain-language description of the nature of the emergency.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="emergencyDescription" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A short, plain-language description of the nature of the emergency.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @otherInformation
Namespace No namespace
Annotations

Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="otherInformation" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Other pertinent information not captured elsewhere needed to notify appropriate organizations regarding aircraft in need of search and rescue.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @phase
Namespace No namespace
Annotations

A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Type fx:EmergencyPhaseType
Properties
use: optional
Facets
enumeration INCERFA
The code word used to designate an uncertainty phase. [ICAO Annex 11]
enumeration ALERFA
The code word used to designate an alert phase. [ICAO Annex 11]
enumeration DETRESFA
The code word used to designate a distress phase. [ICAO Annex 11]
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="phase" type="fx:EmergencyPhaseType" use="optional">
  <annotation>
    <documentation>A generic term meaning, as the case may be, uncertainty phase, alert phase or distress phase. [ICAO Annex 11] This is the stage of emergency the flight is currently under or an indication the emergency has been cancelled, as designated by an ATS unit. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:RadioCommunicationFailureType / @radioFailureRemarks
Namespace No namespace
Annotations

Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="radioFailureRemarks" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.</documentation>
  </annotation>
</attribute>
Attribute fx:RadioCommunicationFailureType / @remainingComCapability
Namespace No namespace
Annotations

The remaining communication capability of the aircraft following radio failure.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="remainingComCapability" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The remaining communication capability of the aircraft following radio failure.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
