The Arrival package contains al information about the actual departure of the flight
at an airport.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0

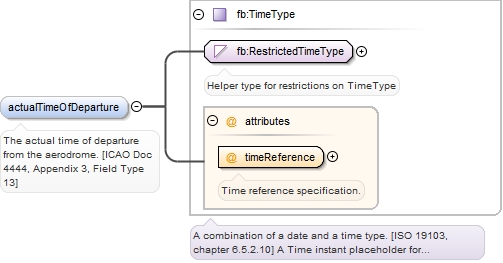

Element fx:DepartureType / fx:actualTimeOfDeparture
Namespace http://www.fixm.aero/flight/4.0
Annotations

The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field
Type 13]
Diagram
Diagram Types_xsd.tmp#RestrictedTimeType Types_xsd.tmp#TimeType_timeReference Types_xsd.tmp#TimeType
Type fb:TimeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
timeReference string UTC required
Time reference specification.
Source

<element name="actualTimeOfDeparture" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field Type 13]</documentation>
  </annotation>
</element>

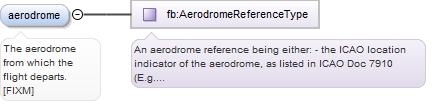

Element fx:DepartureType / fx:aerodrome
Namespace http://www.fixm.aero/flight/4.0
Annotations

The aerodrome from which the flight departs. [FIXM]
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome from which the flight departs. [FIXM]</documentation>
  </annotation>
</element>

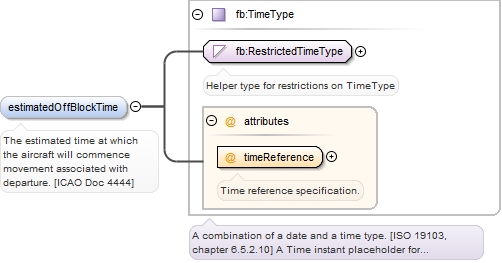

Element fx:DepartureType / fx:estimatedOffBlockTime
Namespace http://www.fixm.aero/flight/4.0
Annotations

The estimated time at which the aircraft will commence movement associated with departure.
[ICAO Doc 4444]
Diagram
Diagram Types_xsd.tmp#RestrictedTimeType Types_xsd.tmp#TimeType_timeReference Types_xsd.tmp#TimeType
Type fb:TimeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
timeReference string UTC required
Time reference specification.
Source

<element name="estimatedOffBlockTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The estimated time at which the aircraft will commence movement associated with departure. [ICAO Doc 4444]</documentation>
  </annotation>
</element>

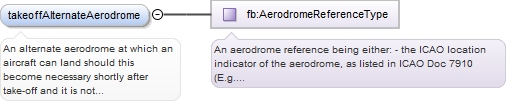

Element fx:DepartureType / fx:takeoffAlternateAerodrome
Namespace http://www.fixm.aero/flight/4.0
Annotations

An alternate aerodrome at which an aircraft can land should this become necessary
shortly after take-off and it is not possible to use the aerodrome of departure.
[ICAO Doc 4444]
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Source

<element name="takeoffAlternateAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>An alternate aerodrome at which an aircraft can land should this become necessary shortly after take-off and it is not possible to use the aerodrome of departure. [ICAO Doc 4444]</documentation>
  </annotation>
</element>

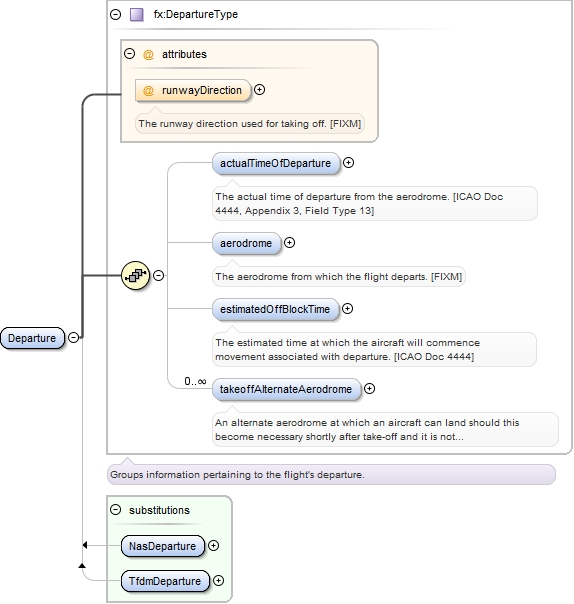

Element fx:Departure
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Departure_xsd.tmp#DepartureType_runwayDirection Departure_xsd.tmp#DepartureType_actualTimeOfDeparture Departure_xsd.tmp#DepartureType_aerodrome Departure_xsd.tmp#DepartureType_estimatedOffBlockTime Departure_xsd.tmp#DepartureType_takeoffAlternateAerodrome Departure_xsd.tmp#DepartureType NasDeparture_xsd.tmp#NasDeparture NasTfdm_xsd.tmp#TfdmDeparture
Type fx:DepartureType
Properties
content: complex
Substitution Group
Model fx:actualTimeOfDeparture{0,1} , fx:aerodrome{0,1} , fx:estimatedOffBlockTime{0,1} , fx:takeoffAlternateAerodrome*
Children fx:actualTimeOfDeparture, fx:aerodrome, fx:estimatedOffBlockTime, fx:takeoffAlternateAerodrome
Instance

<fx:Departure runwayDirection="">
  <fx:actualTimeOfDeparture timeReference="UTC">{0,1}</fx:actualTimeOfDeparture>
  <fx:aerodrome>{0,1}</fx:aerodrome>
  <fx:estimatedOffBlockTime timeReference="UTC">{0,1}</fx:estimatedOffBlockTime>
  <fx:takeoffAlternateAerodrome>{0,unbounded}</fx:takeoffAlternateAerodrome>
</fx:Departure>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction used for taking off. [FIXM]
Source

<element name="Departure" type="fx:DepartureType"/>

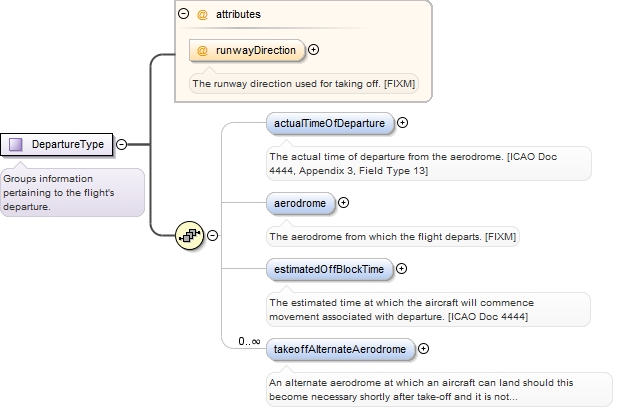

Complex Type fx:DepartureType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Groups information pertaining to the flight's departure.
Diagram
Diagram Departure_xsd.tmp#DepartureType_runwayDirection Departure_xsd.tmp#DepartureType_actualTimeOfDeparture Departure_xsd.tmp#DepartureType_aerodrome Departure_xsd.tmp#DepartureType_estimatedOffBlockTime Departure_xsd.tmp#DepartureType_takeoffAlternateAerodrome
Used by
Model fx:actualTimeOfDeparture{0,1} , fx:aerodrome{0,1} , fx:estimatedOffBlockTime{0,1} , fx:takeoffAlternateAerodrome*
Children fx:actualTimeOfDeparture, fx:aerodrome, fx:estimatedOffBlockTime, fx:takeoffAlternateAerodrome
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction used for taking off. [FIXM]
Source

<complexType name="DepartureType">
  <annotation>
    <documentation>Groups information pertaining to the flight's departure.</documentation>
  </annotation>
  <sequence>
    <element name="actualTimeOfDeparture" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field Type 13]</documentation>
      </annotation>
    </element>
    <element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The aerodrome from which the flight departs. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="estimatedOffBlockTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The estimated time at which the aircraft will commence movement associated with departure. [ICAO Doc 4444]</documentation>
      </annotation>
    </element>
    <element name="takeoffAlternateAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>An alternate aerodrome at which an aircraft can land should this become necessary shortly after take-off and it is not possible to use the aerodrome of departure. [ICAO Doc 4444]</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
    <annotation>
      <documentation>The runway direction used for taking off. [FIXM]</documentation>
    </annotation>
  </attribute>
</complexType>
Attribute fx:DepartureType / @runwayDirection
Namespace No namespace
Annotations

The runway direction used for taking off. [FIXM]
Type fb:RunwayDirectionDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
Used by
Complex Type fx:DepartureType
Source

<attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
  <annotation>
    <documentation>The runway direction used for taking off. [FIXM]</documentation>
  </annotation>
</attribute>
