Copyright (c) 2016 Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited, NAV CANADA, SESAR Joint Undertaking & US FAA =========================================== All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the disclaimer in the documentation and/or other materials provided with the distribution.* Neither the names of Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited, NavCanada, SESAR Joint Undertaking & US FAA nor the names of their contributors may be used to endorse or promote products derived from this specification without specific prior written permission. DISCLAIMER THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ========================================== Editorial note: this license is an instance of the BSD license template as provided by the Open Source Initiative: http://www.opensource.org/licenses/bsd-license.php The authoritative reference for FIXM is www.FIXM.aero. Details on Airservices Australia: http://www.airservicesaustralia.com/ Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html Details on EUROCONTROL: http://www.eurocontrol.int/ Details on IATA: http://www.iata.org/Pages/default.aspx Details on JCAB: http://www.mlit.go.jp/en/koku/index.html Details on NATS Limited: http://www.nats.co.uk/ Details on NAV CANADA: http://www.navcanada.ca/ Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members Details on the US FAA: http://www.faa.gov/
Trajectory package contains the 4D Trajectory information.

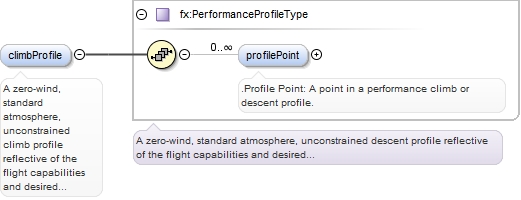

<element name="climbProfile" type="fx:PerformanceProfileType" minOccurs="0" maxOccurs="1"><annotation><documentation>A zero-wind, standard atmosphere, unconstrained climb profile reflective of the flight capabilities and desired parameters.</documentation></annotation></element>
The time (from the start of the profile) at a point in a zero-wind, unconstrained profile.
Source

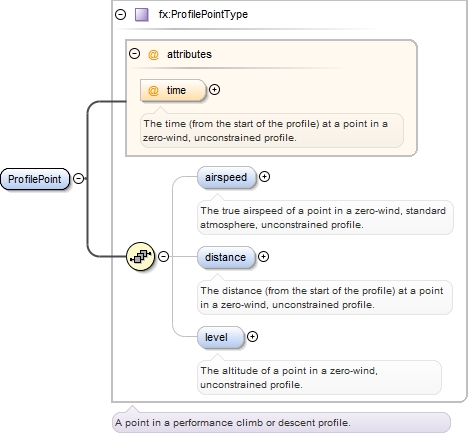

<element name="profilePoint" type="fx:ProfilePointType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>.Profile Point: A point in a performance climb or descent profile.</documentation></annotation></element>

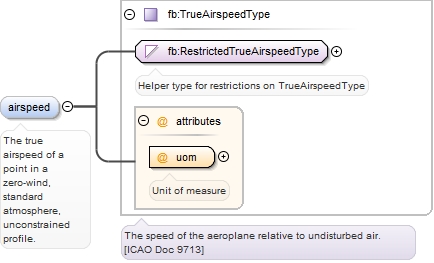

<element name="airspeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>The true airspeed of a point in a zero-wind, standard atmosphere, unconstrained profile.</documentation></annotation></element>

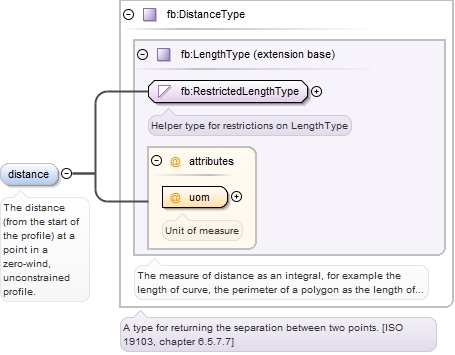

<element name="distance" type="fb:DistanceType" minOccurs="0" maxOccurs="1"><annotation><documentation>The distance (from the start of the profile) at a point in a zero-wind, unconstrained profile.</documentation></annotation></element>
<element name="level" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>The altitude of a point in a zero-wind, unconstrained profile.</documentation></annotation></element>
Initially submitted by the airspace user, this defines the target speed in both Indicated Airspeed (IAS) and MACH so the aircraft can climb through the crossover altitude and target the MACH speed when needed.
<element name="climbSchedule" type="fx:SpeedScheduleType" minOccurs="0" maxOccurs="1"><annotation><documentation>Initially submitted by the airspace user, this defines the target speed in both Indicated Airspeed (IAS) and MACH so the aircraft can climb through the crossover altitude and target the MACH speed when needed.</documentation></annotation></element>

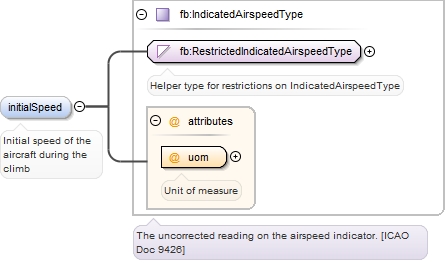

<element name="initialSpeed" type="fb:IndicatedAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>Initial speed of the aircraft during the climb</documentation></annotation></element>

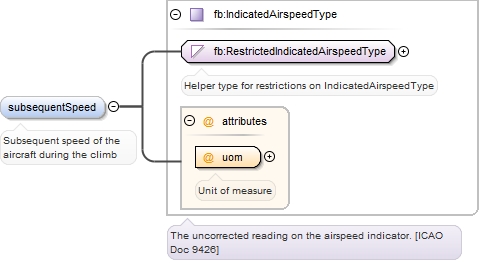

<element name="subsequentSpeed" type="fb:IndicatedAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>Subsequent speed of the aircraft during the climb</documentation></annotation></element>

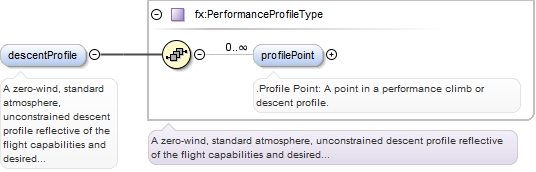

<element name="descentProfile" type="fx:PerformanceProfileType" minOccurs="0" maxOccurs="1"><annotation><documentation>A zero-wind, standard atmosphere, unconstrained descent profile reflective of the flight capabilities and desired parameters.</documentation></annotation></element>
Initially submitted by the airspace user, this defines the target speed in both (Indicated Airspeed) IAS and MACH so the aircraft can descend through the crossover altitude and target the IAS speed when needed.

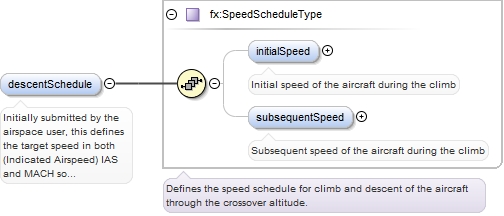

<element name="descentSchedule" type="fx:SpeedScheduleType" minOccurs="0" maxOccurs="1"><annotation><documentation>Initially submitted by the airspace user, this defines the target speed in both (Indicated Airspeed) IAS and MACH so the aircraft can descend through the crossover altitude and target the IAS speed when needed.</documentation></annotation></element>
Indicates the route description is truncated at the preceding point.
Source
<element name="element" type="fx:FlightRouteElementType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>A container for information pertinent to a single point in a trajectory.</documentation></annotation></element>

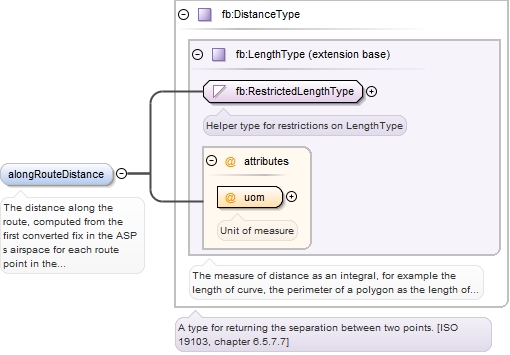

<element name="alongRouteDistance" type="fb:DistanceType" minOccurs="0" maxOccurs="1"><annotation><documentation>The distance along the route, computed from the first converted fix in the ASP s airspace for each route point in the route.</documentation></annotation></element>
Identifies whether the constraint is applicable on climb or descent. This provides an indication of which constraints take priority in the event of conflict when establishing a profile<font color="#0f0f0f"> </font>
Source

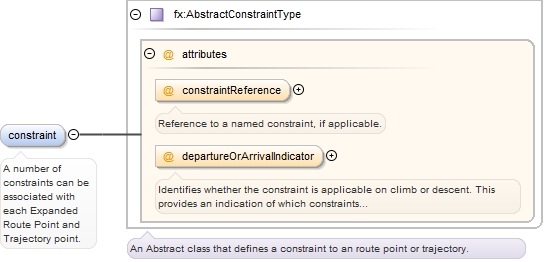

<element name="constraint" type="fx:AbstractConstraintType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>A number of constraints can be associated with each Expanded Route Point and Trajectory point.</documentation></annotation></element>
The length of time the flight is expected to be delayed at a specific point en route.
Source
<element name="enRouteDelay" type="fx:EnRouteDelayType" minOccurs="0" maxOccurs="1"><annotation><documentation>En Route delay or holding planned to occur at a significant point or along a route element.</documentation></annotation></element>
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
Source
<element name="point4D" type="fx:TrajectoryPoint4DType" minOccurs="0" maxOccurs="1"><annotation><documentation>Identifies the location, altitude and time of a trajectory point.</documentation></annotation></element>

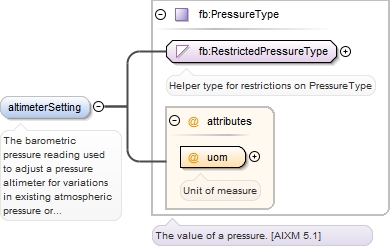

The barometric pressure reading used to adjust a pressure altimeter for variations in existing atmospheric pressure or to the standard altimeter setting (29.92).
<element name="altimeterSetting" type="fb:PressureType" minOccurs="0" maxOccurs="1"><annotation><documentation>The barometric pressure reading used to adjust a pressure altimeter for variations in existing atmospheric pressure or to the standard altimeter setting (29.92).</documentation></annotation></element>

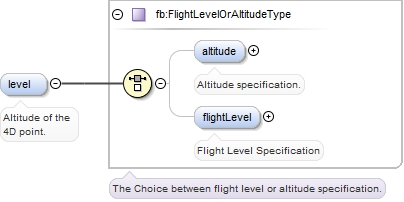

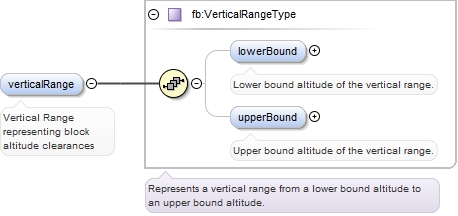

<element name="level" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Altitude of the 4D point.</documentation></annotation></element>
<element name="metData" type="fx:MeteorologicalDataType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element>

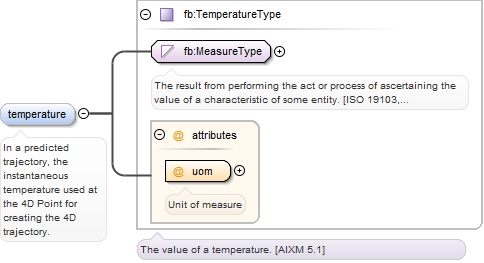

<element name="temperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous temperature used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element>

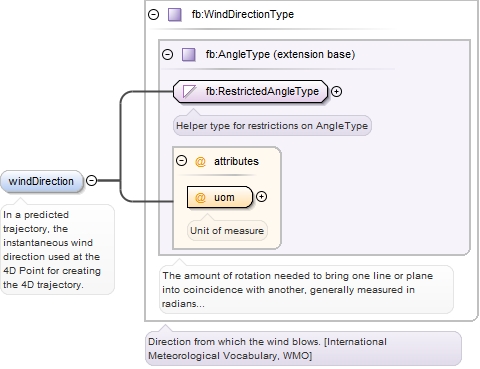

<element name="windDirection" type="fb:WindDirectionType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous wind direction used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element>

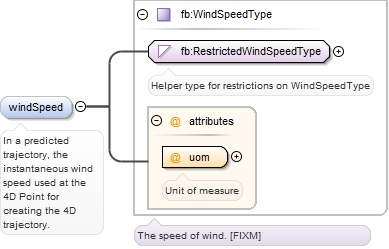

<element name="windSpeed" type="fb:WindSpeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous wind speed used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element>
Describes any applicable properties of the trajectory point. May include multiple properties per point.
Source
<element name="pointProperty" type="fx:TrajectoryPointPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>Describes any applicable properties of the trajectory point. May include multiple properties per point.</documentation></annotation></element>
The nature of the airspace or program (e.g., special activity airspace, GDP, MIT, etc.)
Source
<element name="reference" type="fx:TrajectoryPointReferenceType" minOccurs="0" maxOccurs="1"><annotation><documentation>A reference providing an identifier of airspace or program affecting the point.</documentation></annotation></element>

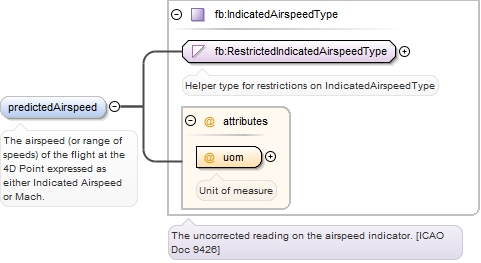

<element name="predictedAirspeed" type="fb:IndicatedAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>The airspeed (or range of speeds) of the flight at the 4D Point expressed as either Indicated Airspeed or Mach.</documentation></annotation></element>

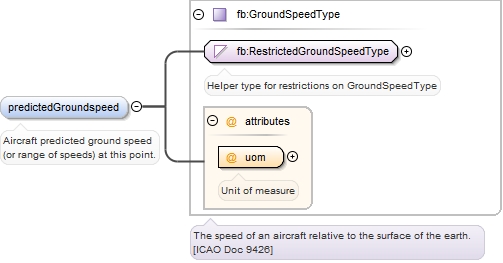

<element name="predictedGroundspeed" type="fb:GroundSpeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>Aircraft predicted ground speed (or range of speeds) at this point.</documentation></annotation></element>

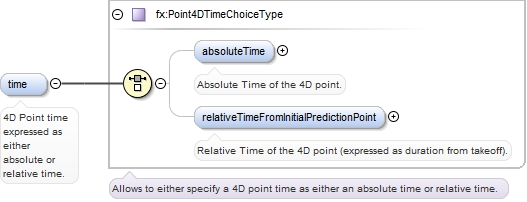

<element name="time" type="fx:Point4DTimeChoiceType" minOccurs="0" maxOccurs="1"><annotation><documentation>4D Point time expressed as either absolute or relative time.</documentation></annotation></element>

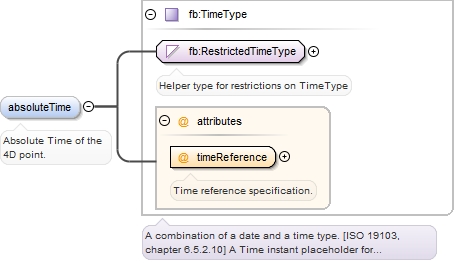

<element name="absoluteTime" type="fb:TimeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Absolute Time of the 4D point.</documentation></annotation></element>
<element name="relativeTimeFromInitialPredictionPoint" type="fb:DurationType" minOccurs="0" maxOccurs="1"><annotation><documentation>Relative Time of the 4D point (expressed as duration from takeoff).</documentation></annotation></element>
<element name="routeChange" type="fx:AbstractRouteChangeType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>A Route Point, Expanded Route Point and Trajectory Point may contain an ordered list of route changes.</documentation></annotation></element>
The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]
<element name="routeDesignatorToNextElement" type="fx:RouteDesignatorToNextElementType" minOccurs="0" maxOccurs="1"><annotation><documentation>The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]</documentation></annotation></element>
Provides a reference to the route point or element on the route and/or expanded route. Flight route element contained within the route. Each segment may contain a route point or an airway. The route element describes an ATS route (Field 15(c2)), a Standard Departure Route (Field 15(c1)), or a Standard Arrival Route (Field 15(c3)). These fields may be used consistent with the definition in ICAO Doc 4444.

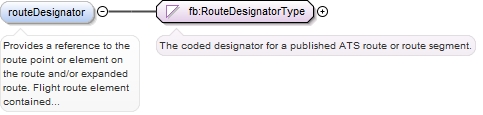

<element name="routeDesignator" type="fb:RouteDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>Provides a reference to the route point or element on the route and/or expanded route. Flight route element contained within the route. Each segment may contain a route point or an airway. The route element describes an ATS route (Field 15(c2)), a Standard Departure Route (Field 15(c1)), or a Standard Arrival Route (Field 15(c3)). These fields may be used consistent with the definition in ICAO Doc 4444.</documentation></annotation></element>
<element name="standardInstrumentArrival" type="fb:SidStarDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>The textual designator of the Standard Instrument Arrival (STAR).</documentation></annotation></element>

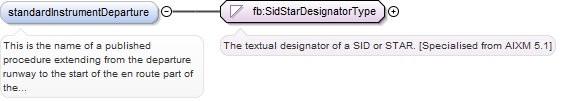

<element name="standardInstrumentDeparture" type="fb:SidStarDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>This is the name of a published procedure extending from the departure runway to the start of the en route part of the aircraft's route.</documentation></annotation></element>

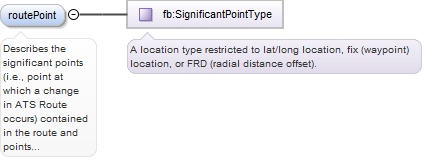

Describes the significant points (i.e., point at which a change in ATS Route occurs) contained in the route and points at which certain events occur (e.g., change of speed or level, change of flight rules, start of cruise climb).
<element name="routePoint" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1"><annotation><documentation>Describes the significant points (i.e., point at which a change in ATS Route occurs) contained in the route and points at which certain events occur (e.g., change of speed or level, change of flight rules, start of cruise climb).</documentation></annotation></element>

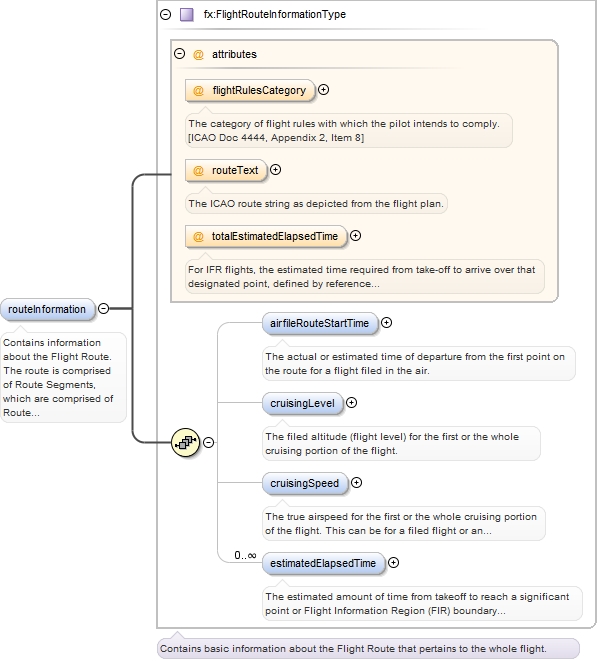

Contains information about the Flight Route. The route is comprised of Route Segments, which are comprised of Route Point/Airway pairs. Route also contains an expanded route.
For IFR flights, the estimated time required from take-off to arrive over that designated point, defined by reference to navigation aids, from which it is intended that an instrument approach procedure will be commenced, or, if no navigation aid is associated with the destination aerodrome, to arrive over the destination aerodrome. For VFR flights, the estimated time required from take-off to arrive over the destination aerodrome. [ICAO Doc 4444] For a flight plan received from an aircraft in flight, the total estimated elapsed time is the estimated time from the first point of the route to which the flight plan applies to the termination point of the flight plan. [ICAO Doc 4444, Appendix 2, ITEM 16]
Source
<element name="routeInformation" type="fx:FlightRouteInformationType" minOccurs="0" maxOccurs="1"><annotation><documentation>Contains information about the Flight Route. The route is comprised of Route Segments, which are comprised of Route Point/Airway pairs. Route also contains an expanded route.</documentation></annotation></element>

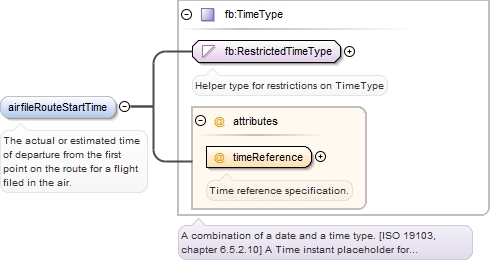

<element name="airfileRouteStartTime" type="fb:TimeType" minOccurs="0" maxOccurs="1"><annotation><documentation>The actual or estimated time of departure from the first point on the route for a flight filed in the air.</documentation></annotation></element>

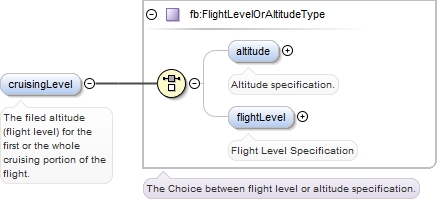

<element name="cruisingLevel" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>The filed altitude (flight level) for the first or the whole cruising portion of the flight.</documentation></annotation></element>

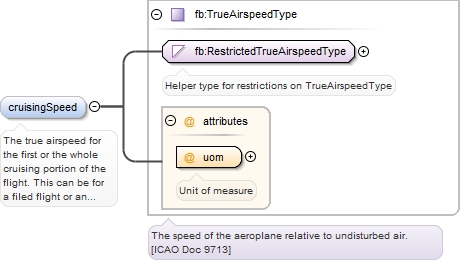

The true airspeed for the first or the whole cruising portion of the flight. This can be for a filed flight or an active flight. This element is strategic in nature.
<element name="cruisingSpeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>The true airspeed for the first or the whole cruising portion of the flight. This can be for a filed flight or an active flight. This element is strategic in nature.</documentation></annotation></element>
<element name="estimatedElapsedTime" type="fx:EstimatedElapsedTimeType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>The estimated amount of time from takeoff to reach a significant point or Flight Information Region (FIR) boundary along the route of flight.</documentation></annotation></element>
<element name="location" type="fx:ElapsedTimeLocationType" minOccurs="0" maxOccurs="1"><annotation><documentation>The location associated with estimated elapsed time. It can be a longitude, significant point of flight information region.</documentation></annotation></element>
<element name="longitude" type="fb:LongitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Longitude associated with the elapsed time.</documentation></annotation></element>

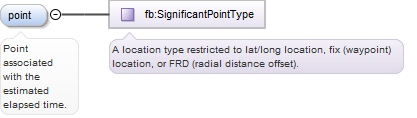

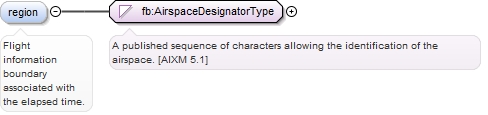

<element name="region" type="fb:AirspaceDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>Flight information boundary associated with the elapsed time.</documentation></annotation></element>
For IFR flights, the estimated time required from take-off to arrive over that designated point, defined by reference to navigation aids, from which it is intended that an instrument approach procedure will be commenced, or, if no navigation aid is associated with the destination aerodrome, to arrive over the destination aerodrome. For VFR flights, the estimated time required from take-off to arrive over the destination aerodrome. [ICAO Doc 4444] For a flight plan received from an aircraft in flight, the total estimated elapsed time is the estimated time from the first point of the route to which the flight plan applies to the termination point of the flight plan. [ICAO Doc 4444, Appendix 2, ITEM 16]
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".

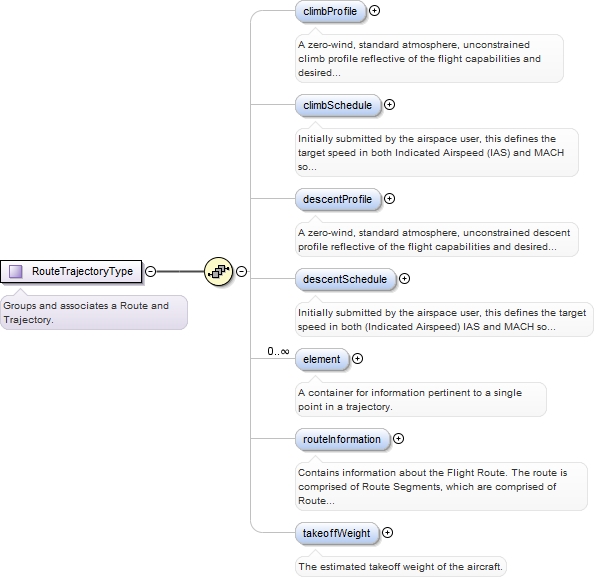

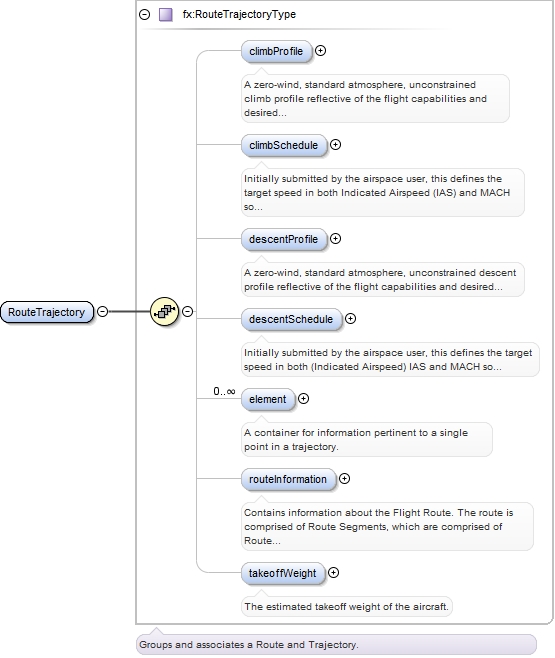

<complexType name="RouteTrajectoryType"><annotation><documentation>Groups and associates a Route and Trajectory.</documentation></annotation><sequence><element name="climbProfile" type="fx:PerformanceProfileType" minOccurs="0" maxOccurs="1"><annotation><documentation>A zero-wind, standard atmosphere, unconstrained climb profile reflective of the flight capabilities and desired parameters.</documentation></annotation></element><element name="climbSchedule" type="fx:SpeedScheduleType" minOccurs="0" maxOccurs="1"><annotation><documentation>Initially submitted by the airspace user, this defines the target speed in both Indicated Airspeed (IAS) and MACH so the aircraft can climb through the crossover altitude and target the MACH speed when needed.</documentation></annotation></element><element name="descentProfile" type="fx:PerformanceProfileType" minOccurs="0" maxOccurs="1"><annotation><documentation>A zero-wind, standard atmosphere, unconstrained descent profile reflective of the flight capabilities and desired parameters.</documentation></annotation></element><element name="descentSchedule" type="fx:SpeedScheduleType" minOccurs="0" maxOccurs="1"><annotation><documentation>Initially submitted by the airspace user, this defines the target speed in both (Indicated Airspeed) IAS and MACH so the aircraft can descend through the crossover altitude and target the IAS speed when needed.</documentation></annotation></element><element name="element" type="fx:FlightRouteElementType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>A container for information pertinent to a single point in a trajectory.</documentation></annotation></element><element name="routeInformation" type="fx:FlightRouteInformationType" minOccurs="0" maxOccurs="1"><annotation><documentation>Contains information about the Flight Route. The route is comprised of Route Segments, which are comprised of Route Point/Airway pairs. Route also contains an expanded route.</documentation></annotation></element><element name="takeoffWeight" type="fb:WeightType" minOccurs="0" maxOccurs="1"><annotation><documentation>The estimated takeoff weight of the aircraft.</documentation></annotation></element></sequence></complexType>
Complex Type fx:PerformanceProfileType
Namespace
http://www.fixm.aero/flight/4.0
Annotations

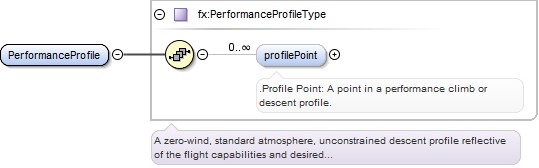

A zero-wind, standard atmosphere, unconstrained descent profile reflective of the flight capabilities and desired parameters. A zero-wind, standard atmosphere, unconstrained climb profile reflective of the flight capabilities and desired parameters.
<complexType name="PerformanceProfileType"><annotation><documentation>A zero-wind, standard atmosphere, unconstrained descent profile reflective of the flight capabilities and desired parameters. A zero-wind, standard atmosphere, unconstrained climb profile reflective of the flight capabilities and desired parameters.</documentation></annotation><sequence><element name="profilePoint" type="fx:ProfilePointType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>.Profile Point: A point in a performance climb or descent profile.</documentation></annotation></element></sequence></complexType>

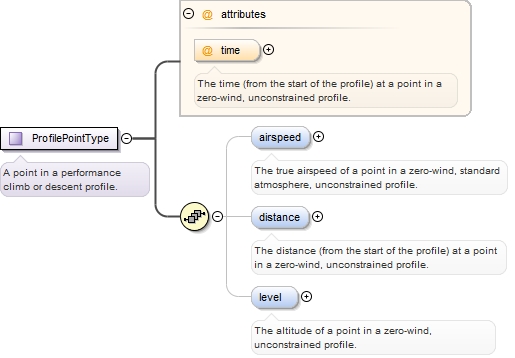

Complex Type fx:ProfilePointType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
A point in a performance climb or descent profile.
The time (from the start of the profile) at a point in a zero-wind, unconstrained profile.
Source
<complexType name="ProfilePointType"><annotation><documentation>A point in a performance climb or descent profile.</documentation></annotation><sequence><element name="airspeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>The true airspeed of a point in a zero-wind, standard atmosphere, unconstrained profile.</documentation></annotation></element><element name="distance" type="fb:DistanceType" minOccurs="0" maxOccurs="1"><annotation><documentation>The distance (from the start of the profile) at a point in a zero-wind, unconstrained profile.</documentation></annotation></element><element name="level" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>The altitude of a point in a zero-wind, unconstrained profile.</documentation></annotation></element></sequence><attribute name="time" type="fb:DurationType" use="optional"><annotation><documentation>The time (from the start of the profile) at a point in a zero-wind, unconstrained profile.</documentation></annotation></attribute></complexType>

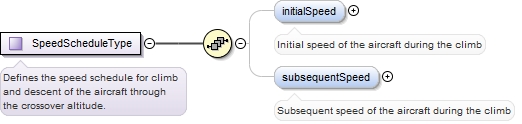

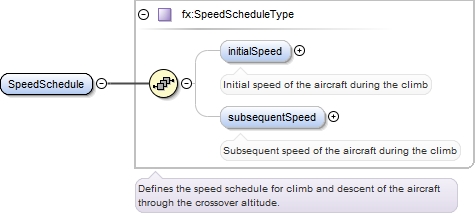

Complex Type fx:SpeedScheduleType
Namespace
http://www.fixm.aero/flight/4.0
Annotations

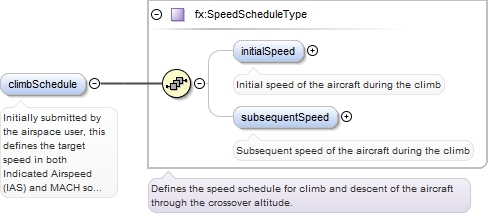

Defines the speed schedule for climb and descent of the aircraft through the crossover altitude.
<complexType name="SpeedScheduleType"><annotation><documentation>Defines the speed schedule for climb and descent of the aircraft through the crossover altitude.</documentation></annotation><sequence><element name="initialSpeed" type="fb:IndicatedAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>Initial speed of the aircraft during the climb</documentation></annotation></element><element name="subsequentSpeed" type="fb:IndicatedAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>Subsequent speed of the aircraft during the climb</documentation></annotation></element></sequence></complexType>

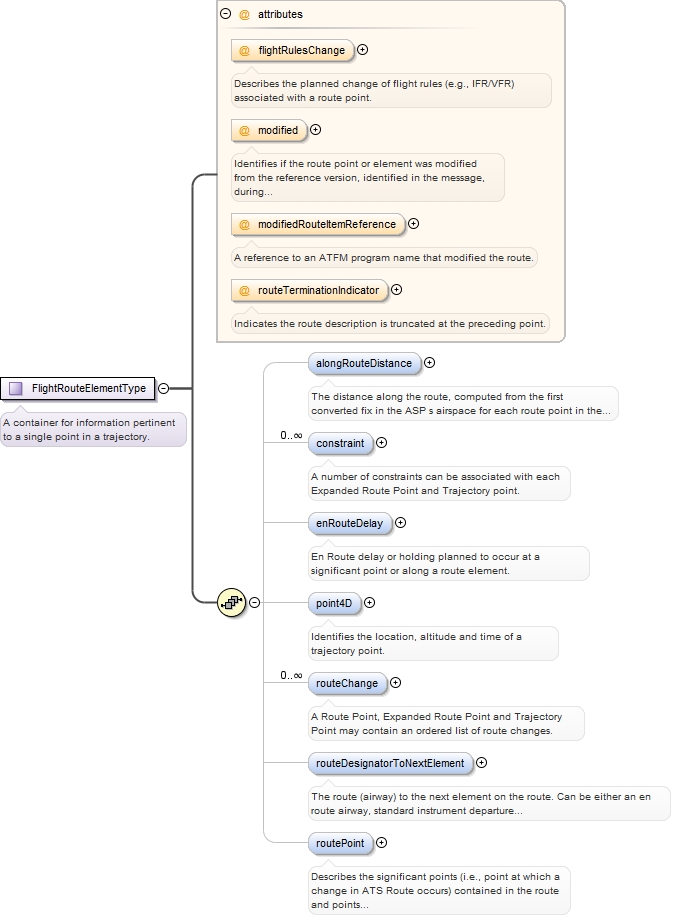

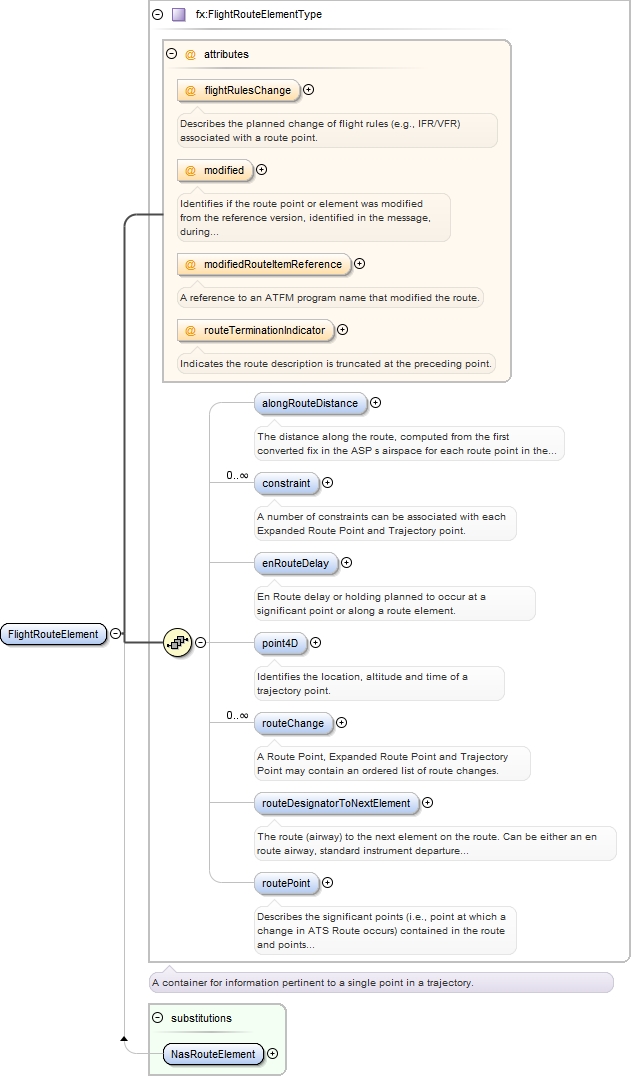

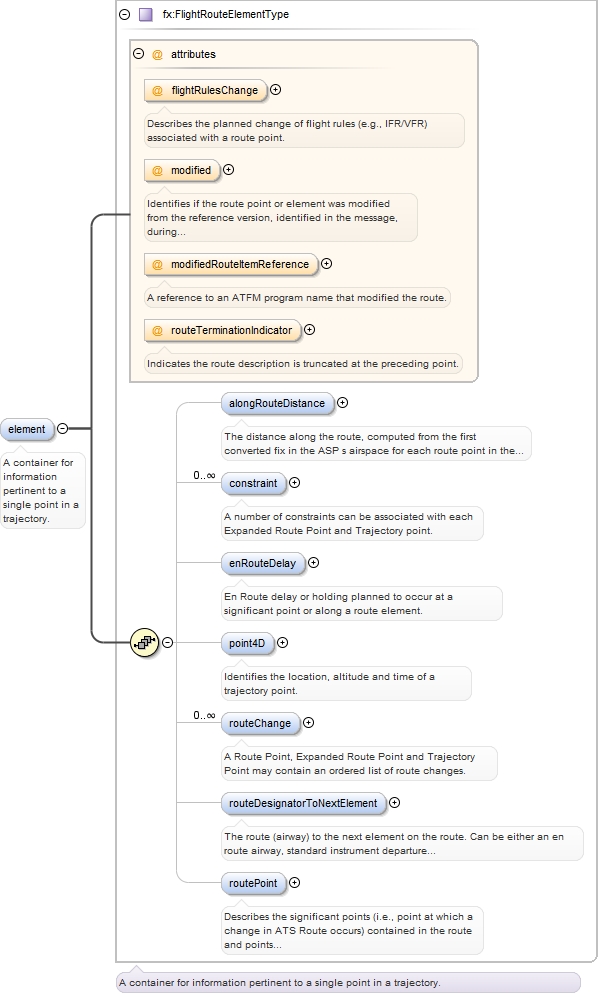

Complex Type fx:FlightRouteElementType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
A container for information pertinent to a single point in a trajectory.
Indicates the route description is truncated at the preceding point.
Source
<complexType name="FlightRouteElementType"><annotation><documentation>A container for information pertinent to a single point in a trajectory.</documentation></annotation><sequence><element name="alongRouteDistance" type="fb:DistanceType" minOccurs="0" maxOccurs="1"><annotation><documentation>The distance along the route, computed from the first converted fix in the ASP s airspace for each route point in the route.</documentation></annotation></element><element name="constraint" type="fx:AbstractConstraintType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>A number of constraints can be associated with each Expanded Route Point and Trajectory point.</documentation></annotation></element><element name="enRouteDelay" type="fx:EnRouteDelayType" minOccurs="0" maxOccurs="1"><annotation><documentation>En Route delay or holding planned to occur at a significant point or along a route element.</documentation></annotation></element><element name="point4D" type="fx:TrajectoryPoint4DType" minOccurs="0" maxOccurs="1"><annotation><documentation>Identifies the location, altitude and time of a trajectory point.</documentation></annotation></element><element name="routeChange" type="fx:AbstractRouteChangeType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>A Route Point, Expanded Route Point and Trajectory Point may contain an ordered list of route changes.</documentation></annotation></element><element name="routeDesignatorToNextElement" type="fx:RouteDesignatorToNextElementType" minOccurs="0" maxOccurs="1"><annotation><documentation>The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]</documentation></annotation></element><element name="routePoint" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1"><annotation><documentation>Describes the significant points (i.e., point at which a change in ATS Route occurs) contained in the route and points at which certain events occur (e.g., change of speed or level, change of flight rules, start of cruise climb).</documentation></annotation></element></sequence><attribute name="flightRulesChange" type="fx:FlightRulesType" use="optional"><annotation><documentation>Describes the planned change of flight rules (e.g., IFR/VFR) associated with a route point.</documentation></annotation></attribute><attribute name="modified" type="fx:ModifiedRouteItemIndicatorType" use="optional"><annotation><documentation>Identifies if the route point or element was modified from the reference version, identified in the message, during negotiation by an ASP.</documentation></annotation></attribute><attribute name="modifiedRouteItemReference" type="fb:CharacterStringType" use="optional"><annotation><documentation>A reference to an ATFM program name that modified the route.</documentation></annotation></attribute><attribute name="routeTerminationIndicator" type="fx:RouteTruncationIndicatorType" use="optional"><annotation><documentation>Indicates the route description is truncated at the preceding point.</documentation></annotation></attribute></complexType>

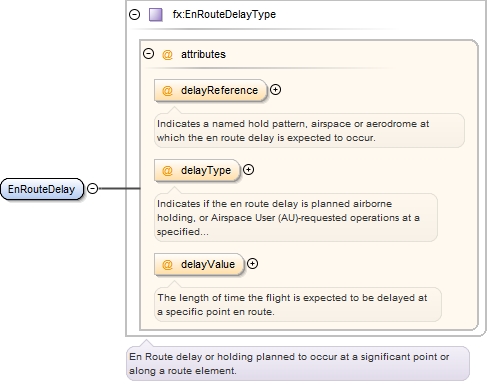

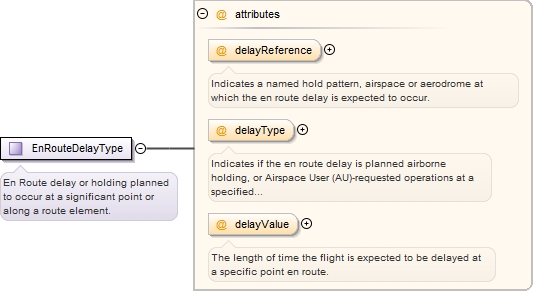

Complex Type fx:EnRouteDelayType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
En Route delay or holding planned to occur at a significant point or along a route element.
The length of time the flight is expected to be delayed at a specific point en route.
Source
<complexType name="EnRouteDelayType"><annotation><documentation>En Route delay or holding planned to occur at a significant point or along a route element.</documentation></annotation><attribute name="delayReference" type="fb:CharacterStringType" use="optional"><annotation><documentation>Indicates a named hold pattern, airspace or aerodrome at which the en route delay is expected to occur.</documentation></annotation></attribute><attribute name="delayType" type="fx:EnRouteDelayTypeType" use="optional"><annotation><documentation>Indicates if the en route delay is planned airborne holding, or Airspace User (AU)-requested operations at a specified location.</documentation></annotation></attribute><attribute name="delayValue" type="fb:DurationType" use="optional"><annotation><documentation>The length of time the flight is expected to be delayed at a specific point en route.</documentation></annotation></attribute></complexType>

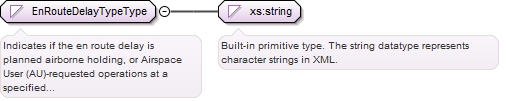

Simple Type fx:EnRouteDelayTypeType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
Indicates if the en route delay is planned airborne holding, or Airspace User (AU)-requested operations at a specified location.
Diagram
Type
restriction of string
Facets
enumeration
AU_REQUEST_POINT
The delay is an AU request to “spend time�? at the point, thus the delay has to be added to the flight duration to the next point to compute the estimate to the next point
enumeration
AU_REQUEST_SEGMENT
The delay is an AU request to “spend time�? at the segment starting at point, thus the delay has to be understood as the total duration between the point and the next one.
enumeration
AU_REQUEST_AIRSPACE
The delay is an AU request to spend time in an airspace after the RoutePoint the name of which is in delayReference, the delayValue is the time in that airspace, the entry and exit time into that airspace is in theBEGIN_STAY and END_STAY info of the trajectory
enumeration
AU_REQUEST_AERODROME
The delay is an AU request to spend time at an aerodrome after the RoutePoint, the name of the aerodrome is in the delayReference field, the points at which the AU leaves its route and rejoin it go to the aerodrome are in the BEGIN_STAY and END_STAY info of the trajectory
enumeration
AU_REQUEST_HOLDING
The delay is an AU request to spend time at a holding pattern the anchor point of which is the RoutePoint. The holding pattern name if any is in delayReference. delayValue used to compute estimates as in AU_REQUEST_POINT
enumeration
ATFM
the delay is an ASP request to do Enroute Holding names in delayReference. delayValue used to compute estimates as in AU_REQUEST_POINT
<simpleType name="EnRouteDelayTypeType"><annotation><documentation>Indicates if the en route delay is planned airborne holding, or Airspace User (AU)-requested operations at a specified location.</documentation></annotation><restriction base="xs:string"><enumeration value="AU_REQUEST_POINT"><annotation><documentation>The delay is an AU request to “spend time�? at the point, thus the delay has to be added to the flight duration to the next point to compute the estimate to the next point</documentation></annotation></enumeration><enumeration value="AU_REQUEST_SEGMENT"><annotation><documentation>The delay is an AU request to “spend time�? at the segment starting at point, thus the delay has to be understood as the total duration between the point and the next one.</documentation></annotation></enumeration><enumeration value="AU_REQUEST_AIRSPACE"><annotation><documentation>The delay is an AU request to spend time in an airspace after the RoutePoint the name of which is in delayReference, the delayValue is the time in that airspace, the entry and exit time into that airspace is in theBEGIN_STAY and END_STAY info of the trajectory</documentation></annotation></enumeration><enumeration value="AU_REQUEST_AERODROME"><annotation><documentation>The delay is an AU request to spend time at an aerodrome after the RoutePoint, the name of the aerodrome is in the delayReference field, the points at which the AU leaves its route and rejoin it go to the aerodrome are in the BEGIN_STAY and END_STAY info of the trajectory</documentation></annotation></enumeration><enumeration value="AU_REQUEST_HOLDING"><annotation><documentation>The delay is an AU request to spend time at a holding pattern the anchor point of which is the RoutePoint. The holding pattern name if any is in delayReference. delayValue used to compute estimates as in AU_REQUEST_POINT</documentation></annotation></enumeration><enumeration value="ATFM"><annotation><documentation>the delay is an ASP request to do Enroute Holding names in delayReference. delayValue used to compute estimates as in AU_REQUEST_POINT</documentation></annotation></enumeration></restriction></simpleType>

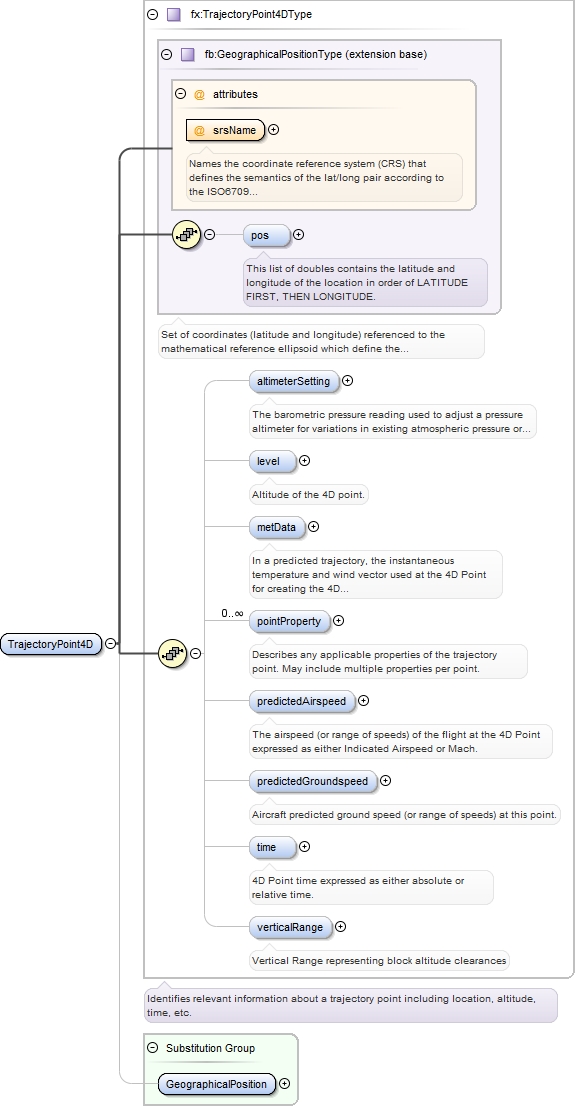

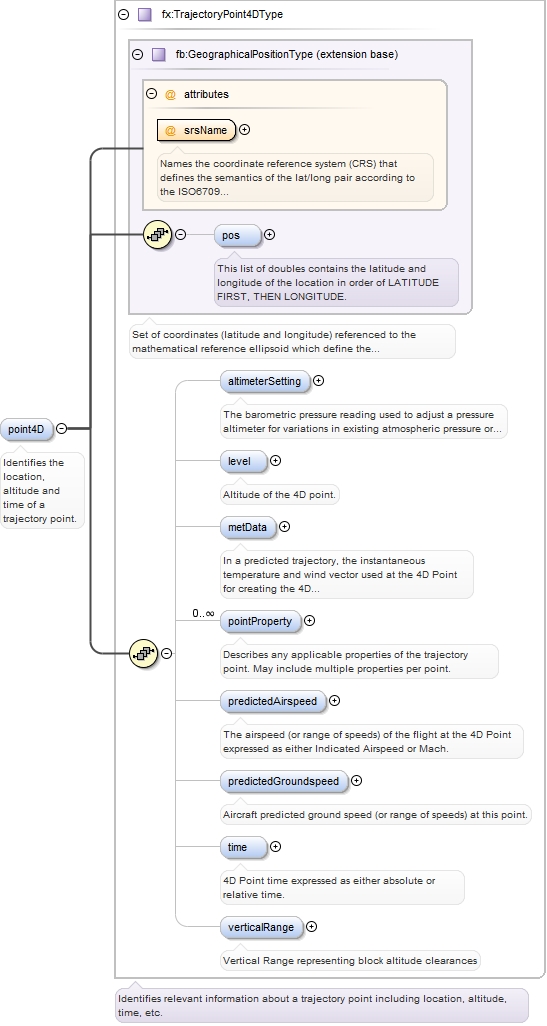

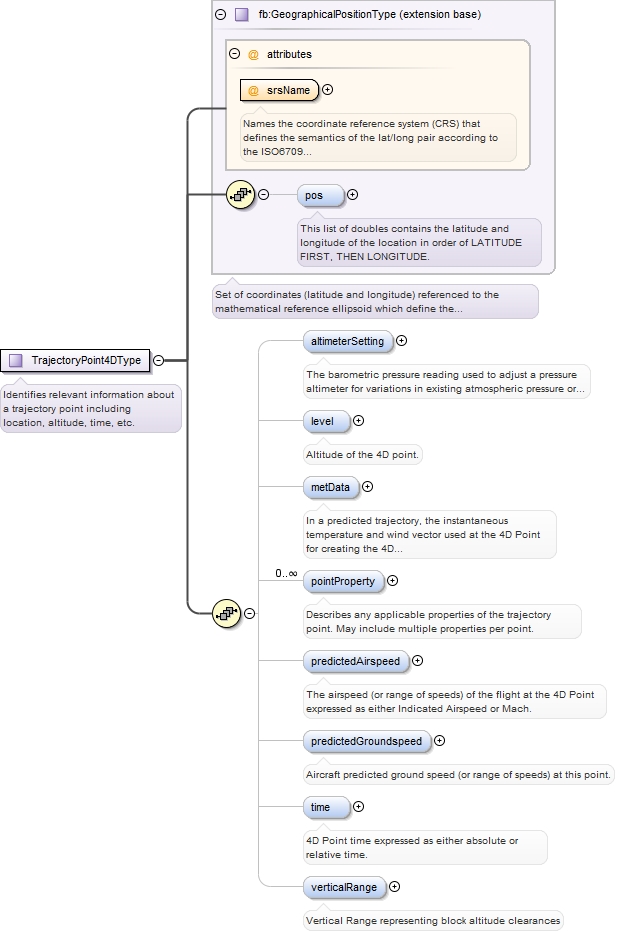

Complex Type fx:TrajectoryPoint4DType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
Identifies relevant information about a trajectory point including location, altitude, time, etc.
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
Source
<complexType name="TrajectoryPoint4DType"><annotation><documentation>Identifies relevant information about a trajectory point including location, altitude, time, etc.</documentation></annotation><complexContent><extension base="fb:GeographicalPositionType"><sequence><element name="altimeterSetting" type="fb:PressureType" minOccurs="0" maxOccurs="1"><annotation><documentation>The barometric pressure reading used to adjust a pressure altimeter for variations in existing atmospheric pressure or to the standard altimeter setting (29.92).</documentation></annotation></element><element name="level" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Altitude of the 4D point.</documentation></annotation></element><element name="metData" type="fx:MeteorologicalDataType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element><element name="pointProperty" type="fx:TrajectoryPointPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>Describes any applicable properties of the trajectory point. May include multiple properties per point.</documentation></annotation></element><element name="predictedAirspeed" type="fb:IndicatedAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>The airspeed (or range of speeds) of the flight at the 4D Point expressed as either Indicated Airspeed or Mach.</documentation></annotation></element><element name="predictedGroundspeed" type="fb:GroundSpeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>Aircraft predicted ground speed (or range of speeds) at this point.</documentation></annotation></element><element name="time" type="fx:Point4DTimeChoiceType" minOccurs="0" maxOccurs="1"><annotation><documentation>4D Point time expressed as either absolute or relative time.</documentation></annotation></element><element name="verticalRange" type="fb:VerticalRangeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Vertical Range representing block altitude clearances</documentation></annotation></element></sequence></extension></complexContent></complexType>

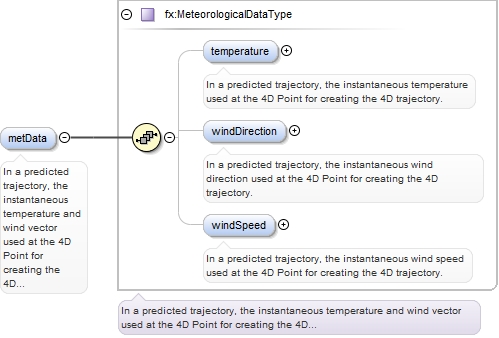

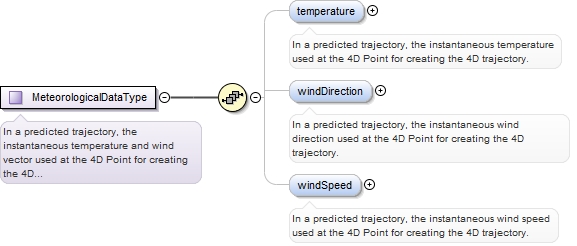

Complex Type fx:MeteorologicalDataType
Namespace
http://www.fixm.aero/flight/4.0
Annotations

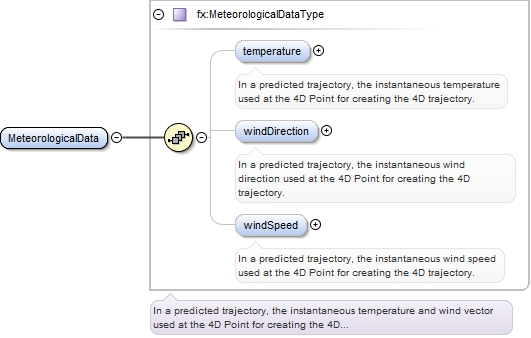

In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.
<complexType name="MeteorologicalDataType"><annotation><documentation>In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.</documentation></annotation><sequence><element name="temperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous temperature used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element><element name="windDirection" type="fb:WindDirectionType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous wind direction used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element><element name="windSpeed" type="fb:WindSpeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>In a predicted trajectory, the instantaneous wind speed used at the 4D Point for creating the 4D trajectory.</documentation></annotation></element></sequence></complexType>

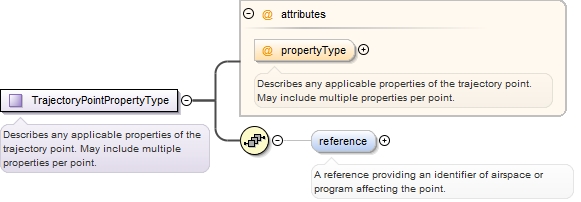

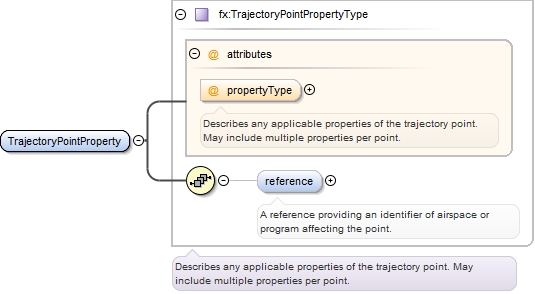

Complex Type fx:TrajectoryPointPropertyType
Namespace
http://www.fixm.aero/flight/4.0
Annotations

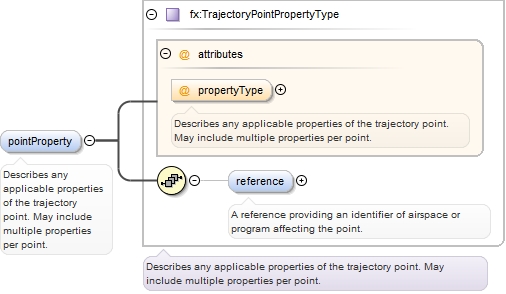

Describes any applicable properties of the trajectory point. May include multiple properties per point.
Describes any applicable properties of the trajectory point. May include multiple properties per point.
Source
<complexType name="TrajectoryPointPropertyType"><annotation><documentation>Describes any applicable properties of the trajectory point. May include multiple properties per point.</documentation></annotation><sequence><element name="reference" type="fx:TrajectoryPointReferenceType" minOccurs="0" maxOccurs="1"><annotation><documentation>A reference providing an identifier of airspace or program affecting the point.</documentation></annotation></element></sequence><attribute name="propertyType" type="fx:TrajectoryPointPropertyTypeType" use="optional"><annotation><documentation>Describes any applicable properties of the trajectory point. May include multiple properties per point.</documentation></annotation></attribute></complexType>

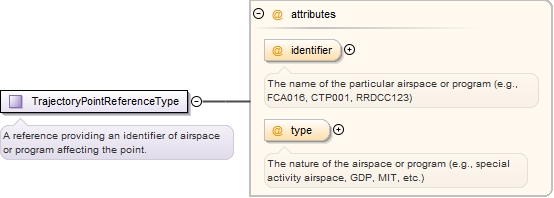

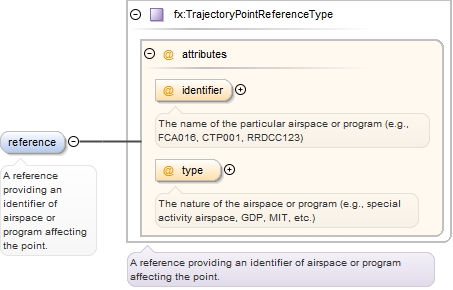

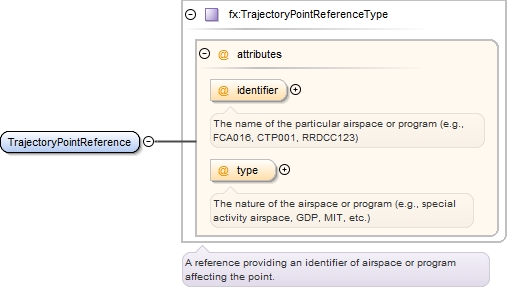

Complex Type fx:TrajectoryPointReferenceType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
A reference providing an identifier of airspace or program affecting the point.
The nature of the airspace or program (e.g., special activity airspace, GDP, MIT, etc.)
Source
<complexType name="TrajectoryPointReferenceType"><annotation><documentation>A reference providing an identifier of airspace or program affecting the point.</documentation></annotation><attribute name="identifier" type="fb:CharacterStringType" use="optional"><annotation><documentation>The name of the particular airspace or program (e.g., FCA016, CTP001, RRDCC123)</documentation></annotation></attribute><attribute name="type" type="fb:CharacterStringType" use="optional"><annotation><documentation>The nature of the airspace or program (e.g., special activity airspace, GDP, MIT, etc.)</documentation></annotation></attribute></complexType>
Simple Type fx:TrajectoryPointPropertyTypeType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
Describes any applicable properties of the trajectory point.

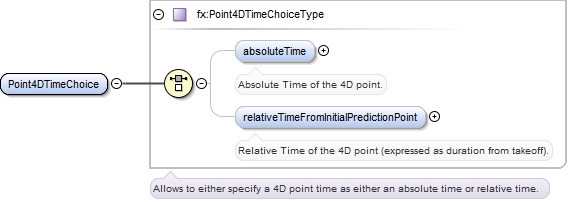

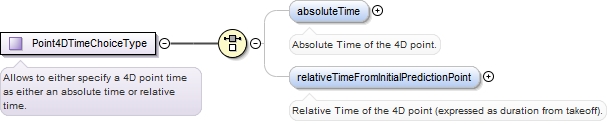

<complexType name="Point4DTimeChoiceType"><annotation><documentation>Allows to either specify a 4D point time as either an absolute time or relative time.</documentation></annotation><choice><element name="absoluteTime" type="fb:TimeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Absolute Time of the 4D point.</documentation></annotation></element><element name="relativeTimeFromInitialPredictionPoint" type="fb:DurationType" minOccurs="0" maxOccurs="1"><annotation><documentation>Relative Time of the 4D point (expressed as duration from takeoff).</documentation></annotation></element></choice></complexType>

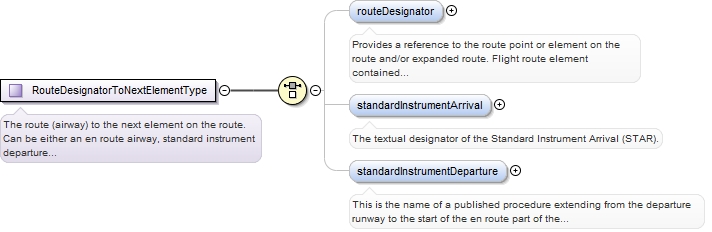

Complex Type fx:RouteDesignatorToNextElementType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]
<complexType name="RouteDesignatorToNextElementType"><annotation><documentation>The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]</documentation></annotation><choice><element name="routeDesignator" type="fb:RouteDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>Provides a reference to the route point or element on the route and/or expanded route. Flight route element contained within the route. Each segment may contain a route point or an airway. The route element describes an ATS route (Field 15(c2)), a Standard Departure Route (Field 15(c1)), or a Standard Arrival Route (Field 15(c3)). These fields may be used consistent with the definition in ICAO Doc 4444.</documentation></annotation></element><element name="standardInstrumentArrival" type="fb:SidStarDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>The textual designator of the Standard Instrument Arrival (STAR).</documentation></annotation></element><element name="standardInstrumentDeparture" type="fb:SidStarDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>This is the name of a published procedure extending from the departure runway to the start of the en route part of the aircraft's route.</documentation></annotation></element></choice></complexType>

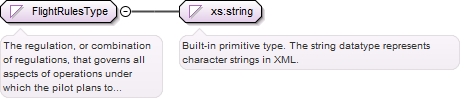

Simple Type fx:FlightRulesType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
The regulation, or combination of regulations, that governs all aspects of operations under which the pilot plans to fly.
<simpleType name="FlightRulesType"><annotation><documentation>The regulation, or combination of regulations, that governs all aspects of operations under which the pilot plans to fly.</documentation></annotation><restriction base="xs:string"><enumeration value="IFR"><annotation><documentation>Instrument Flight Rules</documentation></annotation></enumeration><enumeration value="VFR"><annotation><documentation>Visual Flight Rules</documentation></annotation></enumeration></restriction></simpleType>
<simpleType name="ModifiedRouteItemIndicatorType"><annotation><documentation>Indication that the route item was modified</documentation></annotation><restriction base="xs:string"><enumeration value="MODIFIED_ROUTE_ITEM"/></restriction></simpleType>
Simple Type fx:RouteTruncationIndicatorType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
Indicates the route description is truncated at the preceding point
<simpleType name="RouteTruncationIndicatorType"><annotation><documentation>Indicates the route description is truncated at the preceding point</documentation></annotation><restriction base="xs:string"><enumeration value="ROUTE_TRUNCATION"/></restriction></simpleType>

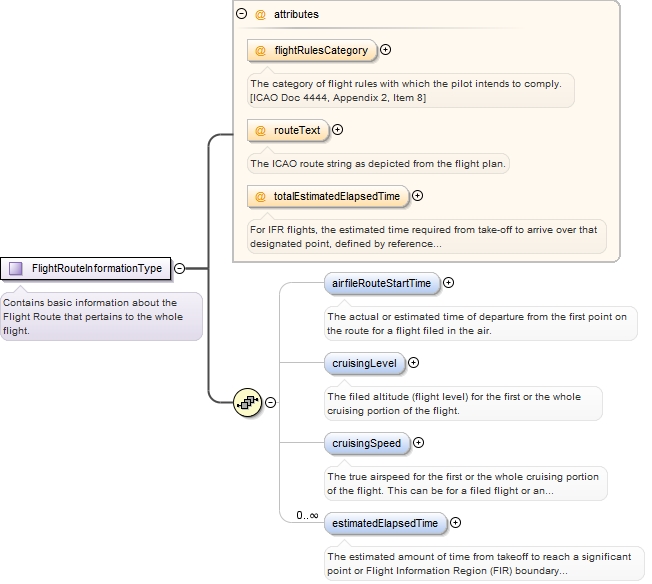

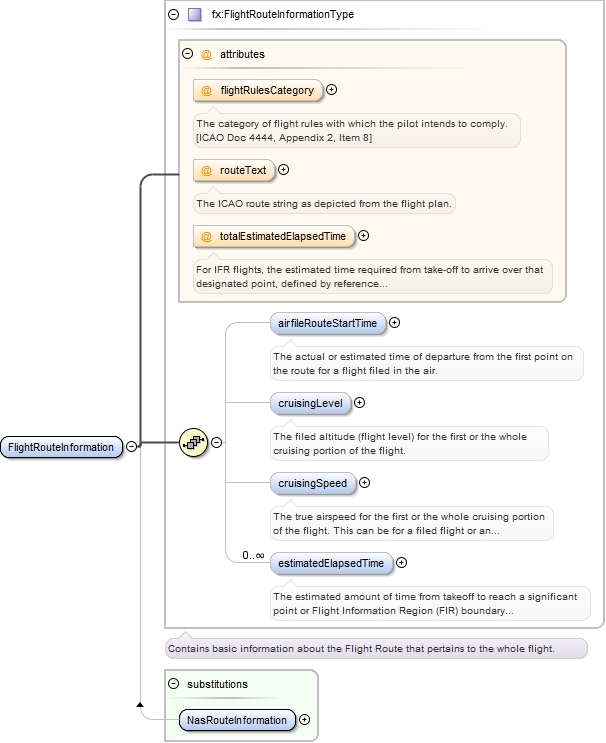

Complex Type fx:FlightRouteInformationType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
Contains basic information about the Flight Route that pertains to the whole flight.
For IFR flights, the estimated time required from take-off to arrive over that designated point, defined by reference to navigation aids, from which it is intended that an instrument approach procedure will be commenced, or, if no navigation aid is associated with the destination aerodrome, to arrive over the destination aerodrome. For VFR flights, the estimated time required from take-off to arrive over the destination aerodrome. [ICAO Doc 4444] For a flight plan received from an aircraft in flight, the total estimated elapsed time is the estimated time from the first point of the route to which the flight plan applies to the termination point of the flight plan. [ICAO Doc 4444, Appendix 2, ITEM 16]
Source
<complexType name="FlightRouteInformationType"><annotation><documentation>Contains basic information about the Flight Route that pertains to the whole flight.</documentation></annotation><sequence><element name="airfileRouteStartTime" type="fb:TimeType" minOccurs="0" maxOccurs="1"><annotation><documentation>The actual or estimated time of departure from the first point on the route for a flight filed in the air.</documentation></annotation></element><element name="cruisingLevel" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>The filed altitude (flight level) for the first or the whole cruising portion of the flight.</documentation></annotation></element><element name="cruisingSpeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1"><annotation><documentation>The true airspeed for the first or the whole cruising portion of the flight. This can be for a filed flight or an active flight. This element is strategic in nature.</documentation></annotation></element><element name="estimatedElapsedTime" type="fx:EstimatedElapsedTimeType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>The estimated amount of time from takeoff to reach a significant point or Flight Information Region (FIR) boundary along the route of flight.</documentation></annotation></element></sequence><attribute name="flightRulesCategory" type="fx:FlightRulesCategoryType" use="optional"><annotation><documentation>The category of flight rules with which the pilot intends to comply. [ICAO Doc 4444, Appendix 2, Item 8]</documentation></annotation></attribute><attribute name="routeText" type="fb:CharacterStringType" use="optional"><annotation><documentation>The ICAO route string as depicted from the flight plan.</documentation></annotation></attribute><attribute name="totalEstimatedElapsedTime" type="fb:DurationType" use="optional"><annotation><documentation>For IFR flights, the estimated time required from take-off to arrive over that designated point, defined by reference to navigation aids, from which it is intended that an instrument approach procedure will be commenced, or, if no navigation aid is associated with the destination aerodrome, to arrive over the destination aerodrome. For VFR flights, the estimated time required from take-off to arrive over the destination aerodrome. [ICAO Doc 4444] For a flight plan received from an aircraft in flight, the total estimated elapsed time is the estimated time from the first point of the route to which the flight plan applies to the termination point of the flight plan. [ICAO Doc 4444, Appendix 2, ITEM 16]</documentation></annotation></attribute></complexType>

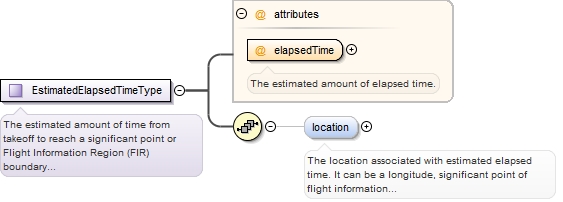

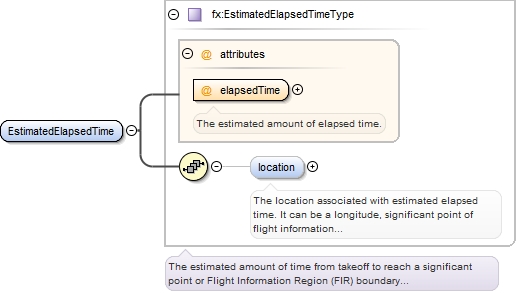

Complex Type fx:EstimatedElapsedTimeType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
The estimated amount of time from takeoff to reach a significant point or Flight Information Region (FIR) boundary along the route of flight.
<complexType name="EstimatedElapsedTimeType"><annotation><documentation>The estimated amount of time from takeoff to reach a significant point or Flight Information Region (FIR) boundary along the route of flight.</documentation></annotation><sequence><element name="location" type="fx:ElapsedTimeLocationType" minOccurs="0" maxOccurs="1"><annotation><documentation>The location associated with estimated elapsed time. It can be a longitude, significant point of flight information region.</documentation></annotation></element></sequence><attribute name="elapsedTime" type="fb:DurationType" use="required"><annotation><documentation>The estimated amount of elapsed time.</documentation></annotation></attribute></complexType>

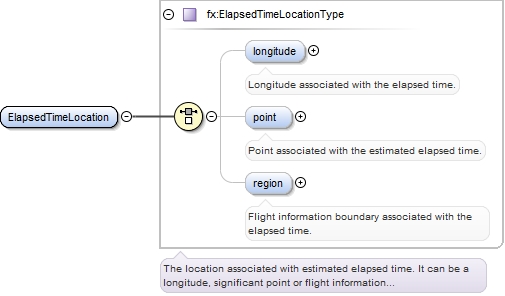

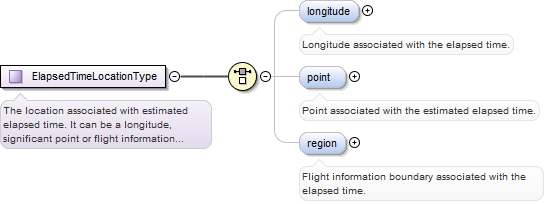

Complex Type fx:ElapsedTimeLocationType
Namespace
http://www.fixm.aero/flight/4.0
Annotations

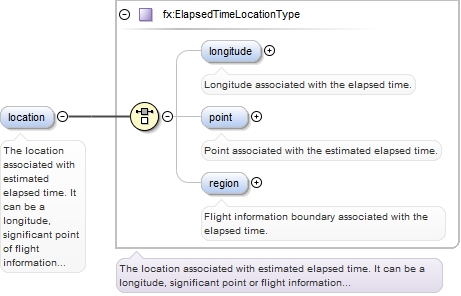

The location associated with estimated elapsed time. It can be a longitude, significant point or flight information region.
<complexType name="ElapsedTimeLocationType"><annotation><documentation>The location associated with estimated elapsed time. It can be a longitude, significant point or flight information region.</documentation></annotation><choice><element name="longitude" type="fb:LongitudeType" minOccurs="0" maxOccurs="1"><annotation><documentation>Longitude associated with the elapsed time.</documentation></annotation></element><element name="point" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1"><annotation><documentation>Point associated with the estimated elapsed time.</documentation></annotation></element><element name="region" type="fb:AirspaceDesignatorType" minOccurs="0" maxOccurs="1"><annotation><documentation>Flight information boundary associated with the elapsed time.</documentation></annotation></element></choice></complexType>
Simple Type fx:FlightRulesCategoryType
Namespace
http://www.fixm.aero/flight/4.0
Annotations
The category of flight rules with which the pilot intends to comply. [ICAO Doc 4444, Appendix 2, Item 8]
<simpleType name="FlightRulesCategoryType"><annotation><documentation>The category of flight rules with which the pilot intends to comply. [ICAO Doc 4444, Appendix 2, Item 8]</documentation></annotation><restriction base="xs:string"><enumeration value="I"/><enumeration value="V"/><enumeration value="Y"/><enumeration value="Z"/></restriction></simpleType>
<attribute name="time" type="fb:DurationType" use="optional"><annotation><documentation>The time (from the start of the profile) at a point in a zero-wind, unconstrained profile.</documentation></annotation></attribute>
<attribute name="delayReference" type="fb:CharacterStringType" use="optional"><annotation><documentation>Indicates a named hold pattern, airspace or aerodrome at which the en route delay is expected to occur.</documentation></annotation></attribute>
The delay is an AU request to “spend time�? at the point, thus the delay has to be added to the flight duration to the next point to compute the estimate to the next point
enumeration
AU_REQUEST_SEGMENT
The delay is an AU request to “spend time�? at the segment starting at point, thus the delay has to be understood as the total duration between the point and the next one.
enumeration
AU_REQUEST_AIRSPACE
The delay is an AU request to spend time in an airspace after the RoutePoint the name of which is in delayReference, the delayValue is the time in that airspace, the entry and exit time into that airspace is in theBEGIN_STAY and END_STAY info of the trajectory
enumeration
AU_REQUEST_AERODROME
The delay is an AU request to spend time at an aerodrome after the RoutePoint, the name of the aerodrome is in the delayReference field, the points at which the AU leaves its route and rejoin it go to the aerodrome are in the BEGIN_STAY and END_STAY info of the trajectory
enumeration
AU_REQUEST_HOLDING
The delay is an AU request to spend time at a holding pattern the anchor point of which is the RoutePoint. The holding pattern name if any is in delayReference. delayValue used to compute estimates as in AU_REQUEST_POINT
enumeration
ATFM
the delay is an ASP request to do Enroute Holding names in delayReference. delayValue used to compute estimates as in AU_REQUEST_POINT
<attribute name="delayType" type="fx:EnRouteDelayTypeType" use="optional"><annotation><documentation>Indicates if the en route delay is planned airborne holding, or Airspace User (AU)-requested operations at a specified location.</documentation></annotation></attribute>
<attribute name="delayValue" type="fb:DurationType" use="optional"><annotation><documentation>The length of time the flight is expected to be delayed at a specific point en route.</documentation></annotation></attribute>
<attribute name="identifier" type="fb:CharacterStringType" use="optional"><annotation><documentation>The name of the particular airspace or program (e.g., FCA016, CTP001, RRDCC123)</documentation></annotation></attribute>
<attribute name="type" type="fb:CharacterStringType" use="optional"><annotation><documentation>The nature of the airspace or program (e.g., special activity airspace, GDP, MIT, etc.)</documentation></annotation></attribute>
<attribute name="propertyType" type="fx:TrajectoryPointPropertyTypeType" use="optional"><annotation><documentation>Describes any applicable properties of the trajectory point. May include multiple properties per point.</documentation></annotation></attribute>
<attribute name="flightRulesChange" type="fx:FlightRulesType" use="optional"><annotation><documentation>Describes the planned change of flight rules (e.g., IFR/VFR) associated with a route point.</documentation></annotation></attribute>
<attribute name="modified" type="fx:ModifiedRouteItemIndicatorType" use="optional"><annotation><documentation>Identifies if the route point or element was modified from the reference version, identified in the message, during negotiation by an ASP.</documentation></annotation></attribute>
<attribute name="modifiedRouteItemReference" type="fb:CharacterStringType" use="optional"><annotation><documentation>A reference to an ATFM program name that modified the route.</documentation></annotation></attribute>
<attribute name="routeTerminationIndicator" type="fx:RouteTruncationIndicatorType" use="optional"><annotation><documentation>Indicates the route description is truncated at the preceding point.</documentation></annotation></attribute>
<attribute name="flightRulesCategory" type="fx:FlightRulesCategoryType" use="optional"><annotation><documentation>The category of flight rules with which the pilot intends to comply. [ICAO Doc 4444, Appendix 2, Item 8]</documentation></annotation></attribute>
<attribute name="routeText" type="fb:CharacterStringType" use="optional"><annotation><documentation>The ICAO route string as depicted from the flight plan.</documentation></annotation></attribute>
For IFR flights, the estimated time required from take-off to arrive over that designated point, defined by reference to navigation aids, from which it is intended that an instrument approach procedure will be commenced, or, if no navigation aid is associated with the destination aerodrome, to arrive over the destination aerodrome. For VFR flights, the estimated time required from take-off to arrive over the destination aerodrome. [ICAO Doc 4444] For a flight plan received from an aircraft in flight, the total estimated elapsed time is the estimated time from the first point of the route to which the flight plan applies to the termination point of the flight plan. [ICAO Doc 4444, Appendix 2, ITEM 16]
<attribute name="totalEstimatedElapsedTime" type="fb:DurationType" use="optional"><annotation><documentation>For IFR flights, the estimated time required from take-off to arrive over that designated point, defined by reference to navigation aids, from which it is intended that an instrument approach procedure will be commenced, or, if no navigation aid is associated with the destination aerodrome, to arrive over the destination aerodrome. For VFR flights, the estimated time required from take-off to arrive over the destination aerodrome. [ICAO Doc 4444] For a flight plan received from an aircraft in flight, the total estimated elapsed time is the estimated time from the first point of the route to which the flight plan applies to the termination point of the flight plan. [ICAO Doc 4444, Appendix 2, ITEM 16]</documentation></annotation></attribute>
