Included schema Extension.xsd
Namespace http://www.fixm.aero/fixm/4.1
Annotations

Copyright (c) 2017 Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA,
       International Coordinating Council of Aerospace Industries Associations, JCAB, NATS
       Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the
       following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions
  and the disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA, International Coordinating
  Council of Aerospace Industries Associations, JCAB, NATS Limited, NAV CANADA, SESAR Joint Undertaking &
  US FAA nor the names of their contributors may be used to endorse or promote products derived from this
  specification without specific prior written permission.

       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the UAE GCAA: https://www.gcaa.gov.ae
       Details on the ICCAIA: www.iccaia.org
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

Contains all the classes needed to construct extensions to the FIXM model. [FIXM]
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0
Element fb:ExtensibleType / fb:extension
Namespace http://www.fixm.aero/base/4.1
Annotations

A list of extension hooks that extension (non-core) classes can be attached to.
Diagram
Diagram Extension_xsd.tmp#ExtensionType
Type fb:ExtensionType
Properties
content: complex
minOccurs: 0
maxOccurs: 2000
Source

<element name="extension" type="fb:ExtensionType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>A list of extension hooks that extension (non-core) classes can be attached to.</documentation>
  </annotation>
</element>

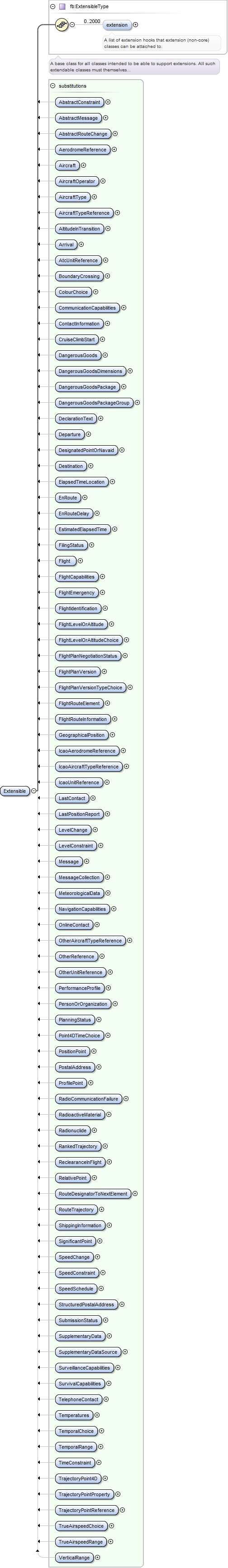

Element fb:Extensible
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Constraints_xsd.tmp#AbstractConstraint Messaging_xsd.tmp#AbstractMessage RouteChanges_xsd.tmp#AbstractRouteChange Aerodrome_xsd.tmp#AerodromeReference Aircraft_xsd.tmp#Aircraft Organization_xsd.tmp#AircraftOperator Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType Aircraft_xsd.tmp#AircraftTypeReference EnRoute_xsd.tmp#AltitudeInTransition Arrival_xsd.tmp#Arrival Organization_xsd.tmp#AtcUnitReference EnRoute_xsd.tmp#BoundaryCrossing RangesAndChoices_xsd.tmp#ColourChoice Capability_xsd.tmp#CommunicationCapabilities Address_xsd.tmp#ContactInformation RouteChanges_xsd.tmp#CruiseClimbStart DangerousGoods_xsd.tmp#DangerousGoods Packaging_xsd.tmp#DangerousGoodsDimensions Packaging_xsd.tmp#DangerousGoodsPackage Packaging_xsd.tmp#DangerousGoodsPackageGroup DangerousGoods_xsd.tmp#DeclarationText Departure_xsd.tmp#Departure Airspace_xsd.tmp#DesignatedPointOrNavaid Arrival_xsd.tmp#Destination RouteTrajectory_xsd.tmp#ElapsedTimeLocation EnRoute_xsd.tmp#EnRoute RouteTrajectory_xsd.tmp#EnRouteDelay RouteTrajectory_xsd.tmp#EstimatedElapsedTime Messaging_xsd.tmp#FilingStatus FlightData_xsd.tmp#Flight Capability_xsd.tmp#FlightCapabilities Emergency_xsd.tmp#FlightEmergency FlightData_xsd.tmp#FlightIdentification RangesAndChoices_xsd.tmp#FlightLevelOrAltitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoice Messaging_xsd.tmp#FlightPlanNegotiationStatus Messaging_xsd.tmp#FlightPlanVersion Messaging_xsd.tmp#FlightPlanVersionTypeChoice RouteTrajectory_xsd.tmp#FlightRouteElement RouteTrajectory_xsd.tmp#FlightRouteInformation Airspace_xsd.tmp#GeographicalPosition Aerodrome_xsd.tmp#IcaoAerodromeReference Aircraft_xsd.tmp#IcaoAircraftTypeReference Organization_xsd.tmp#IcaoUnitReference Emergency_xsd.tmp#LastContact Emergency_xsd.tmp#LastPositionReport RouteChanges_xsd.tmp#LevelChange Constraints_xsd.tmp#LevelConstraint Messaging_xsd.tmp#Message Messaging_xsd.tmp#MessageCollection RouteTrajectory_xsd.tmp#MeteorologicalData Capability_xsd.tmp#NavigationCapabilities Address_xsd.tmp#OnlineContact Aircraft_xsd.tmp#OtherAircraftTypeReference Aerodrome_xsd.tmp#OtherReference Organization_xsd.tmp#OtherUnitReference RouteTrajectory_xsd.tmp#PerformanceProfile Organization_xsd.tmp#PersonOrOrganization Messaging_xsd.tmp#PlanningStatus RouteTrajectory_xsd.tmp#Point4DTimeChoice Airspace_xsd.tmp#PositionPoint Address_xsd.tmp#PostalAddress RouteTrajectory_xsd.tmp#ProfilePoint Emergency_xsd.tmp#RadioCommunicationFailure RadioactiveMaterials_xsd.tmp#RadioactiveMaterial RadioactiveMaterials_xsd.tmp#Radionuclide RankedTrajectory_xsd.tmp#RankedTrajectory Arrival_xsd.tmp#ReclearanceInFlight Airspace_xsd.tmp#RelativePoint RouteTrajectory_xsd.tmp#RouteDesignatorToNextElement RouteTrajectory_xsd.tmp#RouteTrajectory DangerousGoods_xsd.tmp#ShippingInformation Airspace_xsd.tmp#SignificantPoint RouteChanges_xsd.tmp#SpeedChange Constraints_xsd.tmp#SpeedConstraint RouteTrajectory_xsd.tmp#SpeedSchedule DangerousGoods_xsd.tmp#StructuredPostalAddress Messaging_xsd.tmp#SubmissionStatus FlightData_xsd.tmp#SupplementaryData FlightData_xsd.tmp#SupplementaryDataSource Capability_xsd.tmp#SurveillanceCapabilities Capability_xsd.tmp#SurvivalCapabilities Address_xsd.tmp#TelephoneContact Packaging_xsd.tmp#Temperatures RangesAndChoices_xsd.tmp#TemporalChoice RangesAndChoices_xsd.tmp#TemporalRange Constraints_xsd.tmp#TimeConstraint RouteTrajectory_xsd.tmp#TrajectoryPoint4D RouteTrajectory_xsd.tmp#TrajectoryPointProperty RouteTrajectory_xsd.tmp#TrajectoryPointReference RangesAndChoices_xsd.tmp#TrueAirspeedChoice RangesAndChoices_xsd.tmp#TrueAirspeedRange RangesAndChoices_xsd.tmp#VerticalRange
Type fb:ExtensibleType
Properties
content: complex
Substitution Group
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:Extensible>
  <fb:extension>{0,2000}</fb:extension>
</fb:Extensible>
Source

<element name="Extensible" type="fb:ExtensibleType"/>

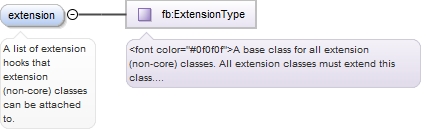

Element fb:Extension
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensionType Capability_xsd.tmp#Dinghies
Type fb:ExtensionType
Properties
content: complex
Substitution Group
Source

<element name="Extension" type="fb:ExtensionType"/>

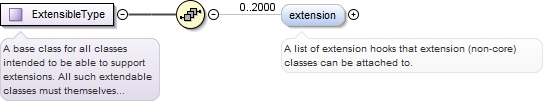

Complex Type fb:ExtensibleType
Namespace http://www.fixm.aero/base/4.1
Annotations

A base class for all classes intended to be able to support extensions.  All such
extendable classes must themselves extend this class.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension
Properties
abstract: true
Used by
Complex Types fb:AerodromeReferenceType, fb:AircraftOperatorType, fb:AtcUnitReferenceType, fb:ColourChoiceType, fb:ContactInformationType, fb:FlightLevelOrAltitudeChoiceType, fb:FlightLevelOrAltitudeType, fb:GeographicalPositionType, fb:OnlineContactType, fb:PersonOrOrganizationType, fb:PostalAddressType, fb:SignificantPointType, fb:TelephoneContactType, fb:TemporalChoiceType, fb:TemporalRangeType, fb:TrueAirspeedChoiceType, fb:TrueAirspeedRangeType, fb:VerticalRangeType, fx:AbstractConstraintType, fx:AbstractRouteChangeType, fx:AircraftType, fx:AircraftTypeReferenceType, fx:AircraftTypeType, fx:ArrivalType, fx:BoundaryCrossingType, fx:CommunicationCapabilitiesType, fx:DangerousGoodsDimensionsType, fx:DangerousGoodsPackageGroupType, fx:DangerousGoodsPackageType, fx:DangerousGoodsType, fx:DeclarationTextType, fx:DepartureType, fx:DestinationType, fx:ElapsedTimeLocationType, fx:EnRouteDelayType, fx:EnRouteType, fx:EstimatedElapsedTimeType, fx:FlightCapabilitiesType, fx:FlightEmergencyType, fx:FlightIdentificationType, fx:FlightRouteElementType, fx:FlightRouteInformationType, fx:FlightType, fx:LastContactType, fx:LastPositionReportType, fx:MeteorologicalDataType, fx:NavigationCapabilitiesType, fx:PerformanceProfileType, fx:Point4DTimeChoiceType, fx:ProfilePointType, fx:RadioCommunicationFailureType, fx:RadioactiveMaterialType, fx:RadionuclideType, fx:RankedTrajectoryType, fx:ReclearanceInFlightType, fx:RouteDesignatorToNextElementType, fx:RouteTrajectoryType, fx:ShippingInformationType, fx:SpeedScheduleType, fx:SupplementaryDataSourceType, fx:SupplementaryDataType, fx:SurveillanceCapabilitiesType, fx:SurvivalCapabilitiesType, fx:TemperaturesType, fx:TrajectoryPointPropertyType, fx:TrajectoryPointReferenceType, mesg:AbstractMessageType, mesg:FilingStatusType, mesg:FlightPlanNegotiationStatusType, mesg:FlightPlanVersionType, mesg:FlightPlanVersionTypeChoiceType, mesg:PlanningStatusType, mesg:SubmissionStatusType
Element fb:Extensible
Model fb:extension{0,2000}
Children fb:extension
Source

<complexType abstract="true" name="ExtensibleType">
  <annotation>
    <documentation>A base class for all classes intended to be able to support extensions. All such extendable classes must themselves extend this class.</documentation>
  </annotation>
  <sequence>
    <element name="extension" type="fb:ExtensionType" minOccurs="0" maxOccurs="2000">
      <annotation>
        <documentation>A list of extension hooks that extension (non-core) classes can be attached to.</documentation>
      </annotation>
    </element>
  </sequence>
</complexType>
Complex Type fb:ExtensionType
Namespace http://www.fixm.aero/base/4.1
Annotations

<font color="#0f0f0f">A base class for all extension (non-core) classes. All
extension classes must extend this class. </font>
Diagram
Diagram
Properties
abstract: true
Used by
Source

<complexType abstract="true" name="ExtensionType">
  <annotation>
    <documentation><font color="#0f0f0f">A base class for all extension (non-core) classes. All extension classes must extend this class. </font></documentation>
  </annotation>
</complexType>
