Included schema Packaging.xsd
Namespace http://www.fixm.aero/fixm/4.1
Annotations

Copyright (c) 2017 Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA,
       International Coordinating Council of Aerospace Industries Associations, JCAB, NATS
       Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the
       following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions
  and the disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA, International Coordinating
  Council of Aerospace Industries Associations, JCAB, NATS Limited, NAV CANADA, SESAR Joint Undertaking &
  US FAA nor the names of their contributors may be used to endorse or promote products derived from this
  specification without specific prior written permission.

       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the UAE GCAA: https://www.gcaa.gov.ae
       Details on the ICCAIA: www.iccaia.org
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

The FlightObject.Cargo.Packaging schema contains information about the packaging
of dangerous goods.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

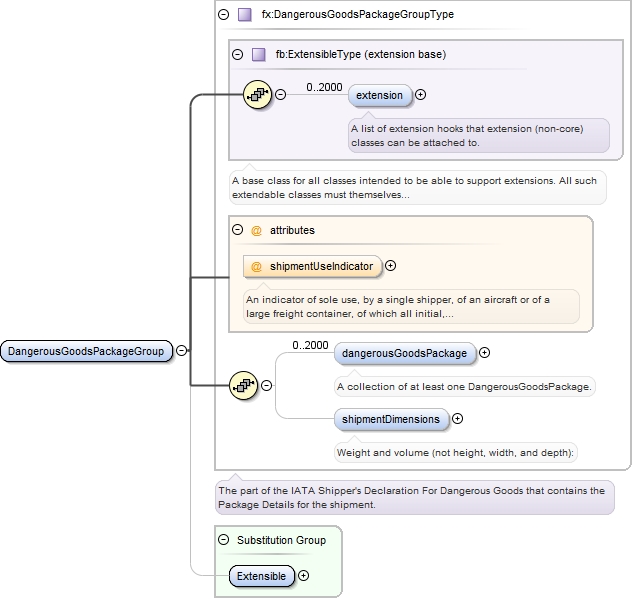

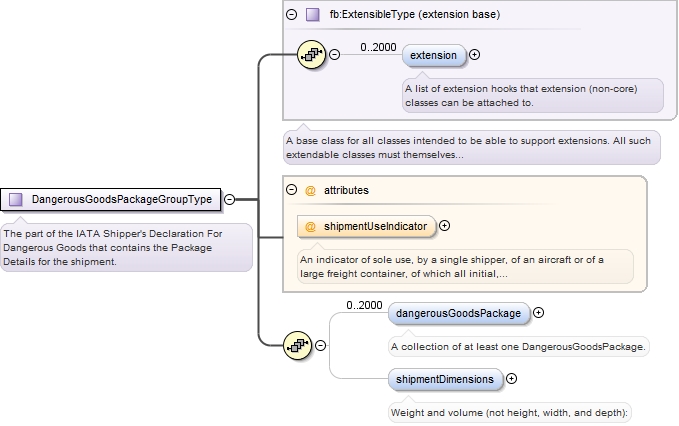

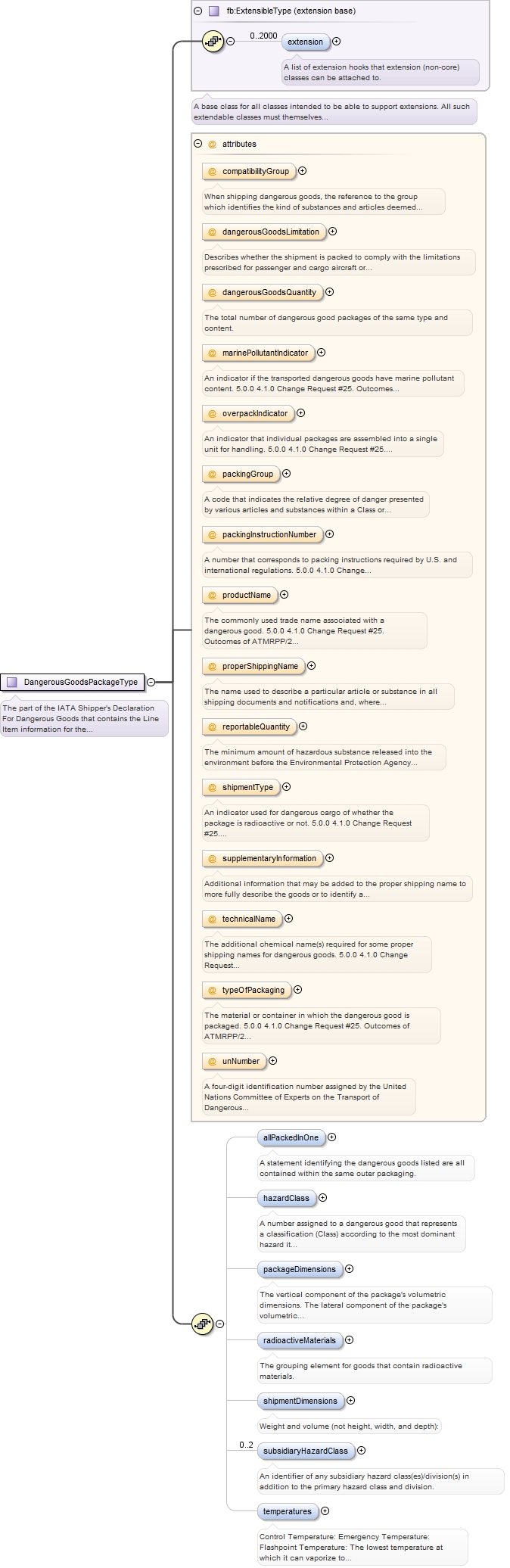

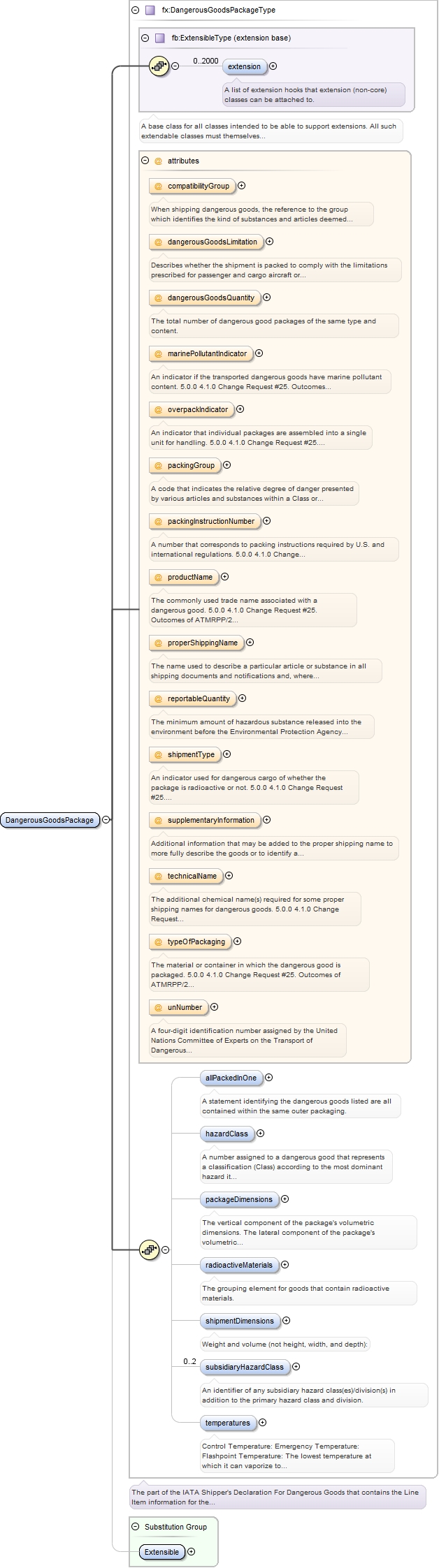

Element fx:DangerousGoodsPackageGroupType / fx:dangerousGoodsPackage
Namespace http://www.fixm.aero/flight/4.1
Annotations

A collection of at least one DangerousGoodsPackage.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsPackageType_compatibilityGroup Packaging_xsd.tmp#DangerousGoodsPackageType_dangerousGoodsLimitation Packaging_xsd.tmp#DangerousGoodsPackageType_dangerousGoodsQuantity Packaging_xsd.tmp#DangerousGoodsPackageType_marinePollutantIndicator Packaging_xsd.tmp#DangerousGoodsPackageType_overpackIndicator Packaging_xsd.tmp#DangerousGoodsPackageType_packingGroup Packaging_xsd.tmp#DangerousGoodsPackageType_packingInstructionNumber Packaging_xsd.tmp#DangerousGoodsPackageType_productName Packaging_xsd.tmp#DangerousGoodsPackageType_properShippingName Packaging_xsd.tmp#DangerousGoodsPackageType_reportableQuantity Packaging_xsd.tmp#DangerousGoodsPackageType_shipmentType Packaging_xsd.tmp#DangerousGoodsPackageType_supplementaryInformation Packaging_xsd.tmp#DangerousGoodsPackageType_technicalName Packaging_xsd.tmp#DangerousGoodsPackageType_typeOfPackaging Packaging_xsd.tmp#DangerousGoodsPackageType_unNumber Packaging_xsd.tmp#DangerousGoodsPackageType_allPackedInOne Packaging_xsd.tmp#DangerousGoodsPackageType_hazardClass Packaging_xsd.tmp#DangerousGoodsPackageType_packageDimensions Packaging_xsd.tmp#DangerousGoodsPackageType_radioactiveMaterials Packaging_xsd.tmp#DangerousGoodsPackageType_shipmentDimensions Packaging_xsd.tmp#DangerousGoodsPackageType_subsidiaryHazardClass Packaging_xsd.tmp#DangerousGoodsPackageType_temperatures Packaging_xsd.tmp#DangerousGoodsPackageType
Type fx:DangerousGoodsPackageType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2000
Model fb:extension{0,2000} , fx:allPackedInOne{0,1} , fx:hazardClass{0,1} , fx:packageDimensions{0,1} , fx:radioactiveMaterials{0,1} , fx:shipmentDimensions{0,1} , fx:subsidiaryHazardClass{0,2} , fx:temperatures{0,1}
Children fb:extension, fx:allPackedInOne, fx:hazardClass, fx:packageDimensions, fx:radioactiveMaterials, fx:shipmentDimensions, fx:subsidiaryHazardClass, fx:temperatures
Instance

<fx:dangerousGoodsPackage compatibilityGroup="" dangerousGoodsLimitation="" dangerousGoodsQuantity="" marinePollutantIndicator="" overpackIndicator="" packingGroup="" packingInstructionNumber="" productName="" properShippingName="" reportableQuantity="" shipmentType="" supplementaryInformation="" technicalName="" typeOfPackaging="" unNumber="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:allPackedInOne numberOfPackages="" qValue="">{0,1}</fx:allPackedInOne>
  <fx:hazardClass hazardDivision="">{0,1}</fx:hazardClass>
  <fx:packageDimensions>{0,1}</fx:packageDimensions>

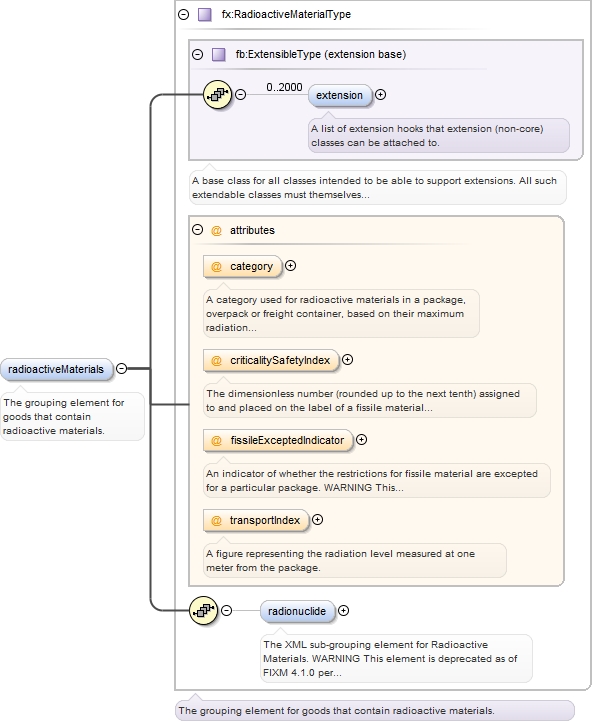

  <fx:radioactiveMaterials category="" criticalitySafetyIndex="" fissileExceptedIndicator="" transportIndex="">{0,1}</fx:radioactiveMaterials>
  <fx:shipmentDimensions>{0,1}</fx:shipmentDimensions>

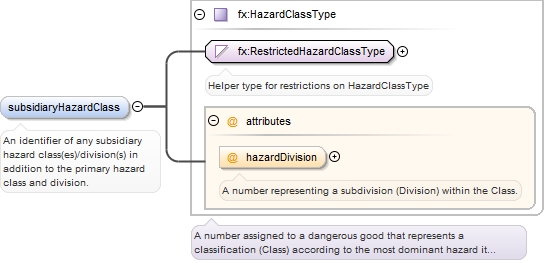

  <fx:subsidiaryHazardClass hazardDivision="">{0,2}</fx:subsidiaryHazardClass>

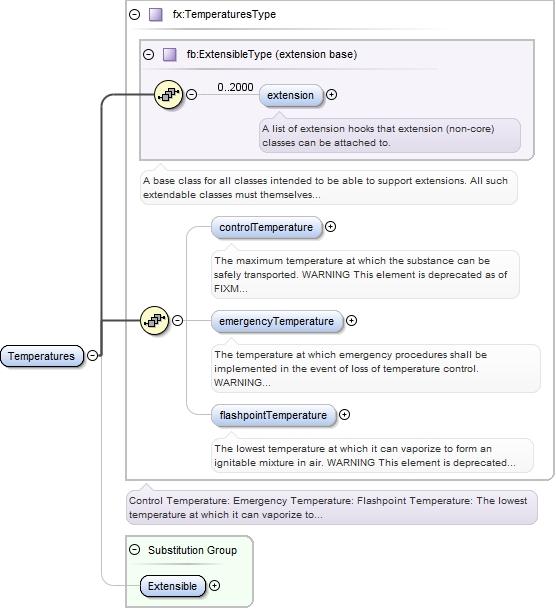

  <fx:temperatures>{0,1}</fx:temperatures>
</fx:dangerousGoodsPackage>
Attributes
QName Type Fixed Default Use Annotation

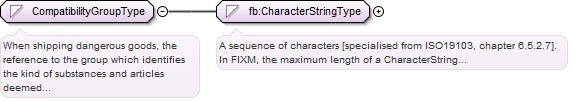

compatibilityGroup fx:CompatibilityGroupType optional
When shipping dangerous goods, the reference to the group which identifies the kind
of substances and articles deemed to be compatible.
dangerousGoodsLimitation fx:AircraftDangerousGoodsLimitationType optional
Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
dangerousGoodsQuantity fb:CountType optional
The total number of dangerous good packages of the same type and content.
marinePollutantIndicator fx:MarinePollutantIndicatorType optional
An indicator if the transported dangerous goods have marine pollutant content.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
overpackIndicator fx:OverpackIndicatorType optional
An indicator that individual packages are assembled into a single unit for handling.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>

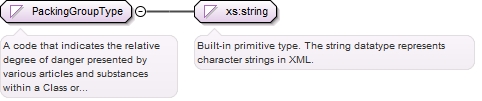

packingGroup fx:PackingGroupType optional
A code that indicates the relative degree of danger presented by various articles
and substances within a Class or Division.
packingInstructionNumber restriction of fb:CharacterStringType optional
A number that corresponds to packing instructions required by U.S. and international
regulations.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
productName fb:CharacterStringType optional
The commonly used trade name associated with a dangerous good.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
properShippingName fb:CharacterStringType optional
The name used to describe a particular article or substance in all shipping documents
and notifications and, where appropriate, on packaging, as shown in the UN Model
Regulations Dangerous Goods List.
reportableQuantity fb:CountType optional
The minimum amount of hazardous substance released into the environment before the
Environmental Protection Agency (EPA) requires notification of the release to the
National Response Centre.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
shipmentType fx:ShipmentTypeType optional
An indicator used for dangerous cargo of whether the package is radioactive or not.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
supplementaryInformation fb:CharacterStringType optional
Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
technicalName fb:CharacterStringType optional
The additional chemical name(s) required for some proper shipping names for dangerous
goods.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
typeOfPackaging fb:CharacterStringType optional
The material or container in which the dangerous good is packaged.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
unNumber restriction of fb:CharacterStringType optional
A four-digit identification number assigned by the United Nations Committee of Experts
on the Transport of Dangerous Goods to identify a substance or a particular group
of substances considered dangerous goods.
Source

<element name="dangerousGoodsPackage" type="fx:DangerousGoodsPackageType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>A collection of at least one DangerousGoodsPackage.</documentation>
  </annotation>
</element>

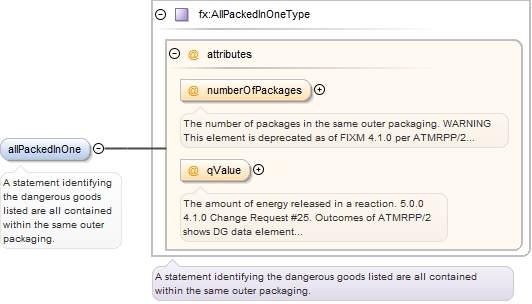

Element fx:DangerousGoodsPackageType / fx:allPackedInOne
Namespace http://www.fixm.aero/flight/4.1
Annotations

A statement identifying the dangerous goods listed are all contained within the same
outer packaging.

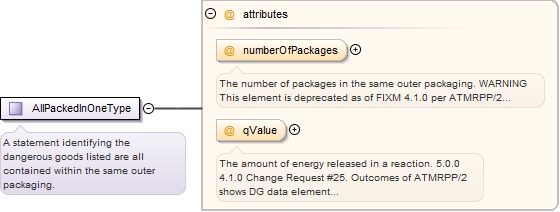

Diagram
Diagram Packaging_xsd.tmp#AllPackedInOneType_numberOfPackages Packaging_xsd.tmp#AllPackedInOneType_qValue Packaging_xsd.tmp#AllPackedInOneType
Type fx:AllPackedInOneType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
numberOfPackages fb:CountType optional
The number of packages in the same outer packaging.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
qValue restriction of fb:DecimalIndexType optional
The amount of energy released in a reaction.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Source

<element name="allPackedInOne" type="fx:AllPackedInOneType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A statement identifying the dangerous goods listed are all contained within the same outer packaging.</documentation>
  </annotation>
</element>

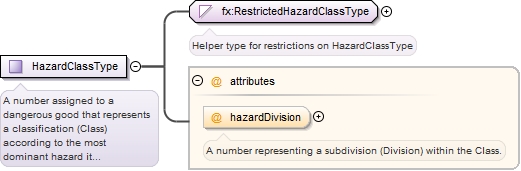

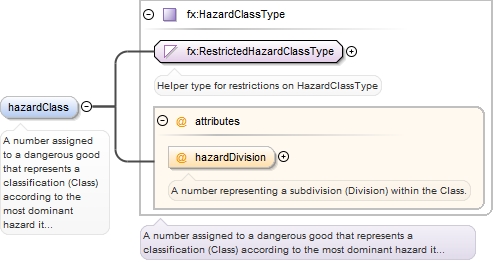

Element fx:DangerousGoodsPackageType / fx:hazardClass
Namespace http://www.fixm.aero/flight/4.1
Annotations

A number assigned to a dangerous good that represents a classification (Class) according
to the most dominant hazard it represents, potentially followed by a number representing
a subdivision (Division) within the Class.
Diagram
Diagram Packaging_xsd.tmp#RestrictedHazardClassType Packaging_xsd.tmp#HazardClassType_hazardDivision Packaging_xsd.tmp#HazardClassType
Type fx:HazardClassType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
hazardDivision restriction of fb:CountType optional
A number representing a subdivision (Division) within the Class.
Source

<element name="hazardClass" type="fx:HazardClassType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A number assigned to a dangerous good that represents a classification (Class) according to the most dominant hazard it represents, potentially followed by a number representing a subdivision (Division) within the Class.</documentation>
  </annotation>
</element>

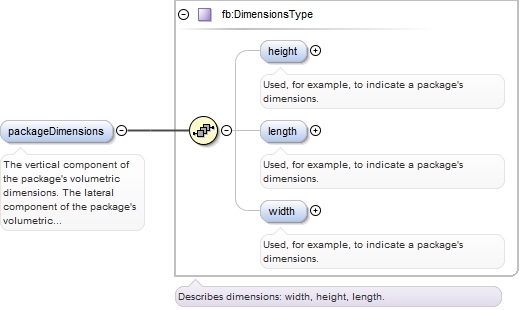

Element fx:DangerousGoodsPackageType / fx:packageDimensions
Namespace http://www.fixm.aero/flight/4.1
Annotations

The vertical component of the package's volumetric dimensions.
The lateral component of the package's volumetric dimensions.
The depth component of the package's volumetric dimensions.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Diagram
Diagram Measures_xsd.tmp#DimensionsType_height Measures_xsd.tmp#DimensionsType_length Measures_xsd.tmp#DimensionsType_width Measures_xsd.tmp#DimensionsType
Type fb:DimensionsType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:height{0,1} , fb:length{0,1} , fb:width{0,1}
Children fb:height, fb:length, fb:width
Instance

<fx:packageDimensions>
  <fb:height uom="">{0,1}</fb:height>
  <fb:length uom="">{0,1}</fb:length>
  <fb:width uom="">{0,1}</fb:width>
</fx:packageDimensions>
Source

<element name="packageDimensions" type="fb:DimensionsType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The vertical component of the package's volumetric dimensions. The lateral component of the package's volumetric dimensions. The depth component of the package's volumetric dimensions.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</element>
Element fx:DangerousGoodsPackageType / fx:radioactiveMaterials
Namespace http://www.fixm.aero/flight/4.1
Annotations

The grouping element for goods that contain radioactive materials.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_category RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_criticalitySafetyIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_fissileExceptedIndicator RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_transportIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_radionuclide RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType
Type fx:RadioactiveMaterialType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:radionuclide{0,1}
Children fb:extension, fx:radionuclide
Instance

<fx:radioactiveMaterials category="" criticalitySafetyIndex="" fissileExceptedIndicator="" transportIndex="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">{0,1}</fx:radionuclide>
</fx:radioactiveMaterials>
Attributes
QName Type Fixed Default Use Annotation
category fx:RadioactiveMaterialCategoryType optional
A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
criticalitySafetyIndex restriction of fb:DecimalIndexType optional
The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
fissileExceptedIndicator fx:FissileExceptedType optional
An indicator of whether the restrictions for fissile material are excepted for a
particular package.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
transportIndex restriction of fb:DecimalIndexType optional
A figure representing the radiation level measured at one meter from the package.
Source

<element name="radioactiveMaterials" type="fx:RadioactiveMaterialType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The grouping element for goods that contain radioactive materials.</documentation>
  </annotation>
</element>

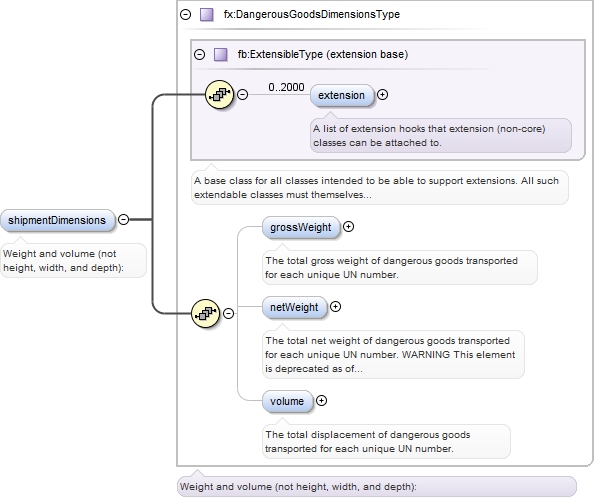

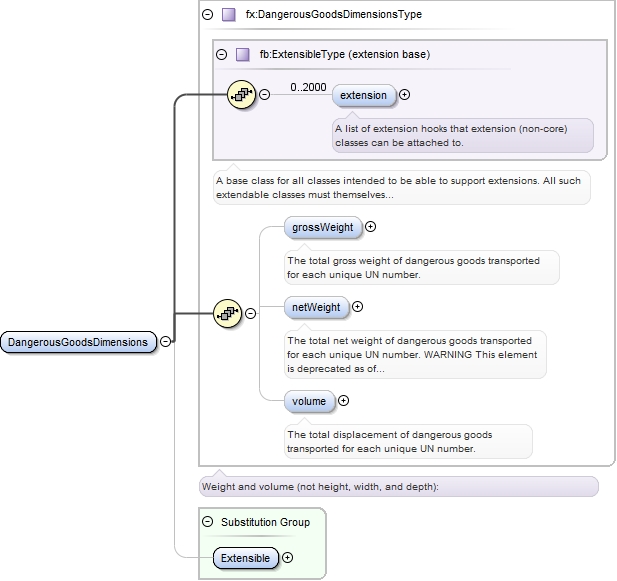

Element fx:DangerousGoodsPackageType / fx:shipmentDimensions
Namespace http://www.fixm.aero/flight/4.1
Annotations

Weight and volume (not height, width, and depth):
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsDimensionsType_grossWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_netWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_volume Packaging_xsd.tmp#DangerousGoodsDimensionsType
Type fx:DangerousGoodsDimensionsType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:grossWeight{0,1} , fx:netWeight{0,1} , fx:volume{0,1}
Children fb:extension, fx:grossWeight, fx:netWeight, fx:volume
Instance

<fx:shipmentDimensions>
  <fb:extension>{0,2000}</fb:extension>
  <fx:grossWeight uom="">{0,1}</fx:grossWeight>
  <fx:netWeight uom="">{0,1}</fx:netWeight>
  <fx:volume uom="">{0,1}</fx:volume>
</fx:shipmentDimensions>
Source

<element name="shipmentDimensions" type="fx:DangerousGoodsDimensionsType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Weight and volume (not height, width, and depth):</documentation>
  </annotation>
</element>

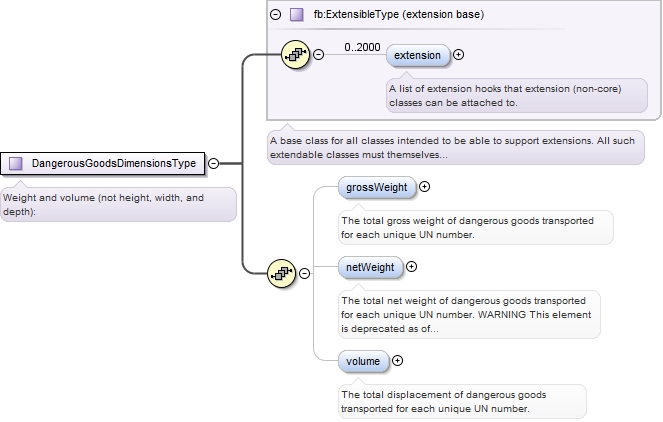

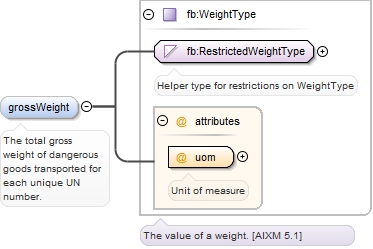

Element fx:DangerousGoodsDimensionsType / fx:grossWeight
Namespace http://www.fixm.aero/flight/4.1
Annotations

The total gross weight of dangerous goods transported for each unique UN number.
Diagram
Diagram Measures_xsd.tmp#RestrictedWeightType Measures_xsd.tmp#WeightType_uom Measures_xsd.tmp#WeightType
Type fb:WeightType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomWeightType required
Unit of measure
Source

<element name="grossWeight" type="fb:WeightType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The total gross weight of dangerous goods transported for each unique UN number.</documentation>
  </annotation>
</element>

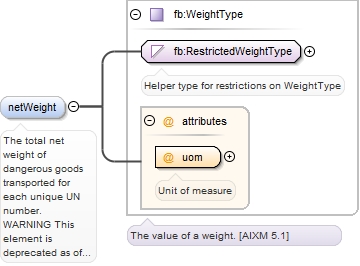

Element fx:DangerousGoodsDimensionsType / fx:netWeight
Namespace http://www.fixm.aero/flight/4.1
Annotations

The total net weight of dangerous goods transported for each unique UN number.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Diagram
Diagram Measures_xsd.tmp#RestrictedWeightType Measures_xsd.tmp#WeightType_uom Measures_xsd.tmp#WeightType
Type fb:WeightType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomWeightType required
Unit of measure
Source

<element name="netWeight" type="fb:WeightType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The total net weight of dangerous goods transported for each unique UN number. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</element>

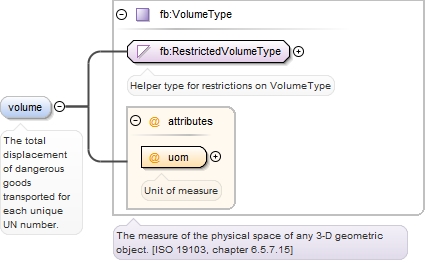

Element fx:DangerousGoodsDimensionsType / fx:volume
Namespace http://www.fixm.aero/flight/4.1
Annotations

The total displacement of dangerous goods transported for each unique UN number.
Diagram
Diagram Measures_xsd.tmp#RestrictedVolumeType Measures_xsd.tmp#VolumeType_uom Measures_xsd.tmp#VolumeType
Type fb:VolumeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomVolumeType required
Unit of measure
Source

<element name="volume" type="fb:VolumeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The total displacement of dangerous goods transported for each unique UN number.</documentation>
  </annotation>
</element>
Element fx:DangerousGoodsPackageType / fx:subsidiaryHazardClass
Namespace http://www.fixm.aero/flight/4.1
Annotations

An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary
hazard class and division.
Diagram
Diagram Packaging_xsd.tmp#RestrictedHazardClassType Packaging_xsd.tmp#HazardClassType_hazardDivision Packaging_xsd.tmp#HazardClassType
Type fx:HazardClassType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2
Attributes
QName Type Fixed Default Use Annotation
hazardDivision restriction of fb:CountType optional
A number representing a subdivision (Division) within the Class.
Source

<element name="subsidiaryHazardClass" type="fx:HazardClassType" minOccurs="0" maxOccurs="2">
  <annotation>
    <documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</documentation>
  </annotation>
</element>

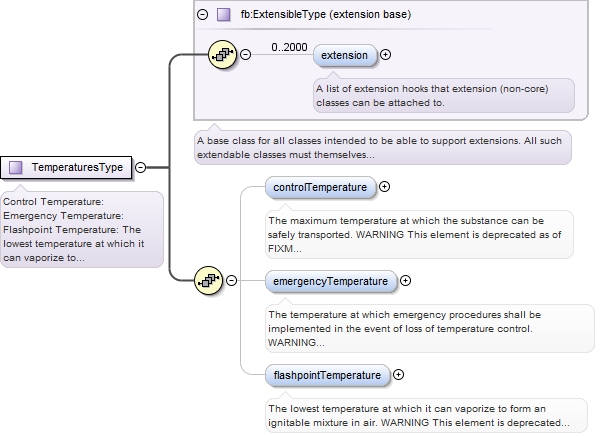

Element fx:DangerousGoodsPackageType / fx:temperatures
Namespace http://www.fixm.aero/flight/4.1
Annotations

Control Temperature:

Emergency Temperature:

Flashpoint Temperature:
The lowest temperature at which it can vaporize to form an ignitable mixture in air.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#TemperaturesType_controlTemperature Packaging_xsd.tmp#TemperaturesType_emergencyTemperature Packaging_xsd.tmp#TemperaturesType_flashpointTemperature Packaging_xsd.tmp#TemperaturesType
Type fx:TemperaturesType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:controlTemperature{0,1} , fx:emergencyTemperature{0,1} , fx:flashpointTemperature{0,1}
Children fb:extension, fx:controlTemperature, fx:emergencyTemperature, fx:flashpointTemperature
Instance

<fx:temperatures>
  <fb:extension>{0,2000}</fb:extension>
  <fx:controlTemperature uom="">{0,1}</fx:controlTemperature>
  <fx:emergencyTemperature uom="">{0,1}</fx:emergencyTemperature>
  <fx:flashpointTemperature uom="">{0,1}</fx:flashpointTemperature>
</fx:temperatures>
Source

<element name="temperatures" type="fx:TemperaturesType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Control Temperature: Emergency Temperature: Flashpoint Temperature: The lowest temperature at which it can vaporize to form an ignitable mixture in air.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</element>

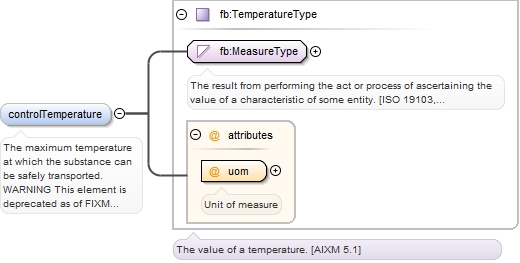

Element fx:TemperaturesType / fx:controlTemperature
Namespace http://www.fixm.aero/flight/4.1
Annotations

The maximum temperature at which the substance can be safely transported.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Diagram
Diagram Measures_xsd.tmp#MeasureType Measures_xsd.tmp#TemperatureType_uom Measures_xsd.tmp#TemperatureType
Type fb:TemperatureType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomTemperatureType required
Unit of measure
Source

<element name="controlTemperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The maximum temperature at which the substance can be safely transported. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</element>

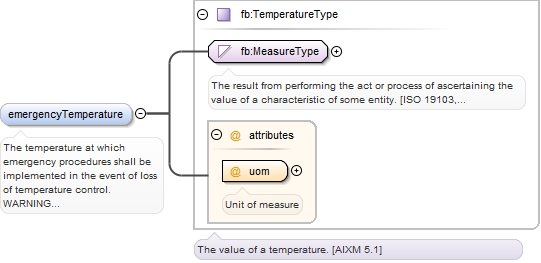

Element fx:TemperaturesType / fx:emergencyTemperature
Namespace http://www.fixm.aero/flight/4.1
Annotations

The temperature at which emergency procedures shall be implemented in the event of
loss of temperature control.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Diagram
Diagram Measures_xsd.tmp#MeasureType Measures_xsd.tmp#TemperatureType_uom Measures_xsd.tmp#TemperatureType
Type fb:TemperatureType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomTemperatureType required
Unit of measure
Source

<element name="emergencyTemperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The temperature at which emergency procedures shall be implemented in the event of loss of temperature control. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</element>

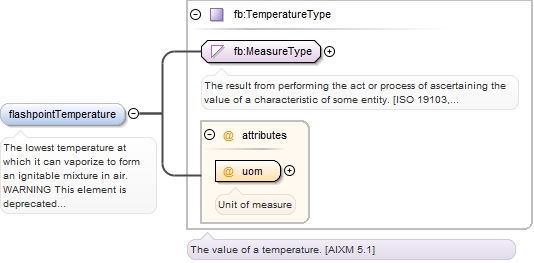

Element fx:TemperaturesType / fx:flashpointTemperature
Namespace http://www.fixm.aero/flight/4.1
Annotations

The lowest temperature at which it can vaporize to form an ignitable mixture in air.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Diagram
Diagram Measures_xsd.tmp#MeasureType Measures_xsd.tmp#TemperatureType_uom Measures_xsd.tmp#TemperatureType
Type fb:TemperatureType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomTemperatureType required
Unit of measure
Source

<element name="flashpointTemperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The lowest temperature at which it can vaporize to form an ignitable mixture in air. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</element>
Element fx:DangerousGoodsPackageGroupType / fx:shipmentDimensions
Namespace http://www.fixm.aero/flight/4.1
Annotations

Weight and volume (not height, width, and depth):
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsDimensionsType_grossWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_netWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_volume Packaging_xsd.tmp#DangerousGoodsDimensionsType
Type fx:DangerousGoodsDimensionsType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:grossWeight{0,1} , fx:netWeight{0,1} , fx:volume{0,1}
Children fb:extension, fx:grossWeight, fx:netWeight, fx:volume
Instance

<fx:shipmentDimensions>
  <fb:extension>{0,2000}</fb:extension>
  <fx:grossWeight uom="">{0,1}</fx:grossWeight>
  <fx:netWeight uom="">{0,1}</fx:netWeight>
  <fx:volume uom="">{0,1}</fx:volume>
</fx:shipmentDimensions>
Source

<element name="shipmentDimensions" type="fx:DangerousGoodsDimensionsType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Weight and volume (not height, width, and depth):</documentation>
  </annotation>
</element>
Element fx:AllPackedInOne
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Packaging_xsd.tmp#AllPackedInOneType_numberOfPackages Packaging_xsd.tmp#AllPackedInOneType_qValue Packaging_xsd.tmp#AllPackedInOneType
Type fx:AllPackedInOneType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
numberOfPackages fb:CountType optional
The number of packages in the same outer packaging.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
qValue restriction of fb:DecimalIndexType optional
The amount of energy released in a reaction.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Source

<element name="AllPackedInOne" type="fx:AllPackedInOneType"/>
Element fx:DangerousGoodsDimensions
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsDimensionsType_grossWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_netWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_volume Packaging_xsd.tmp#DangerousGoodsDimensionsType Extension_xsd.tmp#Extensible
Type fx:DangerousGoodsDimensionsType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:grossWeight{0,1} , fx:netWeight{0,1} , fx:volume{0,1}
Children fb:extension, fx:grossWeight, fx:netWeight, fx:volume
Instance

<fx:DangerousGoodsDimensions>
  <fb:extension>{0,2000}</fb:extension>
  <fx:grossWeight uom="">{0,1}</fx:grossWeight>
  <fx:netWeight uom="">{0,1}</fx:netWeight>
  <fx:volume uom="">{0,1}</fx:volume>
</fx:DangerousGoodsDimensions>
Source

<element name="DangerousGoodsDimensions" type="fx:DangerousGoodsDimensionsType" substitutionGroup="fb:Extensible"/>
Element fx:DangerousGoodsPackage
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsPackageType_compatibilityGroup Packaging_xsd.tmp#DangerousGoodsPackageType_dangerousGoodsLimitation Packaging_xsd.tmp#DangerousGoodsPackageType_dangerousGoodsQuantity Packaging_xsd.tmp#DangerousGoodsPackageType_marinePollutantIndicator Packaging_xsd.tmp#DangerousGoodsPackageType_overpackIndicator Packaging_xsd.tmp#DangerousGoodsPackageType_packingGroup Packaging_xsd.tmp#DangerousGoodsPackageType_packingInstructionNumber Packaging_xsd.tmp#DangerousGoodsPackageType_productName Packaging_xsd.tmp#DangerousGoodsPackageType_properShippingName Packaging_xsd.tmp#DangerousGoodsPackageType_reportableQuantity Packaging_xsd.tmp#DangerousGoodsPackageType_shipmentType Packaging_xsd.tmp#DangerousGoodsPackageType_supplementaryInformation Packaging_xsd.tmp#DangerousGoodsPackageType_technicalName Packaging_xsd.tmp#DangerousGoodsPackageType_typeOfPackaging Packaging_xsd.tmp#DangerousGoodsPackageType_unNumber Packaging_xsd.tmp#DangerousGoodsPackageType_allPackedInOne Packaging_xsd.tmp#DangerousGoodsPackageType_hazardClass Packaging_xsd.tmp#DangerousGoodsPackageType_packageDimensions Packaging_xsd.tmp#DangerousGoodsPackageType_radioactiveMaterials Packaging_xsd.tmp#DangerousGoodsPackageType_shipmentDimensions Packaging_xsd.tmp#DangerousGoodsPackageType_subsidiaryHazardClass Packaging_xsd.tmp#DangerousGoodsPackageType_temperatures Packaging_xsd.tmp#DangerousGoodsPackageType Extension_xsd.tmp#Extensible
Type fx:DangerousGoodsPackageType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:allPackedInOne{0,1} , fx:hazardClass{0,1} , fx:packageDimensions{0,1} , fx:radioactiveMaterials{0,1} , fx:shipmentDimensions{0,1} , fx:subsidiaryHazardClass{0,2} , fx:temperatures{0,1}
Children fb:extension, fx:allPackedInOne, fx:hazardClass, fx:packageDimensions, fx:radioactiveMaterials, fx:shipmentDimensions, fx:subsidiaryHazardClass, fx:temperatures
Instance

<fx:DangerousGoodsPackage compatibilityGroup="" dangerousGoodsLimitation="" dangerousGoodsQuantity="" marinePollutantIndicator="" overpackIndicator="" packingGroup="" packingInstructionNumber="" productName="" properShippingName="" reportableQuantity="" shipmentType="" supplementaryInformation="" technicalName="" typeOfPackaging="" unNumber="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:allPackedInOne numberOfPackages="" qValue="">{0,1}</fx:allPackedInOne>
  <fx:hazardClass hazardDivision="">{0,1}</fx:hazardClass>
  <fx:packageDimensions>{0,1}</fx:packageDimensions>
  <fx:radioactiveMaterials category="" criticalitySafetyIndex="" fissileExceptedIndicator="" transportIndex="">{0,1}</fx:radioactiveMaterials>
  <fx:shipmentDimensions>{0,1}</fx:shipmentDimensions>
  <fx:subsidiaryHazardClass hazardDivision="">{0,2}</fx:subsidiaryHazardClass>
  <fx:temperatures>{0,1}</fx:temperatures>
</fx:DangerousGoodsPackage>
Attributes
QName Type Fixed Default Use Annotation
compatibilityGroup fx:CompatibilityGroupType optional
When shipping dangerous goods, the reference to the group which identifies the kind
of substances and articles deemed to be compatible.
dangerousGoodsLimitation fx:AircraftDangerousGoodsLimitationType optional
Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
dangerousGoodsQuantity fb:CountType optional
The total number of dangerous good packages of the same type and content.
marinePollutantIndicator fx:MarinePollutantIndicatorType optional
An indicator if the transported dangerous goods have marine pollutant content.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
overpackIndicator fx:OverpackIndicatorType optional
An indicator that individual packages are assembled into a single unit for handling.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
packingGroup fx:PackingGroupType optional
A code that indicates the relative degree of danger presented by various articles
and substances within a Class or Division.
packingInstructionNumber restriction of fb:CharacterStringType optional
A number that corresponds to packing instructions required by U.S. and international
regulations.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
productName fb:CharacterStringType optional
The commonly used trade name associated with a dangerous good.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
properShippingName fb:CharacterStringType optional
The name used to describe a particular article or substance in all shipping documents
and notifications and, where appropriate, on packaging, as shown in the UN Model
Regulations Dangerous Goods List.
reportableQuantity fb:CountType optional
The minimum amount of hazardous substance released into the environment before the
Environmental Protection Agency (EPA) requires notification of the release to the
National Response Centre.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
shipmentType fx:ShipmentTypeType optional
An indicator used for dangerous cargo of whether the package is radioactive or not.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
supplementaryInformation fb:CharacterStringType optional
Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
technicalName fb:CharacterStringType optional
The additional chemical name(s) required for some proper shipping names for dangerous
goods.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
typeOfPackaging fb:CharacterStringType optional
The material or container in which the dangerous good is packaged.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
unNumber restriction of fb:CharacterStringType optional
A four-digit identification number assigned by the United Nations Committee of Experts
on the Transport of Dangerous Goods to identify a substance or a particular group
of substances considered dangerous goods.
Source

<element name="DangerousGoodsPackage" type="fx:DangerousGoodsPackageType" substitutionGroup="fb:Extensible"/>
Element fx:DangerousGoodsPackageGroup
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsPackageGroupType_shipmentUseIndicator Packaging_xsd.tmp#DangerousGoodsPackageGroupType_dangerousGoodsPackage Packaging_xsd.tmp#DangerousGoodsPackageGroupType_shipmentDimensions Packaging_xsd.tmp#DangerousGoodsPackageGroupType Extension_xsd.tmp#Extensible
Type fx:DangerousGoodsPackageGroupType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:dangerousGoodsPackage{0,2000} , fx:shipmentDimensions{0,1}
Children fb:extension, fx:dangerousGoodsPackage, fx:shipmentDimensions
Instance

<fx:DangerousGoodsPackageGroup shipmentUseIndicator="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:dangerousGoodsPackage compatibilityGroup="" dangerousGoodsLimitation="" dangerousGoodsQuantity="" marinePollutantIndicator="" overpackIndicator="" packingGroup="" packingInstructionNumber="" productName="" properShippingName="" reportableQuantity="" shipmentType="" supplementaryInformation="" technicalName="" typeOfPackaging="" unNumber="">{0,2000}</fx:dangerousGoodsPackage>
  <fx:shipmentDimensions>{0,1}</fx:shipmentDimensions>
</fx:DangerousGoodsPackageGroup>
Attributes
QName Type Fixed Default Use Annotation

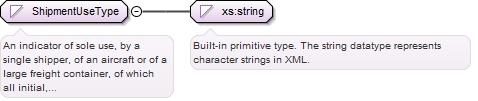

shipmentUseIndicator fx:ShipmentUseType optional
An indicator of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #25. Trim Down DG.</rationale>
</deprecated>
Source

<element name="DangerousGoodsPackageGroup" type="fx:DangerousGoodsPackageGroupType" substitutionGroup="fb:Extensible"/>
Element fx:Temperatures
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#TemperaturesType_controlTemperature Packaging_xsd.tmp#TemperaturesType_emergencyTemperature Packaging_xsd.tmp#TemperaturesType_flashpointTemperature Packaging_xsd.tmp#TemperaturesType Extension_xsd.tmp#Extensible
Type fx:TemperaturesType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:controlTemperature{0,1} , fx:emergencyTemperature{0,1} , fx:flashpointTemperature{0,1}
Children fb:extension, fx:controlTemperature, fx:emergencyTemperature, fx:flashpointTemperature
Instance

<fx:Temperatures>
  <fb:extension>{0,2000}</fb:extension>
  <fx:controlTemperature uom="">{0,1}</fx:controlTemperature>
  <fx:emergencyTemperature uom="">{0,1}</fx:emergencyTemperature>
  <fx:flashpointTemperature uom="">{0,1}</fx:flashpointTemperature>
</fx:Temperatures>
Source

<element name="Temperatures" type="fx:TemperaturesType" substitutionGroup="fb:Extensible"/>
Complex Type fx:DangerousGoodsPackageGroupType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The part of the IATA Shipper's Declaration For Dangerous Goods that contains the
Package Details for the shipment.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsPackageGroupType_shipmentUseIndicator Packaging_xsd.tmp#DangerousGoodsPackageGroupType_dangerousGoodsPackage Packaging_xsd.tmp#DangerousGoodsPackageGroupType_shipmentDimensions
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:dangerousGoodsPackage{0,2000} , fx:shipmentDimensions{0,1}
Children fb:extension, fx:dangerousGoodsPackage, fx:shipmentDimensions
Attributes
QName Type Fixed Default Use Annotation
shipmentUseIndicator fx:ShipmentUseType optional
An indicator of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #25. Trim Down DG.</rationale>
</deprecated>
Source

<complexType name="DangerousGoodsPackageGroupType">
  <annotation>
    <documentation>The part of the IATA Shipper's Declaration For Dangerous Goods that contains the Package Details for the shipment.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="dangerousGoodsPackage" type="fx:DangerousGoodsPackageType" minOccurs="0" maxOccurs="2000">
          <annotation>
            <documentation>A collection of at least one DangerousGoodsPackage.</documentation>
          </annotation>
        </element>
        <element name="shipmentDimensions" type="fx:DangerousGoodsDimensionsType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Weight and volume (not height, width, and depth):</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="shipmentUseIndicator" type="fx:ShipmentUseType" use="optional">
        <annotation>
          <documentation>An indicator of sole use, by a single shipper, of an aircraft or of a large freight container, of which all initial, intermediate and final loading and unloading is carried out in accordance with the directions of the shipper or consignee. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>CR #25. Trim Down DG.</rationale>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:DangerousGoodsPackageType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The part of the IATA Shipper's Declaration For Dangerous Goods that contains the
Line Item information for the shipment.
The part of the IATA Shipper's Declaration For Dangerous Goods that contains the
Overpack Detail for the shipment.
The part of the IATA Shipper's Declaration For Dangerous Goods that contains the
Package Details for the shipment.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsPackageType_compatibilityGroup Packaging_xsd.tmp#DangerousGoodsPackageType_dangerousGoodsLimitation Packaging_xsd.tmp#DangerousGoodsPackageType_dangerousGoodsQuantity Packaging_xsd.tmp#DangerousGoodsPackageType_marinePollutantIndicator Packaging_xsd.tmp#DangerousGoodsPackageType_overpackIndicator Packaging_xsd.tmp#DangerousGoodsPackageType_packingGroup Packaging_xsd.tmp#DangerousGoodsPackageType_packingInstructionNumber Packaging_xsd.tmp#DangerousGoodsPackageType_productName Packaging_xsd.tmp#DangerousGoodsPackageType_properShippingName Packaging_xsd.tmp#DangerousGoodsPackageType_reportableQuantity Packaging_xsd.tmp#DangerousGoodsPackageType_shipmentType Packaging_xsd.tmp#DangerousGoodsPackageType_supplementaryInformation Packaging_xsd.tmp#DangerousGoodsPackageType_technicalName Packaging_xsd.tmp#DangerousGoodsPackageType_typeOfPackaging Packaging_xsd.tmp#DangerousGoodsPackageType_unNumber Packaging_xsd.tmp#DangerousGoodsPackageType_allPackedInOne Packaging_xsd.tmp#DangerousGoodsPackageType_hazardClass Packaging_xsd.tmp#DangerousGoodsPackageType_packageDimensions Packaging_xsd.tmp#DangerousGoodsPackageType_radioactiveMaterials Packaging_xsd.tmp#DangerousGoodsPackageType_shipmentDimensions Packaging_xsd.tmp#DangerousGoodsPackageType_subsidiaryHazardClass Packaging_xsd.tmp#DangerousGoodsPackageType_temperatures
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:allPackedInOne{0,1} , fx:hazardClass{0,1} , fx:packageDimensions{0,1} , fx:radioactiveMaterials{0,1} , fx:shipmentDimensions{0,1} , fx:subsidiaryHazardClass{0,2} , fx:temperatures{0,1}
Children fb:extension, fx:allPackedInOne, fx:hazardClass, fx:packageDimensions, fx:radioactiveMaterials, fx:shipmentDimensions, fx:subsidiaryHazardClass, fx:temperatures
Attributes
QName Type Fixed Default Use Annotation
compatibilityGroup fx:CompatibilityGroupType optional
When shipping dangerous goods, the reference to the group which identifies the kind
of substances and articles deemed to be compatible.
dangerousGoodsLimitation fx:AircraftDangerousGoodsLimitationType optional
Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
dangerousGoodsQuantity fb:CountType optional
The total number of dangerous good packages of the same type and content.
marinePollutantIndicator fx:MarinePollutantIndicatorType optional
An indicator if the transported dangerous goods have marine pollutant content.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
overpackIndicator fx:OverpackIndicatorType optional
An indicator that individual packages are assembled into a single unit for handling.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
packingGroup fx:PackingGroupType optional
A code that indicates the relative degree of danger presented by various articles
and substances within a Class or Division.
packingInstructionNumber restriction of fb:CharacterStringType optional
A number that corresponds to packing instructions required by U.S. and international
regulations.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
productName fb:CharacterStringType optional
The commonly used trade name associated with a dangerous good.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
properShippingName fb:CharacterStringType optional
The name used to describe a particular article or substance in all shipping documents
and notifications and, where appropriate, on packaging, as shown in the UN Model
Regulations Dangerous Goods List.
reportableQuantity fb:CountType optional
The minimum amount of hazardous substance released into the environment before the
Environmental Protection Agency (EPA) requires notification of the release to the
National Response Centre.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
shipmentType fx:ShipmentTypeType optional
An indicator used for dangerous cargo of whether the package is radioactive or not.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
supplementaryInformation fb:CharacterStringType optional
Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
technicalName fb:CharacterStringType optional
The additional chemical name(s) required for some proper shipping names for dangerous
goods.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
typeOfPackaging fb:CharacterStringType optional
The material or container in which the dangerous good is packaged.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
unNumber restriction of fb:CharacterStringType optional
A four-digit identification number assigned by the United Nations Committee of Experts
on the Transport of Dangerous Goods to identify a substance or a particular group
of substances considered dangerous goods.
Source

<complexType name="DangerousGoodsPackageType">
  <annotation>
    <documentation>The part of the IATA Shipper's Declaration For Dangerous Goods that contains the Line Item information for the shipment. The part of the IATA Shipper's Declaration For Dangerous Goods that contains the Overpack Detail for the shipment. The part of the IATA Shipper's Declaration For Dangerous Goods that contains the Package Details for the shipment.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="allPackedInOne" type="fx:AllPackedInOneType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A statement identifying the dangerous goods listed are all contained within the same outer packaging.</documentation>
          </annotation>
        </element>
        <element name="hazardClass" type="fx:HazardClassType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A number assigned to a dangerous good that represents a classification (Class) according to the most dominant hazard it represents, potentially followed by a number representing a subdivision (Division) within the Class.</documentation>
          </annotation>
        </element>
        <element name="packageDimensions" type="fb:DimensionsType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The vertical component of the package's volumetric dimensions. The lateral component of the package's volumetric dimensions. The depth component of the package's volumetric dimensions.
              <deprecated>
                <deletionVersion>5.0.0</deletionVersion>
                <deprecationVersion>4.1.0</deprecationVersion>
                <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
                <replacement>N/A</replacement>
              </deprecated>
            </documentation>
          </annotation>
        </element>
        <element name="radioactiveMaterials" type="fx:RadioactiveMaterialType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The grouping element for goods that contain radioactive materials.</documentation>
          </annotation>
        </element>
        <element name="shipmentDimensions" type="fx:DangerousGoodsDimensionsType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Weight and volume (not height, width, and depth):</documentation>
          </annotation>
        </element>
        <element name="subsidiaryHazardClass" type="fx:HazardClassType" minOccurs="0" maxOccurs="2">
          <annotation>
            <documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</documentation>
          </annotation>
        </element>
        <element name="temperatures" type="fx:TemperaturesType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Control Temperature: Emergency Temperature: Flashpoint Temperature: The lowest temperature at which it can vaporize to form an ignitable mixture in air.
              <deprecated>
                <deletionVersion>5.0.0</deletionVersion>
                <deprecationVersion>4.1.0</deprecationVersion>
                <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
                <replacement>N/A</replacement>
              </deprecated>
            </documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="compatibilityGroup" type="fx:CompatibilityGroupType" use="optional">
        <annotation>
          <documentation>When shipping dangerous goods, the reference to the group which identifies the kind of substances and articles deemed to be compatible.</documentation>
        </annotation>
      </attribute>
      <attribute name="dangerousGoodsLimitation" type="fx:AircraftDangerousGoodsLimitationType" use="optional">
        <annotation>
          <documentation>Describes whether the shipment is packed to comply with the limitations prescribed for passenger and cargo aircraft or the limitations for cargo aircraft only.</documentation>
        </annotation>
      </attribute>
      <attribute name="dangerousGoodsQuantity" type="fb:CountType" use="optional">
        <annotation>
          <documentation>The total number of dangerous good packages of the same type and content.</documentation>
        </annotation>
      </attribute>
      <attribute name="marinePollutantIndicator" type="fx:MarinePollutantIndicatorType" use="optional">
        <annotation>
          <documentation>An indicator if the transported dangerous goods have marine pollutant content.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="overpackIndicator" type="fx:OverpackIndicatorType" use="optional">
        <annotation>
          <documentation>An indicator that individual packages are assembled into a single unit for handling.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="packingGroup" type="fx:PackingGroupType" use="optional">
        <annotation>
          <documentation>A code that indicates the relative degree of danger presented by various articles and substances within a Class or Division.</documentation>
        </annotation>
      </attribute>
      <attribute name="packingInstructionNumber" use="optional">
        <annotation>
          <documentation>A number that corresponds to packing instructions required by U.S. and international regulations.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:CharacterStringType">
            <pattern value="Y?[0-9]{3}"/>
          </restriction>
        </simpleType>
      </attribute>
      <attribute name="productName" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The commonly used trade name associated with a dangerous good.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="properShippingName" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The name used to describe a particular article or substance in all shipping documents and notifications and, where appropriate, on packaging, as shown in the UN Model Regulations Dangerous Goods List.</documentation>
        </annotation>
      </attribute>
      <attribute name="reportableQuantity" type="fb:CountType" use="optional">
        <annotation>
          <documentation>The minimum amount of hazardous substance released into the environment before the Environmental Protection Agency (EPA) requires notification of the release to the National Response Centre.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="shipmentType" type="fx:ShipmentTypeType" use="optional">
        <annotation>
          <documentation>An indicator used for dangerous cargo of whether the package is radioactive or not.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="supplementaryInformation" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>Additional information that may be added to the proper shipping name to more fully describe the goods or to identify a particular condition.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="technicalName" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The additional chemical name(s) required for some proper shipping names for dangerous goods.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="typeOfPackaging" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The material or container in which the dangerous good is packaged.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="unNumber" use="optional">
        <annotation>
          <documentation>A four-digit identification number assigned by the United Nations Committee of Experts on the Transport of Dangerous Goods to identify a substance or a particular group of substances considered dangerous goods.</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:CharacterStringType">
            <pattern value="(UN|ID|NA)?\d{4}"/>
          </restriction>
        </simpleType>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:AllPackedInOneType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A statement identifying the dangerous goods listed are all contained within the same
outer packaging.
Diagram
Diagram Packaging_xsd.tmp#AllPackedInOneType_numberOfPackages Packaging_xsd.tmp#AllPackedInOneType_qValue
Used by
Attributes
QName Type Fixed Default Use Annotation
numberOfPackages fb:CountType optional
The number of packages in the same outer packaging.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
qValue restriction of fb:DecimalIndexType optional
The amount of energy released in a reaction.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Source

<complexType name="AllPackedInOneType">
  <annotation>
    <documentation>A statement identifying the dangerous goods listed are all contained within the same outer packaging.</documentation>
  </annotation>
  <attribute name="numberOfPackages" type="fb:CountType" use="optional">
    <annotation>
      <documentation>The number of packages in the same outer packaging. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
    </annotation>
  </attribute>
  <attribute name="qValue" use="optional">
    <annotation>
      <documentation>The amount of energy released in a reaction.
        <deprecated>
          <deletionVersion>5.0.0</deletionVersion>
          <deprecationVersion>4.1.0</deprecationVersion>
          <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
          <replacement>N/A</replacement>
        </deprecated>
      </documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:DecimalIndexType">
        <maxInclusive value="1.0"/>
        <minInclusive value="0.0"/>
      </restriction>
    </simpleType>
  </attribute>
</complexType>
Complex Type fx:HazardClassType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A number assigned to a dangerous good that represents a classification (Class) according
to the most dominant hazard it represents, potentially followed by a number representing
a subdivision (Division) within the Class.
An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary
hazard class and division.
Diagram
Diagram Packaging_xsd.tmp#RestrictedHazardClassType Packaging_xsd.tmp#HazardClassType_hazardDivision
Type extension of fx:RestrictedHazardClassType
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
hazardDivision restriction of fb:CountType optional
A number representing a subdivision (Division) within the Class.
Source

<complexType name="HazardClassType">
  <annotation>
    <documentation>A number assigned to a dangerous good that represents a classification (Class) according to the most dominant hazard it represents, potentially followed by a number representing a subdivision (Division) within the Class. An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</documentation>
  </annotation>
  <simpleContent>
    <extension base="fx:RestrictedHazardClassType">
      <attribute name="hazardDivision" use="optional">
        <annotation>
          <documentation>A number representing a subdivision (Division) within the Class.</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:CountType">
            <maxInclusive value="99"/>
            <minInclusive value="0"/>
          </restriction>
        </simpleType>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Simple Type fx:RestrictedHazardClassType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Helper type for restrictions on HazardClassType
Diagram
Diagram Types_xsd.tmp#CountType
Type restriction of fb:CountType
Type hierarchy
Facets
maxInclusive 9
minInclusive 1
Used by
Complex Type fx:HazardClassType
Source

<simpleType name="RestrictedHazardClassType">
  <annotation>
    <documentation>Helper type for restrictions on HazardClassType</documentation>
  </annotation>
  <restriction base="fb:CountType">
    <maxInclusive value="9"/>
    <minInclusive value="1"/>
  </restriction>
</simpleType>
Complex Type fx:DangerousGoodsDimensionsType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Weight and volume (not height, width, and depth):
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#DangerousGoodsDimensionsType_grossWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_netWeight Packaging_xsd.tmp#DangerousGoodsDimensionsType_volume
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:grossWeight{0,1} , fx:netWeight{0,1} , fx:volume{0,1}
Children fb:extension, fx:grossWeight, fx:netWeight, fx:volume
Source

<complexType name="DangerousGoodsDimensionsType">
  <annotation>
    <documentation>Weight and volume (not height, width, and depth):</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="grossWeight" type="fb:WeightType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The total gross weight of dangerous goods transported for each unique UN number.</documentation>
          </annotation>
        </element>
        <element name="netWeight" type="fb:WeightType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The total net weight of dangerous goods transported for each unique UN number. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
          </annotation>
        </element>
        <element name="volume" type="fb:VolumeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The total displacement of dangerous goods transported for each unique UN number.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:TemperaturesType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Control Temperature:

Emergency Temperature:

Flashpoint Temperature:
The lowest temperature at which it can vaporize to form an ignitable mixture in air.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Packaging_xsd.tmp#TemperaturesType_controlTemperature Packaging_xsd.tmp#TemperaturesType_emergencyTemperature Packaging_xsd.tmp#TemperaturesType_flashpointTemperature
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:controlTemperature{0,1} , fx:emergencyTemperature{0,1} , fx:flashpointTemperature{0,1}
Children fb:extension, fx:controlTemperature, fx:emergencyTemperature, fx:flashpointTemperature
Source

<complexType name="TemperaturesType">
  <annotation>
    <documentation>Control Temperature: Emergency Temperature: Flashpoint Temperature: The lowest temperature at which it can vaporize to form an ignitable mixture in air.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="controlTemperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The maximum temperature at which the substance can be safely transported. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
          </annotation>
        </element>
        <element name="emergencyTemperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The temperature at which emergency procedures shall be implemented in the event of loss of temperature control. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
          </annotation>
        </element>
        <element name="flashpointTemperature" type="fb:TemperatureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The lowest temperature at which it can vaporize to form an ignitable mixture in air. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Simple Type fx:CompatibilityGroupType
Namespace http://www.fixm.aero/flight/4.1
Annotations

When shipping dangerous goods, the reference to the group which identifies the kind
of substances and articles deemed to be compatible.
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-H|K-L|N|S]
Used by
Source

<simpleType name="CompatibilityGroupType">
  <annotation>
    <documentation>When shipping dangerous goods, the reference to the group which identifies the kind of substances and articles deemed to be compatible.</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-H|K-L|N|S]"/>
  </restriction>
</simpleType>
Simple Type fx:MarinePollutantIndicatorType
Namespace http://www.fixm.aero/flight/4.1
Annotations

An indicator if the transported dangerous goods have marine pollutant content.
Diagram
Diagram
Type restriction of string
Facets
enumeration MARINE_POLLUTANT
Indicates the transported dangerous goods have marine pollutant content.
Used by
Source

<simpleType name="MarinePollutantIndicatorType">
  <annotation>
    <documentation>An indicator if the transported dangerous goods have marine pollutant content.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="MARINE_POLLUTANT">
      <annotation>
        <documentation>Indicates the transported dangerous goods have marine pollutant content.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:OverpackIndicatorType
Namespace http://www.fixm.aero/flight/4.1
Annotations

An indicator that individual packages are assembled into a single unit for handling.
Diagram
Diagram
Type restriction of string
Facets
enumeration OVERPACK_USED
Indicates that individual packages are assembled into a single unit for handling.
Used by
Source

<simpleType name="OverpackIndicatorType">
  <annotation>
    <documentation>An indicator that individual packages are assembled into a single unit for handling.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="OVERPACK_USED">
      <annotation>
        <documentation>Indicates that individual packages are assembled into a single unit for handling.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:PackingGroupType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A code that indicates the relative degree of danger presented by various articles
and substances within a Class or Division.
Diagram
Diagram
Type restriction of string
Facets
enumeration I
Represents high danger.
enumeration II
Represents medium danger.
enumeration III
Represents low danger.
Used by
Source

<simpleType name="PackingGroupType">
  <annotation>
    <documentation>A code that indicates the relative degree of danger presented by various articles and substances within a Class or Division.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="I">
      <annotation>
        <documentation>Represents high danger.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="II">
      <annotation>
        <documentation>Represents medium danger.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="III">
      <annotation>
        <documentation>Represents low danger.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:ShipmentUseType
Namespace http://www.fixm.aero/flight/4.1
Annotations

An indicator of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.
Diagram
Diagram
Type restriction of string
Facets
enumeration EXCLUSIVE
Indicates of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.
Used by
Source

<simpleType name="ShipmentUseType">
  <annotation>
    <documentation>An indicator of sole use, by a single shipper, of an aircraft or of a large freight container, of which all initial, intermediate and final loading and unloading is carried out in accordance with the directions of the shipper or consignee.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="EXCLUSIVE">
      <annotation>
        <documentation>Indicates of sole use, by a single shipper, of an aircraft or of a large freight container, of which all initial, intermediate and final loading and unloading is carried out in accordance with the directions of the shipper or consignee.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Attribute fx:AllPackedInOneType / @numberOfPackages
Namespace No namespace
Annotations

The number of packages in the same outer packaging.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Type fb:CountType
Properties
use: optional
Facets
minInclusive 0
Used by
Complex Type fx:AllPackedInOneType
Source

<attribute name="numberOfPackages" type="fb:CountType" use="optional">
  <annotation>
    <documentation>The number of packages in the same outer packaging. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</attribute>
Attribute fx:AllPackedInOneType / @qValue
Namespace No namespace
Annotations

The amount of energy released in a reaction.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type restriction of fb:DecimalIndexType
Type hierarchy
Properties
use: optional
Facets
totalDigits 4
fractionDigits 1
maxInclusive 1.0
minInclusive 0.0
Used by
Complex Type fx:AllPackedInOneType
Source

<attribute name="qValue" use="optional">
  <annotation>
    <documentation>The amount of energy released in a reaction.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:DecimalIndexType">
      <maxInclusive value="1.0"/>
      <minInclusive value="0.0"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:HazardClassType / @hazardDivision
Namespace No namespace
Annotations

A number representing a subdivision (Division) within the Class.
Type restriction of fb:CountType
Type hierarchy
Properties
use: optional
Facets
maxInclusive 99
minInclusive 0
Used by
Complex Type fx:HazardClassType
Source

<attribute name="hazardDivision" use="optional">
  <annotation>
    <documentation>A number representing a subdivision (Division) within the Class.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CountType">
      <maxInclusive value="99"/>
      <minInclusive value="0"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:DangerousGoodsPackageType / @compatibilityGroup
Namespace No namespace
Annotations

When shipping dangerous goods, the reference to the group which identifies the kind
of substances and articles deemed to be compatible.
Type fx:CompatibilityGroupType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-H|K-L|N|S]
Used by
Source

<attribute name="compatibilityGroup" type="fx:CompatibilityGroupType" use="optional">
  <annotation>
    <documentation>When shipping dangerous goods, the reference to the group which identifies the kind of substances and articles deemed to be compatible.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @dangerousGoodsLimitation
Namespace No namespace
Annotations

Describes whether the shipment is packed to comply with the limitations prescribed
for passenger and cargo aircraft or the limitations for cargo aircraft only.
Type fx:AircraftDangerousGoodsLimitationType
Properties
use: optional
Facets
enumeration PASSENGER_AND_CARGO_AIRCRAFT
Specified that the shipment is packed to comply with the limitations prescribed for
passenger and cargo aircraft.
enumeration CARGO_AIRCRAFT_ONLY
Specified that the shipment is packed to comply with the limitations prescribed for
the limitations for cargo aircraft only.
Used by
Source

<attribute name="dangerousGoodsLimitation" type="fx:AircraftDangerousGoodsLimitationType" use="optional">
  <annotation>
    <documentation>Describes whether the shipment is packed to comply with the limitations prescribed for passenger and cargo aircraft or the limitations for cargo aircraft only.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @dangerousGoodsQuantity
Namespace No namespace
Annotations

The total number of dangerous good packages of the same type and content.
Type fb:CountType
Properties
use: optional
Facets
minInclusive 0
Used by
Source

<attribute name="dangerousGoodsQuantity" type="fb:CountType" use="optional">
  <annotation>
    <documentation>The total number of dangerous good packages of the same type and content.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @marinePollutantIndicator
Namespace No namespace
Annotations

An indicator if the transported dangerous goods have marine pollutant content.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fx:MarinePollutantIndicatorType
Properties
use: optional
Facets
enumeration MARINE_POLLUTANT
Indicates the transported dangerous goods have marine pollutant content.
Used by
Source

<attribute name="marinePollutantIndicator" type="fx:MarinePollutantIndicatorType" use="optional">
  <annotation>
    <documentation>An indicator if the transported dangerous goods have marine pollutant content.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @overpackIndicator
Namespace No namespace
Annotations

An indicator that individual packages are assembled into a single unit for handling.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fx:OverpackIndicatorType
Properties
use: optional
Facets
enumeration OVERPACK_USED
Indicates that individual packages are assembled into a single unit for handling.
Used by
Source

<attribute name="overpackIndicator" type="fx:OverpackIndicatorType" use="optional">
  <annotation>
    <documentation>An indicator that individual packages are assembled into a single unit for handling.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @packingGroup
Namespace No namespace
Annotations

A code that indicates the relative degree of danger presented by various articles
and substances within a Class or Division.
Type fx:PackingGroupType
Properties
use: optional
Facets
enumeration I
Represents high danger.
enumeration II
Represents medium danger.
enumeration III
Represents low danger.
Used by
Source

<attribute name="packingGroup" type="fx:PackingGroupType" use="optional">
  <annotation>
    <documentation>A code that indicates the relative degree of danger presented by various articles and substances within a Class or Division.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @packingInstructionNumber
Namespace No namespace
Annotations

A number that corresponds to packing instructions required by U.S. and international
regulations.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern Y?[0-9]{3}
Used by
Source

<attribute name="packingInstructionNumber" use="optional">
  <annotation>
    <documentation>A number that corresponds to packing instructions required by U.S. and international regulations.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="Y?[0-9]{3}"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:DangerousGoodsPackageType / @productName
Namespace No namespace
Annotations

The commonly used trade name associated with a dangerous good.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="productName" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The commonly used trade name associated with a dangerous good.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @properShippingName
Namespace No namespace
Annotations

The name used to describe a particular article or substance in all shipping documents
and notifications and, where appropriate, on packaging, as shown in the UN Model
Regulations Dangerous Goods List.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="properShippingName" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The name used to describe a particular article or substance in all shipping documents and notifications and, where appropriate, on packaging, as shown in the UN Model Regulations Dangerous Goods List.</documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @reportableQuantity
Namespace No namespace
Annotations

The minimum amount of hazardous substance released into the environment before the
Environmental Protection Agency (EPA) requires notification of the release to the
National Response Centre.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fb:CountType
Properties
use: optional
Facets
minInclusive 0
Used by
Source

<attribute name="reportableQuantity" type="fb:CountType" use="optional">
  <annotation>
    <documentation>The minimum amount of hazardous substance released into the environment before the Environmental Protection Agency (EPA) requires notification of the release to the National Response Centre.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @shipmentType
Namespace No namespace
Annotations

An indicator used for dangerous cargo of whether the package is radioactive or not.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fx:ShipmentTypeType
Properties
use: optional
Facets
enumeration RADIOACTIVE
When present, indicates cargo is radioactive.
Used by
Source

<attribute name="shipmentType" type="fx:ShipmentTypeType" use="optional">
  <annotation>
    <documentation>An indicator used for dangerous cargo of whether the package is radioactive or not.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @supplementaryInformation
Namespace No namespace
Annotations

Additional information that may be added to the proper shipping name to more fully
describe the goods or to identify a particular condition.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="supplementaryInformation" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Additional information that may be added to the proper shipping name to more fully describe the goods or to identify a particular condition.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @technicalName
Namespace No namespace
Annotations

The additional chemical name(s) required for some proper shipping names for dangerous
goods.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="technicalName" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The additional chemical name(s) required for some proper shipping names for dangerous goods.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @typeOfPackaging
Namespace No namespace
Annotations

The material or container in which the dangerous good is packaged.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="typeOfPackaging" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The material or container in which the dangerous good is packaged.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:DangerousGoodsPackageType / @unNumber
Namespace No namespace
Annotations

A four-digit identification number assigned by the United Nations Committee of Experts
on the Transport of Dangerous Goods to identify a substance or a particular group
of substances considered dangerous goods.
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (UN|ID|NA)?\d{4}
Used by
Source

<attribute name="unNumber" use="optional">
  <annotation>
    <documentation>A four-digit identification number assigned by the United Nations Committee of Experts on the Transport of Dangerous Goods to identify a substance or a particular group of substances considered dangerous goods.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="(UN|ID|NA)?\d{4}"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:DangerousGoodsPackageGroupType / @shipmentUseIndicator
Namespace No namespace
Annotations

An indicator of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #25. Trim Down DG.</rationale>
</deprecated>
Type fx:ShipmentUseType
Properties
use: optional
Facets
enumeration EXCLUSIVE
Indicates of sole use, by a single shipper, of an aircraft or of a large freight
container, of which all initial, intermediate and final loading and unloading is
carried out in accordance with the directions of the shipper or consignee.
Used by
Source

<attribute name="shipmentUseIndicator" type="fx:ShipmentUseType" use="optional">
  <annotation>
    <documentation>An indicator of sole use, by a single shipper, of an aircraft or of a large freight container, of which all initial, intermediate and final loading and unloading is carried out in accordance with the directions of the shipper or consignee. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>CR #25. Trim Down DG.</rationale>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
