The grouping element for goods that contain radioactive materials.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

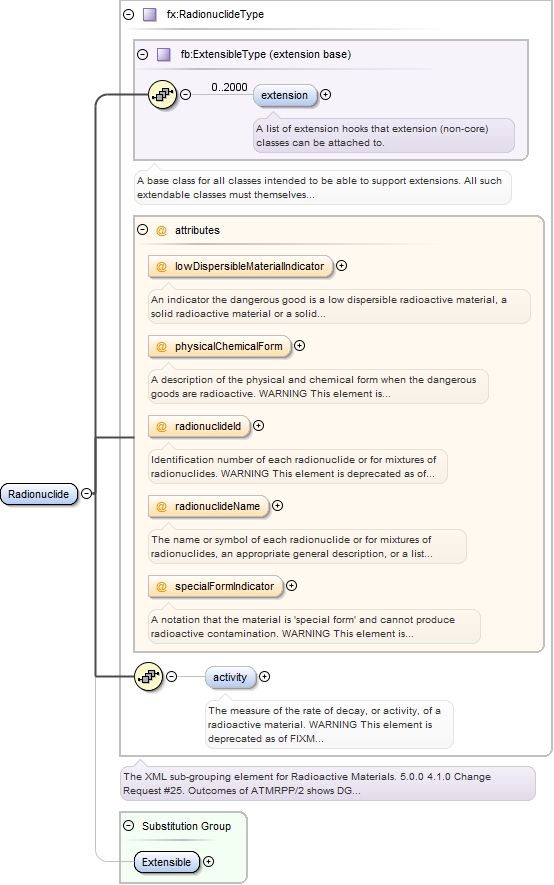

Element fx:RadioactiveMaterialType / fx:radionuclide
Namespace http://www.fixm.aero/flight/4.1
Annotations

The XML sub-grouping element for Radioactive Materials.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RadioactiveMaterials_xsd.tmp#RadionuclideType_lowDispersibleMaterialIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_physicalChemicalForm RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideId RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideName RadioactiveMaterials_xsd.tmp#RadionuclideType_specialFormIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_activity RadioactiveMaterials_xsd.tmp#RadionuclideType
Type fx:RadionuclideType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:activity{0,1}
Children fb:extension, fx:activity
Instance

<fx:radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:activity uom="">{0,1}</fx:activity>
</fx:radionuclide>
Attributes
QName Type Fixed Default Use Annotation
lowDispersibleMaterialIndicator fx:MaterialDispersabilityType optional
An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
physicalChemicalForm fb:CharacterStringType optional
A description of the physical and chemical form when the dangerous goods are radioactive.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
radionuclideId restriction of fb:CharacterStringType optional
Identification number of each radionuclide or for mixtures of radionuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
radionuclideName fb:CharacterStringType optional
The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
specialFormIndicator fx:SpecialFormType optional
A notation that the material is 'special form' and cannot produce radioactive contamination.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Source

<element name="radionuclide" type="fx:RadionuclideType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The XML sub-grouping element for Radioactive Materials. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</element>

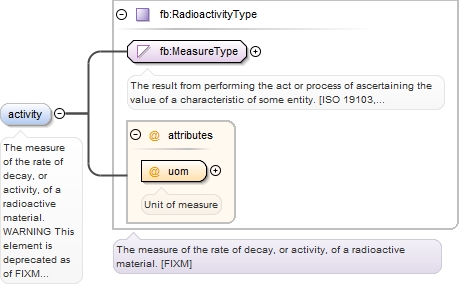

Element fx:RadionuclideType / fx:activity
Namespace http://www.fixm.aero/flight/4.1
Annotations

The measure of the rate of decay, or activity, of a radioactive material.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Diagram
Diagram Measures_xsd.tmp#MeasureType Measures_xsd.tmp#RadioactivityType_uom Measures_xsd.tmp#RadioactivityType
Type fb:RadioactivityType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomRadioactivityType required
Unit of measure
Source

<element name="activity" type="fb:RadioactivityType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The measure of the rate of decay, or activity, of a radioactive material. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</element>

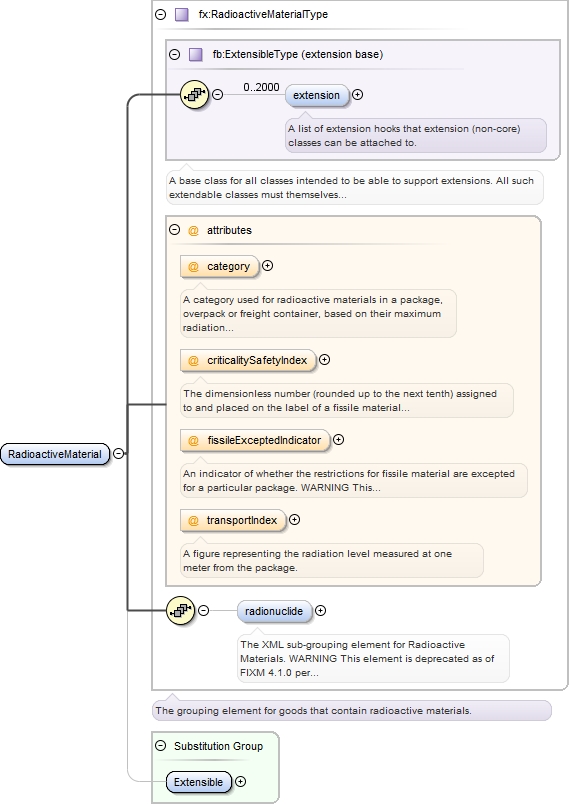

Element fx:RadioactiveMaterial
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_category RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_criticalitySafetyIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_fissileExceptedIndicator RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_transportIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_radionuclide RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType Extension_xsd.tmp#Extensible
Type fx:RadioactiveMaterialType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:radionuclide{0,1}
Children fb:extension, fx:radionuclide
Instance

<fx:RadioactiveMaterial category="" criticalitySafetyIndex="" fissileExceptedIndicator="" transportIndex="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">{0,1}</fx:radionuclide>
</fx:RadioactiveMaterial>
Attributes
QName Type Fixed Default Use Annotation
category fx:RadioactiveMaterialCategoryType optional
A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
criticalitySafetyIndex restriction of fb:DecimalIndexType optional
The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
fissileExceptedIndicator fx:FissileExceptedType optional
An indicator of whether the restrictions for fissile material are excepted for a
particular package.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
transportIndex restriction of fb:DecimalIndexType optional
A figure representing the radiation level measured at one meter from the package.
Source

<element name="RadioactiveMaterial" type="fx:RadioactiveMaterialType" substitutionGroup="fb:Extensible"/>
Element fx:Radionuclide
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RadioactiveMaterials_xsd.tmp#RadionuclideType_lowDispersibleMaterialIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_physicalChemicalForm RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideId RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideName RadioactiveMaterials_xsd.tmp#RadionuclideType_specialFormIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_activity RadioactiveMaterials_xsd.tmp#RadionuclideType Extension_xsd.tmp#Extensible
Type fx:RadionuclideType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:activity{0,1}
Children fb:extension, fx:activity
Instance

<fx:Radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:activity uom="">{0,1}</fx:activity>
</fx:Radionuclide>
Attributes
QName Type Fixed Default Use Annotation
lowDispersibleMaterialIndicator fx:MaterialDispersabilityType optional
An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
physicalChemicalForm fb:CharacterStringType optional
A description of the physical and chemical form when the dangerous goods are radioactive.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
radionuclideId restriction of fb:CharacterStringType optional
Identification number of each radionuclide or for mixtures of radionuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
radionuclideName fb:CharacterStringType optional
The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
specialFormIndicator fx:SpecialFormType optional
A notation that the material is 'special form' and cannot produce radioactive contamination.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Source

<element name="Radionuclide" type="fx:RadionuclideType" substitutionGroup="fb:Extensible"/>

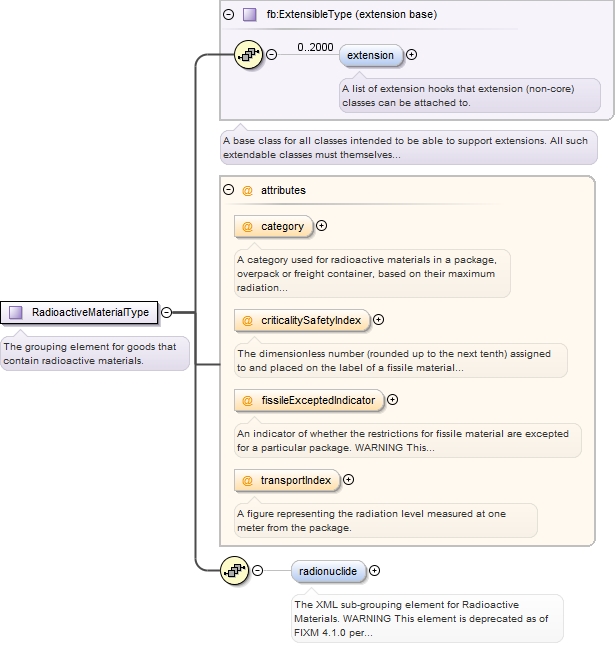

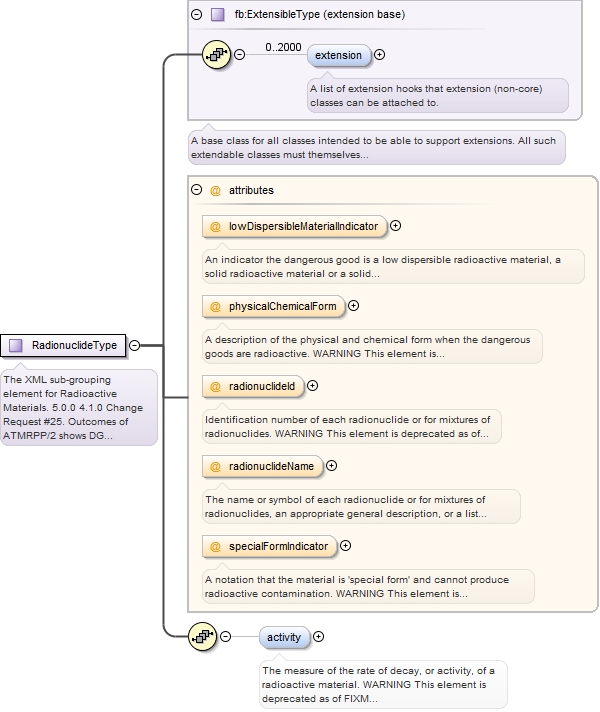

Complex Type fx:RadioactiveMaterialType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The  grouping element for goods that contain radioactive materials.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_category RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_criticalitySafetyIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_fissileExceptedIndicator RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_transportIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_radionuclide
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:radionuclide{0,1}
Children fb:extension, fx:radionuclide
Attributes
QName Type Fixed Default Use Annotation
category fx:RadioactiveMaterialCategoryType optional
A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
criticalitySafetyIndex restriction of fb:DecimalIndexType optional
The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
fissileExceptedIndicator fx:FissileExceptedType optional
An indicator of whether the restrictions for fissile material are excepted for a
particular package.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
transportIndex restriction of fb:DecimalIndexType optional
A figure representing the radiation level measured at one meter from the package.
Source

<complexType name="RadioactiveMaterialType">
  <annotation>
    <documentation>The grouping element for goods that contain radioactive materials.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="radionuclide" type="fx:RadionuclideType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The XML sub-grouping element for Radioactive Materials. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
              <deprecated>
                <deletionVersion>5.0.0</deletionVersion>
                <deprecationVersion>4.1.0</deprecationVersion>
                <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
                <replacement>N/A</replacement>
              </deprecated>
            </documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="category" type="fx:RadioactiveMaterialCategoryType" use="optional">
        <annotation>
          <documentation>A category used for radioactive materials in a package, overpack or freight container, based on their maximum radiation level.</documentation>
        </annotation>
      </attribute>
      <attribute name="criticalitySafetyIndex" use="optional">
        <annotation>
          <documentation>The dimensionless number (rounded up to the next tenth) assigned to and placed on the label of a fissile material package to designate the degree of control of accumulation of packages containing fissile material during transportation.</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:DecimalIndexType">
            <maxInclusive value="100.0"/>
            <minInclusive value="0.0"/>
          </restriction>
        </simpleType>
      </attribute>
      <attribute name="fissileExceptedIndicator" type="fx:FissileExceptedType" use="optional">
        <annotation>
          <documentation>An indicator of whether the restrictions for fissile material are excepted for a particular package. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="transportIndex" use="optional">
        <annotation>
          <documentation>A figure representing the radiation level measured at one meter from the package.</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:DecimalIndexType">
            <maxInclusive value="50.0"/>
            <minInclusive value="0.0"/>
          </restriction>
        </simpleType>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:RadionuclideType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The XML sub-grouping element for Radioactive Materials.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RadioactiveMaterials_xsd.tmp#RadionuclideType_lowDispersibleMaterialIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_physicalChemicalForm RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideId RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideName RadioactiveMaterials_xsd.tmp#RadionuclideType_specialFormIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_activity
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:activity{0,1}
Children fb:extension, fx:activity
Attributes
QName Type Fixed Default Use Annotation
lowDispersibleMaterialIndicator fx:MaterialDispersabilityType optional
An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
physicalChemicalForm fb:CharacterStringType optional
A description of the physical and chemical form when the dangerous goods are radioactive.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
radionuclideId restriction of fb:CharacterStringType optional
Identification number of each radionuclide or for mixtures of radionuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
radionuclideName fb:CharacterStringType optional
The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
specialFormIndicator fx:SpecialFormType optional
A notation that the material is 'special form' and cannot produce radioactive contamination.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Source

<complexType name="RadionuclideType">
  <annotation>
    <documentation>The XML sub-grouping element for Radioactive Materials.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="activity" type="fb:RadioactivityType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The measure of the rate of decay, or activity, of a radioactive material. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="lowDispersibleMaterialIndicator" type="fx:MaterialDispersabilityType" use="optional">
        <annotation>
          <documentation>An indicator the dangerous good is a low dispersible radioactive material, a solid radioactive material or a solid radioactive material in a sealed capsule, which has limited dispersibility and is not in powder form. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
      <attribute name="physicalChemicalForm" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>A description of the physical and chemical form when the dangerous goods are radioactive. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
        </annotation>
      </attribute>
      <attribute name="radionuclideId" use="optional">
        <annotation>
          <documentation>Identification number of each radionuclide or for mixtures of radionuclides. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:CharacterStringType">
            <pattern value="(UN)|(ID)|(NA)?\d{4}"/>
          </restriction>
        </simpleType>
      </attribute>
      <attribute name="radionuclideName" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate general description, or a list of the most restrictive nuclides. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
        </annotation>
      </attribute>
      <attribute name="specialFormIndicator" type="fx:SpecialFormType" use="optional">
        <annotation>
          <documentation>A notation that the material is 'special form' and cannot produce radioactive contamination. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
            <deprecated>
              <deletionVersion>5.0.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
              <replacement>N/A</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Simple Type fx:MaterialDispersabilityType
Namespace http://www.fixm.aero/flight/4.1
Annotations

An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Diagram
Diagram
Type restriction of string
Facets
enumeration LOW_DISPERSIBLE
Indicates that the dangerous good is either (1) a low dispersible radioactive material,
(2) a solid radioactive material, or (3) a solid radioactive material in a sealed
capsule which has limited dispersibility and is not in powder form.
Used by
Source

<simpleType name="MaterialDispersabilityType">
  <annotation>
    <documentation>An indicator the dangerous good is a low dispersible radioactive material, a solid radioactive material or a solid radioactive material in a sealed capsule, which has limited dispersibility and is not in powder form. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="LOW_DISPERSIBLE">
      <annotation>
        <documentation>Indicates that the dangerous good is either (1) a low dispersible radioactive material, (2) a solid radioactive material, or (3) a solid radioactive material in a sealed capsule which has limited dispersibility and is not in powder form.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:SpecialFormType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A notation that the material is 'special form' and cannot produce radioactive contamination.
Diagram
Diagram
Type restriction of string
Facets
enumeration SPECIAL_FORM
Indicates that the material is 'special form' and cannot produce radioactive contamination.
Used by
Source

<simpleType name="SpecialFormType">
  <annotation>
    <documentation>A notation that the material is 'special form' and cannot produce radioactive contamination.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SPECIAL_FORM">
      <annotation>
        <documentation>Indicates that the material is 'special form' and cannot produce radioactive contamination.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:RadioactiveMaterialCategoryType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
Diagram
Diagram
Type restriction of string
Facets
enumeration I_WHITE
.Surface radiation &lt;0.5 millirem/hr, 1 meter radiation: N/A
enumeration II_YELLOW
.Surface radiation &lt;50 millirem/hr, 1 meter radiation &lt;1 millirem/hr
enumeration III_YELLOW
.Surface radiation &gt;50 millirem/hr, 1 meter radiation &gt;1 millirem/hr
Used by
Source

<simpleType name="RadioactiveMaterialCategoryType">
  <annotation>
    <documentation>A category used for radioactive materials in a package, overpack or freight container, based on their maximum radiation level.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="I_WHITE">
      <annotation>
        <documentation>.Surface radiation &lt;0.5 millirem/hr, 1 meter radiation: N/A</documentation>
      </annotation>
    </enumeration>
    <enumeration value="II_YELLOW">
      <annotation>
        <documentation>.Surface radiation &lt;50 millirem/hr, 1 meter radiation &lt;1 millirem/hr</documentation>
      </annotation>
    </enumeration>
    <enumeration value="III_YELLOW">
      <annotation>
        <documentation>.Surface radiation &gt;50 millirem/hr, 1 meter radiation &gt;1 millirem/hr</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:FissileExceptedType
Namespace http://www.fixm.aero/flight/4.1
Annotations

An indicator of whether the restrictions for fissile material are excepted for a
particular package.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Diagram
Diagram
Type restriction of string
Facets
enumeration EXCEPTED
Indicates the restrictions for fissile material are excepted for a particular package.
Used by
Source

<simpleType name="FissileExceptedType">
  <annotation>
    <documentation>An indicator of whether the restrictions for fissile material are excepted for a particular package.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="EXCEPTED">
      <annotation>
        <documentation>Indicates the restrictions for fissile material are excepted for a particular package.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Attribute fx:RadionuclideType / @lowDispersibleMaterialIndicator
Namespace No namespace
Annotations

An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fx:MaterialDispersabilityType
Properties
use: optional
Facets
enumeration LOW_DISPERSIBLE
Indicates that the dangerous good is either (1) a low dispersible radioactive material,
(2) a solid radioactive material, or (3) a solid radioactive material in a sealed
capsule which has limited dispersibility and is not in powder form.
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="lowDispersibleMaterialIndicator" type="fx:MaterialDispersabilityType" use="optional">
  <annotation>
    <documentation>An indicator the dangerous good is a low dispersible radioactive material, a solid radioactive material or a solid radioactive material in a sealed capsule, which has limited dispersibility and is not in powder form. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:RadionuclideType / @physicalChemicalForm
Namespace No namespace
Annotations

A description of the physical and chemical form when the dangerous goods are radioactive.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="physicalChemicalForm" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A description of the physical and chemical form when the dangerous goods are radioactive. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</attribute>
Attribute fx:RadionuclideType / @radionuclideId
Namespace No namespace
Annotations

Identification number of each radionuclide or for mixtures of radionuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (UN)|(ID)|(NA)?\d{4}
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="radionuclideId" use="optional">
  <annotation>
    <documentation>Identification number of each radionuclide or for mixtures of radionuclides. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="(UN)|(ID)|(NA)?\d{4}"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:RadionuclideType / @radionuclideName
Namespace No namespace
Annotations

The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="radionuclideName" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate general description, or a list of the most restrictive nuclides. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.</documentation>
  </annotation>
</attribute>
Attribute fx:RadionuclideType / @specialFormIndicator
Namespace No namespace
Annotations

A notation that the material is 'special form' and cannot produce radioactive contamination.


WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fx:SpecialFormType
Properties
use: optional
Facets
enumeration SPECIAL_FORM
Indicates that the material is 'special form' and cannot produce radioactive contamination.
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="specialFormIndicator" type="fx:SpecialFormType" use="optional">
  <annotation>
    <documentation>A notation that the material is 'special form' and cannot produce radioactive contamination. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:RadioactiveMaterialType / @category
Namespace No namespace
Annotations

A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
Type fx:RadioactiveMaterialCategoryType
Properties
use: optional
Facets
enumeration I_WHITE
.Surface radiation &lt;0.5 millirem/hr, 1 meter radiation: N/A
enumeration II_YELLOW
.Surface radiation &lt;50 millirem/hr, 1 meter radiation &lt;1 millirem/hr
enumeration III_YELLOW
.Surface radiation &gt;50 millirem/hr, 1 meter radiation &gt;1 millirem/hr
Used by
Source

<attribute name="category" type="fx:RadioactiveMaterialCategoryType" use="optional">
  <annotation>
    <documentation>A category used for radioactive materials in a package, overpack or freight container, based on their maximum radiation level.</documentation>
  </annotation>
</attribute>
Attribute fx:RadioactiveMaterialType / @criticalitySafetyIndex
Namespace No namespace
Annotations

The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
Type restriction of fb:DecimalIndexType
Type hierarchy
Properties
use: optional
Facets
totalDigits 4
fractionDigits 1
maxInclusive 100.0
minInclusive 0.0
Used by
Source

<attribute name="criticalitySafetyIndex" use="optional">
  <annotation>
    <documentation>The dimensionless number (rounded up to the next tenth) assigned to and placed on the label of a fissile material package to designate the degree of control of accumulation of packages containing fissile material during transportation.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:DecimalIndexType">
      <maxInclusive value="100.0"/>
      <minInclusive value="0.0"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:RadioactiveMaterialType / @fissileExceptedIndicator
Namespace No namespace
Annotations

An indicator of whether the restrictions for fissile material are excepted for a
particular package.

WARNING
This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The
element will be removed starting FIXM 5.0.0.<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
  <replacement>N/A</replacement>
</deprecated>
Type fx:FissileExceptedType
Properties
use: optional
Facets
enumeration EXCEPTED
Indicates the restrictions for fissile material are excepted for a particular package.
Used by
Source

<attribute name="fissileExceptedIndicator" type="fx:FissileExceptedType" use="optional">
  <annotation>
    <documentation>An indicator of whether the restrictions for fissile material are excepted for a particular package. WARNING This element is deprecated as of FIXM 4.1.0 per ATMRPP/2 and FIXM CCB decision. The element will be removed starting FIXM 5.0.0.
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>Change Request #25. Outcomes of ATMRPP/2 shows DG data element other than NOTOC items are not required in FIXM Core.</rationale>
        <replacement>N/A</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
Attribute fx:RadioactiveMaterialType / @transportIndex
Namespace No namespace
Annotations

A figure representing the radiation level measured at one meter from the package.
Type restriction of fb:DecimalIndexType
Type hierarchy
Properties
use: optional
Facets
totalDigits 4
fractionDigits 1
maxInclusive 50.0
minInclusive 0.0
Used by
Source

<attribute name="transportIndex" use="optional">
  <annotation>
    <documentation>A figure representing the radiation level measured at one meter from the package.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:DecimalIndexType">
      <maxInclusive value="50.0"/>
      <minInclusive value="0.0"/>
    </restriction>
  </simpleType>
</attribute>
XML Schema documentation generated by ® XML Editor.
