Included schema Address.xsd
Namespace http://www.fixm.aero/fixm/4.1
Annotations

Copyright (c) 2017 Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA,
       International Coordinating Council of Aerospace Industries Associations, JCAB, NATS
       Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the
       following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions
  and the disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA, International Coordinating
  Council of Aerospace Industries Associations, JCAB, NATS Limited, NAV CANADA, SESAR Joint Undertaking &
  US FAA nor the names of their contributors may be used to endorse or promote products derived from this
  specification without specific prior written permission.

       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the UAE GCAA: https://www.gcaa.gov.ae
       Details on the ICCAIA: www.iccaia.org
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

This package contains classes that model addresses and other contact information.
[FIXM]
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

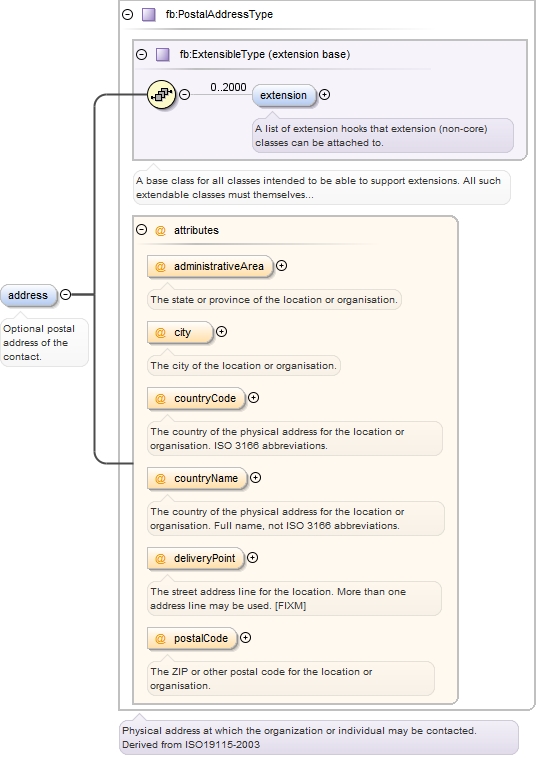

Element fb:ContactInformationType / fb:address
Namespace http://www.fixm.aero/base/4.1
Annotations

Optional postal address of the contact.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#PostalAddressType_administrativeArea Address_xsd.tmp#PostalAddressType_city Address_xsd.tmp#PostalAddressType_countryCode Address_xsd.tmp#PostalAddressType_countryName Address_xsd.tmp#PostalAddressType_deliveryPoint Address_xsd.tmp#PostalAddressType_postalCode Address_xsd.tmp#PostalAddressType
Type fb:PostalAddressType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">
  <fb:extension>{0,2000}</fb:extension>
</fb:address>
Attributes
QName Type Fixed Default Use Annotation
administrativeArea fb:TextNameType optional
The state or province of the location or organisation.
city fb:TextCityType optional
The city of the location or organisation.
countryCode fb:TextCountryCodeType optional
The country of the physical address for the location or organisation.  ISO 3166 abbreviations.
countryName fb:TextCountryNameType optional
The country of the physical address for the location or organisation.  Full name,
not ISO 3166 abbreviations.
deliveryPoint fb:TextAddressType optional
The street address line for the location.  More than one address line may be used.
[FIXM]
postalCode fb:TextNameType optional
The ZIP or other postal code for the location or organisation.
Source

<element name="address" type="fb:PostalAddressType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Optional postal address of the contact.</documentation>
  </annotation>
</element>
Element fb:ContactInformationType / fb:onlineContact
Namespace http://www.fixm.aero/base/4.1
Annotations

Optional e-mail address of the contact.[FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#OnlineContactType_email Address_xsd.tmp#OnlineContactType_linkage Address_xsd.tmp#OnlineContactType_network Address_xsd.tmp#OnlineContactType
Type fb:OnlineContactType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2000
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:onlineContact email="" linkage="" network="">
  <fb:extension>{0,2000}</fb:extension>
</fb:onlineContact>
Attributes
QName Type Fixed Default Use Annotation
email fb:TextAddressType optional
The address of the electronic mailbox of the responsible organisation or individual.
[FIXM]
linkage fb:TextAddressType optional
Location (address) for on-line access using a Uniform Resource Locator address or
AFTN address. [adapted from AIXM]
network fb:TelecomNetworkTypeType optional
The Telecom Networks that can be used to address an organisation. [adapted from AIXM]
Source

<element name="onlineContact" type="fb:OnlineContactType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>Optional e-mail address of the contact.[FIXM]</documentation>
  </annotation>
</element>

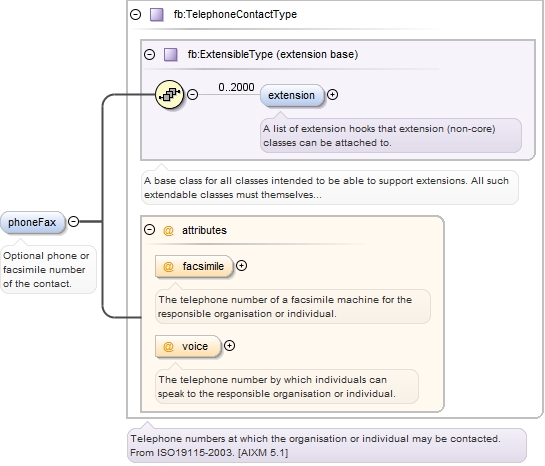

Element fb:ContactInformationType / fb:phoneFax
Namespace http://www.fixm.aero/base/4.1
Annotations

Optional phone or facsimile number of the contact.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#TelephoneContactType_facsimile Address_xsd.tmp#TelephoneContactType_voice Address_xsd.tmp#TelephoneContactType
Type fb:TelephoneContactType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:phoneFax facsimile="" voice="">
  <fb:extension>{0,2000}</fb:extension>
</fb:phoneFax>
Attributes
QName Type Fixed Default Use Annotation
facsimile fb:TextPhoneType optional
The telephone number of a facsimile machine for the responsible organisation or individual.
voice fb:TextPhoneType optional
The telephone number by which individuals can speak to the responsible organisation
or individual.
Source

<element name="phoneFax" type="fb:TelephoneContactType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Optional phone or facsimile number of the contact.</documentation>
  </annotation>
</element>

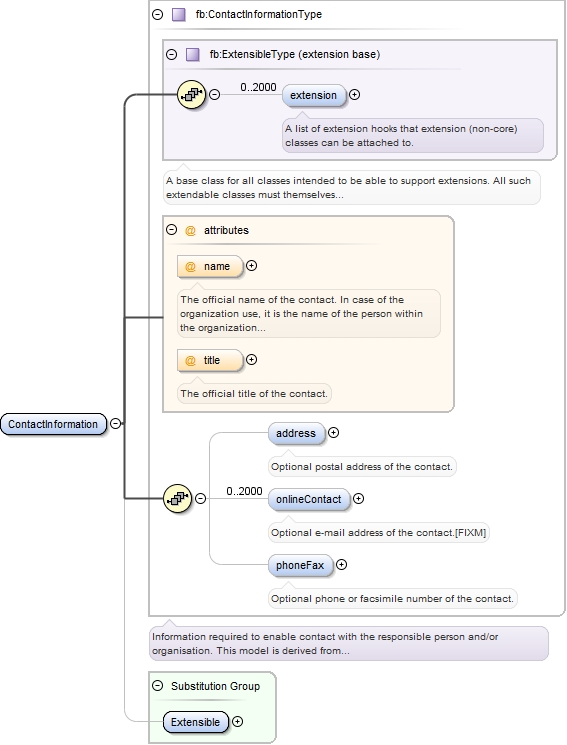

Element fb:ContactInformation
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType Extension_xsd.tmp#Extensible
Type fb:ContactInformationType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fb:address{0,1} , fb:onlineContact{0,2000} , fb:phoneFax{0,1}
Children fb:address, fb:extension, fb:onlineContact, fb:phoneFax
Instance

<fb:ContactInformation name="" title="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">{0,1}</fb:address>
  <fb:onlineContact email="" linkage="" network="">{0,2000}</fb:onlineContact>
  <fb:phoneFax facsimile="" voice="">{0,1}</fb:phoneFax>
</fb:ContactInformation>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<element name="ContactInformation" type="fb:ContactInformationType" substitutionGroup="fb:Extensible"/>

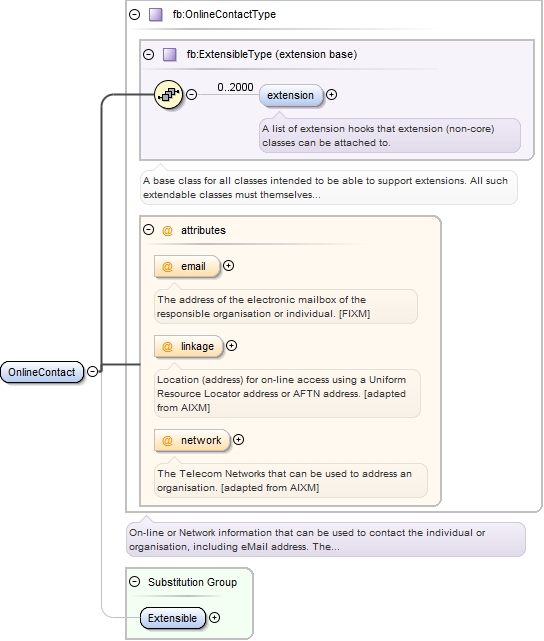

Element fb:OnlineContact
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#OnlineContactType_email Address_xsd.tmp#OnlineContactType_linkage Address_xsd.tmp#OnlineContactType_network Address_xsd.tmp#OnlineContactType Extension_xsd.tmp#Extensible
Type fb:OnlineContactType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:OnlineContact email="" linkage="" network="">
  <fb:extension>{0,2000}</fb:extension>
</fb:OnlineContact>
Attributes
QName Type Fixed Default Use Annotation
email fb:TextAddressType optional
The address of the electronic mailbox of the responsible organisation or individual.
[FIXM]
linkage fb:TextAddressType optional
Location (address) for on-line access using a Uniform Resource Locator address or
AFTN address. [adapted from AIXM]
network fb:TelecomNetworkTypeType optional
The Telecom Networks that can be used to address an organisation. [adapted from AIXM]
Source

<element name="OnlineContact" type="fb:OnlineContactType" substitutionGroup="fb:Extensible"/>

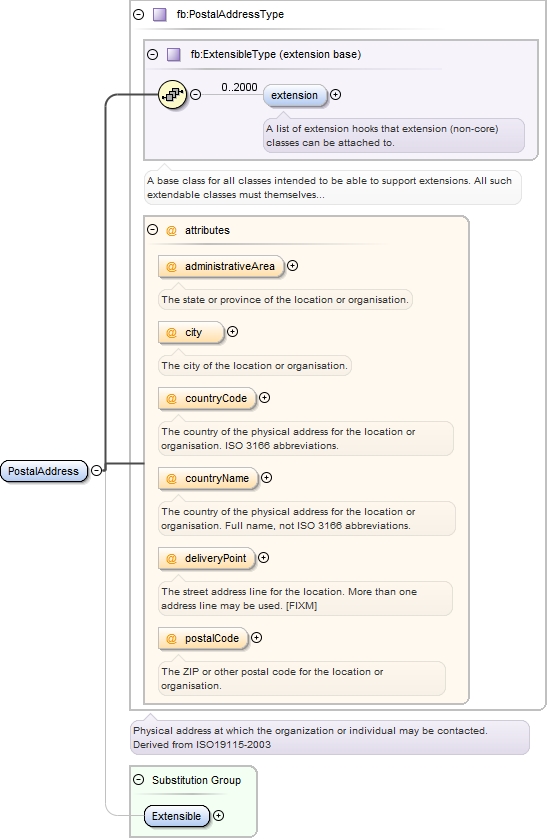

Element fb:PostalAddress
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#PostalAddressType_administrativeArea Address_xsd.tmp#PostalAddressType_city Address_xsd.tmp#PostalAddressType_countryCode Address_xsd.tmp#PostalAddressType_countryName Address_xsd.tmp#PostalAddressType_deliveryPoint Address_xsd.tmp#PostalAddressType_postalCode Address_xsd.tmp#PostalAddressType Extension_xsd.tmp#Extensible
Type fb:PostalAddressType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:PostalAddress administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">
  <fb:extension>{0,2000}</fb:extension>
</fb:PostalAddress>
Attributes
QName Type Fixed Default Use Annotation
administrativeArea fb:TextNameType optional
The state or province of the location or organisation.
city fb:TextCityType optional
The city of the location or organisation.
countryCode fb:TextCountryCodeType optional
The country of the physical address for the location or organisation.  ISO 3166 abbreviations.
countryName fb:TextCountryNameType optional
The country of the physical address for the location or organisation.  Full name,
not ISO 3166 abbreviations.
deliveryPoint fb:TextAddressType optional
The street address line for the location.  More than one address line may be used.
[FIXM]
postalCode fb:TextNameType optional
The ZIP or other postal code for the location or organisation.
Source

<element name="PostalAddress" type="fb:PostalAddressType" substitutionGroup="fb:Extensible"/>

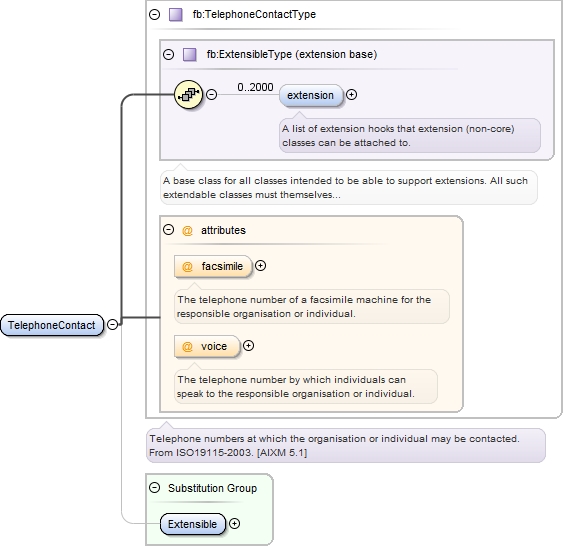

Element fb:TelephoneContact
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#TelephoneContactType_facsimile Address_xsd.tmp#TelephoneContactType_voice Address_xsd.tmp#TelephoneContactType Extension_xsd.tmp#Extensible
Type fb:TelephoneContactType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:TelephoneContact facsimile="" voice="">
  <fb:extension>{0,2000}</fb:extension>
</fb:TelephoneContact>
Attributes
QName Type Fixed Default Use Annotation
facsimile fb:TextPhoneType optional
The telephone number of a facsimile machine for the responsible organisation or individual.
voice fb:TextPhoneType optional
The telephone number by which individuals can speak to the responsible organisation
or individual.
Source

<element name="TelephoneContact" type="fb:TelephoneContactType" substitutionGroup="fb:Extensible"/>

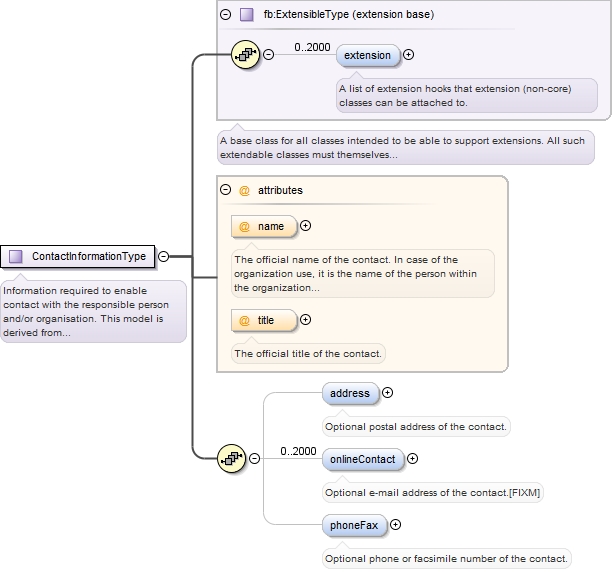

Complex Type fb:ContactInformationType
Namespace http://www.fixm.aero/base/4.1
Annotations

Information required to enable contact with the responsible person and/or organisation.
 This model is derived from ISO19115-2003:Geographic Information- Metadata. [AIXM
5.1]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fb:address{0,1} , fb:onlineContact{0,2000} , fb:phoneFax{0,1}
Children fb:address, fb:extension, fb:onlineContact, fb:phoneFax
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<complexType name="ContactInformationType">
  <annotation>
    <documentation>Information required to enable contact with the responsible person and/or organisation. This model is derived from ISO19115-2003:Geographic Information- Metadata. [AIXM 5.1]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="address" type="fb:PostalAddressType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Optional postal address of the contact.</documentation>
          </annotation>
        </element>
        <element name="onlineContact" type="fb:OnlineContactType" minOccurs="0" maxOccurs="2000">
          <annotation>
            <documentation>Optional e-mail address of the contact.[FIXM]</documentation>
          </annotation>
        </element>
        <element name="phoneFax" type="fb:TelephoneContactType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Optional phone or facsimile number of the contact.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="name" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The official name of the contact. In case of the organization use, it is the name of the person within the organization who is the contact point. If the usage of ContactInformation is associated with a person, this field should not be used, insead, the Person class' name should be used instead.</documentation>
        </annotation>
      </attribute>
      <attribute name="title" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The official title of the contact.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:PostalAddressType
Namespace http://www.fixm.aero/base/4.1
Annotations

Physical address at which the organization or individual may be contacted. Derived
from ISO19115-2003

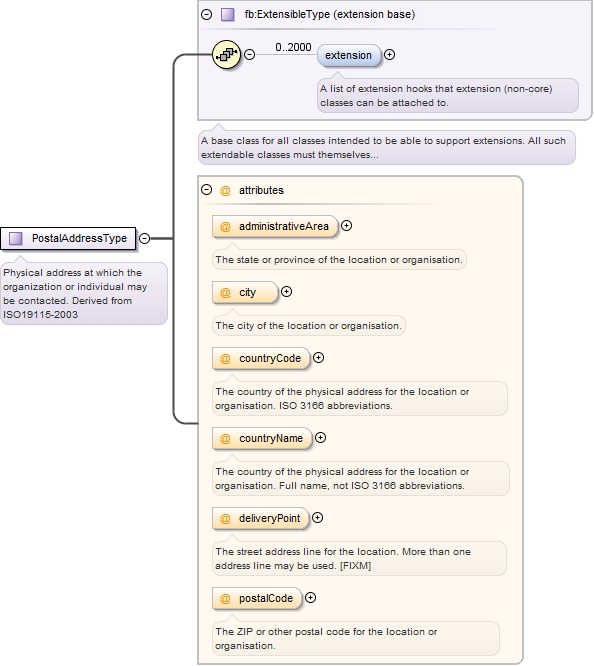

Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#PostalAddressType_administrativeArea Address_xsd.tmp#PostalAddressType_city Address_xsd.tmp#PostalAddressType_countryCode Address_xsd.tmp#PostalAddressType_countryName Address_xsd.tmp#PostalAddressType_deliveryPoint Address_xsd.tmp#PostalAddressType_postalCode
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
administrativeArea fb:TextNameType optional
The state or province of the location or organisation.
city fb:TextCityType optional
The city of the location or organisation.
countryCode fb:TextCountryCodeType optional
The country of the physical address for the location or organisation.  ISO 3166 abbreviations.
countryName fb:TextCountryNameType optional
The country of the physical address for the location or organisation.  Full name,
not ISO 3166 abbreviations.
deliveryPoint fb:TextAddressType optional
The street address line for the location.  More than one address line may be used.
[FIXM]
postalCode fb:TextNameType optional
The ZIP or other postal code for the location or organisation.
Source

<complexType name="PostalAddressType">
  <annotation>
    <documentation>Physical address at which the organization or individual may be contacted. Derived from ISO19115-2003</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <attribute name="administrativeArea" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The state or province of the location or organisation.</documentation>
        </annotation>
      </attribute>
      <attribute name="city" type="fb:TextCityType" use="optional">
        <annotation>
          <documentation>The city of the location or organisation.</documentation>
        </annotation>
      </attribute>
      <attribute name="countryCode" type="fb:TextCountryCodeType" use="optional">
        <annotation>
          <documentation>The country of the physical address for the location or organisation. ISO 3166 abbreviations.</documentation>
        </annotation>
      </attribute>
      <attribute name="countryName" type="fb:TextCountryNameType" use="optional">
        <annotation>
          <documentation>The country of the physical address for the location or organisation. Full name, not ISO 3166 abbreviations.</documentation>
        </annotation>
      </attribute>
      <attribute name="deliveryPoint" type="fb:TextAddressType" use="optional">
        <annotation>
          <documentation>The street address line for the location. More than one address line may be used. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="postalCode" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The ZIP or other postal code for the location or organisation.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Simple Type fb:TextCityType
Namespace http://www.fixm.aero/base/4.1
Annotations

Address city. [FIXM]
Diagram
Diagram Types_xsd.tmp#TextNameType
Type fb:TextNameType
Type hierarchy
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<simpleType name="TextCityType">
  <annotation>
    <documentation>Address city. [FIXM]</documentation>
  </annotation>
  <restriction base="fb:TextNameType"/>
</simpleType>
Simple Type fb:TextCountryCodeType
Namespace http://www.fixm.aero/base/4.1
Annotations

The country code as specified by ISO 3166. [FIXM]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Z]{2}
Used by
Source

<simpleType name="TextCountryCodeType">
  <annotation>
    <documentation>The country code as specified by ISO 3166. [FIXM]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Z]{2}"/>
  </restriction>
</simpleType>
Simple Type fb:TextCountryNameType
Namespace http://www.fixm.aero/base/4.1
Annotations

The country of the physical address for the location or organisation.  Full name,
not ISO 3166 abbreviations. [AIXM 5.1]
Diagram
Diagram Types_xsd.tmp#TextNameType
Type fb:TextNameType
Type hierarchy
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<simpleType name="TextCountryNameType">
  <annotation>
    <documentation>The country of the physical address for the location or organisation. Full name, not ISO 3166 abbreviations. [AIXM 5.1]</documentation>
  </annotation>
  <restriction base="fb:TextNameType"/>
</simpleType>
Simple Type fb:TextAddressType
Namespace http://www.fixm.aero/base/4.1
Annotations

Basis for e-mail and street addresses. [FIXM]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 1
maxLength 500
Used by
Source

<simpleType name="TextAddressType">
  <annotation>
    <documentation>Basis for e-mail and street addresses. [FIXM]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <minLength value="1"/>
    <maxLength value="500"/>
  </restriction>
</simpleType>
Complex Type fb:OnlineContactType
Namespace http://www.fixm.aero/base/4.1
Annotations

On-line or Network information that can be used to contact the individual or organisation,
including eMail address. The contact information can include an email address and
either an AFTN address or URL, but usually not both. The network attribute specifies
whether the address specified by the linkage attribute is an AFTN or an internet
address. [specialised from AIXM 5.1]

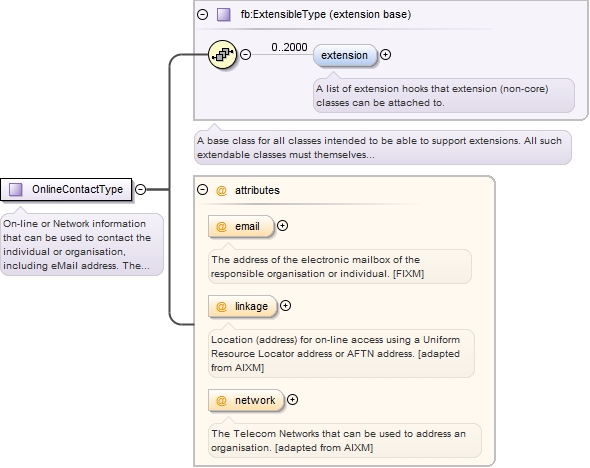

Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#OnlineContactType_email Address_xsd.tmp#OnlineContactType_linkage Address_xsd.tmp#OnlineContactType_network
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
email fb:TextAddressType optional
The address of the electronic mailbox of the responsible organisation or individual.
[FIXM]
linkage fb:TextAddressType optional
Location (address) for on-line access using a Uniform Resource Locator address or
AFTN address. [adapted from AIXM]
network fb:TelecomNetworkTypeType optional
The Telecom Networks that can be used to address an organisation. [adapted from AIXM]
Source

<complexType name="OnlineContactType">
  <annotation>
    <documentation>On-line or Network information that can be used to contact the individual or organisation, including eMail address. The contact information can include an email address and either an AFTN address or URL, but usually not both. The network attribute specifies whether the address specified by the linkage attribute is an AFTN or an internet address. [specialised from AIXM 5.1]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <attribute name="email" type="fb:TextAddressType" use="optional">
        <annotation>
          <documentation>The address of the electronic mailbox of the responsible organisation or individual. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="linkage" type="fb:TextAddressType" use="optional">
        <annotation>
          <documentation>Location (address) for on-line access using a Uniform Resource Locator address or AFTN address. [adapted from AIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="network" type="fb:TelecomNetworkTypeType" use="optional">
        <annotation>
          <documentation>The Telecom Networks that can be used to address an organisation. [adapted from AIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Simple Type fb:TelecomNetworkTypeType
Namespace http://www.fixm.aero/base/4.1
Annotations

The Telecom Networks that can be used to address an organisation. [adapted from AIXM]
Diagram
Diagram
Type restriction of string
Facets
enumeration AFTN
The data interchange in the AFS is performed by the Aeronautical Fixed Telecommunications
Network, AFTN. This is a message handling network running according to ICAO Standards
documented in Annex 10 to the ICAO Convention.[AIXM]
enumeration INTERNET
The Internet is a worldwide, publicly accessible series of interconnected computer
networks that transmit data by packet switching using the standard Internet Protocol
(IP).
The usage of this value indicates that a URL will be provided for the linkage property
in OnlineContact.
Used by
Source

<simpleType name="TelecomNetworkTypeType">
  <annotation>
    <documentation>The Telecom Networks that can be used to address an organisation. [adapted from AIXM]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="AFTN">
      <annotation>
        <documentation>The data interchange in the AFS is performed by the Aeronautical Fixed Telecommunications Network, AFTN. This is a message handling network running according to ICAO Standards documented in Annex 10 to the ICAO Convention.[AIXM]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="INTERNET">
      <annotation>
        <documentation>The Internet is a worldwide, publicly accessible series of interconnected computer networks that transmit data by packet switching using the standard Internet Protocol (IP). The usage of this value indicates that a URL will be provided for the linkage property in OnlineContact.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type fb:TelephoneContactType
Namespace http://www.fixm.aero/base/4.1
Annotations

Telephone numbers at which the organisation or individual may be contacted.  From
ISO19115-2003. [AIXM 5.1]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#TelephoneContactType_facsimile Address_xsd.tmp#TelephoneContactType_voice
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
facsimile fb:TextPhoneType optional
The telephone number of a facsimile machine for the responsible organisation or individual.
voice fb:TextPhoneType optional
The telephone number by which individuals can speak to the responsible organisation
or individual.
Source

<complexType name="TelephoneContactType">
  <annotation>
    <documentation>Telephone numbers at which the organisation or individual may be contacted. From ISO19115-2003. [AIXM 5.1]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <attribute name="facsimile" type="fb:TextPhoneType" use="optional">
        <annotation>
          <documentation>The telephone number of a facsimile machine for the responsible organisation or individual.</documentation>
        </annotation>
      </attribute>
      <attribute name="voice" type="fb:TextPhoneType" use="optional">
        <annotation>
          <documentation>The telephone number by which individuals can speak to the responsible organisation or individual.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Simple Type fb:TextPhoneType
Namespace http://www.fixm.aero/base/4.1
Annotations

A phone or facsimile number. [AIXM 5.1]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 1
maxLength 500
pattern (\+)?[0-9\s\-\(\)]+
Used by
Source

<simpleType name="TextPhoneType">
  <annotation>
    <documentation>A phone or facsimile number. [AIXM 5.1]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <minLength value="1"/>
    <maxLength value="500"/>
    <pattern value="(\+)?[0-9\s\-\(\)]+"/>
  </restriction>
</simpleType>
Attribute fb:PostalAddressType / @administrativeArea
Namespace No namespace
Annotations

The state or province of the location or organisation.
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Complex Type fb:PostalAddressType
Source

<attribute name="administrativeArea" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The state or province of the location or organisation.</documentation>
  </annotation>
</attribute>
Attribute fb:PostalAddressType / @city
Namespace No namespace
Annotations

The city of the location or organisation.
Type fb:TextCityType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Complex Type fb:PostalAddressType
Source

<attribute name="city" type="fb:TextCityType" use="optional">
  <annotation>
    <documentation>The city of the location or organisation.</documentation>
  </annotation>
</attribute>
Attribute fb:PostalAddressType / @countryCode
Namespace No namespace
Annotations

The country of the physical address for the location or organisation.  ISO 3166 abbreviations.
Type fb:TextCountryCodeType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z]{2}
Used by
Complex Type fb:PostalAddressType
Source

<attribute name="countryCode" type="fb:TextCountryCodeType" use="optional">
  <annotation>
    <documentation>The country of the physical address for the location or organisation. ISO 3166 abbreviations.</documentation>
  </annotation>
</attribute>
Attribute fb:PostalAddressType / @countryName
Namespace No namespace
Annotations

The country of the physical address for the location or organisation.  Full name,
not ISO 3166 abbreviations.
Type fb:TextCountryNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Complex Type fb:PostalAddressType
Source

<attribute name="countryName" type="fb:TextCountryNameType" use="optional">
  <annotation>
    <documentation>The country of the physical address for the location or organisation. Full name, not ISO 3166 abbreviations.</documentation>
  </annotation>
</attribute>
Attribute fb:PostalAddressType / @deliveryPoint
Namespace No namespace
Annotations

The street address line for the location.  More than one address line may be used.
[FIXM]
Type fb:TextAddressType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 500
Used by
Complex Type fb:PostalAddressType
Source

<attribute name="deliveryPoint" type="fb:TextAddressType" use="optional">
  <annotation>
    <documentation>The street address line for the location. More than one address line may be used. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:PostalAddressType / @postalCode
Namespace No namespace
Annotations

The ZIP or other postal code for the location or organisation.
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Complex Type fb:PostalAddressType
Source

<attribute name="postalCode" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The ZIP or other postal code for the location or organisation.</documentation>
  </annotation>
</attribute>
Attribute fb:OnlineContactType / @email
Namespace No namespace
Annotations

The address of the electronic mailbox of the responsible organisation or individual.
[FIXM]
Type fb:TextAddressType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 500
Used by
Complex Type fb:OnlineContactType
Source

<attribute name="email" type="fb:TextAddressType" use="optional">
  <annotation>
    <documentation>The address of the electronic mailbox of the responsible organisation or individual. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:OnlineContactType / @linkage
Namespace No namespace
Annotations

Location (address) for on-line access using a Uniform Resource Locator address or
AFTN address. [adapted from AIXM]
Type fb:TextAddressType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 500
Used by
Complex Type fb:OnlineContactType
Source

<attribute name="linkage" type="fb:TextAddressType" use="optional">
  <annotation>
    <documentation>Location (address) for on-line access using a Uniform Resource Locator address or AFTN address. [adapted from AIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:OnlineContactType / @network
Namespace No namespace
Annotations

The Telecom Networks that can be used to address an organisation. [adapted from AIXM]
Type fb:TelecomNetworkTypeType
Properties
use: optional
Facets
enumeration AFTN
The data interchange in the AFS is performed by the Aeronautical Fixed Telecommunications
Network, AFTN. This is a message handling network running according to ICAO Standards
documented in Annex 10 to the ICAO Convention.[AIXM]
enumeration INTERNET
The Internet is a worldwide, publicly accessible series of interconnected computer
networks that transmit data by packet switching using the standard Internet Protocol
(IP).
The usage of this value indicates that a URL will be provided for the linkage property
in OnlineContact.
Used by
Complex Type fb:OnlineContactType
Source

<attribute name="network" type="fb:TelecomNetworkTypeType" use="optional">
  <annotation>
    <documentation>The Telecom Networks that can be used to address an organisation. [adapted from AIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:TelephoneContactType / @facsimile
Namespace No namespace
Annotations

The telephone number of a facsimile machine for the responsible organisation or individual.
Type fb:TextPhoneType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 500
pattern (\+)?[0-9\s\-\(\)]+
Used by
Source

<attribute name="facsimile" type="fb:TextPhoneType" use="optional">
  <annotation>
    <documentation>The telephone number of a facsimile machine for the responsible organisation or individual.</documentation>
  </annotation>
</attribute>
Attribute fb:TelephoneContactType / @voice
Namespace No namespace
Annotations

The telephone number by which individuals can speak to the responsible organisation
or individual.
Type fb:TextPhoneType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 500
pattern (\+)?[0-9\s\-\(\)]+
Used by
Source

<attribute name="voice" type="fb:TextPhoneType" use="optional">
  <annotation>
    <documentation>The telephone number by which individuals can speak to the responsible organisation or individual.</documentation>
  </annotation>
</attribute>
Attribute fb:ContactInformationType / @name
Namespace No namespace
Annotations

The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="name" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The official name of the contact. In case of the organization use, it is the name of the person within the organization who is the contact point. If the usage of ContactInformation is associated with a person, this field should not be used, insead, the Person class' name should be used instead.</documentation>
  </annotation>
</attribute>
Attribute fb:ContactInformationType / @title
Namespace No namespace
Annotations

The official title of the contact.
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="title" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The official title of the contact.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
