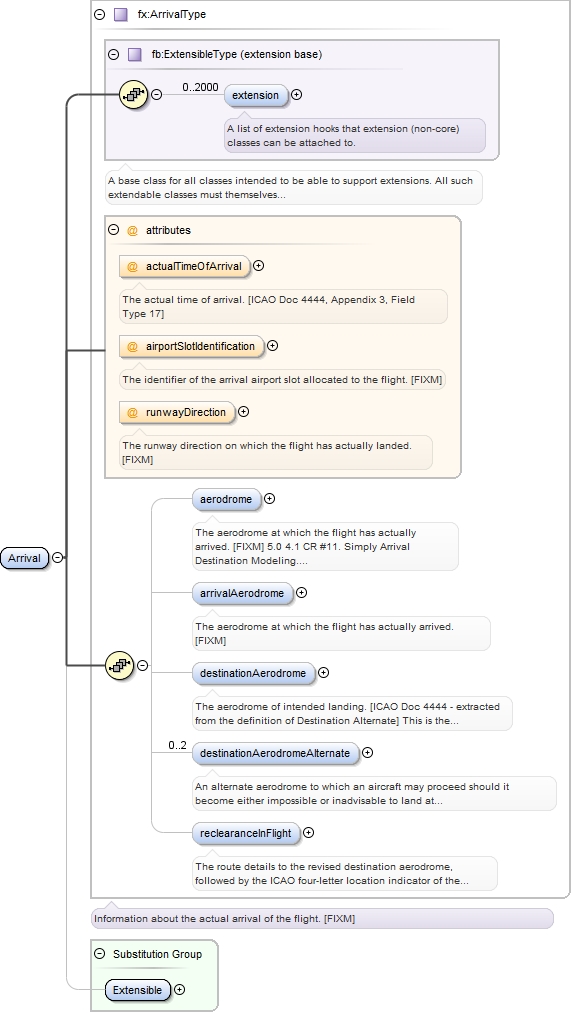

The Arrival package contains information about the  arrival of the flight at an airport,
including approach, landing, and arrival at terminal.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

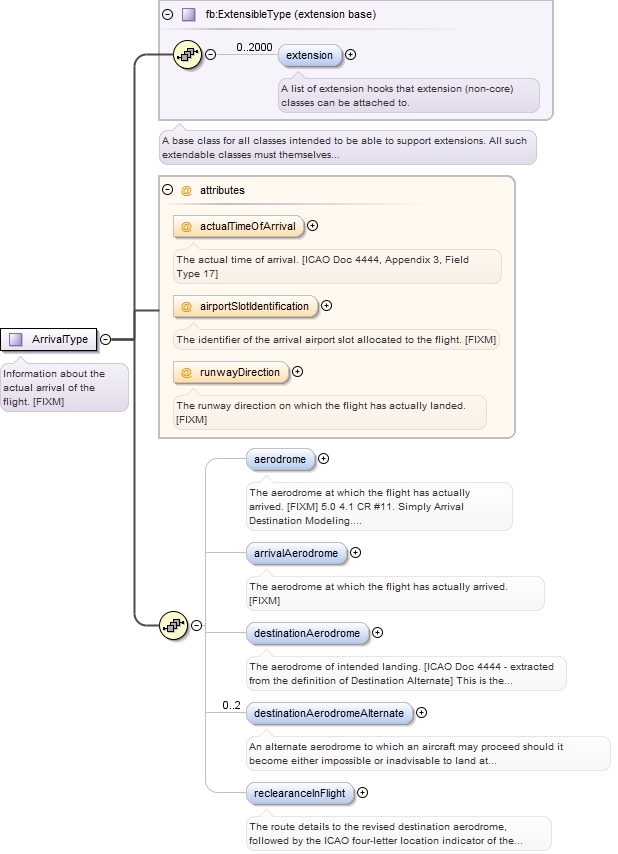

Element fx:ArrivalType / fx:aerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

The aerodrome at which the flight has actually arrived. [FIXM]<deprecated>
  <deletionVersion>5.0</deletionVersion>
  <deprecationVersion>4.1</deprecationVersion>
  <rationale>CR #11. Simply Arrival Destination Modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival.arrivalAerodrome</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:aerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:aerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome at which the flight has actually arrived. [FIXM]
      <deprecated>
        <deletionVersion>5.0</deletionVersion>
        <deprecationVersion>4.1</deprecationVersion>
        <rationale>CR #11. Simply Arrival Destination Modeling.</rationale>
        <replacement>Fixm.Flight.Arrival.Arrival.arrivalAerodrome</replacement>
      </deprecated>
    </documentation>
  </annotation>
</element>

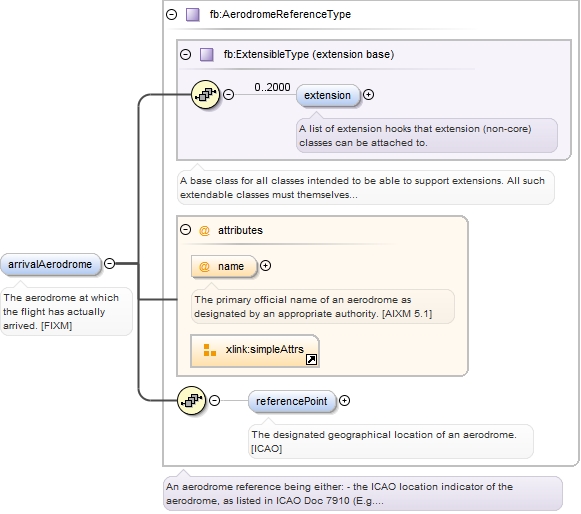

Element fx:ArrivalType / fx:arrivalAerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

The aerodrome at which the flight has actually arrived. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:arrivalAerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:arrivalAerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="arrivalAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome at which the flight has actually arrived. [FIXM]</documentation>
  </annotation>
</element>

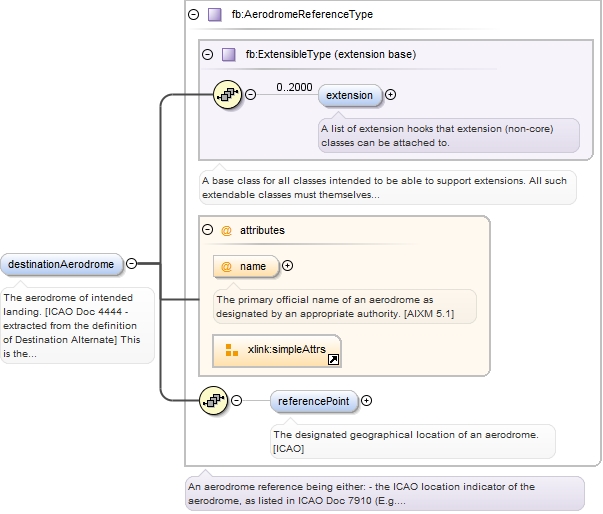

Element fx:ArrivalType / fx:destinationAerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition
of Destination Alternate]
This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:destinationAerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:destinationAerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="destinationAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate] This is the aerodrome at which the flight is scheduled to arrive. [FIXM]</documentation>
  </annotation>
</element>

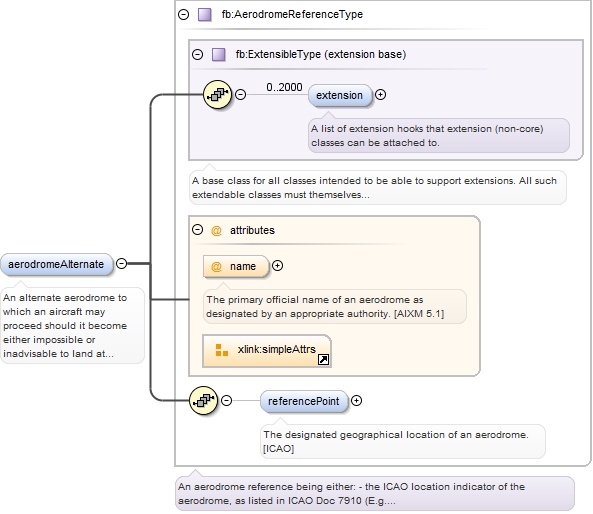

Element fx:ArrivalType / fx:destinationAerodromeAlternate
Namespace http://www.fixm.aero/flight/4.1
Annotations

An alternate aerodrome to which an aircraft may proceed should it become either impossible
or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:destinationAerodromeAlternate name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:destinationAerodromeAlternate>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="destinationAerodromeAlternate" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="2">
  <annotation>
    <documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]</documentation>
  </annotation>
</element>

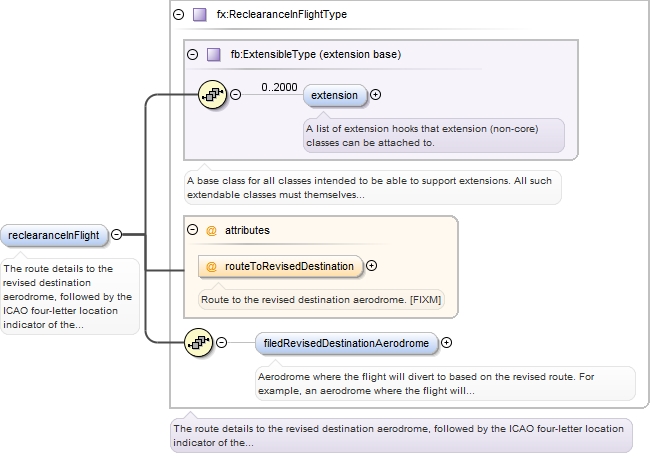

Element fx:ArrivalType / fx:reclearanceInFlight
Namespace http://www.fixm.aero/flight/4.1
Annotations

The route details to the revised destination aerodrome, followed by the ICAO four-letter
location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome Arrival_xsd.tmp#ReclearanceInFlightType
Type fx:ReclearanceInFlightType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:filedRevisedDestinationAerodrome{0,1}
Children fb:extension, fx:filedRevisedDestinationAerodrome
Instance

<fx:reclearanceInFlight routeToRevisedDestination="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:filedRevisedDestinationAerodrome name="">{0,1}</fx:filedRevisedDestinationAerodrome>
</fx:reclearanceInFlight>
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
  </annotation>
</element>

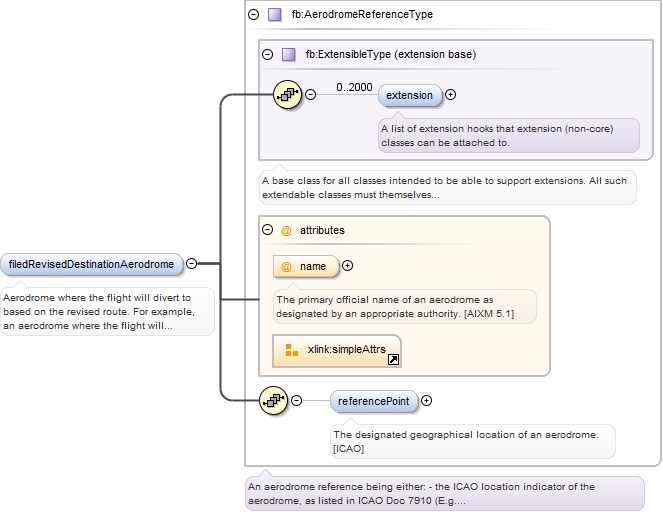

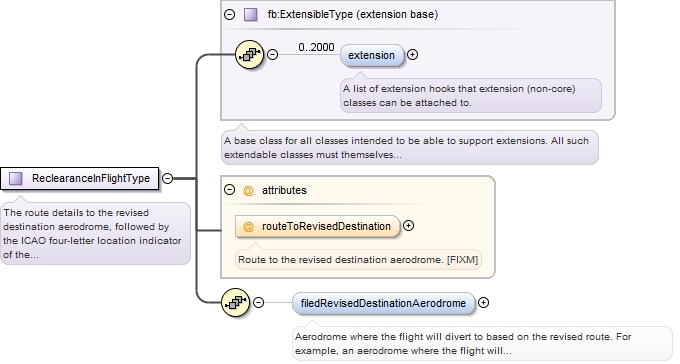

Element fx:ReclearanceInFlightType / fx:filedRevisedDestinationAerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

Aerodrome where the flight will divert to based on the revised route. For example,
an aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:filedRevisedDestinationAerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:filedRevisedDestinationAerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="filedRevisedDestinationAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Aerodrome where the flight will divert to based on the revised route. For example, an aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]</documentation>
  </annotation>
</element>

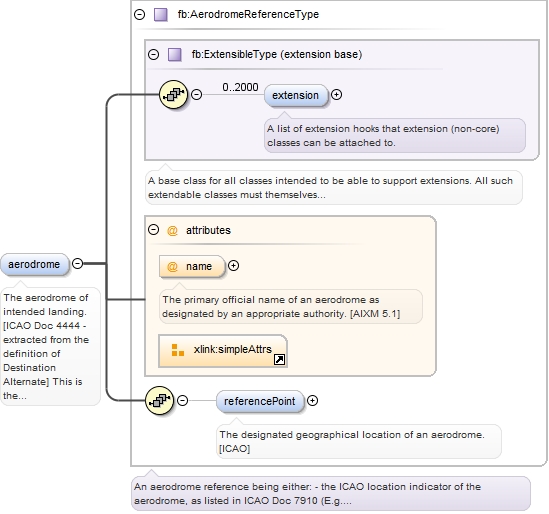

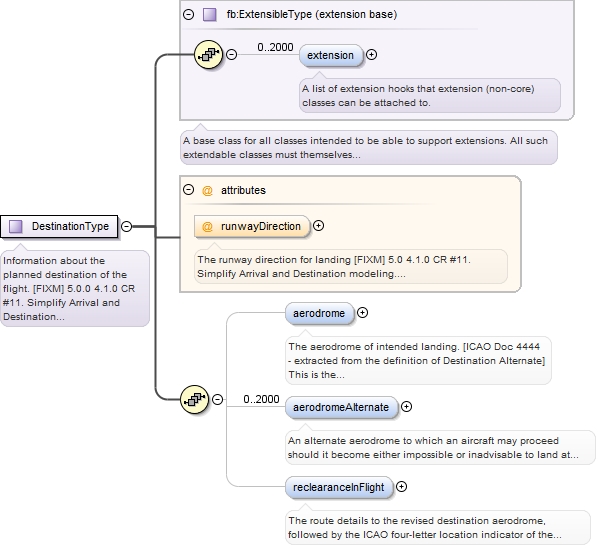

Element fx:DestinationType / fx:aerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition
of Destination Alternate]
This is the aerodrome at which the flight is scheduled to arrive. [FIXM]<deprecated>
  <deletionVersion>5.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival.destinationAerodrome</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:aerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:aerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate] This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
      <deprecated>
        <deletionVersion>5.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
        <replacement>Fixm.Flight.Arrival.Arrival.destinationAerodrome</replacement>
      </deprecated>
    </documentation>
  </annotation>
</element>
Element fx:DestinationType / fx:aerodromeAlternate
Namespace http://www.fixm.aero/flight/4.1
Annotations

An alternate aerodrome to which an aircraft may proceed should it become either impossible
or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]<deprecated>
  <deletionVersion>5.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival.destinationAerodromeAlternate</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2000
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<fx:aerodromeAlternate name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:aerodromeAlternate>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="aerodromeAlternate" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]
      <deprecated>
        <deletionVersion>5.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
        <replacement>Fixm.Flight.Arrival.Arrival.destinationAerodromeAlternate</replacement>
      </deprecated>
    </documentation>
  </annotation>
</element>
Element fx:DestinationType / fx:reclearanceInFlight
Namespace http://www.fixm.aero/flight/4.1
Annotations

The route details to the revised destination aerodrome, followed by the ICAO four-letter
location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome Arrival_xsd.tmp#ReclearanceInFlightType
Type fx:ReclearanceInFlightType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:filedRevisedDestinationAerodrome{0,1}
Children fb:extension, fx:filedRevisedDestinationAerodrome
Instance

<fx:reclearanceInFlight routeToRevisedDestination="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:filedRevisedDestinationAerodrome name="">{0,1}</fx:filedRevisedDestinationAerodrome>
</fx:reclearanceInFlight>
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
  </annotation>
</element>
Element fx:Arrival
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#ArrivalType_actualTimeOfArrival Arrival_xsd.tmp#ArrivalType_airportSlotIdentification Arrival_xsd.tmp#ArrivalType_runwayDirection Arrival_xsd.tmp#ArrivalType_aerodrome Arrival_xsd.tmp#ArrivalType_arrivalAerodrome Arrival_xsd.tmp#ArrivalType_destinationAerodrome Arrival_xsd.tmp#ArrivalType_destinationAerodromeAlternate Arrival_xsd.tmp#ArrivalType_reclearanceInFlight Arrival_xsd.tmp#ArrivalType Extension_xsd.tmp#Extensible
Type fx:ArrivalType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:aerodrome{0,1} , fx:arrivalAerodrome{0,1} , fx:destinationAerodrome{0,1} , fx:destinationAerodromeAlternate{0,2} , fx:reclearanceInFlight{0,1}
Children fb:extension, fx:aerodrome, fx:arrivalAerodrome, fx:destinationAerodrome, fx:destinationAerodromeAlternate, fx:reclearanceInFlight
Instance

<fx:Arrival actualTimeOfArrival="" airportSlotIdentification="" runwayDirection="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:aerodrome name="">{0,1}</fx:aerodrome>
  <fx:arrivalAerodrome name="">{0,1}</fx:arrivalAerodrome>
  <fx:destinationAerodrome name="">{0,1}</fx:destinationAerodrome>
  <fx:destinationAerodromeAlternate name="">{0,2}</fx:destinationAerodromeAlternate>
  <fx:reclearanceInFlight routeToRevisedDestination="">{0,1}</fx:reclearanceInFlight>
</fx:Arrival>
Attributes
QName Type Fixed Default Use Annotation
actualTimeOfArrival fb:TimeType optional
The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]
airportSlotIdentification fb:AirportSlotIdentificationType optional
The identifier of the arrival airport slot allocated to the flight. [FIXM]
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction on which the flight has actually landed. [FIXM]
Source

<element name="Arrival" type="fx:ArrivalType" substitutionGroup="fb:Extensible"/>
Element fx:Destination
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#DestinationType_runwayDirection Arrival_xsd.tmp#DestinationType_aerodrome Arrival_xsd.tmp#DestinationType_aerodromeAlternate Arrival_xsd.tmp#DestinationType_reclearanceInFlight Arrival_xsd.tmp#DestinationType Extension_xsd.tmp#Extensible
Type fx:DestinationType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:aerodrome{0,1} , fx:aerodromeAlternate{0,2000} , fx:reclearanceInFlight{0,1}
Children fb:extension, fx:aerodrome, fx:aerodromeAlternate, fx:reclearanceInFlight
Instance

<fx:Destination runwayDirection="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:aerodrome name="">{0,1}</fx:aerodrome>
  <fx:aerodromeAlternate name="">{0,2000}</fx:aerodromeAlternate>
  <fx:reclearanceInFlight routeToRevisedDestination="">{0,1}</fx:reclearanceInFlight>
</fx:Destination>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction for landing [FIXM]<deprecated>
  <deletionVersion>5.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival.runwayDirection</replacement>
</deprecated>
Source

<element name="Destination" type="fx:DestinationType" substitutionGroup="fb:Extensible"/>
Element fx:ReclearanceInFlight
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome Arrival_xsd.tmp#ReclearanceInFlightType Extension_xsd.tmp#Extensible
Type fx:ReclearanceInFlightType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:filedRevisedDestinationAerodrome{0,1}
Children fb:extension, fx:filedRevisedDestinationAerodrome
Instance

<fx:ReclearanceInFlight routeToRevisedDestination="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:filedRevisedDestinationAerodrome name="">{0,1}</fx:filedRevisedDestinationAerodrome>
</fx:ReclearanceInFlight>
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<element name="ReclearanceInFlight" type="fx:ReclearanceInFlightType" substitutionGroup="fb:Extensible"/>
Complex Type fx:ArrivalType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Information about the actual arrival of the flight. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#ArrivalType_actualTimeOfArrival Arrival_xsd.tmp#ArrivalType_airportSlotIdentification Arrival_xsd.tmp#ArrivalType_runwayDirection Arrival_xsd.tmp#ArrivalType_aerodrome Arrival_xsd.tmp#ArrivalType_arrivalAerodrome Arrival_xsd.tmp#ArrivalType_destinationAerodrome Arrival_xsd.tmp#ArrivalType_destinationAerodromeAlternate Arrival_xsd.tmp#ArrivalType_reclearanceInFlight
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:aerodrome{0,1} , fx:arrivalAerodrome{0,1} , fx:destinationAerodrome{0,1} , fx:destinationAerodromeAlternate{0,2} , fx:reclearanceInFlight{0,1}
Children fb:extension, fx:aerodrome, fx:arrivalAerodrome, fx:destinationAerodrome, fx:destinationAerodromeAlternate, fx:reclearanceInFlight
Attributes
QName Type Fixed Default Use Annotation
actualTimeOfArrival fb:TimeType optional
The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]
airportSlotIdentification fb:AirportSlotIdentificationType optional
The identifier of the arrival airport slot allocated to the flight. [FIXM]
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction on which the flight has actually landed. [FIXM]
Source

<complexType name="ArrivalType">
  <annotation>
    <documentation>Information about the actual arrival of the flight. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The aerodrome at which the flight has actually arrived. [FIXM]
              <deprecated>
                <deletionVersion>5.0</deletionVersion>
                <deprecationVersion>4.1</deprecationVersion>
                <rationale>CR #11. Simply Arrival Destination Modeling.</rationale>
                <replacement>Fixm.Flight.Arrival.Arrival.arrivalAerodrome</replacement>
              </deprecated>
            </documentation>
          </annotation>
        </element>
        <element name="arrivalAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The aerodrome at which the flight has actually arrived. [FIXM]</documentation>
          </annotation>
        </element>
        <element name="destinationAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate] This is the aerodrome at which the flight is scheduled to arrive. [FIXM]</documentation>
          </annotation>
        </element>
        <element name="destinationAerodromeAlternate" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="2">
          <annotation>
            <documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]</documentation>
          </annotation>
        </element>
        <element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="actualTimeOfArrival" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]</documentation>
        </annotation>
      </attribute>
      <attribute name="airportSlotIdentification" type="fb:AirportSlotIdentificationType" use="optional">
        <annotation>
          <documentation>The identifier of the arrival airport slot allocated to the flight. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
        <annotation>
          <documentation>The runway direction on which the flight has actually landed. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:ReclearanceInFlightType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The route details to the revised destination aerodrome, followed by the ICAO four-letter
location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:filedRevisedDestinationAerodrome{0,1}
Children fb:extension, fx:filedRevisedDestinationAerodrome
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<complexType name="ReclearanceInFlightType">
  <annotation>
    <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="filedRevisedDestinationAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Aerodrome where the flight will divert to based on the revised route. For example, an aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="routeToRevisedDestination" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>Route to the revised destination aerodrome. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:DestinationType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Information about the planned destination of the flight. [FIXM]<deprecated>
  <deletionVersion>5.0.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival</replacement>
</deprecated>
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Arrival_xsd.tmp#DestinationType_runwayDirection Arrival_xsd.tmp#DestinationType_aerodrome Arrival_xsd.tmp#DestinationType_aerodromeAlternate Arrival_xsd.tmp#DestinationType_reclearanceInFlight
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:aerodrome{0,1} , fx:aerodromeAlternate{0,2000} , fx:reclearanceInFlight{0,1}
Children fb:extension, fx:aerodrome, fx:aerodromeAlternate, fx:reclearanceInFlight
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction for landing [FIXM]<deprecated>
  <deletionVersion>5.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival.runwayDirection</replacement>
</deprecated>
Source

<complexType name="DestinationType">
  <annotation>
    <documentation>Information about the planned destination of the flight. [FIXM]
      <deprecated>
        <deletionVersion>5.0.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
        <replacement>Fixm.Flight.Arrival.Arrival</replacement>
      </deprecated>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate] This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
              <deprecated>
                <deletionVersion>5.0</deletionVersion>
                <deprecationVersion>4.1.0</deprecationVersion>
                <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
                <replacement>Fixm.Flight.Arrival.Arrival.destinationAerodrome</replacement>
              </deprecated>
            </documentation>
          </annotation>
        </element>
        <element name="aerodromeAlternate" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="2000">
          <annotation>
            <documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]
              <deprecated>
                <deletionVersion>5.0</deletionVersion>
                <deprecationVersion>4.1.0</deprecationVersion>
                <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
                <replacement>Fixm.Flight.Arrival.Arrival.destinationAerodromeAlternate</replacement>
              </deprecated>
            </documentation>
          </annotation>
        </element>
        <element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
        <annotation>
          <documentation>The runway direction for landing [FIXM]
            <deprecated>
              <deletionVersion>5.0</deletionVersion>
              <deprecationVersion>4.1.0</deprecationVersion>
              <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
              <replacement>Fixm.Flight.Arrival.Arrival.runwayDirection</replacement>
            </deprecated>
          </documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fx:ReclearanceInFlightType / @routeToRevisedDestination
Namespace No namespace
Annotations

Route to the revised destination aerodrome. [FIXM]
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="routeToRevisedDestination" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Route to the revised destination aerodrome. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:ArrivalType / @actualTimeOfArrival
Namespace No namespace
Annotations

The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Complex Type fx:ArrivalType
Source

<attribute name="actualTimeOfArrival" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]</documentation>
  </annotation>
</attribute>
Attribute fx:ArrivalType / @airportSlotIdentification
Namespace No namespace
Annotations

The identifier of the arrival airport slot allocated to the flight. [FIXM]
Type fb:AirportSlotIdentificationType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 10
Used by
Complex Type fx:ArrivalType
Source

<attribute name="airportSlotIdentification" type="fb:AirportSlotIdentificationType" use="optional">
  <annotation>
    <documentation>The identifier of the arrival airport slot allocated to the flight. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:ArrivalType / @runwayDirection
Namespace No namespace
Annotations

The runway direction on which the flight has actually landed. [FIXM]
Type fb:RunwayDirectionDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
Used by
Complex Type fx:ArrivalType
Source

<attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
  <annotation>
    <documentation>The runway direction on which the flight has actually landed. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:DestinationType / @runwayDirection
Namespace No namespace
Annotations

The runway direction for landing [FIXM]<deprecated>
  <deletionVersion>5.0</deletionVersion>
  <deprecationVersion>4.1.0</deprecationVersion>
  <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
  <replacement>Fixm.Flight.Arrival.Arrival.runwayDirection</replacement>
</deprecated>
Type fb:RunwayDirectionDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
Used by
Complex Type fx:DestinationType
Source

<attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
  <annotation>
    <documentation>The runway direction for landing [FIXM]
      <deprecated>
        <deletionVersion>5.0</deletionVersion>
        <deprecationVersion>4.1.0</deprecationVersion>
        <rationale>CR #11. Simplify Arrival and Destination modeling.</rationale>
        <replacement>Fixm.Flight.Arrival.Arrival.runwayDirection</replacement>
      </deprecated>
    </documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
