complexType NasAircraftPositionType

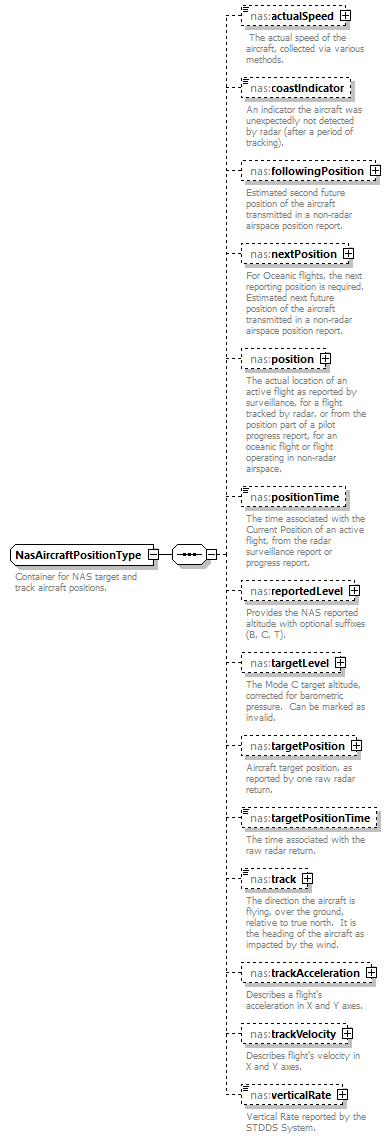

diagram Nas_diagrams/Nas_p352.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:actualSpeed nas:coastIndicator nas:followingPosition nas:nextPosition nas:position nas:positionTime nas:reportedLevel nas:targetLevel nas:targetPosition nas:targetPositionTime nas:track nas:trackAcceleration nas:trackVelocity nas:verticalRate
used by
element NasEnRouteType/aircraftPosition
annotation
documentation
Container for NAS target and track aircraft positions.
source <xs:complexType name="NasAircraftPositionType">
  <xs:annotation>
    <xs:documentation>Container for NAS target and track aircraft positions.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="actualSpeed" type="fb:GroundSpeedType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation> The actual speed of the aircraft, collected via various methods.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coastIndicator" type="nas:NasCoastIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>An indicator the aircraft was unexpectedly not detected by radar (after a period of tracking).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="followingPosition" type="nas:PlannedReportingPositionType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Estimated second future position of the aircraft transmitted in a non-radar airspace position report.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="nextPosition" type="nas:PlannedReportingPositionType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>For Oceanic flights, the next reporting position is required.
Estimated next future position of the aircraft transmitted in a non-radar airspace position report.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The actual location of an active flight as reported by surveillance, for a flight tracked by radar, or from the position part of a pilot progress report, for an oceanic flight or flight operating in non-radar airspace. </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="positionTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The time associated with the Current Position of an active flight, from the radar surveillance report or progress report.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reportedLevel" type="nas:ReportedLevelType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Provides the NAS reported altitude with optional suffixes (B, C, T).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="targetLevel" type="nas:TargetLevelType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The Mode C target altitude, corrected for barometric pressure.  Can be marked as invalid.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="targetPosition" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Aircraft target position, as reported by one raw radar return.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="targetPositionTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The time associated with the raw radar return.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="track" type="fb:BearingType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The direction the aircraft is flying, over the ground, relative to true north.  It is the heading of the aircraft as impacted by the wind.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="trackAcceleration" type="nas:NasAccelerationType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Describes a flight's acceleration in X and Y axes.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="trackVelocity" type="nas:NasVelocityType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Describes flight's velocity in X and Y axes.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="verticalRate" type="nas:NasVerticalRateType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Vertical Rate reported by the STDDS System.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element NasAircraftPositionType/actualSpeed
diagram Nas_diagrams/Nas_p353.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:GroundSpeedType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomGroundSpeedType  required
documentation
Unit of measure
annotation
documentation
The actual speed of the aircraft, collected via various methods.
source <xs:element name="actualSpeed" type="fb:GroundSpeedType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation> The actual speed of the aircraft, collected via various methods.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/coastIndicator
diagram Nas_diagrams/Nas_p354.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasCoastIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration COASTING
documentation
The TIS display is more than 6 seconds old. This indicates a missing uplink from the ground system. When the TIS display information is more than 12 seconds old, the "No Traffic" status will be indicated.
annotation
documentation
An indicator the aircraft was unexpectedly not detected by radar (after a period of tracking).
source <xs:element name="coastIndicator" type="nas:NasCoastIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>An indicator the aircraft was unexpectedly not detected by radar (after a period of tracking).</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/followingPosition

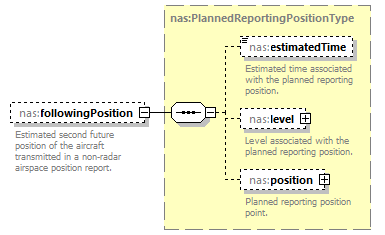

diagram Nas_diagrams/Nas_p355.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:PlannedReportingPositionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:estimatedTime nas:level nas:position
annotation
documentation
Estimated second future position of the aircraft transmitted in a non-radar airspace position report.
source <xs:element name="followingPosition" type="nas:PlannedReportingPositionType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Estimated second future position of the aircraft transmitted in a non-radar airspace position report.</xs:documentation>
  </xs:annotation>
</xs:element>

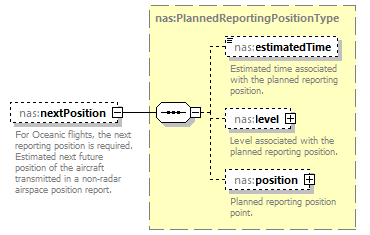

element NasAircraftPositionType/nextPosition
diagram Nas_diagrams/Nas_p356.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:PlannedReportingPositionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:estimatedTime nas:level nas:position
annotation
documentation
For Oceanic flights, the next reporting position is required.
Estimated next future position of the aircraft transmitted in a non-radar airspace position report.
source <xs:element name="nextPosition" type="nas:PlannedReportingPositionType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>For Oceanic flights, the next reporting position is required.
Estimated next future position of the aircraft transmitted in a non-radar airspace position report.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/position

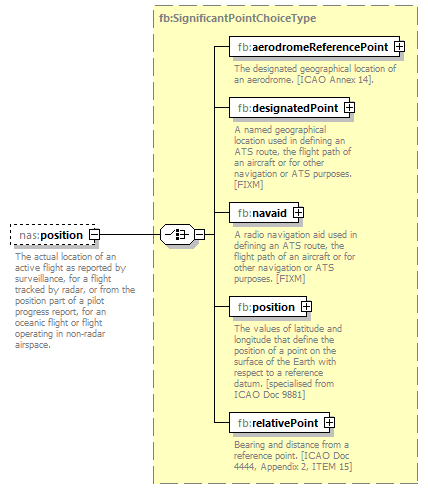

diagram Nas_diagrams/Nas_p357.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:SignificantPointChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation
documentation
The actual location of an active flight as reported by surveillance, for a flight tracked by radar, or from the position part of a pilot progress report, for an oceanic flight or flight operating in non-radar airspace.
source <xs:element name="position" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The actual location of an active flight as reported by surveillance, for a flight tracked by radar, or from the position part of a pilot progress report, for an oceanic flight or flight operating in non-radar airspace. </xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/positionTime
diagram Nas_diagrams/Nas_p358.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
The time associated with the Current Position of an active flight, from the radar surveillance report or progress report.
source <xs:element name="positionTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The time associated with the Current Position of an active flight, from the radar surveillance report or progress report.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/reportedLevel

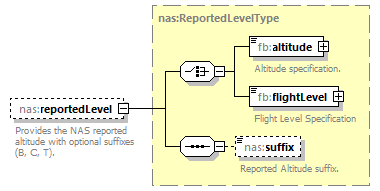

diagram Nas_diagrams/Nas_p359.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:ReportedLevelType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:altitude fb:flightLevel nas:suffix
annotation
documentation
Provides the NAS reported altitude with optional suffixes (B, C, T).
source <xs:element name="reportedLevel" type="nas:ReportedLevelType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Provides the NAS reported altitude with optional suffixes (B, C, T).</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/targetLevel

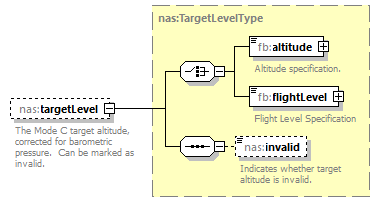

diagram Nas_diagrams/Nas_p360.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:TargetLevelType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:altitude fb:flightLevel nas:invalid
annotation
documentation
The Mode C target altitude, corrected for barometric pressure.  Can be marked as invalid.
source <xs:element name="targetLevel" type="nas:TargetLevelType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Mode C target altitude, corrected for barometric pressure.  Can be marked as invalid.</xs:documentation>
  </xs:annotation>
</xs:element>

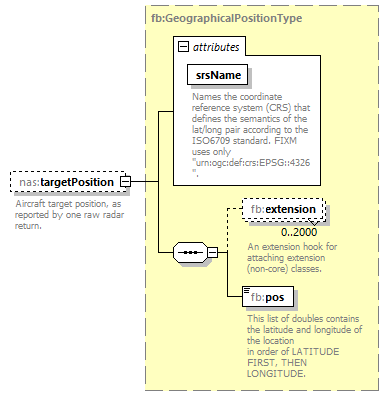

element NasAircraftPositionType/targetPosition
diagram Nas_diagrams/Nas_p361.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:GeographicalPositionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:pos
attributes
Name  Type  Use  Default  Fixed  Annotation
srsName  xs:string  required    urn:ogc:def:crs:EPSG::4326
documentation
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation
documentation
Aircraft target position, as reported by one raw radar return.
source <xs:element name="targetPosition" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Aircraft target position, as reported by one raw radar return.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/targetPositionTime
diagram Nas_diagrams/Nas_p362.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
The time associated with the raw radar return.
source <xs:element name="targetPositionTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The time associated with the raw radar return.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/track

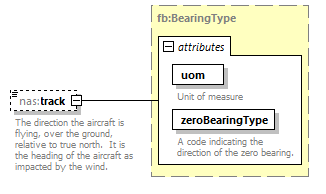

diagram Nas_diagrams/Nas_p363.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:BearingType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
maxInclusive 360
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomAngleType  required
documentation
Unit of measure
zeroBearingType  fb:ZeroBearingTypeType  required
documentation
A code indicating the direction of the zero bearing.
annotation
documentation
The direction the aircraft is flying, over the ground, relative to true north.  It is the heading of the aircraft as impacted by the wind.
source <xs:element name="track" type="fb:BearingType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The direction the aircraft is flying, over the ground, relative to true north.  It is the heading of the aircraft as impacted by the wind.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/trackAcceleration

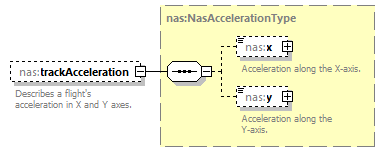

diagram Nas_diagrams/Nas_p364.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasAccelerationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:x nas:y
annotation
documentation
Describes a flight's acceleration in X and Y axes.
source <xs:element name="trackAcceleration" type="nas:NasAccelerationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Describes a flight's acceleration in X and Y axes.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasAircraftPositionType/trackVelocity
diagram Nas_diagrams/Nas_p365.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasVelocityType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:x nas:y
annotation
documentation
Describes flight's velocity in X and Y axes.
source <xs:element name="trackVelocity" type="nas:NasVelocityType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Describes flight's velocity in X and Y axes.</xs:documentation>
  </xs:annotation>
</xs:element>

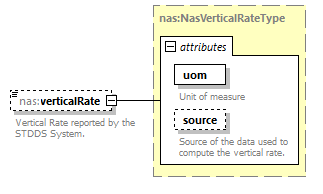

element NasAircraftPositionType/verticalRate
diagram Nas_diagrams/Nas_p366.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasVerticalRateType
properties
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomVerticalRateType  required
documentation
Unit of measure
source  nas:VerticalRateSourceType  optional
documentation
Source of the data used to compute the vertical rate.
annotation
documentation
Vertical Rate reported by the STDDS System.
source <xs:element name="verticalRate" type="nas:NasVerticalRateType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Vertical Rate reported by the STDDS System.</xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
