complexType TargetLevelType

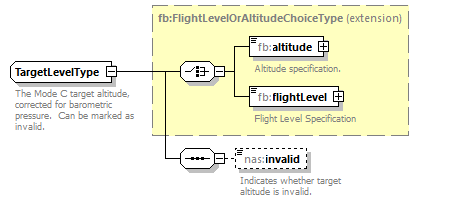

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:FlightLevelOrAltitudeChoiceType
properties	base  fb:FlightLevelOrAltitudeChoiceType
children	fb:altitude fb:flightLevel nas:invalid
used by	element  NasAircraftPositionType/targetLevel
annotation	documentation The Mode C target altitude, corrected for barometric pressure.  Can be marked as invalid.
source	<xs:complexType name="TargetLevelType">   <xs:annotation>     <xs:documentation>The Mode C target altitude, corrected for barometric pressure.  Can be marked as invalid.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:FlightLevelOrAltitudeChoiceType">       <xs:sequence>         <xs:element name="invalid" type="nas:InvalidIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Indicates whether target altitude is invalid.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element TargetLevelType/invalid

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:InvalidIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  INVALID documentation The target altitude is invalid.
annotation	documentation Indicates whether target altitude is invalid.
source	<xs:element name="invalid" type="nas:InvalidIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether target altitude is invalid.</xs:documentation>   </xs:annotation> </xs:element>
