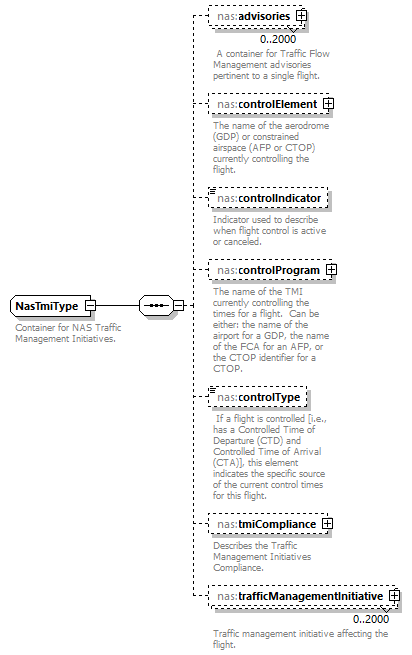

complexType NasTmiType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:advisories nas:controlElement nas:controlIndicator nas:controlProgram nas:controlType nas:tmiCompliance nas:trafficManagementInitiative
used by	element  NasFlightType/nasTmi
annotation	documentation Container for NAS Traffic Management Initiatives.
source	<xs:complexType name="NasTmiType">   <xs:annotation>     <xs:documentation>Container for NAS Traffic Management Initiatives.  </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="advisories" type="nas:NasAdvisoryType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation> A container for Traffic Flow Management advisories pertinent to a single flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="controlElement" type="nas:NasControlElementChoiceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The name of the aerodrome (GDP) or constrained airspace (AFP or CTOP) currently controlling the flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="controlIndicator" type="nas:ControlIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicator used to describe when flight control is active or canceled.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="controlProgram" type="nas:NasControlElementChoiceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The name of the TMI currently controlling the times for a flight.  Can be either: the name of the airport for a GDP, the name of the FCA for an AFP, or the CTOP identifier for a CTOP.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="controlType" type="nas:ControlTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled Time of Arrival (CTA)], this element indicates the specific source of the current control times for this flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tmiCompliance" type="nas:TmiComplianceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Describes the Traffic Management Initiatives Compliance.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="trafficManagementInitiative" type="nas:NasTrafficManagementInitiativeType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>Traffic management initiative affecting the flight.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

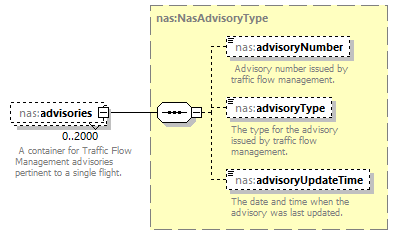

element NasTmiType/advisories

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasAdvisoryType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	nas:advisoryNumber nas:advisoryType nas:advisoryUpdateTime
annotation	documentation A container for Traffic Flow Management advisories pertinent to a single flight.
source	<xs:element name="advisories" type="nas:NasAdvisoryType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation> A container for Traffic Flow Management advisories pertinent to a single flight.</xs:documentation>   </xs:annotation> </xs:element>

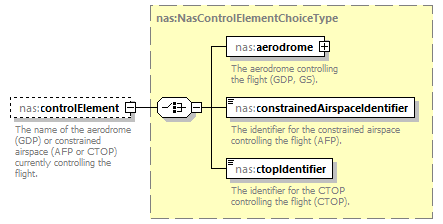

element NasTmiType/controlElement

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasControlElementChoiceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:aerodrome nas:constrainedAirspaceIdentifier nas:ctopIdentifier
annotation	documentation The name of the aerodrome (GDP) or constrained airspace (AFP or CTOP) currently controlling the flight.
source	<xs:element name="controlElement" type="nas:NasControlElementChoiceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The name of the aerodrome (GDP) or constrained airspace (AFP or CTOP) currently controlling the flight.</xs:documentation>   </xs:annotation> </xs:element>

element NasTmiType/controlIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ControlIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  CONTROL_ACTIVE documentation Control Active enumeration  CONTROL_CANCELED documentation Control Canceled.
annotation	documentation Indicator used to describe when flight control is active or canceled.
source	<xs:element name="controlIndicator" type="nas:ControlIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicator used to describe when flight control is active or canceled.</xs:documentation>   </xs:annotation> </xs:element>

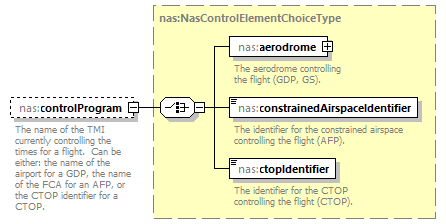

element NasTmiType/controlProgram

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasControlElementChoiceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:aerodrome nas:constrainedAirspaceIdentifier nas:ctopIdentifier
annotation	documentation The name of the TMI currently controlling the times for a flight.  Can be either: the name of the airport for a GDP, the name of the FCA for an AFP, or the CTOP identifier for a CTOP.
source	<xs:element name="controlProgram" type="nas:NasControlElementChoiceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The name of the TMI currently controlling the times for a flight.  Can be either: the name of the airport for a GDP, the name of the FCA for an AFP, or the CTOP identifier for a CTOP.</xs:documentation>   </xs:annotation> </xs:element>

element NasTmiType/controlType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ControlTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  CTOP documentation Control times were assigned as part of a CTOP program. enumeration  GDP documentation Control times were assigned as part of an GDP-Initial or GDP-Revision. (GDP) enumeration  AFP documentation Control times were assigned as part of an AFP-Initial or AFP-Revision. (AFP) enumeration  GS documentation Control times were assigned as part of a GDP-Ground Stop. (GDP) enumeration  BLKT documentation Control times were assigned as part of a GDP Blanket (+/-). (GDP) enumeration  COMP documentation Control times were assigned as part of a AFP-Compression or GDP-Compression. (AFP and GDP) enumeration  BRG documentation Control times were assigned when creating a bridge for an SCS or ECR request. enumeration  DAS documentation Control time which resulted from the assignment of the average delay to a pop-up flight which did not receive an unassigned slot in an AFP or GDP. For DAS based programs this is used for the initial delay assignments to all pop-up flights. For GAAP and UDP based program, this control type is used only if no unassigned slot is available for the pop-up. This control type is not used for re-controlled flights. (AFP and GDP) enumeration  GAAP documentation Control times are the result of a GAAP or UDP based AFP or GDP if a pop-up or a re-control flight is allocated to an unassigned slot. This occurs for all pop-up flights in a GAAP or UDP based program when an unassigned slot is available for the flight. However, only some classes of re-controlled flights in a GAAP or UDP are assigned to unassigned slots. (e.g., those that occur after dropping out of an AFP). (AFP and GDP) enumeration  UDP documentation Unified Ground Delay Program enumeration  RCTL documentation Control time which resulted from the assignment of the average delay to a flight that was at some point controlled by a GDP or AFP, which was then purged or the flight dropped out and was re-controlled in another AFP. For DAS programs this is used for the initial delay assignments to all re-controlled flights. For GAAP and UDP, this control type is used only if no unassigned slot is available for the re-controlled flight or the class of re-controlled flight is never assigned to unassigned slots. As opposed to other pop-ups, RCTL flights retain full substitution rights. (AFP) enumeration  SUB documentation Control times assigned by a conventional user substitution message. (AFP and GDP) enumeration  SCS documentation Control times assigned by a slot credit substitution message submitted by a NAS User (AFP and GDP). enumeration  ECR documentation Control time assigned by a slot credit substitution message submitted by an Authorized FAA user. (AFP and GDP) enumeration  UPD documentation Control time or UX cancel status from an TFMS EDCT UPDATE command made by an Authorized FAA user. (AFP and GDP) enumeration  ABRG documentation Control times were assigned when the flight was utilized to create a bridge for Adaptive Compression performed automatically by the TFMS-Core. (AFP and GDP) enumeration  SBRG documentation Control times were assigned when creating a bridge for an SCS or ECR request. (AFP and GDP) enumeration  UBRG documentation Control times were assigned when creating a bridge for pop-up flight assignment during UDP. Performed automatically by the TFMS-Core. (AFP and GDP) enumeration  ADPT documentation Control time assigned when the flight was adaptively compressed by the TFMS-Core. (AFP and GDP)
annotation	documentation If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled Time of Arrival (CTA)], this element indicates the specific source of the current control times for this flight.
source	<xs:element name="controlType" type="nas:ControlTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled Time of Arrival (CTA)], this element indicates the specific source of the current control times for this flight.</xs:documentation>   </xs:annotation> </xs:element>

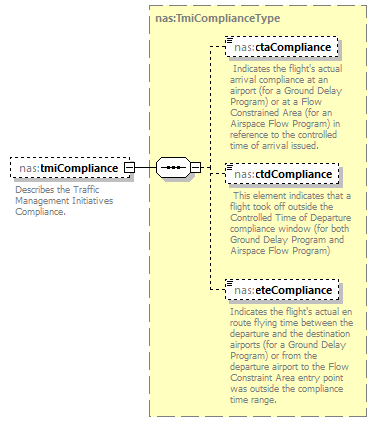

element NasTmiType/tmiCompliance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TmiComplianceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:ctaCompliance nas:ctdCompliance nas:eteCompliance
annotation	documentation Describes the Traffic Management Initiatives Compliance.
source	<xs:element name="tmiCompliance" type="nas:TmiComplianceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Describes the Traffic Management Initiatives Compliance.</xs:documentation>   </xs:annotation> </xs:element>

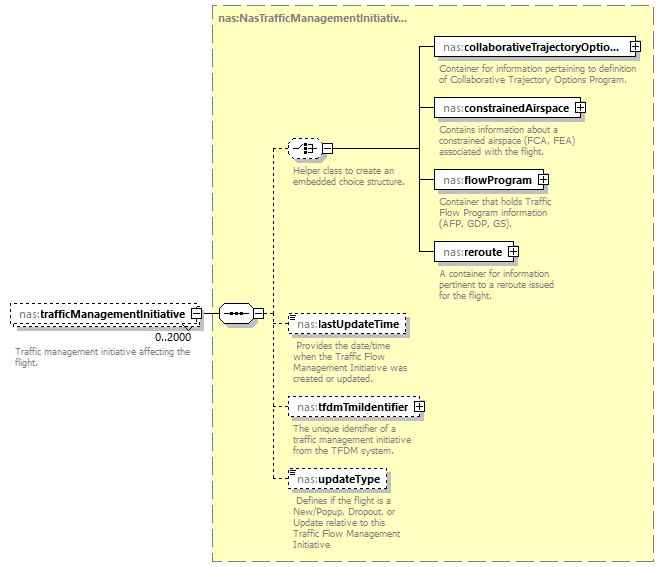

element NasTmiType/trafficManagementInitiative

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasTrafficManagementInitiativeType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	nas:collaborativeTrajectoryOptionsProgram nas:constrainedAirspace nas:flowProgram nas:reroute nas:lastUpdateTime nas:tfdmTmiIdentifier nas:updateType
annotation	documentation Traffic management initiative affecting the flight.
source	<xs:element name="trafficManagementInitiative" type="nas:NasTrafficManagementInitiativeType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>Traffic management initiative affecting the flight.</xs:documentation>   </xs:annotation> </xs:element>
