complexType TmiComplianceType

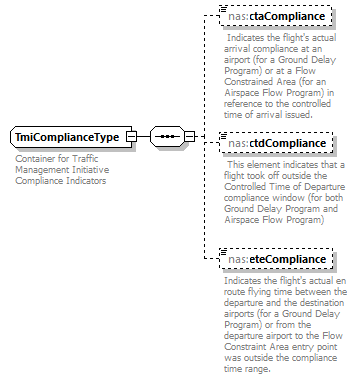

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:ctaCompliance nas:ctdCompliance nas:eteCompliance
used by	element  NasTmiType/tmiCompliance
annotation	documentation Container for Traffic Management Initiative Compliance Indicators
source	<xs:complexType name="TmiComplianceType">   <xs:annotation>     <xs:documentation>Container for Traffic Management Initiative Compliance Indicators</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ctaCompliance" type="nas:TmiComplianceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> Indicates the flight's actual arrival compliance at an airport (for a Ground Delay Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference to the controlled time of arrival issued.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ctdCompliance" type="nas:TmiComplianceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> This element indicates that a flight took off outside the Controlled Time of Departure compliance window (for both Ground Delay Program and Airspace Flow Program)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="eteCompliance" type="nas:TmiComplianceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates the flight's actual en route flying time between the departure and the destination airports (for a Ground Delay Program) or from the departure airport to the Flow Constraint Area entry point was outside the compliance time range.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TmiComplianceType/ctaCompliance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TmiComplianceIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  COMPLIANT documentation Compliant enumeration  NON_COMPLIANT documentation Not compliant
annotation	documentation Indicates the flight's actual arrival compliance at an airport (for a Ground Delay Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference to the controlled time of arrival issued.
source	<xs:element name="ctaCompliance" type="nas:TmiComplianceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> Indicates the flight's actual arrival compliance at an airport (for a Ground Delay Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference to the controlled time of arrival issued.</xs:documentation>   </xs:annotation> </xs:element>

element TmiComplianceType/ctdCompliance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TmiComplianceIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  COMPLIANT documentation Compliant enumeration  NON_COMPLIANT documentation Not compliant
annotation	documentation This element indicates that a flight took off outside the Controlled Time of Departure compliance window (for both Ground Delay Program and Airspace Flow Program)
source	<xs:element name="ctdCompliance" type="nas:TmiComplianceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> This element indicates that a flight took off outside the Controlled Time of Departure compliance window (for both Ground Delay Program and Airspace Flow Program)</xs:documentation>   </xs:annotation> </xs:element>

element TmiComplianceType/eteCompliance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TmiComplianceIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  COMPLIANT documentation Compliant enumeration  NON_COMPLIANT documentation Not compliant
annotation	documentation Indicates the flight's actual en route flying time between the departure and the destination airports (for a Ground Delay Program) or from the departure airport to the Flow Constraint Area entry point was outside the compliance time range.
source	<xs:element name="eteCompliance" type="nas:TmiComplianceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates the flight's actual en route flying time between the departure and the destination airports (for a Ground Delay Program) or from the departure airport to the Flow Constraint Area entry point was outside the compliance time range.</xs:documentation>   </xs:annotation> </xs:element>
