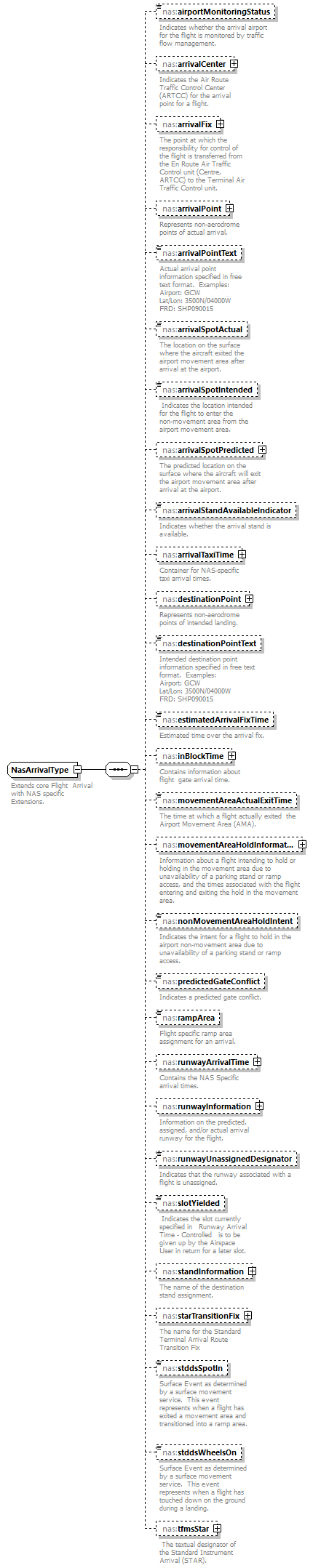

complexType NasArrivalType
diagram Nas_diagrams/Nas_p35.png
namespace http://www.fixm.aero/ext/nas/4.3
type extension of fb:ArrivalExtensionType
properties
base fb:ArrivalExtensionType
children nas:airportMonitoringStatus nas:arrivalCenter nas:arrivalFix nas:arrivalPoint nas:arrivalPointText nas:arrivalSpotActual nas:arrivalSpotIntended nas:arrivalSpotPredicted nas:arrivalStandAvailableIndicator nas:arrivalTaxiTime nas:destinationPoint nas:destinationPointText nas:estimatedArrivalFixTime nas:inBlockTime nas:movementAreaActualExitTime nas:movementAreaHoldInformation nas:nonMovementAreaHoldIntent nas:predictedGateConflict nas:rampArea nas:runwayArrivalTime nas:runwayInformation nas:runwayUnassignedDesignator nas:slotYielded nas:standInformation nas:starTransitionFix nas:stddsSpotIn nas:stddsWheelsOn nas:tfmsStar
annotation
documentation
Extends core Flight  Arrival with NAS specific Extensions.
source <xs:complexType name="NasArrivalType">
  <xs:annotation>
    <xs:documentation>Extends core Flight  Arrival with NAS specific Extensions.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="fb:ArrivalExtensionType">
      <xs:sequence>
        <xs:element name="airportMonitoringStatus" type="nas:AirportMonitoringStatusType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates whether the arrival airport for the flight is monitored by traffic flow management.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalCenter" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates the Air Route Traffic Control Center (ARTCC) for the arrival point for a flight.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalFix" type="nas:NasSignificantPointInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The point at which the responsibility for control of the flight is transferred from the En Route Air Traffic Control unit (Centre, ARTCC) to the Terminal Air Traffic Control unit.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalPoint" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Represents non-aerodrome points of actual arrival.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalPointText" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Actual arrival point information specified in free text format.  Examples:
Airport: GCW
Lat/Lon: 3500N/04000W
FRD: SHP090015</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalSpotActual" type="nas:SurfaceRegionNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The location on the surface where the aircraft exited the airport movement area after arrival at the airport.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalSpotIntended" type="nas:SurfaceRegionNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation> Indicates the location intended for the flight to enter the non-movement area from the airport movement area.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalSpotPredicted" type="nas:NasSpotInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The predicted location on the surface where the aircraft will exit the airport movement area after arrival at the airport.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="arrivalStandAvailableIndicator" type="nas:ArrivalStandAvailableIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates whether the arrival stand is available.</xs:documentation>
          </xs:annotation>
        </xs:element>

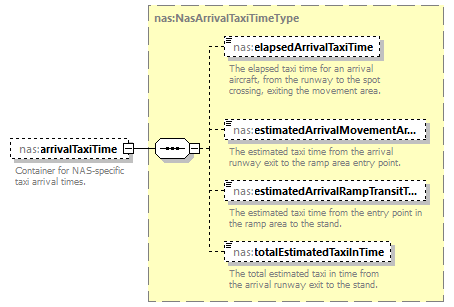

        <xs:element name="arrivalTaxiTime" type="nas:NasArrivalTaxiTimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Container for NAS-specific taxi arrival times.</xs:documentation>
          </xs:annotation>
        </xs:element>

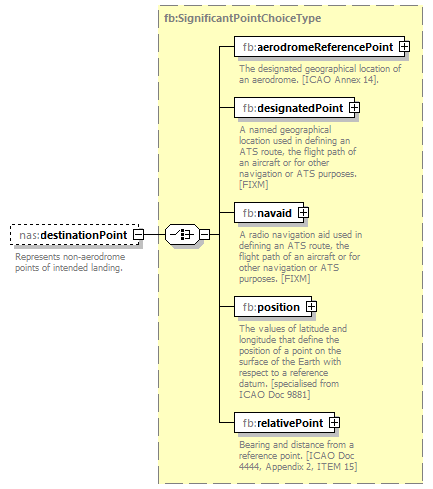

        <xs:element name="destinationPoint" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Represents non-aerodrome points of intended landing.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="destinationPointText" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Intended destination point information specified in free text format.  Examples:
Airport: GCW
Lat/Lon: 3500N/04000W
FRD: SHP090015</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="estimatedArrivalFixTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Estimated time over the arrival fix.</xs:documentation>
          </xs:annotation>
        </xs:element>

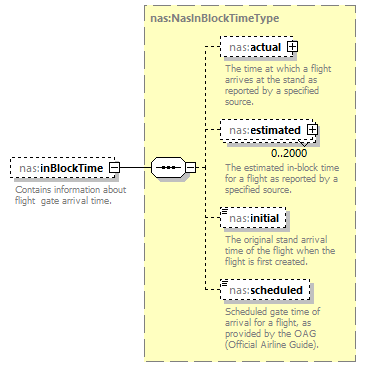

        <xs:element name="inBlockTime" type="nas:NasInBlockTimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Contains information about flight  gate arrival time.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="movementAreaActualExitTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The time at which a flight actually exited  the Airport Movement Area (AMA).</xs:documentation>
          </xs:annotation>
        </xs:element>

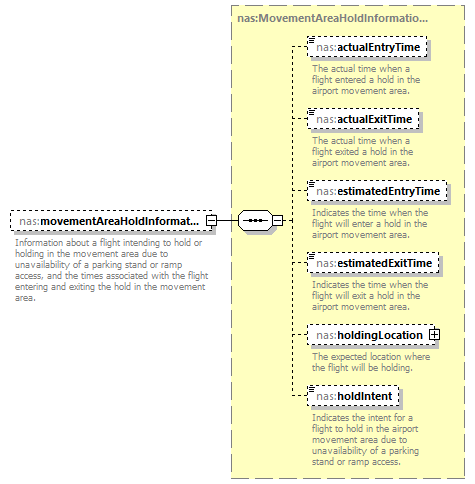

        <xs:element name="movementAreaHoldInformation" type="nas:MovementAreaHoldInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Information about a flight intending to hold or holding in the movement area due to unavailability of a parking stand or ramp access, and the times associated with the flight entering and exiting the hold in the movement area.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="nonMovementAreaHoldIntent" type="nas:HoldIntentType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates the intent for a flight to hold in the airport non-movement area due to unavailability of a parking stand or ramp access.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="predictedGateConflict" type="nas:PredictedGateConflictIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates a predicted gate conflict.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="rampArea" type="nas:SurfaceRegionNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Flight specific ramp area assignment for an arrival.</xs:documentation>
          </xs:annotation>
        </xs:element>

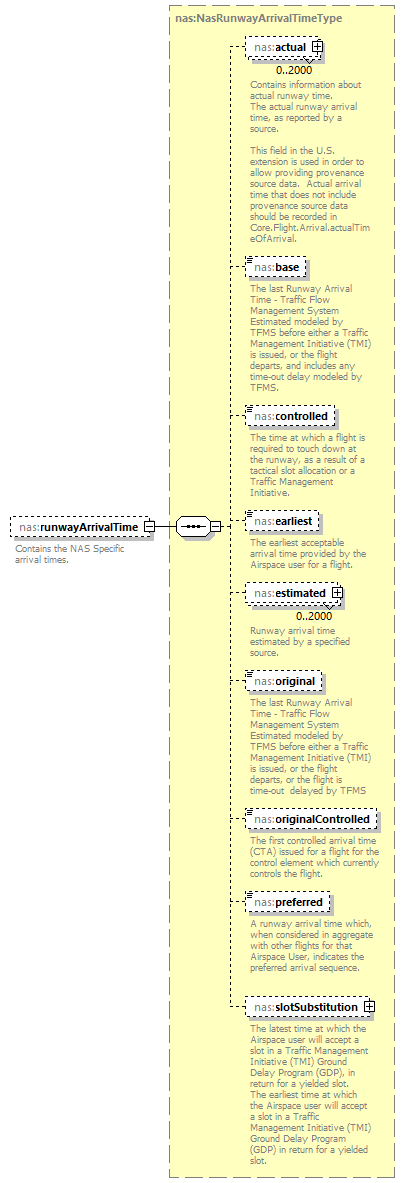

        <xs:element name="runwayArrivalTime" type="nas:NasRunwayArrivalTimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Contains the NAS Specific arrival times.</xs:documentation>
          </xs:annotation>
        </xs:element>

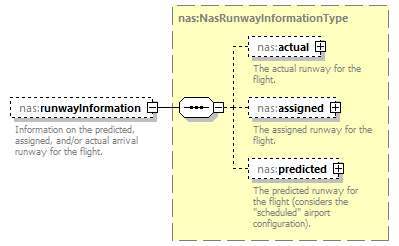

        <xs:element name="runwayInformation" type="nas:NasRunwayInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Information on the predicted, assigned, and/or actual arrival runway for the flight.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="runwayUnassignedDesignator" type="nas:RunwayUnassignedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates that the runway associated with a flight is unassigned.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="slotYielded" type="nas:SlotYieldedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation> Indicates the slot currently specified in   Runway Arrival Time - Controlled   is to be given up by the Airspace User in return for a later slot.</xs:documentation>
          </xs:annotation>
        </xs:element>

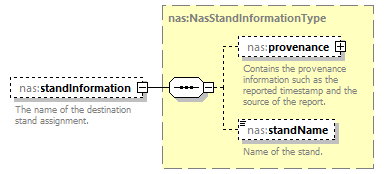

        <xs:element name="standInformation" type="nas:NasStandInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The name of the destination stand assignment. </xs:documentation>
          </xs:annotation>
        </xs:element>

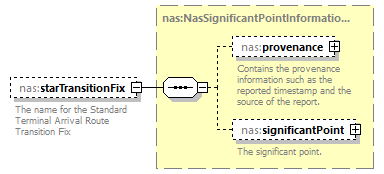

        <xs:element name="starTransitionFix" type="nas:NasSignificantPointInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The name for the Standard Terminal Arrival Route Transition Fix</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="stddsSpotIn" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Surface Event as determined by a surface movement service.  This event represents when a flight has exited a movement area and transitioned into a ramp area.  </xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="stddsWheelsOn" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Surface Event as determined by a surface movement service.  This event represents when a flight has touched down on the ground during a landing.</xs:documentation>
          </xs:annotation>
        </xs:element>

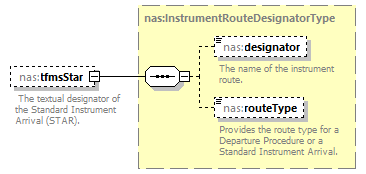

        <xs:element name="tfmsStar" type="nas:InstrumentRouteDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation> The textual designator of the Standard Instrument Arrival (STAR). </xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element NasArrivalType/airportMonitoringStatus
diagram Nas_diagrams/Nas_p36.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:AirportMonitoringStatusType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration MONITORED
documentation
Monitored by Traffic Flow Management
enumeration NOT_MONITORED
documentation
Not Monitored by Traffic Flow Management
annotation
documentation
Indicates whether the arrival airport for the flight is monitored by traffic flow management.
source <xs:element name="airportMonitoringStatus" type="nas:AirportMonitoringStatusType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates whether the arrival airport for the flight is monitored by traffic flow management.</xs:documentation>
  </xs:annotation>
</xs:element>

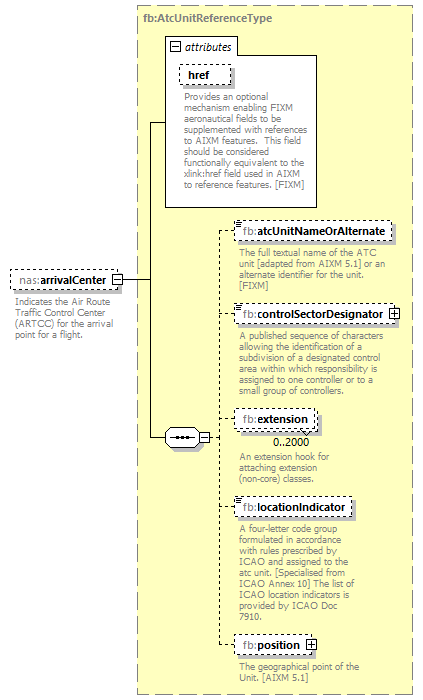

element NasArrivalType/arrivalCenter
diagram Nas_diagrams/Nas_p37.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:AtcUnitReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
Indicates the Air Route Traffic Control Center (ARTCC) for the arrival point for a flight.
source <xs:element name="arrivalCenter" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates the Air Route Traffic Control Center (ARTCC) for the arrival point for a flight.</xs:documentation>
  </xs:annotation>
</xs:element>

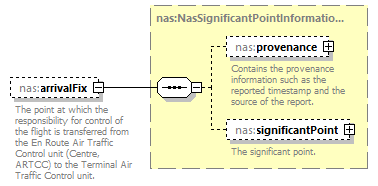

element NasArrivalType/arrivalFix
diagram Nas_diagrams/Nas_p38.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasSignificantPointInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:significantPoint
annotation
documentation
The point at which the responsibility for control of the flight is transferred from the En Route Air Traffic Control unit (Centre, ARTCC) to the Terminal Air Traffic Control unit.
source <xs:element name="arrivalFix" type="nas:NasSignificantPointInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The point at which the responsibility for control of the flight is transferred from the En Route Air Traffic Control unit (Centre, ARTCC) to the Terminal Air Traffic Control unit.</xs:documentation>
  </xs:annotation>
</xs:element>

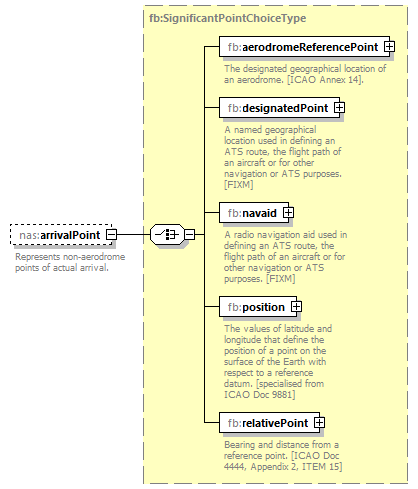

element NasArrivalType/arrivalPoint
diagram Nas_diagrams/Nas_p39.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:SignificantPointChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation
documentation
Represents non-aerodrome points of actual arrival.
source <xs:element name="arrivalPoint" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Represents non-aerodrome points of actual arrival.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/arrivalPointText
diagram Nas_diagrams/Nas_p40.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TextNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !&quot;&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
annotation
documentation
Actual arrival point information specified in free text format.  Examples:
Airport: GCW
Lat/Lon: 3500N/04000W
FRD: SHP090015
source <xs:element name="arrivalPointText" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Actual arrival point information specified in free text format.  Examples:
Airport: GCW
Lat/Lon: 3500N/04000W
FRD: SHP090015</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/arrivalSpotActual
diagram Nas_diagrams/Nas_p41.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:SurfaceRegionNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Za-z0-9_]{1,20}
annotation
documentation
The location on the surface where the aircraft exited the airport movement area after arrival at the airport.
source <xs:element name="arrivalSpotActual" type="nas:SurfaceRegionNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The location on the surface where the aircraft exited the airport movement area after arrival at the airport.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/arrivalSpotIntended
diagram Nas_diagrams/Nas_p42.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:SurfaceRegionNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Za-z0-9_]{1,20}
annotation
documentation
Indicates the location intended for the flight to enter the non-movement area from the airport movement area.
source <xs:element name="arrivalSpotIntended" type="nas:SurfaceRegionNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation> Indicates the location intended for the flight to enter the non-movement area from the airport movement area.</xs:documentation>
  </xs:annotation>
</xs:element>

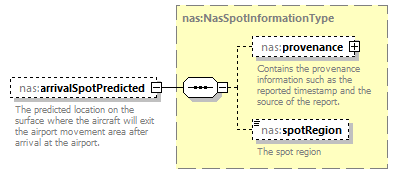

element NasArrivalType/arrivalSpotPredicted
diagram Nas_diagrams/Nas_p43.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasSpotInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:spotRegion
annotation
documentation
The predicted location on the surface where the aircraft will exit the airport movement area after arrival at the airport.
source <xs:element name="arrivalSpotPredicted" type="nas:NasSpotInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The predicted location on the surface where the aircraft will exit the airport movement area after arrival at the airport.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/arrivalStandAvailableIndicator
diagram Nas_diagrams/Nas_p44.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:ArrivalStandAvailableIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration ARRIVAL_STAND_AVAILABLE
annotation
documentation
Indicates whether the arrival stand is available.
source <xs:element name="arrivalStandAvailableIndicator" type="nas:ArrivalStandAvailableIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates whether the arrival stand is available.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/arrivalTaxiTime
diagram Nas_diagrams/Nas_p45.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasArrivalTaxiTimeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:elapsedArrivalTaxiTime nas:estimatedArrivalMovementAreaTransitTime nas:estimatedArrivalRampTransitTime nas:totalEstimatedTaxiInTime
annotation
documentation
Container for NAS-specific taxi arrival times.
source <xs:element name="arrivalTaxiTime" type="nas:NasArrivalTaxiTimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Container for NAS-specific taxi arrival times.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/destinationPoint
diagram Nas_diagrams/Nas_p46.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:SignificantPointChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation
documentation
Represents non-aerodrome points of intended landing.
source <xs:element name="destinationPoint" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Represents non-aerodrome points of intended landing.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/destinationPointText
diagram Nas_diagrams/Nas_p47.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TextNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !&quot;&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
annotation
documentation
Intended destination point information specified in free text format.  Examples:
Airport: GCW
Lat/Lon: 3500N/04000W
FRD: SHP090015
source <xs:element name="destinationPointText" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Intended destination point information specified in free text format.  Examples:
Airport: GCW
Lat/Lon: 3500N/04000W
FRD: SHP090015</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/estimatedArrivalFixTime
diagram Nas_diagrams/Nas_p48.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
Estimated time over the arrival fix.
source <xs:element name="estimatedArrivalFixTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Estimated time over the arrival fix.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/inBlockTime
diagram Nas_diagrams/Nas_p49.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasInBlockTimeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:actual nas:estimated nas:initial nas:scheduled
annotation
documentation
Contains information about flight  gate arrival time.
source <xs:element name="inBlockTime" type="nas:NasInBlockTimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Contains information about flight  gate arrival time.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/movementAreaActualExitTime
diagram Nas_diagrams/Nas_p50.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
The time at which a flight actually exited  the Airport Movement Area (AMA).
source <xs:element name="movementAreaActualExitTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The time at which a flight actually exited  the Airport Movement Area (AMA).</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/movementAreaHoldInformation
diagram Nas_diagrams/Nas_p51.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:MovementAreaHoldInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:actualEntryTime nas:actualExitTime nas:estimatedEntryTime nas:estimatedExitTime nas:holdingLocation nas:holdIntent
annotation
documentation
Information about a flight intending to hold or holding in the movement area due to unavailability of a parking stand or ramp access, and the times associated with the flight entering and exiting the hold in the movement area.
source <xs:element name="movementAreaHoldInformation" type="nas:MovementAreaHoldInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Information about a flight intending to hold or holding in the movement area due to unavailability of a parking stand or ramp access, and the times associated with the flight entering and exiting the hold in the movement area.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/nonMovementAreaHoldIntent
diagram Nas_diagrams/Nas_p52.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:HoldIntentType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration HOLD
documentation
Indicates the intent is to hold.
enumeration NO_HOLD
documentation
Indicates the intent is not to hold.
annotation
documentation
Indicates the intent for a flight to hold in the airport non-movement area due to unavailability of a parking stand or ramp access.
source <xs:element name="nonMovementAreaHoldIntent" type="nas:HoldIntentType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates the intent for a flight to hold in the airport non-movement area due to unavailability of a parking stand or ramp access.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/predictedGateConflict
diagram Nas_diagrams/Nas_p53.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:PredictedGateConflictIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration PREDICTED_GATE_CONFLICT
documentation
Indicates gate conflict is predicted.
annotation
documentation
Indicates a predicted gate conflict.
source <xs:element name="predictedGateConflict" type="nas:PredictedGateConflictIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates a predicted gate conflict.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/rampArea
diagram Nas_diagrams/Nas_p54.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:SurfaceRegionNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Za-z0-9_]{1,20}
annotation
documentation
Flight specific ramp area assignment for an arrival.
source <xs:element name="rampArea" type="nas:SurfaceRegionNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Flight specific ramp area assignment for an arrival.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/runwayArrivalTime
diagram Nas_diagrams/Nas_p55.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasRunwayArrivalTimeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:actual nas:base nas:controlled nas:earliest nas:estimated nas:original nas:originalControlled nas:preferred nas:slotSubstitution
annotation
documentation
Contains the NAS Specific arrival times.
source <xs:element name="runwayArrivalTime" type="nas:NasRunwayArrivalTimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Contains the NAS Specific arrival times.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/runwayInformation
diagram Nas_diagrams/Nas_p56.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasRunwayInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:actual nas:assigned nas:predicted
annotation
documentation
Information on the predicted, assigned, and/or actual arrival runway for the flight.
source <xs:element name="runwayInformation" type="nas:NasRunwayInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Information on the predicted, assigned, and/or actual arrival runway for the flight.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/runwayUnassignedDesignator
diagram Nas_diagrams/Nas_p57.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:RunwayUnassignedIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration RUNWAY_UNASSIGNED
documentation
Runway is not assigned.
annotation
documentation
Indicates that the runway associated with a flight is unassigned.
source <xs:element name="runwayUnassignedDesignator" type="nas:RunwayUnassignedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates that the runway associated with a flight is unassigned.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/slotYielded
diagram Nas_diagrams/Nas_p58.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:SlotYieldedIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration SLOT_YIELDED
documentation
Indicates the slot currently specified in "Runway Arrival Time - Controlled" is to be given up by the Airspace User in return for a later slot.
annotation
documentation
Indicates the slot currently specified in   Runway Arrival Time - Controlled   is to be given up by the Airspace User in return for a later slot.
source <xs:element name="slotYielded" type="nas:SlotYieldedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation> Indicates the slot currently specified in   Runway Arrival Time - Controlled   is to be given up by the Airspace User in return for a later slot.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/standInformation
diagram Nas_diagrams/Nas_p59.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasStandInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:standName
annotation
documentation
The name of the destination stand assignment.
source <xs:element name="standInformation" type="nas:NasStandInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The name of the destination stand assignment. </xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/starTransitionFix
diagram Nas_diagrams/Nas_p60.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasSignificantPointInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:significantPoint
annotation
documentation
The name for the Standard Terminal Arrival Route Transition Fix
source <xs:element name="starTransitionFix" type="nas:NasSignificantPointInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The name for the Standard Terminal Arrival Route Transition Fix</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/stddsSpotIn
diagram Nas_diagrams/Nas_p61.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
Surface Event as determined by a surface movement service.  This event represents when a flight has exited a movement area and transitioned into a ramp area.
source <xs:element name="stddsSpotIn" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Surface Event as determined by a surface movement service.  This event represents when a flight has exited a movement area and transitioned into a ramp area.  </xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/stddsWheelsOn
diagram Nas_diagrams/Nas_p62.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
Surface Event as determined by a surface movement service.  This event represents when a flight has touched down on the ground during a landing.
source <xs:element name="stddsWheelsOn" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Surface Event as determined by a surface movement service.  This event represents when a flight has touched down on the ground during a landing.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasArrivalType/tfmsStar
diagram Nas_diagrams/Nas_p63.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:InstrumentRouteDesignatorType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:designator nas:routeType
annotation
documentation
The textual designator of the Standard Instrument Arrival (STAR).
source <xs:element name="tfmsStar" type="nas:InstrumentRouteDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation> The textual designator of the Standard Instrument Arrival (STAR). </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
