complexType NasInBlockTimeType

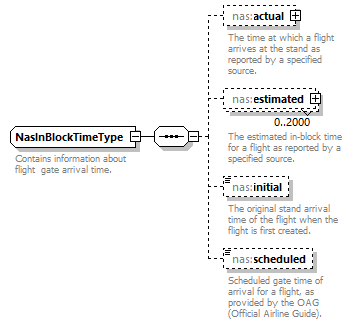

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:actual nas:estimated nas:initial nas:scheduled
used by	element  NasArrivalType/inBlockTime
annotation	documentation Contains information about flight  gate arrival time.
source	<xs:complexType name="NasInBlockTimeType">   <xs:annotation>     <xs:documentation>Contains information about flight  gate arrival time.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="actual" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The time at which a flight arrives at the stand as reported by a specified source.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="estimated" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>The estimated in-block time for a flight as reported by a specified source.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="initial" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The original stand arrival time of the flight when the flight is first created.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="scheduled" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Scheduled gate time of arrival for a flight, as provided by the OAG (Official Airline Guide).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasInBlockTimeType/actual

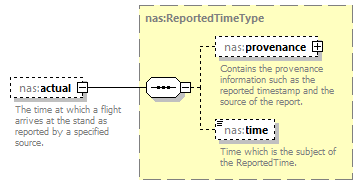

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ReportedTimeType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:provenance nas:time
annotation	documentation The time at which a flight arrives at the stand as reported by a specified source.
source	<xs:element name="actual" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The time at which a flight arrives at the stand as reported by a specified source.</xs:documentation>   </xs:annotation> </xs:element>

element NasInBlockTimeType/estimated

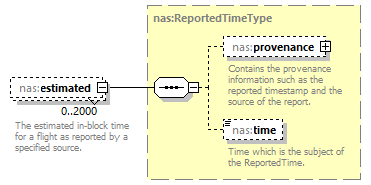

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ReportedTimeType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	nas:provenance nas:time
annotation	documentation The estimated in-block time for a flight as reported by a specified source.
source	<xs:element name="estimated" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>The estimated in-block time for a flight as reported by a specified source.</xs:documentation>   </xs:annotation> </xs:element>

element NasInBlockTimeType/initial

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The original stand arrival time of the flight when the flight is first created.
source	<xs:element name="initial" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The original stand arrival time of the flight when the flight is first created.</xs:documentation>   </xs:annotation> </xs:element>

element NasInBlockTimeType/scheduled

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation Scheduled gate time of arrival for a flight, as provided by the OAG (Official Airline Guide).
source	<xs:element name="scheduled" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Scheduled gate time of arrival for a flight, as provided by the OAG (Official Airline Guide).</xs:documentation>   </xs:annotation> </xs:element>
