complexType NasArrivalTaxiTimeType

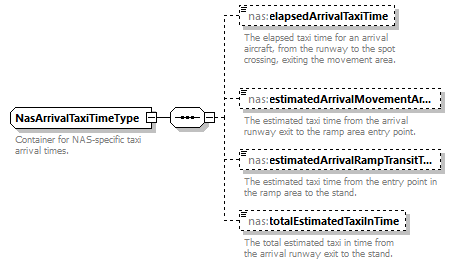

diagram Nas_diagrams/Nas_p30.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:elapsedArrivalTaxiTime nas:estimatedArrivalMovementAreaTransitTime nas:estimatedArrivalRampTransitTime nas:totalEstimatedTaxiInTime
used by
element NasArrivalType/arrivalTaxiTime
annotation
documentation
Container for NAS-specific taxi arrival times.
source <xs:complexType name="NasArrivalTaxiTimeType">

<xs:annotation>

<xs:documentation>Container for NAS-specific taxi arrival times.</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="elapsedArrivalTaxiTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The elapsed taxi time for an arrival aircraft, from the runway to the spot crossing, exiting the movement area.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="estimatedArrivalMovementAreaTransitTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The estimated taxi time from the arrival runway exit to the ramp area entry point.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="estimatedArrivalRampTransitTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The estimated taxi time from the entry point in the ramp area to the stand.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="totalEstimatedTaxiInTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total estimated taxi in time from the arrival runway exit to the stand.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element NasArrivalTaxiTimeType/elapsedArrivalTaxiTime
diagram Nas_diagrams/Nas_p31.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The elapsed taxi time for an arrival aircraft, from the runway to the spot crossing, exiting the movement area.
source <xs:element name="elapsedArrivalTaxiTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The elapsed taxi time for an arrival aircraft, from the runway to the spot crossing, exiting the movement area.</xs:documentation>

</xs:annotation>
</xs:element>

element NasArrivalTaxiTimeType/estimatedArrivalMovementAreaTransitTime
diagram Nas_diagrams/Nas_p32.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The estimated taxi time from the arrival runway exit to the ramp area entry point.
source <xs:element name="estimatedArrivalMovementAreaTransitTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The estimated taxi time from the arrival runway exit to the ramp area entry point.</xs:documentation>

</xs:annotation>
</xs:element>

element NasArrivalTaxiTimeType/estimatedArrivalRampTransitTime
diagram Nas_diagrams/Nas_p33.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The estimated taxi time from the entry point in the ramp area to the stand.
source <xs:element name="estimatedArrivalRampTransitTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The estimated taxi time from the entry point in the ramp area to the stand.</xs:documentation>

</xs:annotation>
</xs:element>

element NasArrivalTaxiTimeType/totalEstimatedTaxiInTime
diagram Nas_diagrams/Nas_p34.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The total estimated taxi in time from the arrival runway exit to the stand.
source <xs:element name="totalEstimatedTaxiInTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total estimated taxi in time from the arrival runway exit to the stand.</xs:documentation>

</xs:annotation>
</xs:element>
