complexType GeographicalPositionType

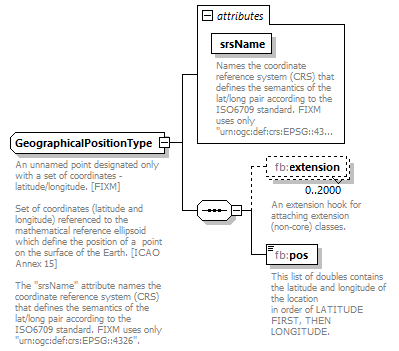

diagram Fixm_diagrams/Fixm_p45.png
namespace http://www.fixm.aero/base/4.2
children fb:extension fb:pos
used by
elements AtcUnitReferenceType/position DesignatedPointType/position NavaidType/position RelativePointType/position SignificantPointChoiceType/position AerodromeReferenceType/referencePoint TrajectoryPoint4DType/position
attributes
Name  Type  Use  Default  Fixed  Annotation
srsName  xs:string  required    urn:ogc:def:crs:EPSG::4326
documentation
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation
documentation
An unnamed point designated only with a set of coordinates - latitude/longitude. [FIXM]

Set of coordinates (latitude and longitude) referenced to the mathematical reference ellipsoid which define the position of a  point on the surface of the Earth. [ICAO Annex 15]

The "srsName" attribute names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
source <xs:complexType name="GeographicalPositionType">

<xs:annotation>

<xs:documentation>An unnamed point designated only with a set of coordinates - latitude/longitude. [FIXM]

Set of coordinates (latitude and longitude) referenced to the mathematical reference ellipsoid which define the position of a  point on the surface of the Earth. [ICAO Annex 15]

The "srsName" attribute names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="extension" type="fb:GeographicalPositionExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="pos" type="fb:LatLongPosType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>This list of doubles contains the latitude and longitude of the location
in order of LATITUDE FIRST, THEN LONGITUDE.
</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>

<xs:attribute name="srsName" type="xs:string" use="required" fixed="urn:ogc:def:crs:EPSG::4326">

<xs:annotation>

<xs:documentation>Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".</xs:documentation>

</xs:annotation>

</xs:attribute>
</xs:complexType>

attribute GeographicalPositionType/@srsName
type xs:string
properties
use required
fixed urn:ogc:def:crs:EPSG::4326
annotation
documentation
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
source <xs:attribute name="srsName" type="xs:string" use="required" fixed="urn:ogc:def:crs:EPSG::4326">

<xs:annotation>

<xs:documentation>Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".</xs:documentation>

</xs:annotation>
</xs:attribute>

element GeographicalPositionType/extension
diagram Fixm_diagrams/Fixm_p46.png
namespace http://www.fixm.aero/base/4.2
type fb:GeographicalPositionExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:GeographicalPositionExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element GeographicalPositionType/pos
diagram Fixm_diagrams/Fixm_p47.png
namespace http://www.fixm.aero/base/4.2
type fb:LatLongPosType
properties
content simple
facets
Kind Value Annotation
maxLength 2
annotation
documentation
This list of doubles contains the latitude and longitude of the location
in order of LATITUDE FIRST, THEN LONGITUDE.
source <xs:element name="pos" type="fb:LatLongPosType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>This list of doubles contains the latitude and longitude of the location
in order of LATITUDE FIRST, THEN LONGITUDE.
</xs:documentation>

</xs:annotation>
</xs:element>
