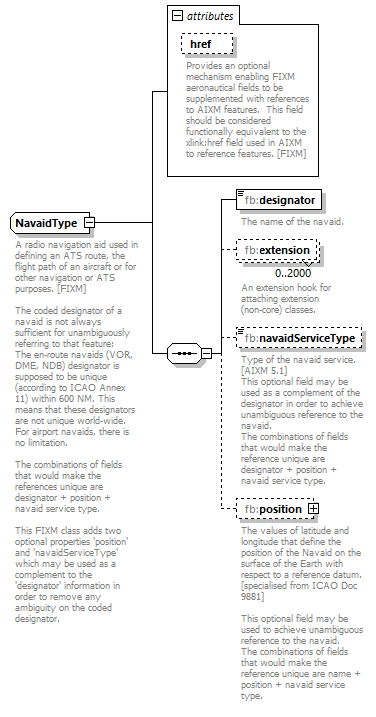

complexType NavaidType

diagram
namespace	http://www.fixm.aero/base/4.2
children	fb:designator fb:extension fb:navaidServiceType fb:position
used by	elements  SignificantPointChoiceType/navaid RelativePointType/referencePoint
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation A radio navigation aid used in defining an ATS route, the flight path of an aircraft or for other navigation or ATS purposes. [FIXM] The coded designator of a navaid is not always sufficient for unambiguously referring to that feature: The en-route navaids (VOR, DME, NDB) designator is supposed to be unique (according to ICAO Annex 11) within 600 NM. This means that these designators are not unique world-wide. For airport navaids, there is no limitation. The combinations of fields that would make the references unique are designator + position + navaid service type. This FIXM class adds two optional properties 'position' and 'navaidServiceType' which may be used as a complement to the 'designator' information in order to remove any ambiguity on the coded designator.
source	<xs:complexType name="NavaidType">   <xs:annotation>     <xs:documentation>A radio navigation aid used in defining an ATS route, the flight path of an aircraft or for other navigation or ATS purposes. [FIXM] The coded designator of a navaid is not always sufficient for unambiguously referring to that feature: The en-route navaids (VOR, DME, NDB) designator is supposed to be unique (according to ICAO Annex 11) within 600 NM. This means that these designators are not unique world-wide. For airport navaids, there is no limitation. The combinations of fields that would make the references unique are designator + position + navaid service type. This FIXM class adds two optional properties 'position' and 'navaidServiceType' which may be used as a complement to the 'designator' information in order to remove any ambiguity on the coded designator.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="designator" type="fb:NavaidDesignatorType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The name of the navaid.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:NavaidExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="navaidServiceType" type="fb:NavaidServiceTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Type of the navaid service. [AIXM 5.1] This optional field may be used as a complement of the designator in order to achieve unambiguous reference to the navaid. The combinations of fields that would make the reference unique are designator + position + navaid service type.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The values of latitude and longitude that define the position of the Navaid on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to achieve unambiguous reference to the navaid. The combinations of fields that would make the reference unique are name + position + navaid service type.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence>   <xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">     <xs:annotation>       <xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute NavaidType/@href

type	fb:HypertextReferenceType
properties	use  optional
annotation	documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
source	<xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">   <xs:annotation>     <xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>   </xs:annotation> </xs:attribute>

element NavaidType/designator

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:NavaidDesignatorType
properties	content  simple
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z0-9]{1,4}
annotation	documentation The name of the navaid.
source	<xs:element name="designator" type="fb:NavaidDesignatorType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The name of the navaid.</xs:documentation>   </xs:annotation> </xs:element>

element NavaidType/extension

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:NavaidExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:NavaidExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

element NavaidType/navaidServiceType

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:NavaidServiceTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  DF documentation Direction Finder. enumeration  DME documentation Distance Measuring Equipment. enumeration  ILS documentation Instrument Landing System enumeration  ILS_DME documentation ILS with collocated DME. Collocation can be with the antenna or the loc. enumeration  LOC documentation Localizer enumeration  LOC_DME documentation Localizer and DME collocated enumeration  MKR documentation Marker Beacon enumeration  MLS documentation Microwave Landing System enumeration  MLS_DME documentation MLS and DME collocated enumeration  NDB documentation Non-Directional Radio Beacon enumeration  NDB_DME documentation NDB and DME collocated enumeration  NDB_MKR documentation Non-Directional Radio Beacon and Marker Beacon enumeration  SDF documentation Simplified Directional Facility enumeration  TACAN documentation Tactical Air Navigation Beacon enumeration  TLS documentation Transponder Landing System enumeration  VOR documentation VHF Omni directional Radio Range. enumeration  VOR_DME documentation VOR and DME collocated enumeration  VORTAC documentation VOR and TACAN collocated.
annotation	documentation Type of the navaid service. [AIXM 5.1] This optional field may be used as a complement of the designator in order to achieve unambiguous reference to the navaid. The combinations of fields that would make the reference unique are designator + position + navaid service type.
source	<xs:element name="navaidServiceType" type="fb:NavaidServiceTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Type of the navaid service. [AIXM 5.1] This optional field may be used as a complement of the designator in order to achieve unambiguous reference to the navaid. The combinations of fields that would make the reference unique are designator + position + navaid service type.</xs:documentation>   </xs:annotation> </xs:element>

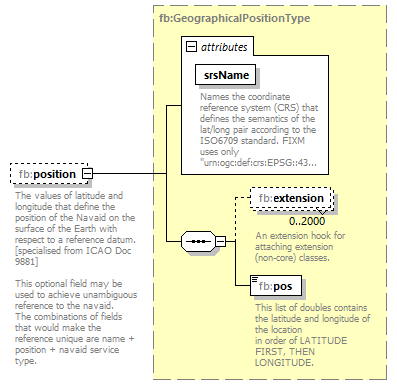

element NavaidType/position

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:GeographicalPositionType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:extension fb:pos
attributes	Name   Type   Use   Default   Fixed   Annotation srsName   xs:string   required      urn:ogc:def:crs:EPSG::4326   documentation Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation	documentation The values of latitude and longitude that define the position of the Navaid on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to achieve unambiguous reference to the navaid. The combinations of fields that would make the reference unique are name + position + navaid service type.
source	<xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The values of latitude and longitude that define the position of the Navaid on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to achieve unambiguous reference to the navaid. The combinations of fields that would make the reference unique are name + position + navaid service type.</xs:documentation>   </xs:annotation> </xs:element>
