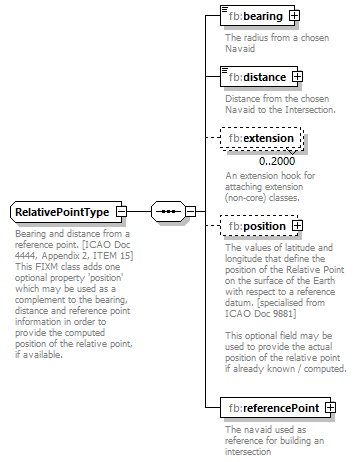

complexType RelativePointType

diagram
namespace	http://www.fixm.aero/base/4.2
children	fb:bearing fb:distance fb:extension fb:position fb:referencePoint
used by	element  SignificantPointChoiceType/relativePoint
annotation	documentation Bearing and distance from a reference point. [ICAO Doc 4444, Appendix 2, ITEM 15] This FIXM class adds one optional property 'position' which may be used as a complement to the bearing, distance and reference point information in order to provide the computed position of the relative point, if available.
source	<xs:complexType name="RelativePointType">   <xs:annotation>     <xs:documentation>Bearing and distance from a reference point. [ICAO Doc 4444, Appendix 2, ITEM 15] This FIXM class adds one optional property 'position' which may be used as a complement to the bearing, distance and reference point information in order to provide the computed position of the relative point, if available.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="bearing" type="fb:BearingType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The radius from a chosen Navaid </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="distance" type="fb:DistanceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Distance from the chosen Navaid to the Intersection.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:RelativePointExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The values of latitude and longitude that define the position of the Relative Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to provide the actual position of the relative point if already known / computed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="referencePoint" type="fb:NavaidType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The navaid used as reference for building an intersection</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element RelativePointType/bearing

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:BearingType
properties	content  complex
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  360
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAngleType   required         documentation Unit of measure zeroBearingType   fb:ZeroBearingTypeType   required         documentation A code indicating the direction of the zero bearing.
annotation	documentation The radius from a chosen Navaid
source	<xs:element name="bearing" type="fb:BearingType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The radius from a chosen Navaid </xs:documentation>   </xs:annotation> </xs:element>

element RelativePointType/distance

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:DistanceType
properties	content  complex
facets	Kind  Value  Annotation minInclusive  0
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomLengthType   required         documentation Unit of measure
annotation	documentation Distance from the chosen Navaid to the Intersection.
source	<xs:element name="distance" type="fb:DistanceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Distance from the chosen Navaid to the Intersection.</xs:documentation>   </xs:annotation> </xs:element>

element RelativePointType/extension

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:RelativePointExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:RelativePointExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

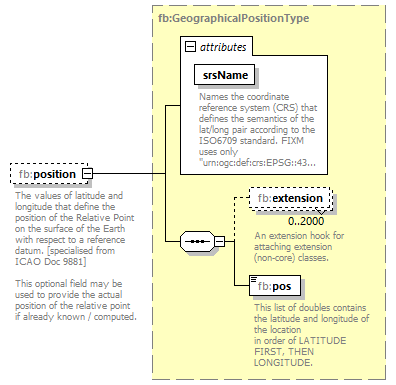

element RelativePointType/position

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:GeographicalPositionType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:extension fb:pos
attributes	Name   Type   Use   Default   Fixed   Annotation srsName   xs:string   required      urn:ogc:def:crs:EPSG::4326   documentation Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation	documentation The values of latitude and longitude that define the position of the Relative Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to provide the actual position of the relative point if already known / computed.
source	<xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The values of latitude and longitude that define the position of the Relative Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to provide the actual position of the relative point if already known / computed.</xs:documentation>   </xs:annotation> </xs:element>

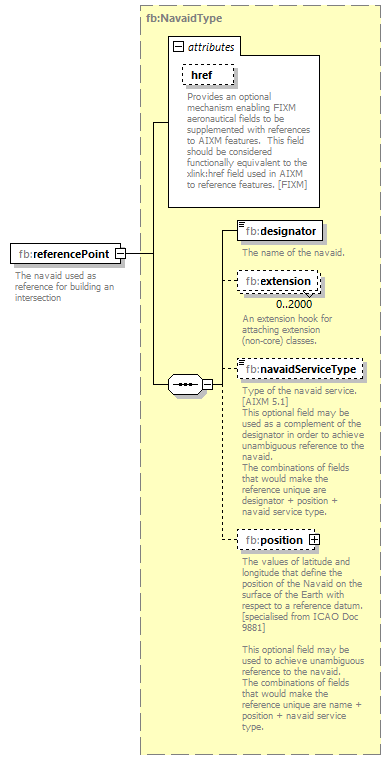

element RelativePointType/referencePoint

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:NavaidType
properties	content  complex
children	fb:designator fb:extension fb:navaidServiceType fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The navaid used as reference for building an intersection
source	<xs:element name="referencePoint" type="fb:NavaidType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The navaid used as reference for building an intersection</xs:documentation>   </xs:annotation> </xs:element>
