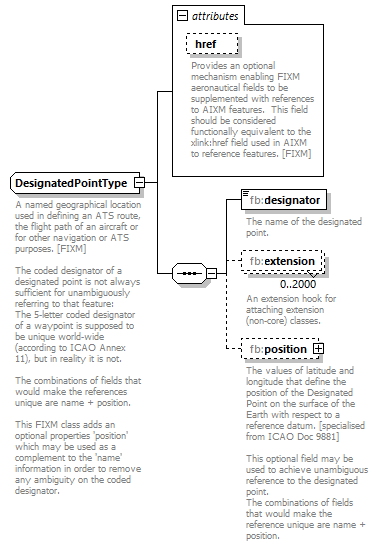

complexType DesignatedPointType

diagram
namespace	http://www.fixm.aero/base/4.2
children	fb:designator fb:extension fb:position
used by	element  SignificantPointChoiceType/designatedPoint
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation A named geographical location used in defining an ATS route, the flight path of an aircraft or for other navigation or ATS purposes. [FIXM] The coded designator of a designated point is not always sufficient for unambiguously referring to that feature: The 5-letter coded designator of a waypoint is supposed to be unique world-wide (according to ICAO Annex 11), but in reality it is not. The combinations of fields that would make the references unique are name + position. This FIXM class adds an optional properties 'position' which may be used as a complement to the 'name' information in order to remove any ambiguity on the coded designator.
source	<xs:complexType name="DesignatedPointType">   <xs:annotation>     <xs:documentation>A named geographical location used in defining an ATS route, the flight path of an aircraft or for other navigation or ATS purposes. [FIXM] The coded designator of a designated point is not always sufficient for unambiguously referring to that feature: The 5-letter coded designator of a waypoint is supposed to be unique world-wide (according to ICAO Annex 11), but in reality it is not. The combinations of fields that would make the references unique are name + position. This FIXM class adds an optional properties 'position' which may be used as a complement to the 'name' information in order to remove any ambiguity on the coded designator.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="designator" type="fb:DesignatedPointDesignatorType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The name of the designated point.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:DesignatedPointExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The values of latitude and longitude that define the position of the Designated Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to achieve unambiguous reference to the designated point. The combinations of fields that would make the reference unique are name + position.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence>   <xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">     <xs:annotation>       <xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute DesignatedPointType/@href

type	fb:HypertextReferenceType
properties	use  optional
annotation	documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
source	<xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">   <xs:annotation>     <xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>   </xs:annotation> </xs:attribute>

element DesignatedPointType/designator

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:DesignatedPointDesignatorType
properties	content  simple
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z0-9]{1,5}
annotation	documentation The name of the designated point.
source	<xs:element name="designator" type="fb:DesignatedPointDesignatorType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The name of the designated point.</xs:documentation>   </xs:annotation> </xs:element>

element DesignatedPointType/extension

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:DesignatedPointExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:DesignatedPointExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

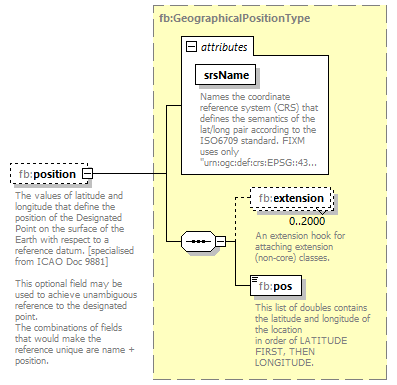

element DesignatedPointType/position

diagram
namespace	http://www.fixm.aero/base/4.2
type	fb:GeographicalPositionType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:extension fb:pos
attributes	Name   Type   Use   Default   Fixed   Annotation srsName   xs:string   required      urn:ogc:def:crs:EPSG::4326   documentation Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation	documentation The values of latitude and longitude that define the position of the Designated Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to achieve unambiguous reference to the designated point. The combinations of fields that would make the reference unique are name + position.
source	<xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The values of latitude and longitude that define the position of the Designated Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881] This optional field may be used to achieve unambiguous reference to the designated point. The combinations of fields that would make the reference unique are name + position.</xs:documentation>   </xs:annotation> </xs:element>
