complexType TfdmFlightStateType

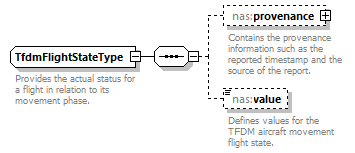

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:provenance nas:value
used by	element  NasFlightStatusType/tfdmFlightState
annotation	documentation Provides the actual status for a flight in relation to its movement phase.
source	<xs:complexType name="TfdmFlightStateType">   <xs:annotation>     <xs:documentation>Provides the actual status for a flight in relation to its movement phase.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="provenance" type="nas:ProvenanceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Contains the provenance information such as the reported timestamp and the source of the report.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="value" type="nas:AircraftMovementStateValueType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Defines values for the TFDM aircraft movement flight state.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TfdmFlightStateType/provenance

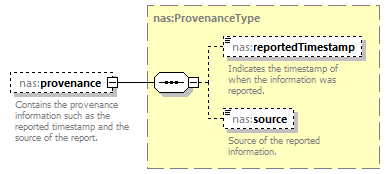

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ProvenanceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:reportedTimestamp nas:source
annotation	documentation Contains the provenance information such as the reported timestamp and the source of the report.
source	<xs:element name="provenance" type="nas:ProvenanceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Contains the provenance information such as the reported timestamp and the source of the report.</xs:documentation>   </xs:annotation> </xs:element>

element TfdmFlightStateType/value

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:AircraftMovementStateValueType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  SCHEDULED documentation Scheduled enumeration  FILED documentation Filed enumeration  AT_STAND documentation At Stand enumeration  NON_MOVEMENT_AREA_HOLD documentation Holding In The Non-Movement Area enumeration  RAMP_TAXI_OUT documentation Ramp Taxi Out enumeration  AT_SPOT_OUT documentation At Spot Out enumeration  AMA_HOLDING documentation Holding In The Airport Movement Area enumeration  AMA_TAXI_OUT documentation In The Airport Movement Area Taxiing Out enumeration  IN_DEPARTURE_QUEUE documentation In Departure Queue enumeration  STAND_RETURN documentation Stand Return enumeration  LUAW documentation Line Up And Wait enumeration  TAKEOFF_ROLL documentation Takeoff Roll enumeration  TAKEOFF_ROLL_ABORT documentation Takeoff Roll Abort enumeration  DEPARTED documentation Departed enumeration  EN_ROUTE documentation En Route enumeration  ARRIVAL documentation Arrival enumeration  ON_FINAL documentation On Final enumeration  MISSED_APPROACH documentation Missed Approach enumeration  ON_RUNWAY documentation On Runway enumeration  AMA_TAXI_IN documentation In The Airport Movement Area Taxiing In enumeration  RAMP_TAXI_IN documentation Ramp Taxi In enumeration  UNKNOWN documentation Unknown
annotation	documentation Defines values for the TFDM aircraft movement flight state.
source	<xs:element name="value" type="nas:AircraftMovementStateValueType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Defines values for the TFDM aircraft movement flight state.</xs:documentation>   </xs:annotation> </xs:element>
