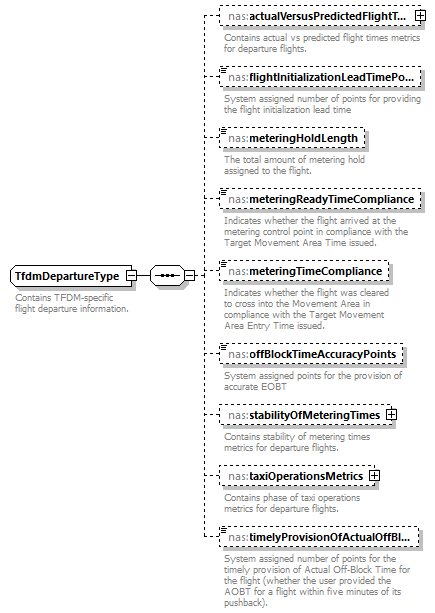

complexType TfdmDepartureType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:DepartureExtensionType
properties	base  fb:DepartureExtensionType
children	nas:actualVersusPredictedFlightTimes nas:flightInitializationLeadTimePoints nas:meteringHoldLength nas:meteringReadyTimeCompliance nas:meteringTimeCompliance nas:offBlockTimeAccuracyPoints nas:stabilityOfMeteringTimes nas:taxiOperationsMetrics nas:timelyProvisionOfActualOffBlockTimeCompliancePoints
annotation	documentation Contains TFDM-specific flight departure information.
source	<xs:complexType name="TfdmDepartureType">   <xs:annotation>     <xs:documentation>Contains TFDM-specific flight departure information.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:DepartureExtensionType">       <xs:sequence>         <xs:element name="actualVersusPredictedFlightTimes" type="nas:ActualVersusPredictedFlightTimesType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Contains actual vs predicted flight times metrics for departure flights.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="flightInitializationLeadTimePoints" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>System assigned number of points for providing the flight initialization lead time</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="meteringHoldLength" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The total amount of metering hold assigned to the flight.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="meteringReadyTimeCompliance" type="nas:MeteringTimeComplianceType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Indicates whether the flight arrived at the metering control point in compliance with the Target Movement Area Time issued.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="meteringTimeCompliance" type="nas:MeteringTimeComplianceType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Indicates whether the flight was cleared to cross into the Movement Area in compliance with the Target Movement Area Entry Time issued.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="offBlockTimeAccuracyPoints" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>System assigned points for the provision of accurate EOBT</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="stabilityOfMeteringTimes" type="nas:StabilityOfMeteringTimesType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Contains stability of metering times metrics for departure flights.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="taxiOperationsMetrics" type="nas:DepartureTaxiOperationsMetricsType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Contains phase of taxi operations metrics for departure flights.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="timelyProvisionOfActualOffBlockTimeCompliancePoints" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>System assigned number of points for the timely provision of Actual Off-Block Time for the flight (whether the user provided the AOBT for a flight within five minutes of its pushback).</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

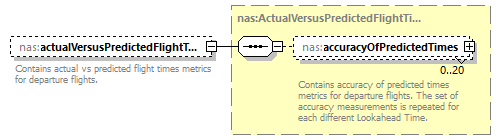

element TfdmDepartureType/actualVersusPredictedFlightTimes

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ActualVersusPredictedFlightTimesType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:accuracyOfPredictedTimes
annotation	documentation Contains actual vs predicted flight times metrics for departure flights.
source	<xs:element name="actualVersusPredictedFlightTimes" type="nas:ActualVersusPredictedFlightTimesType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Contains actual vs predicted flight times metrics for departure flights.</xs:documentation>   </xs:annotation> </xs:element>

element TfdmDepartureType/flightInitializationLeadTimePoints

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation System assigned number of points for providing the flight initialization lead time
source	<xs:element name="flightInitializationLeadTimePoints" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>System assigned number of points for providing the flight initialization lead time</xs:documentation>   </xs:annotation> </xs:element>

element TfdmDepartureType/meteringHoldLength

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The total amount of metering hold assigned to the flight.
source	<xs:element name="meteringHoldLength" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The total amount of metering hold assigned to the flight.</xs:documentation>   </xs:annotation> </xs:element>

element TfdmDepartureType/meteringReadyTimeCompliance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:MeteringTimeComplianceType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  COMPLIANT documentation Compliant enumeration  NOT_COMPLIANT documentation Not Compliant
annotation	documentation Indicates whether the flight arrived at the metering control point in compliance with the Target Movement Area Time issued.
source	<xs:element name="meteringReadyTimeCompliance" type="nas:MeteringTimeComplianceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether the flight arrived at the metering control point in compliance with the Target Movement Area Time issued.</xs:documentation>   </xs:annotation> </xs:element>

element TfdmDepartureType/meteringTimeCompliance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:MeteringTimeComplianceType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  COMPLIANT documentation Compliant enumeration  NOT_COMPLIANT documentation Not Compliant
annotation	documentation Indicates whether the flight was cleared to cross into the Movement Area in compliance with the Target Movement Area Entry Time issued.
source	<xs:element name="meteringTimeCompliance" type="nas:MeteringTimeComplianceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether the flight was cleared to cross into the Movement Area in compliance with the Target Movement Area Entry Time issued.</xs:documentation>   </xs:annotation> </xs:element>

element TfdmDepartureType/offBlockTimeAccuracyPoints

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation System assigned points for the provision of accurate EOBT
source	<xs:element name="offBlockTimeAccuracyPoints" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>System assigned points for the provision of accurate EOBT</xs:documentation>   </xs:annotation> </xs:element>

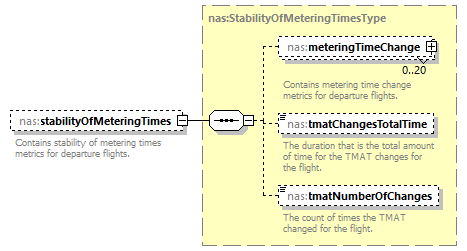

element TfdmDepartureType/stabilityOfMeteringTimes

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:StabilityOfMeteringTimesType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:meteringTimeChange nas:tmatChangesTotalTime nas:tmatNumberOfChanges
annotation	documentation Contains stability of metering times metrics for departure flights.
source	<xs:element name="stabilityOfMeteringTimes" type="nas:StabilityOfMeteringTimesType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Contains stability of metering times metrics for departure flights.</xs:documentation>   </xs:annotation> </xs:element>

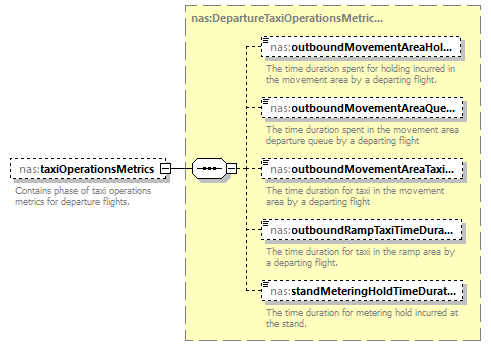

element TfdmDepartureType/taxiOperationsMetrics

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:DepartureTaxiOperationsMetricsType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:outboundMovementAreaHoldTimeDuration nas:outboundMovementAreaQueuingTimeDuration nas:outboundMovementAreaTaxiTimeDuration nas:outboundRampTaxiTimeDuration nas:standMeteringHoldTimeDuration
annotation	documentation Contains phase of taxi operations metrics for departure flights.
source	<xs:element name="taxiOperationsMetrics" type="nas:DepartureTaxiOperationsMetricsType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Contains phase of taxi operations metrics for departure flights.</xs:documentation>   </xs:annotation> </xs:element>

element TfdmDepartureType/timelyProvisionOfActualOffBlockTimeCompliancePoints

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation System assigned number of points for the timely provision of Actual Off-Block Time for the flight (whether the user provided the AOBT for a flight within five minutes of its pushback).
source	<xs:element name="timelyProvisionOfActualOffBlockTimeCompliancePoints" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>System assigned number of points for the timely provision of Actual Off-Block Time for the flight (whether the user provided the AOBT for a flight within five minutes of its pushback).</xs:documentation>   </xs:annotation> </xs:element>
