complexType DepartureTaxiOperationsMetricsType

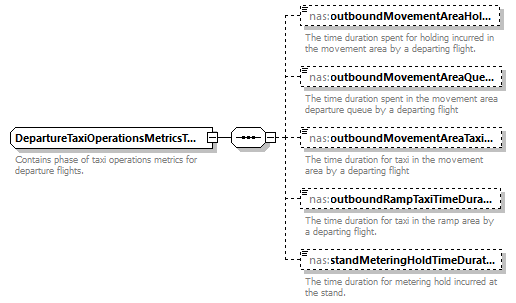

diagram Nas_diagrams/Nas_p478.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:outboundMovementAreaHoldTimeDuration nas:outboundMovementAreaQueuingTimeDuration nas:outboundMovementAreaTaxiTimeDuration nas:outboundRampTaxiTimeDuration nas:standMeteringHoldTimeDuration
used by
element TfdmDepartureType/taxiOperationsMetrics
annotation
documentation
Contains phase of taxi operations metrics for departure flights.
source <xs:complexType name="DepartureTaxiOperationsMetricsType">

<xs:annotation>

<xs:documentation>Contains phase of taxi operations metrics for departure flights.</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="outboundMovementAreaHoldTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration spent for holding incurred in the movement area by a departing flight.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="outboundMovementAreaQueuingTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration spent in the movement area departure queue by a departing flight</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="outboundMovementAreaTaxiTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration for taxi in the movement area by a departing flight</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="outboundRampTaxiTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration for taxi in the ramp area by a departing flight.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="standMeteringHoldTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration for metering hold incurred at the stand.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element DepartureTaxiOperationsMetricsType/outboundMovementAreaHoldTimeDuration
diagram Nas_diagrams/Nas_p479.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The time duration spent for holding incurred in the movement area by a departing flight.
source <xs:element name="outboundMovementAreaHoldTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration spent for holding incurred in the movement area by a departing flight.</xs:documentation>

</xs:annotation>
</xs:element>

element DepartureTaxiOperationsMetricsType/outboundMovementAreaQueuingTimeDuration
diagram Nas_diagrams/Nas_p480.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The time duration spent in the movement area departure queue by a departing flight
source <xs:element name="outboundMovementAreaQueuingTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration spent in the movement area departure queue by a departing flight</xs:documentation>

</xs:annotation>
</xs:element>

element DepartureTaxiOperationsMetricsType/outboundMovementAreaTaxiTimeDuration
diagram Nas_diagrams/Nas_p481.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The time duration for taxi in the movement area by a departing flight
source <xs:element name="outboundMovementAreaTaxiTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration for taxi in the movement area by a departing flight</xs:documentation>

</xs:annotation>
</xs:element>

element DepartureTaxiOperationsMetricsType/outboundRampTaxiTimeDuration
diagram Nas_diagrams/Nas_p482.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The time duration for taxi in the ramp area by a departing flight.
source <xs:element name="outboundRampTaxiTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration for taxi in the ramp area by a departing flight.</xs:documentation>

</xs:annotation>
</xs:element>

element DepartureTaxiOperationsMetricsType/standMeteringHoldTimeDuration
diagram Nas_diagrams/Nas_p483.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The time duration for metering hold incurred at the stand.
source <xs:element name="standMeteringHoldTimeDuration" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The time duration for metering hold incurred at the stand.</xs:documentation>

</xs:annotation>
</xs:element>
