complexType StabilityOfMeteringTimesType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:meteringTimeChange nas:tmatChangesTotalTime nas:tmatNumberOfChanges
used by	element  TfdmDepartureType/stabilityOfMeteringTimes
annotation	documentation Contains stability of metering times metrics for departure flights.
source	<xs:complexType name="StabilityOfMeteringTimesType">   <xs:annotation>     <xs:documentation>Contains stability of metering times metrics for departure flights.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="meteringTimeChange" type="nas:MeteringTimeChangeType" nillable="true" minOccurs="0" maxOccurs="20">       <xs:annotation>         <xs:documentation>Contains metering time change metrics for departure flights.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tmatChangesTotalTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration that is the total amount of time for the TMAT changes for the flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tmatNumberOfChanges" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The count of times the TMAT changed for the flight.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element StabilityOfMeteringTimesType/meteringTimeChange

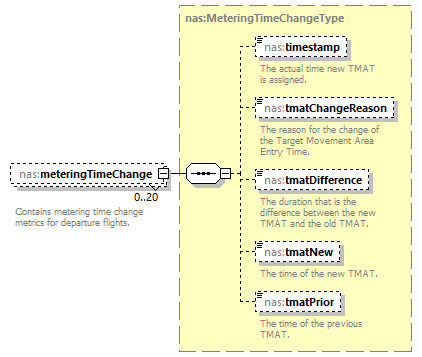

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:MeteringTimeChangeType
properties	minOcc  0 maxOcc  20 content  complex nillable  true
children	nas:timestamp nas:tmatChangeReason nas:tmatDifference nas:tmatNew nas:tmatPrior
annotation	documentation Contains metering time change metrics for departure flights.
source	<xs:element name="meteringTimeChange" type="nas:MeteringTimeChangeType" nillable="true" minOccurs="0" maxOccurs="20">   <xs:annotation>     <xs:documentation>Contains metering time change metrics for departure flights.</xs:documentation>   </xs:annotation> </xs:element>

element StabilityOfMeteringTimesType/tmatChangesTotalTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The duration that is the total amount of time for the TMAT changes for the flight.
source	<xs:element name="tmatChangesTotalTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration that is the total amount of time for the TMAT changes for the flight.</xs:documentation>   </xs:annotation> </xs:element>

element StabilityOfMeteringTimesType/tmatNumberOfChanges

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation The count of times the TMAT changed for the flight.
source	<xs:element name="tmatNumberOfChanges" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The count of times the TMAT changed for the flight.</xs:documentation>   </xs:annotation> </xs:element>
