complexType NasRunwayType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:provenance nas:runwayDesignator
used by	elements  NasRunwayInformationType/actual NasRunwayInformationType/assigned NasRunwayInformationType/predicted
annotation	documentation Contains supplementary provenance information for the runway designator. This field in the U.S. extension is used in order to allow providing provenance source data.  An actual runway designator that does not include provenance source data should be recorded in Core's runwayDirection field.
source	<xs:complexType name="NasRunwayType">   <xs:annotation>     <xs:documentation>Contains supplementary provenance information for the runway designator. This field in the U.S. extension is used in order to allow providing provenance source data.  An actual runway designator that does not include provenance source data should be recorded in Core's runwayDirection field.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="provenance" type="nas:ProvenanceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Contains the provenance information such as the reported timestamp and the source of the report.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="runwayDesignator" type="fb:RunwayDirectionDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The runway designator.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

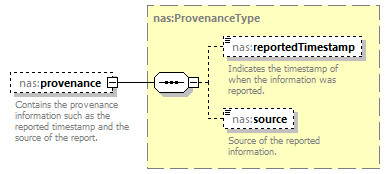

element NasRunwayType/provenance

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ProvenanceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:reportedTimestamp nas:source
annotation	documentation Contains the provenance information such as the reported timestamp and the source of the report.
source	<xs:element name="provenance" type="nas:ProvenanceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Contains the provenance information such as the reported timestamp and the source of the report.</xs:documentation>   </xs:annotation> </xs:element>

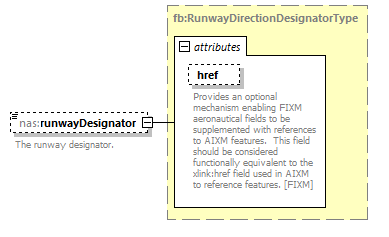

element NasRunwayType/runwayDesignator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:RunwayDirectionDesignatorType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The runway designator.
source	<xs:element name="runwayDesignator" type="fb:RunwayDirectionDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The runway designator.</xs:documentation>   </xs:annotation> </xs:element>
