complexType NasRunwayArrivalEstimatedType

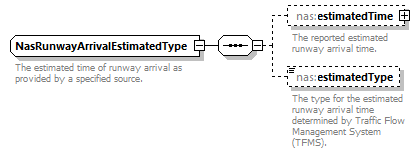

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:estimatedTime nas:estimatedType
used by	element  NasRunwayArrivalTimeType/estimated
annotation	documentation The estimated time of runway arrival as provided by a specified source.
source	<xs:complexType name="NasRunwayArrivalEstimatedType">   <xs:annotation>     <xs:documentation>The estimated time of runway arrival as provided by a specified source.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="estimatedTime" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The reported estimated runway arrival time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="estimatedType" type="nas:TfmsEstimatedArrivalTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The type for the estimated runway arrival time determined by Traffic Flow Management System (TFMS).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasRunwayArrivalEstimatedType/estimatedTime

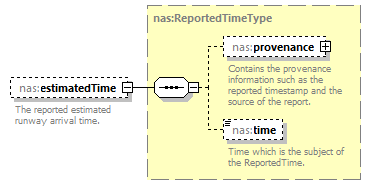

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ReportedTimeType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:provenance nas:time
annotation	documentation The reported estimated runway arrival time.
source	<xs:element name="estimatedTime" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The reported estimated runway arrival time.</xs:documentation>   </xs:annotation> </xs:element>

element NasRunwayArrivalEstimatedType/estimatedType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TfmsEstimatedArrivalTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ACTUAL documentation Actual time at arrival runway. enumeration  ESTIMATED documentation Estimated time at the arrival runway. enumeration  PROPOSED documentation Proposed time at the arrival runway. enumeration  SCHEDULED documentation Scheduled time at the arrival runway. enumeration  AIRLINE documentation Airline time at the arrival runway. enumeration  CONTROLLED documentation Controlled time at the arrival runway.
annotation	documentation The type for the estimated runway arrival time determined by Traffic Flow Management System (TFMS).
source	<xs:element name="estimatedType" type="nas:TfmsEstimatedArrivalTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The type for the estimated runway arrival time determined by Traffic Flow Management System (TFMS).</xs:documentation>   </xs:annotation> </xs:element>
