complexType NasFlightPlanType

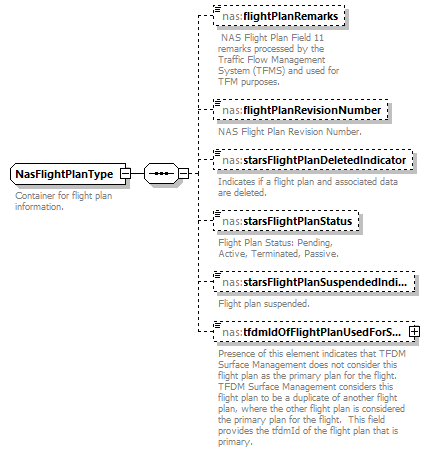

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:flightPlanRemarks nas:flightPlanRevisionNumber nas:starsFlightPlanDeletedIndicator nas:starsFlightPlanStatus nas:starsFlightPlanSuspendedIndicator nas:tfdmIdOfFlightPlanUsedForSurfaceManagement
used by	element  NasFlightType/flightPlan
annotation	documentation Container for flight plan information.
source	<xs:complexType name="NasFlightPlanType">   <xs:annotation>     <xs:documentation>Container for flight plan information.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="flightPlanRemarks" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System (TFMS) and used for TFM purposes. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="flightPlanRevisionNumber" type="nas:FlightPlanRevisionNumberType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>NAS Flight Plan Revision Number.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="starsFlightPlanDeletedIndicator" type="nas:StarsFlightPlanDeletedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if a flight plan and associated data are deleted.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="starsFlightPlanStatus" type="nas:StarsFlightPlanStatusType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Flight Plan Status: Pending, Active, Terminated, Passive.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="starsFlightPlanSuspendedIndicator" type="nas:StarsFlightPlanSuspendedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Flight plan suspended.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tfdmIdOfFlightPlanUsedForSurfaceManagement" type="fb:UniversallyUniqueIdentifierType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Presence of this element indicates that TFDM Surface Management does not consider this flight plan as the primary plan for the flight.  TFDM Surface Management considers this flight plan to be a duplicate of another flight plan, where the other flight plan is considered the primary plan for the flight.  This field provides the tfdmId of the flight plan that is primary.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasFlightPlanType/flightPlanRemarks

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System (TFMS) and used for TFM purposes.
source	<xs:element name="flightPlanRemarks" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System (TFMS) and used for TFM purposes. </xs:documentation>   </xs:annotation> </xs:element>

element NasFlightPlanType/flightPlanRevisionNumber

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:FlightPlanRevisionNumberType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  99
annotation	documentation NAS Flight Plan Revision Number.
source	<xs:element name="flightPlanRevisionNumber" type="nas:FlightPlanRevisionNumberType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>NAS Flight Plan Revision Number.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightPlanType/starsFlightPlanDeletedIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:StarsFlightPlanDeletedIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  DELETED documentation Deleted
annotation	documentation Indicates if a flight plan and associated data are deleted.
source	<xs:element name="starsFlightPlanDeletedIndicator" type="nas:StarsFlightPlanDeletedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if a flight plan and associated data are deleted.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightPlanType/starsFlightPlanStatus

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:StarsFlightPlanStatusType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  PENDING documentation Pending enumeration  ACTIVE documentation Active enumeration  TERMINATED documentation Terminated enumeration  PASSIVE documentation Passive
annotation	documentation Flight Plan Status: Pending, Active, Terminated, Passive.
source	<xs:element name="starsFlightPlanStatus" type="nas:StarsFlightPlanStatusType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Flight Plan Status: Pending, Active, Terminated, Passive.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightPlanType/starsFlightPlanSuspendedIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:StarsFlightPlanSuspendedIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  SUSPENDED documentation Suspended
annotation	documentation Flight plan suspended.
source	<xs:element name="starsFlightPlanSuspendedIndicator" type="nas:StarsFlightPlanSuspendedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Flight plan suspended.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightPlanType/tfdmIdOfFlightPlanUsedForSurfaceManagement

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:UniversallyUniqueIdentifierType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-4[a-fA-F0-9]{3}-[89abAB][a-fA-F0-9]{3}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   Annotation codeSpace   xs:string   required      urn:uuid   documentation Code Space of the UUID
annotation	documentation Presence of this element indicates that TFDM Surface Management does not consider this flight plan as the primary plan for the flight.  TFDM Surface Management considers this flight plan to be a duplicate of another flight plan, where the other flight plan is considered the primary plan for the flight.  This field provides the tfdmId of the flight plan that is primary.
source	<xs:element name="tfdmIdOfFlightPlanUsedForSurfaceManagement" type="fb:UniversallyUniqueIdentifierType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Presence of this element indicates that TFDM Surface Management does not consider this flight plan as the primary plan for the flight.  TFDM Surface Management considers this flight plan to be a duplicate of another flight plan, where the other flight plan is considered the primary plan for the flight.  This field provides the tfdmId of the flight plan that is primary.</xs:documentation>   </xs:annotation> </xs:element>
