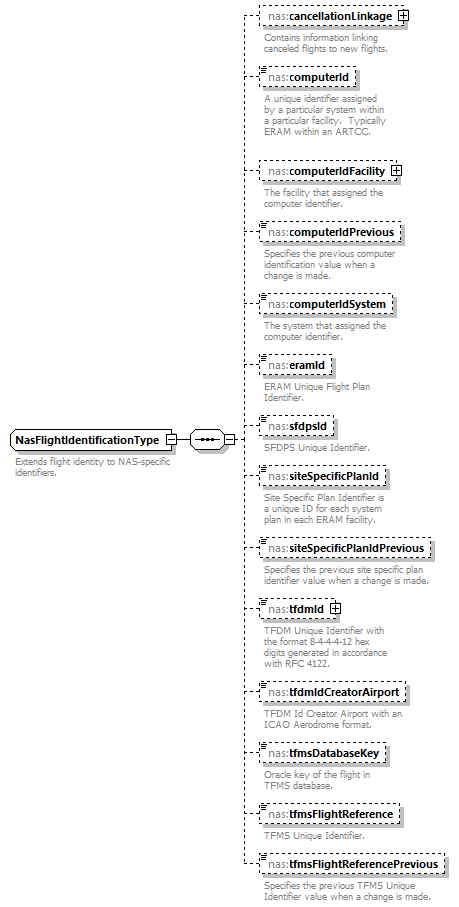

complexType NasFlightIdentificationType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:FlightIdentificationExtensionType
properties	base  fb:FlightIdentificationExtensionType
children	nas:cancellationLinkage nas:computerId nas:computerIdFacility nas:computerIdPrevious nas:computerIdSystem nas:eramId nas:sfdpsId nas:siteSpecificPlanId nas:siteSpecificPlanIdPrevious nas:tfdmId nas:tfdmIdCreatorAirport nas:tfmsDatabaseKey nas:tfmsFlightReference nas:tfmsFlightReferencePrevious
annotation	documentation Extends flight identity to NAS-specific identifiers.
source	<xs:complexType name="NasFlightIdentificationType">   <xs:annotation>     <xs:documentation>Extends flight identity to NAS-specific identifiers.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:FlightIdentificationExtensionType">       <xs:sequence>         <xs:element name="cancellationLinkage" type="nas:NasFlightCancellationLinkageType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Contains information linking canceled flights to new flights.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="computerId" type="nas:ComputerIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>A unique identifier assigned by a particular system within a particular facility.  Typically ERAM within an ARTCC.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="computerIdFacility" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The facility that assigned the computer identifier.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="computerIdPrevious" type="nas:ComputerIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Specifies the previous computer identification value when a change is made.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="computerIdSystem" type="nas:ComputerIdSystemType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The system that assigned the computer identifier.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="eramId" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>ERAM Unique Flight Plan Identifier.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="sfdpsId" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>SFDPS Unique Identifier.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="siteSpecificPlanId" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Site Specific Plan Identifier is a unique ID for each system plan in each ERAM facility.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="siteSpecificPlanIdPrevious" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Specifies the previous site specific plan identifier value when a change is made.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfdmId" type="fb:UniversallyUniqueIdentifierType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>TFDM Unique Identifier with the format 8-4-4-4-12 hex digits generated in accordance with RFC 4122.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfdmIdCreatorAirport" type="fb:LocationIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>TFDM Id Creator Airport with an ICAO Aerodrome format.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfmsDatabaseKey" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Oracle key of the flight in TFMS database.  </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfmsFlightReference" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>TFMS Unique Identifier.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfmsFlightReferencePrevious" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Specifies the previous TFMS Unique Identifier value when a change is made.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

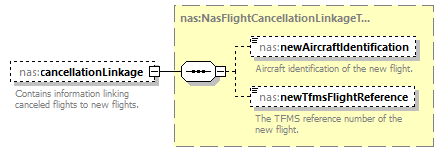

element NasFlightIdentificationType/cancellationLinkage

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasFlightCancellationLinkageType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:newAircraftIdentification nas:newTfmsFlightReference
annotation	documentation Contains information linking canceled flights to new flights.
source	<xs:element name="cancellationLinkage" type="nas:NasFlightCancellationLinkageType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Contains information linking canceled flights to new flights.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/computerId

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ComputerIdentificationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z0-9]{3}
annotation	documentation A unique identifier assigned by a particular system within a particular facility.  Typically ERAM within an ARTCC.
source	<xs:element name="computerId" type="nas:ComputerIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>A unique identifier assigned by a particular system within a particular facility.  Typically ERAM within an ARTCC.</xs:documentation>   </xs:annotation> </xs:element>

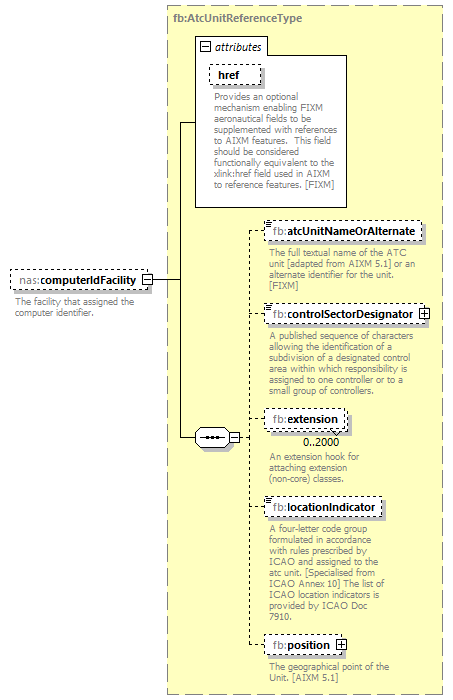

element NasFlightIdentificationType/computerIdFacility

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The facility that assigned the computer identifier.
source	<xs:element name="computerIdFacility" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The facility that assigned the computer identifier.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/computerIdPrevious

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ComputerIdentificationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z0-9]{3}
annotation	documentation Specifies the previous computer identification value when a change is made.
source	<xs:element name="computerIdPrevious" type="nas:ComputerIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Specifies the previous computer identification value when a change is made.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/computerIdSystem

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ComputerIdSystemType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  TFMS documentation Traffic Flow Management System enumeration  HCS documentation Host Computer System enumeration  CTAS documentation Center TRACON Automation System enumeration  TBFM documentation Time Based Flow Management enumeration  ETMS documentation Enhanced Traffic Management System enumeration  ERAM documentation En Route Automation Modernization enumeration  STDDS documentation SWIM Terminal Data Distribution System enumeration  ODAPS documentation Oceanic Display and Planning System enumeration  OTHER documentation Other System
annotation	documentation The system that assigned the computer identifier.
source	<xs:element name="computerIdSystem" type="nas:ComputerIdSystemType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The system that assigned the computer identifier.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/eramId

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation ERAM Unique Flight Plan Identifier.
source	<xs:element name="eramId" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>ERAM Unique Flight Plan Identifier.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/sfdpsId

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation SFDPS Unique Identifier.
source	<xs:element name="sfdpsId" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>SFDPS Unique Identifier.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/siteSpecificPlanId

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Site Specific Plan Identifier is a unique ID for each system plan in each ERAM facility.
source	<xs:element name="siteSpecificPlanId" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Site Specific Plan Identifier is a unique ID for each system plan in each ERAM facility.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/siteSpecificPlanIdPrevious

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Specifies the previous site specific plan identifier value when a change is made.
source	<xs:element name="siteSpecificPlanIdPrevious" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Specifies the previous site specific plan identifier value when a change is made.</xs:documentation>   </xs:annotation> </xs:element>

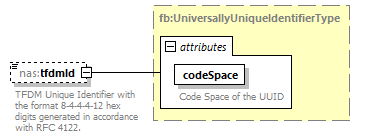

element NasFlightIdentificationType/tfdmId

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:UniversallyUniqueIdentifierType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-4[a-fA-F0-9]{3}-[89abAB][a-fA-F0-9]{3}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   Annotation codeSpace   xs:string   required      urn:uuid   documentation Code Space of the UUID
annotation	documentation TFDM Unique Identifier with the format 8-4-4-4-12 hex digits generated in accordance with RFC 4122.
source	<xs:element name="tfdmId" type="fb:UniversallyUniqueIdentifierType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>TFDM Unique Identifier with the format 8-4-4-4-12 hex digits generated in accordance with RFC 4122.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/tfdmIdCreatorAirport

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:LocationIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z]{4}
annotation	documentation TFDM Id Creator Airport with an ICAO Aerodrome format.
source	<xs:element name="tfdmIdCreatorAirport" type="fb:LocationIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>TFDM Id Creator Airport with an ICAO Aerodrome format.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/tfmsDatabaseKey

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Oracle key of the flight in TFMS database.
source	<xs:element name="tfmsDatabaseKey" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Oracle key of the flight in TFMS database.  </xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/tfmsFlightReference

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation TFMS Unique Identifier.
source	<xs:element name="tfmsFlightReference" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>TFMS Unique Identifier.</xs:documentation>   </xs:annotation> </xs:element>

element NasFlightIdentificationType/tfmsFlightReferencePrevious

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Specifies the previous TFMS Unique Identifier value when a change is made.
source	<xs:element name="tfmsFlightReferencePrevious" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Specifies the previous TFMS Unique Identifier value when a change is made.</xs:documentation>   </xs:annotation> </xs:element>
