complexType NasEramRouteAmendmentType
diagram Nas_diagrams/Nas_p382.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:amendment nas:detailOne nas:detailTwo nas:eramStatus nas:generatedType nas:messageId nas:requestType nas:site nas:statusUpdateTime nas:tmiIdentifierSuffix nas:workstation
used by
element NasRouteInformationType/lastRouteAmendment
annotation
documentation
Container for details of the flights last ERAM amendment request.
source <xs:complexType name="NasEramRouteAmendmentType">
  <xs:annotation>
    <xs:documentation>Container for details of the flights last ERAM amendment request.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="amendment" type="nas:NasRouteAmendmentType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Amendment details.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detailOne" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Detail One for the route amendment.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detailTwo" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Detail Two for the route amendment.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eramStatus" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>ERAM status.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="generatedType" type="nas:AmendmentGeneratedTypeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Provides an Amendment type enumerated list.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="messageId" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Message Identifier.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="requestType" type="nas:AmendmentRequestTypeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The type of amendment request.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="site" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Site.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="statusUpdateTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Amendment status update time specification.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tmiIdentifierSuffix" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Traffic Management Initiative identifier suffix for the amendment.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="workstation" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Workstation.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

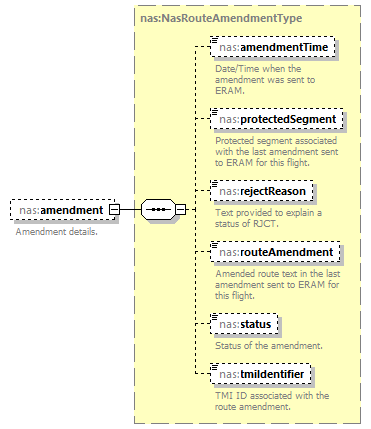

element NasEramRouteAmendmentType/amendment
diagram Nas_diagrams/Nas_p383.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:NasRouteAmendmentType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:amendmentTime nas:protectedSegment nas:rejectReason nas:routeAmendment nas:status nas:tmiIdentifier
annotation
documentation
Amendment details.
source <xs:element name="amendment" type="nas:NasRouteAmendmentType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Amendment details.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/detailOne
diagram Nas_diagrams/Nas_p384.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Detail One for the route amendment.
source <xs:element name="detailOne" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Detail One for the route amendment.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/detailTwo
diagram Nas_diagrams/Nas_p385.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Detail Two for the route amendment.
source <xs:element name="detailTwo" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Detail Two for the route amendment.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/eramStatus
diagram Nas_diagrams/Nas_p386.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
ERAM status.
source <xs:element name="eramStatus" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>ERAM status.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/generatedType
diagram Nas_diagrams/Nas_p387.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:AmendmentGeneratedTypeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration MANUAL
documentation
Manual
enumeration AUTO
documentation
Auto
enumeration AUTO_CHNG_RTE
documentation
Auto Change Route
annotation
documentation
Provides an Amendment type enumerated list.
source <xs:element name="generatedType" type="nas:AmendmentGeneratedTypeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Provides an Amendment type enumerated list.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/messageId
diagram Nas_diagrams/Nas_p388.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Message Identifier.
source <xs:element name="messageId" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Message Identifier.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/requestType
diagram Nas_diagrams/Nas_p389.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:AmendmentRequestTypeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration CANCEL
documentation
Cancel
enumeration UPDATE
documentation
Update
annotation
documentation
The type of amendment request.
source <xs:element name="requestType" type="nas:AmendmentRequestTypeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The type of amendment request.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/site
diagram Nas_diagrams/Nas_p390.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Site.
source <xs:element name="site" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Site.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/statusUpdateTime
diagram Nas_diagrams/Nas_p391.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
Amendment status update time specification.
source <xs:element name="statusUpdateTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Amendment status update time specification.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/tmiIdentifierSuffix
diagram Nas_diagrams/Nas_p392.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CountType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minInclusive 0
annotation
documentation
Traffic Management Initiative identifier suffix for the amendment.
source <xs:element name="tmiIdentifierSuffix" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Traffic Management Initiative identifier suffix for the amendment.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEramRouteAmendmentType/workstation
diagram Nas_diagrams/Nas_p393.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Workstation.
source <xs:element name="workstation" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Workstation.</xs:documentation>
  </xs:annotation>
</xs:element>
