complexType NasCoordinationType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:coordinationFix nas:coordinationTime nas:coordinationTimeHandling nas:delayTimeToAbsorb
used by	element  NasFlightType/coordination
annotation	documentation NAS extension to boundary crossing information: includes special handling for coordination time type.
source	<xs:complexType name="NasCoordinationType">   <xs:annotation>     <xs:documentation>NAS extension to boundary crossing information: includes special handling for coordination time type.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="coordinationFix" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The fix to be used in conjunction with the Coordination Time so processing for this flight (and its trajectory) can be synchronized for the next sector/facility.  It   coordinates   the flight plan with the aircraft position.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="coordinationTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The time to be used in conjunction with the Coordination Fix so processing for this flight (and its trajectory) can be synchronized for the next sector/facility.  It   coordinates   the flight plan with the aircraft position.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="coordinationTimeHandling" type="nas:CoordinationTimeTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The indicator for the type of Coordination Time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="delayTimeToAbsorb" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates the amount of time that needs to be absorbed during the flight. It is corrective action for meeting the goal of Estimated Departure Clearance Time (EDCT), when flight is already active and needs to arrive at the destination later than originally planned.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasCoordinationType/coordinationFix

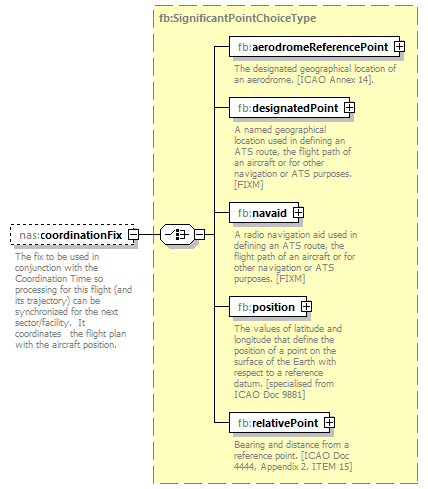

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:SignificantPointChoiceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation	documentation The fix to be used in conjunction with the Coordination Time so processing for this flight (and its trajectory) can be synchronized for the next sector/facility.  It   coordinates   the flight plan with the aircraft position.
source	<xs:element name="coordinationFix" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The fix to be used in conjunction with the Coordination Time so processing for this flight (and its trajectory) can be synchronized for the next sector/facility.  It   coordinates   the flight plan with the aircraft position.</xs:documentation>   </xs:annotation> </xs:element>

element NasCoordinationType/coordinationTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The time to be used in conjunction with the Coordination Fix so processing for this flight (and its trajectory) can be synchronized for the next sector/facility.  It   coordinates   the flight plan with the aircraft position.
source	<xs:element name="coordinationTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The time to be used in conjunction with the Coordination Fix so processing for this flight (and its trajectory) can be synchronized for the next sector/facility.  It   coordinates   the flight plan with the aircraft position.</xs:documentation>   </xs:annotation> </xs:element>

element NasCoordinationType/coordinationTimeHandling

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:CoordinationTimeTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  P documentation Proposed flight plan preparing for departure enumeration  D documentation Flight plan has departed from the departure airport enumeration  E documentation Active flight plan, aircraft is flying.
annotation	documentation The indicator for the type of Coordination Time.
source	<xs:element name="coordinationTimeHandling" type="nas:CoordinationTimeTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The indicator for the type of Coordination Time.</xs:documentation>   </xs:annotation> </xs:element>

element NasCoordinationType/delayTimeToAbsorb

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Indicates the amount of time that needs to be absorbed during the flight. It is corrective action for meeting the goal of Estimated Departure Clearance Time (EDCT), when flight is already active and needs to arrive at the destination later than originally planned.
source	<xs:element name="delayTimeToAbsorb" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates the amount of time that needs to be absorbed during the flight. It is corrective action for meeting the goal of Estimated Departure Clearance Time (EDCT), when flight is already active and needs to arrive at the destination later than originally planned.</xs:documentation>   </xs:annotation> </xs:element>
