complexType NasAssignedRouteType

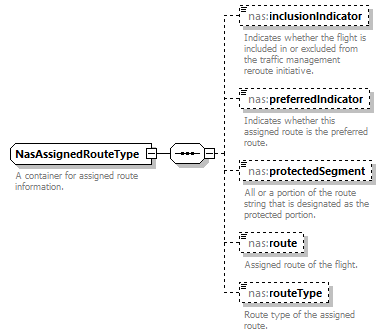

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:inclusionIndicator nas:preferredIndicator nas:protectedSegment nas:route nas:routeType
used by	element  NasRerouteType/assignedRoute
annotation	documentation A container for assigned route information.
source	<xs:complexType name="NasAssignedRouteType">   <xs:annotation>     <xs:documentation>A container for assigned route information.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="inclusionIndicator" type="nas:RerouteInclusionIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates whether the flight is included in or excluded from the traffic management reroute initiative.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="preferredIndicator" type="nas:PreferredRouteIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates whether this assigned route is the preferred route.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="protectedSegment" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>All or a portion of the route string that is designated as the protected portion.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="route" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Assigned route of the flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="routeType" type="nas:NasRouteTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Route type of the assigned route.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasAssignedRouteType/inclusionIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:RerouteInclusionIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  INCLUDED documentation Indicates that the flight is included or proposed to be included in the traffic management reroute initiative. enumeration  NOT_INCLUDED documentation Indicates that the flight is not included or not proposed to be included in the traffic management reroute initiative.
annotation	documentation Indicates whether the flight is included in or excluded from the traffic management reroute initiative.
source	<xs:element name="inclusionIndicator" type="nas:RerouteInclusionIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether the flight is included in or excluded from the traffic management reroute initiative.</xs:documentation>   </xs:annotation> </xs:element>

element NasAssignedRouteType/preferredIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:PreferredRouteIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  PREFERRED documentation Indicates the route is the preferred route.
annotation	documentation Indicates whether this assigned route is the preferred route.
source	<xs:element name="preferredIndicator" type="nas:PreferredRouteIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether this assigned route is the preferred route.</xs:documentation>   </xs:annotation> </xs:element>

element NasAssignedRouteType/protectedSegment

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation All or a portion of the route string that is designated as the protected portion.
source	<xs:element name="protectedSegment" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>All or a portion of the route string that is designated as the protected portion.</xs:documentation>   </xs:annotation> </xs:element>

element NasAssignedRouteType/route

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Assigned route of the flight.
source	<xs:element name="route" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Assigned route of the flight.</xs:documentation>   </xs:annotation> </xs:element>

element NasAssignedRouteType/routeType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasRouteTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  NONE documentation blank entry (for EXPLICIT selection) enumeration  CDR_RTE documentation Coded Departure Route (retrieved from the CDR db) enumeration  RERTE documentation Reroute (manually updated reroute) enumeration  UNKN_RTE documentation Unknown Route enumeration  UPT_RTE documentation User Preferred Trajectory Route (user submitted early intent route)
annotation	documentation Route type of the assigned route.
source	<xs:element name="routeType" type="nas:NasRouteTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Route type of the assigned route.</xs:documentation>   </xs:annotation> </xs:element>
