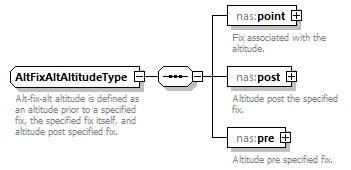

complexType AltFixAltAltitudeType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:point nas:post nas:pre
used by	element  NasLevelChoiceType/altFixAlt
annotation	documentation Alt-fix-alt altitude is defined as an altitude prior to a specified fix, the specified fix itself, and altitude post specified fix.
source	<xs:complexType name="AltFixAltAltitudeType">   <xs:annotation>     <xs:documentation>Alt-fix-alt altitude is defined as an altitude prior to a specified fix, the specified fix itself, and altitude post specified fix.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="point" type="fb:SignificantPointChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Fix associated with the altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="post" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Altitude post the specified fix.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="pre" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Altitude pre specified fix.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

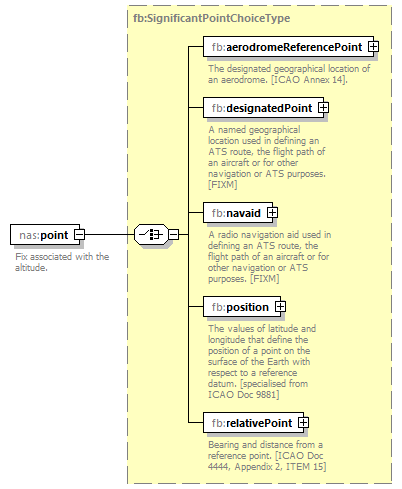

element AltFixAltAltitudeType/point

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:SignificantPointChoiceType
properties	content  complex
children	fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation	documentation Fix associated with the altitude.
source	<xs:element name="point" type="fb:SignificantPointChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Fix associated with the altitude.</xs:documentation>   </xs:annotation> </xs:element>

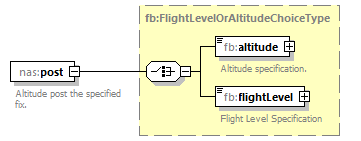

element AltFixAltAltitudeType/post

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:FlightLevelOrAltitudeChoiceType
properties	content  complex
children	fb:altitude fb:flightLevel
annotation	documentation Altitude post the specified fix.
source	<xs:element name="post" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Altitude post the specified fix.</xs:documentation>   </xs:annotation> </xs:element>

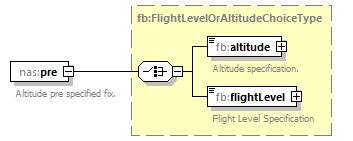

element AltFixAltAltitudeType/pre

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:FlightLevelOrAltitudeChoiceType
properties	content  complex
children	fb:altitude fb:flightLevel
annotation	documentation Altitude pre specified fix.
source	<xs:element name="pre" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Altitude pre specified fix.</xs:documentation>   </xs:annotation> </xs:element>
