This package contains combinations and choices comprised of various measure elements.
[FIXM]
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

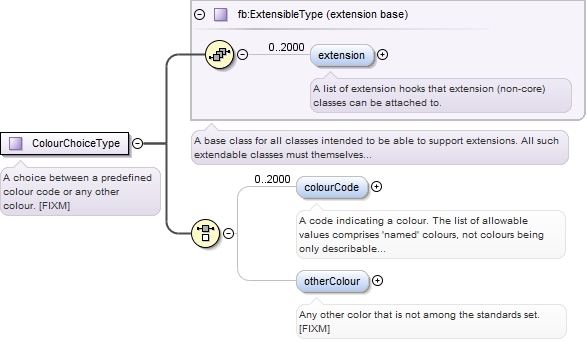

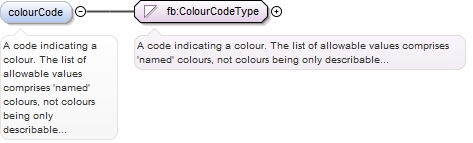

Element fb:ColourChoiceType / fb:colourCode
Namespace http://www.fixm.aero/base/4.1
Annotations

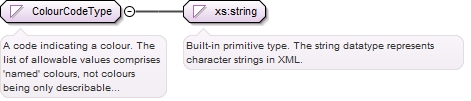

A code indicating a colour. The list of allowable values comprises 'named' colours,
not colours being only describable using the RGB or the CYMK or another colour system
combination. [AIXM 5.1]
Diagram
Diagram RangesAndChoices_xsd.tmp#ColourCodeType
Type fb:ColourCodeType
Properties
content: simple
minOccurs: 0
maxOccurs: 2000
Facets
enumeration RED
enumeration ORANGE
enumeration YELLOW
A code indicating a colour. The list of allowable values comprises 'named' colours,
not colours being only describable using the RGB or the CYMK or another colour system
combination. [AIXM 5.1]
enumeration GREEN
enumeration BLUE
enumeration VIOLET
enumeration BLACK
enumeration WHITE
enumeration GRAY
enumeration SILVER
Source

<element name="colourCode" type="fb:ColourCodeType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>A code indicating a colour. The list of allowable values comprises 'named' colours, not colours being only describable using the RGB or the CYMK or another colour system combination. [AIXM 5.1]</documentation>
  </annotation>
</element>
Element fb:ColourChoiceType / fb:otherColour
Namespace http://www.fixm.aero/base/4.1
Annotations

Any other color that is not among the standards set. [FIXM]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type fb:CharacterStringType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
minLength 0
maxLength 4096
Source

<element name="otherColour" type="fb:CharacterStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Any other color that is not among the standards set. [FIXM]</documentation>
  </annotation>
</element>

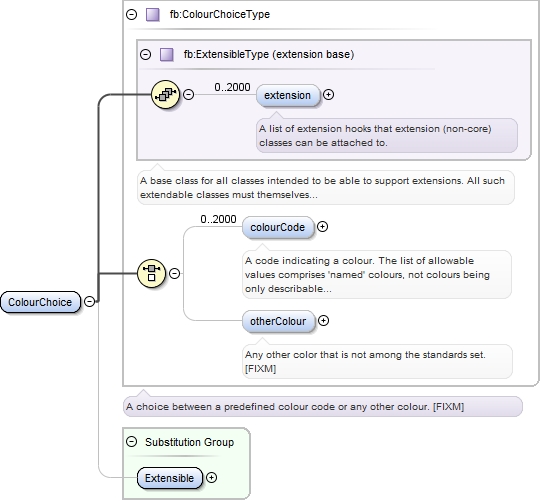

Element fb:ColourChoice
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#ColourChoiceType_colourCode RangesAndChoices_xsd.tmp#ColourChoiceType_otherColour RangesAndChoices_xsd.tmp#ColourChoiceType Extension_xsd.tmp#Extensible
Type fb:ColourChoiceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , (fb:colourCode{0,2000} | fb:otherColour{0,1})
Children fb:colourCode, fb:extension, fb:otherColour
Instance

<fb:ColourChoice>
  <fb:extension>{0,2000}</fb:extension>
  <fb:colourCode>{0,2000}</fb:colourCode>
  <fb:otherColour>{0,1}</fb:otherColour>
</fb:ColourChoice>
Source

<element name="ColourChoice" type="fb:ColourChoiceType" substitutionGroup="fb:Extensible"/>

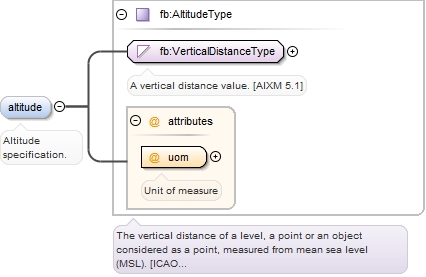

Element fb:FlightLevelOrAltitudeType / fb:altitude
Namespace http://www.fixm.aero/base/4.1
Annotations

Altitude specification.
Diagram
Diagram Measures_xsd.tmp#VerticalDistanceType Measures_xsd.tmp#AltitudeType_uom Measures_xsd.tmp#AltitudeType
Type fb:AltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomAltitudeType required
Unit of measure
Source

<element name="altitude" type="fb:AltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Altitude specification.</documentation>
  </annotation>
</element>
Element fb:FlightLevelOrAltitudeType / fb:flightLevel
Namespace http://www.fixm.aero/base/4.1
Annotations

Flight Level Specification
Diagram
Diagram Measures_xsd.tmp#VerticalDistanceType Measures_xsd.tmp#FlightLevelType_uom Measures_xsd.tmp#FlightLevelType
Type fb:FlightLevelType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomFlightLevelType required
Unit of measure
Source

<element name="flightLevel" type="fb:FlightLevelType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Flight Level Specification</documentation>
  </annotation>
</element>

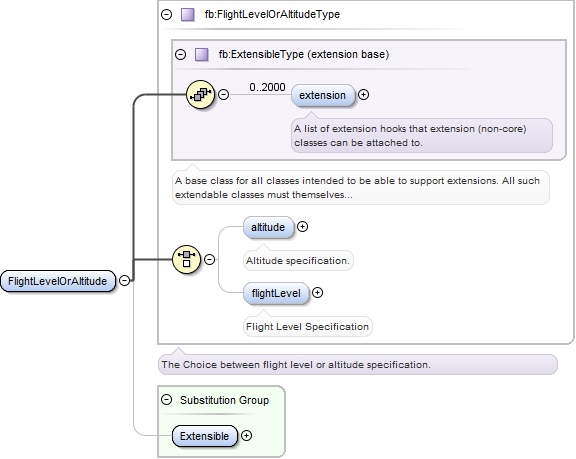

Element fb:FlightLevelOrAltitude
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_altitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_flightLevel RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType Extension_xsd.tmp#Extensible
Type fb:FlightLevelOrAltitudeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , (fb:altitude{0,1} | fb:flightLevel{0,1})
Children fb:altitude, fb:extension, fb:flightLevel
Instance

<fb:FlightLevelOrAltitude>
  <fb:extension>{0,2000}</fb:extension>
  <fb:altitude uom="">{0,1}</fb:altitude>
  <fb:flightLevel uom="">{0,1}</fb:flightLevel>
</fb:FlightLevelOrAltitude>
Source

<element name="FlightLevelOrAltitude" type="fb:FlightLevelOrAltitudeType" substitutionGroup="fb:Extensible"/>

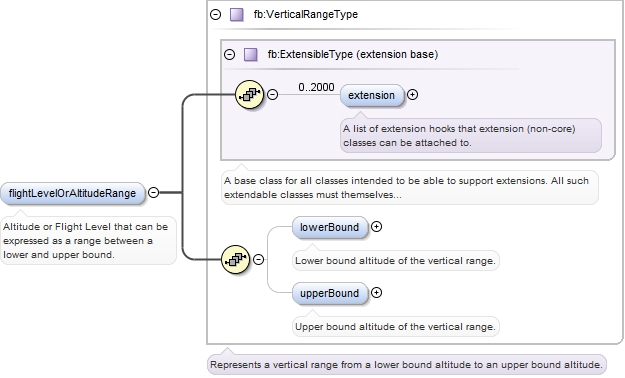

Element fb:FlightLevelOrAltitudeChoiceType / fb:flightLevelOrAltitudeRange
Namespace http://www.fixm.aero/base/4.1
Annotations

Altitude or Flight Level that can be expressed as a range between a lower and upper
bound.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#VerticalRangeType_lowerBound RangesAndChoices_xsd.tmp#VerticalRangeType_upperBound RangesAndChoices_xsd.tmp#VerticalRangeType
Type fb:VerticalRangeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:lowerBound{0,1} , fb:upperBound{0,1}
Children fb:extension, fb:lowerBound, fb:upperBound
Instance

<fb:flightLevelOrAltitudeRange>
  <fb:extension>{0,2000}</fb:extension>
  <fb:lowerBound>{0,1}</fb:lowerBound>
  <fb:upperBound>{0,1}</fb:upperBound>
</fb:flightLevelOrAltitudeRange>
Source

<element name="flightLevelOrAltitudeRange" type="fb:VerticalRangeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Altitude or Flight Level that can be expressed as a range between a lower and upper bound.</documentation>
  </annotation>
</element>

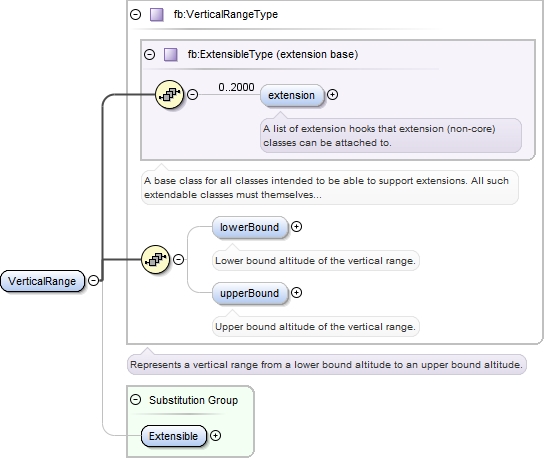

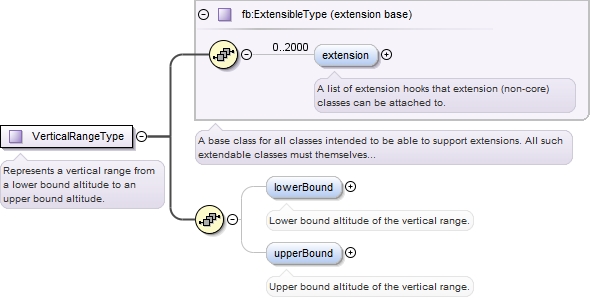

Element fb:VerticalRangeType / fb:lowerBound
Namespace http://www.fixm.aero/base/4.1
Annotations

Lower bound altitude of the vertical range.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_altitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_flightLevel RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType
Type fb:FlightLevelOrAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , (fb:altitude{0,1} | fb:flightLevel{0,1})
Children fb:altitude, fb:extension, fb:flightLevel
Instance

<fb:lowerBound>
  <fb:extension>{0,2000}</fb:extension>
  <fb:altitude uom="">{0,1}</fb:altitude>
  <fb:flightLevel uom="">{0,1}</fb:flightLevel>
</fb:lowerBound>
Source

<element name="lowerBound" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Lower bound altitude of the vertical range.</documentation>
  </annotation>
</element>

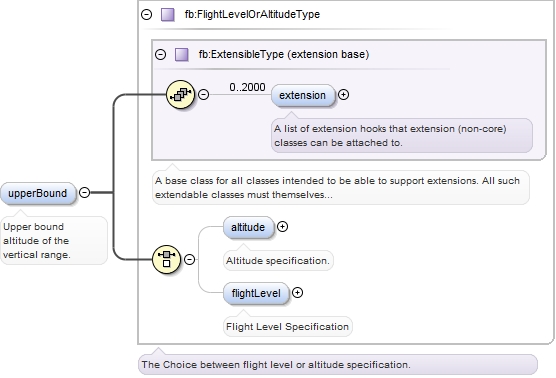

Element fb:VerticalRangeType / fb:upperBound
Namespace http://www.fixm.aero/base/4.1
Annotations

Upper bound altitude of the vertical range.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_altitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_flightLevel RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType
Type fb:FlightLevelOrAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , (fb:altitude{0,1} | fb:flightLevel{0,1})
Children fb:altitude, fb:extension, fb:flightLevel
Instance

<fb:upperBound>
  <fb:extension>{0,2000}</fb:extension>
  <fb:altitude uom="">{0,1}</fb:altitude>
  <fb:flightLevel uom="">{0,1}</fb:flightLevel>
</fb:upperBound>
Source

<element name="upperBound" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Upper bound altitude of the vertical range.</documentation>
  </annotation>
</element>

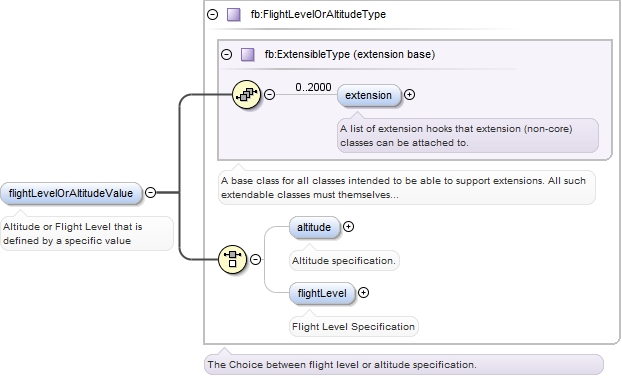

Element fb:FlightLevelOrAltitudeChoiceType / fb:flightLevelOrAltitudeValue
Namespace http://www.fixm.aero/base/4.1
Annotations

Altitude or Flight Level that is defined by a specific value
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_altitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_flightLevel RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType
Type fb:FlightLevelOrAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , (fb:altitude{0,1} | fb:flightLevel{0,1})
Children fb:altitude, fb:extension, fb:flightLevel
Instance

<fb:flightLevelOrAltitudeValue>
  <fb:extension>{0,2000}</fb:extension>
  <fb:altitude uom="">{0,1}</fb:altitude>
  <fb:flightLevel uom="">{0,1}</fb:flightLevel>
</fb:flightLevelOrAltitudeValue>
Source

<element name="flightLevelOrAltitudeValue" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Altitude or Flight Level that is defined by a specific value</documentation>
  </annotation>
</element>

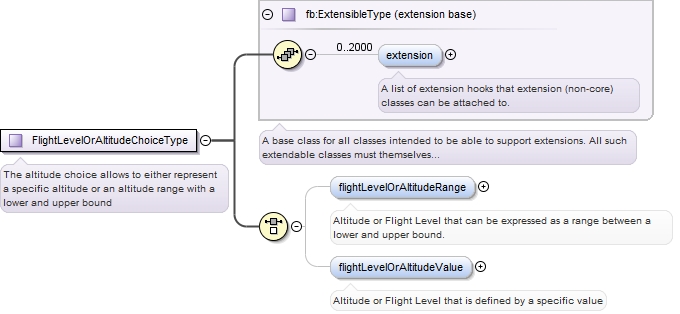

Element fb:FlightLevelOrAltitudeChoice
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType_flightLevelOrAltitudeRange RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType_flightLevelOrAltitudeValue RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType Extension_xsd.tmp#Extensible
Type fb:FlightLevelOrAltitudeChoiceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , (fb:flightLevelOrAltitudeRange{0,1} | fb:flightLevelOrAltitudeValue{0,1})
Children fb:extension, fb:flightLevelOrAltitudeRange, fb:flightLevelOrAltitudeValue
Instance

<fb:FlightLevelOrAltitudeChoice>
  <fb:extension>{0,2000}</fb:extension>
  <fb:flightLevelOrAltitudeRange>{0,1}</fb:flightLevelOrAltitudeRange>
  <fb:flightLevelOrAltitudeValue>{0,1}</fb:flightLevelOrAltitudeValue>
</fb:FlightLevelOrAltitudeChoice>
Source

<element name="FlightLevelOrAltitudeChoice" type="fb:FlightLevelOrAltitudeChoiceType" substitutionGroup="fb:Extensible"/>

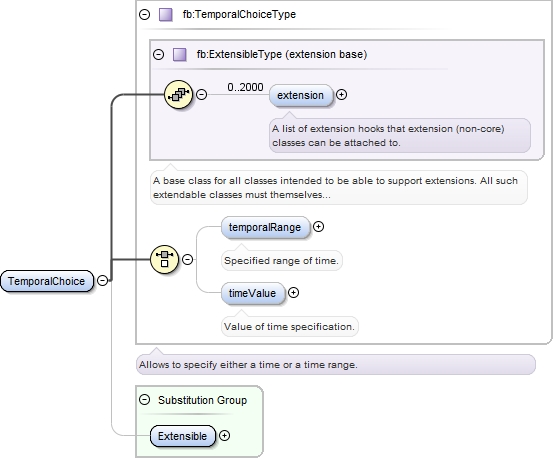

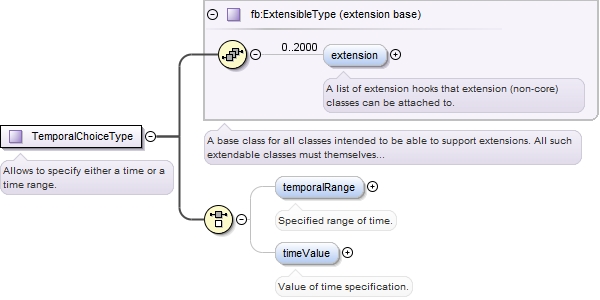

Element fb:TemporalChoiceType / fb:temporalRange
Namespace http://www.fixm.aero/base/4.1
Annotations

Specified range of time.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TemporalRangeType_earliest RangesAndChoices_xsd.tmp#TemporalRangeType_latest RangesAndChoices_xsd.tmp#TemporalRangeType
Type fb:TemporalRangeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:temporalRange earliest="" latest="">
  <fb:extension>{0,2000}</fb:extension>
</fb:temporalRange>
Attributes
QName Type Fixed Default Use Annotation
earliest fb:TimeType optional
lower bound of the temporal range.
latest fb:TimeType optional
Upper bound of the temporal range.
Source

<element name="temporalRange" type="fb:TemporalRangeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Specified range of time.</documentation>
  </annotation>
</element>
Element fb:TemporalChoiceType / fb:timeValue
Namespace http://www.fixm.aero/base/4.1
Annotations

Value of time specification.
Diagram
Diagram Types_xsd.tmp#TimeType
Type fb:TimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Source

<element name="timeValue" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Value of time specification.</documentation>
  </annotation>
</element>
Element fb:TemporalChoice
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TemporalChoiceType_temporalRange RangesAndChoices_xsd.tmp#TemporalChoiceType_timeValue RangesAndChoices_xsd.tmp#TemporalChoiceType Extension_xsd.tmp#Extensible
Type fb:TemporalChoiceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , (fb:temporalRange{0,1} | fb:timeValue{0,1})
Children fb:extension, fb:temporalRange, fb:timeValue
Instance

<fb:TemporalChoice>
  <fb:extension>{0,2000}</fb:extension>
  <fb:temporalRange earliest="" latest="">{0,1}</fb:temporalRange>
  <fb:timeValue>{0,1}</fb:timeValue>
</fb:TemporalChoice>
Source

<element name="TemporalChoice" type="fb:TemporalChoiceType" substitutionGroup="fb:Extensible"/>

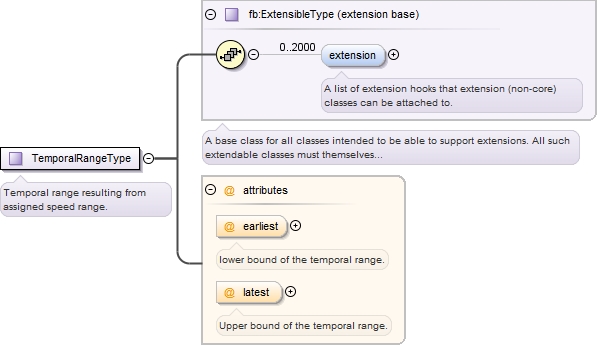

Element fb:TemporalRange
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TemporalRangeType_earliest RangesAndChoices_xsd.tmp#TemporalRangeType_latest RangesAndChoices_xsd.tmp#TemporalRangeType Extension_xsd.tmp#Extensible
Type fb:TemporalRangeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:TemporalRange earliest="" latest="">
  <fb:extension>{0,2000}</fb:extension>
</fb:TemporalRange>
Attributes
QName Type Fixed Default Use Annotation
earliest fb:TimeType optional
lower bound of the temporal range.
latest fb:TimeType optional
Upper bound of the temporal range.
Source

<element name="TemporalRange" type="fb:TemporalRangeType" substitutionGroup="fb:Extensible"/>

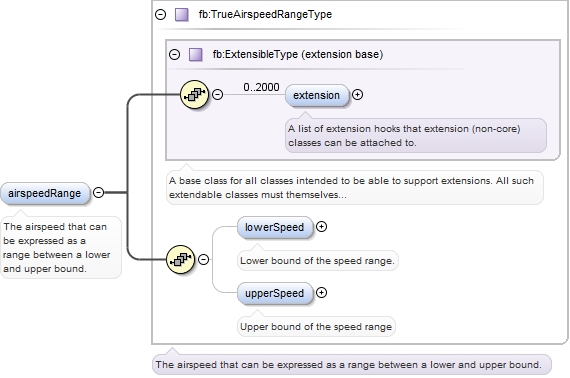

Element fb:TrueAirspeedChoiceType / fb:airspeedRange
Namespace http://www.fixm.aero/base/4.1
Annotations

The airspeed that can be expressed as a range between a lower and upper bound.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TrueAirspeedRangeType_lowerSpeed RangesAndChoices_xsd.tmp#TrueAirspeedRangeType_upperSpeed RangesAndChoices_xsd.tmp#TrueAirspeedRangeType
Type fb:TrueAirspeedRangeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:lowerSpeed{0,1} , fb:upperSpeed{0,1}
Children fb:extension, fb:lowerSpeed, fb:upperSpeed
Instance

<fb:airspeedRange>
  <fb:extension>{0,2000}</fb:extension>
  <fb:lowerSpeed uom="">{0,1}</fb:lowerSpeed>
  <fb:upperSpeed uom="">{0,1}</fb:upperSpeed>
</fb:airspeedRange>
Source

<element name="airspeedRange" type="fb:TrueAirspeedRangeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The airspeed that can be expressed as a range between a lower and upper bound.</documentation>
  </annotation>
</element>

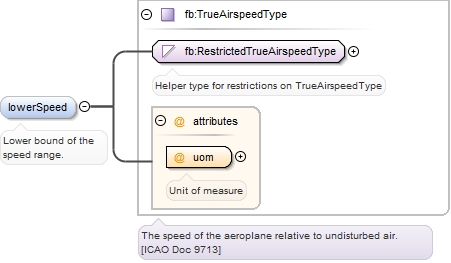

Element fb:TrueAirspeedRangeType / fb:lowerSpeed
Namespace http://www.fixm.aero/base/4.1
Annotations

Lower bound of the speed range.
Diagram
Diagram Measures_xsd.tmp#RestrictedTrueAirspeedType Measures_xsd.tmp#TrueAirspeedType_uom Measures_xsd.tmp#TrueAirspeedType
Type fb:TrueAirspeedType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomAirspeedType required
Unit of measure
Source

<element name="lowerSpeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Lower bound of the speed range.</documentation>
  </annotation>
</element>
Element fb:TrueAirspeedRangeType / fb:upperSpeed
Namespace http://www.fixm.aero/base/4.1
Annotations

Upper bound of the speed range
Diagram
Diagram Measures_xsd.tmp#RestrictedTrueAirspeedType Measures_xsd.tmp#TrueAirspeedType_uom Measures_xsd.tmp#TrueAirspeedType
Type fb:TrueAirspeedType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomAirspeedType required
Unit of measure
Source

<element name="upperSpeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Upper bound of the speed range</documentation>
  </annotation>
</element>

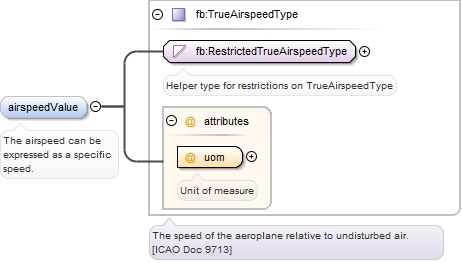

Element fb:TrueAirspeedChoiceType / fb:airspeedValue
Namespace http://www.fixm.aero/base/4.1
Annotations

The airspeed can be expressed as a specific speed.
Diagram
Diagram Measures_xsd.tmp#RestrictedTrueAirspeedType Measures_xsd.tmp#TrueAirspeedType_uom Measures_xsd.tmp#TrueAirspeedType
Type fb:TrueAirspeedType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomAirspeedType required
Unit of measure
Source

<element name="airspeedValue" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The airspeed can be expressed as a specific speed.</documentation>
  </annotation>
</element>

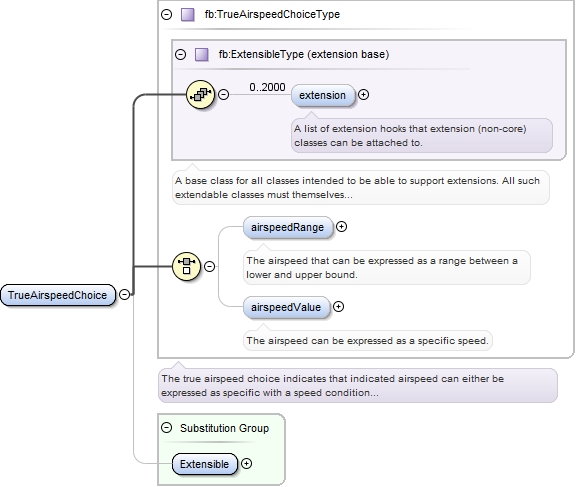

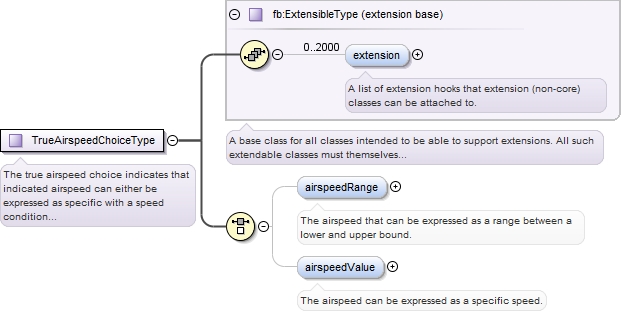

Element fb:TrueAirspeedChoice
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TrueAirspeedChoiceType_airspeedRange RangesAndChoices_xsd.tmp#TrueAirspeedChoiceType_airspeedValue RangesAndChoices_xsd.tmp#TrueAirspeedChoiceType Extension_xsd.tmp#Extensible
Type fb:TrueAirspeedChoiceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , (fb:airspeedRange{0,1} | fb:airspeedValue{0,1})
Children fb:airspeedRange, fb:airspeedValue, fb:extension
Instance

<fb:TrueAirspeedChoice>
  <fb:extension>{0,2000}</fb:extension>
  <fb:airspeedRange>{0,1}</fb:airspeedRange>
  <fb:airspeedValue uom="">{0,1}</fb:airspeedValue>
</fb:TrueAirspeedChoice>
Source

<element name="TrueAirspeedChoice" type="fb:TrueAirspeedChoiceType" substitutionGroup="fb:Extensible"/>

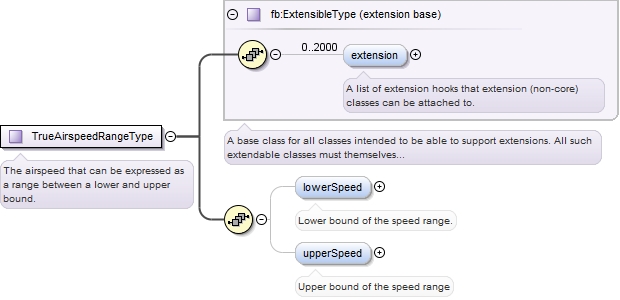

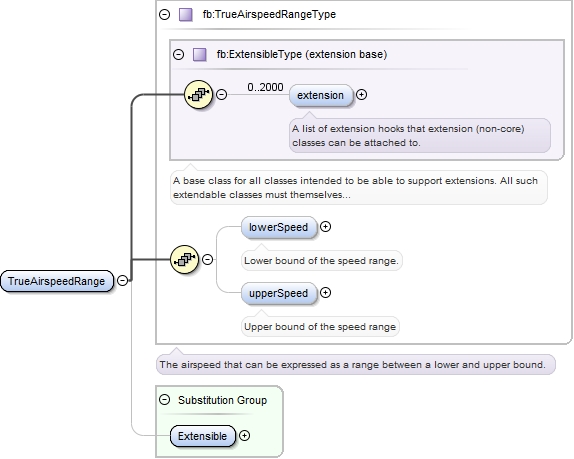

Element fb:TrueAirspeedRange
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TrueAirspeedRangeType_lowerSpeed RangesAndChoices_xsd.tmp#TrueAirspeedRangeType_upperSpeed RangesAndChoices_xsd.tmp#TrueAirspeedRangeType Extension_xsd.tmp#Extensible
Type fb:TrueAirspeedRangeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fb:lowerSpeed{0,1} , fb:upperSpeed{0,1}
Children fb:extension, fb:lowerSpeed, fb:upperSpeed
Instance

<fb:TrueAirspeedRange>
  <fb:extension>{0,2000}</fb:extension>
  <fb:lowerSpeed uom="">{0,1}</fb:lowerSpeed>
  <fb:upperSpeed uom="">{0,1}</fb:upperSpeed>
</fb:TrueAirspeedRange>
Source

<element name="TrueAirspeedRange" type="fb:TrueAirspeedRangeType" substitutionGroup="fb:Extensible"/>
Element fb:VerticalRange
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#VerticalRangeType_lowerBound RangesAndChoices_xsd.tmp#VerticalRangeType_upperBound RangesAndChoices_xsd.tmp#VerticalRangeType Extension_xsd.tmp#Extensible
Type fb:VerticalRangeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fb:lowerBound{0,1} , fb:upperBound{0,1}
Children fb:extension, fb:lowerBound, fb:upperBound
Instance

<fb:VerticalRange>
  <fb:extension>{0,2000}</fb:extension>
  <fb:lowerBound>{0,1}</fb:lowerBound>
  <fb:upperBound>{0,1}</fb:upperBound>
</fb:VerticalRange>
Source

<element name="VerticalRange" type="fb:VerticalRangeType" substitutionGroup="fb:Extensible"/>
Complex Type fb:ColourChoiceType
Namespace http://www.fixm.aero/base/4.1
Annotations

A choice between a predefined colour code or any other colour. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#ColourChoiceType_colourCode RangesAndChoices_xsd.tmp#ColourChoiceType_otherColour
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , (fb:colourCode{0,2000} | fb:otherColour{0,1})
Children fb:colourCode, fb:extension, fb:otherColour
Source

<complexType name="ColourChoiceType">
  <annotation>
    <documentation>A choice between a predefined colour code or any other colour. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <choice>
        <element name="colourCode" type="fb:ColourCodeType" minOccurs="0" maxOccurs="2000">
          <annotation>
            <documentation>A code indicating a colour. The list of allowable values comprises 'named' colours, not colours being only describable using the RGB or the CYMK or another colour system combination. [AIXM 5.1]</documentation>
          </annotation>
        </element>
        <element name="otherColour" type="fb:CharacterStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Any other color that is not among the standards set. [FIXM]</documentation>
          </annotation>
        </element>
      </choice>
    </extension>
  </complexContent>
</complexType>
Simple Type fb:ColourCodeType
Namespace http://www.fixm.aero/base/4.1
Annotations

A code indicating a colour. The list of allowable values comprises 'named' colours,
not colours being only describable using the RGB or the CYMK or another colour system
combination. [AIXM 5.1]
Diagram
Diagram
Type restriction of string
Facets
enumeration RED
enumeration ORANGE
enumeration YELLOW
A code indicating a colour. The list of allowable values comprises 'named' colours,
not colours being only describable using the RGB or the CYMK or another colour system
combination. [AIXM 5.1]
enumeration GREEN
enumeration BLUE
enumeration VIOLET
enumeration BLACK
enumeration WHITE
enumeration GRAY
enumeration SILVER
Used by
Source

<simpleType name="ColourCodeType">
  <annotation>
    <documentation>A code indicating a colour. The list of allowable values comprises 'named' colours, not colours being only describable using the RGB or the CYMK or another colour system combination. [AIXM 5.1]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="RED"/>
    <enumeration value="ORANGE"/>
    <enumeration value="YELLOW">
      <annotation>
        <documentation>A code indicating a colour. The list of allowable values comprises 'named' colours, not colours being only describable using the RGB or the CYMK or another colour system combination. [AIXM 5.1]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="GREEN"/>
    <enumeration value="BLUE"/>
    <enumeration value="VIOLET"/>
    <enumeration value="BLACK"/>
    <enumeration value="WHITE"/>
    <enumeration value="GRAY"/>
    <enumeration value="SILVER"/>
  </restriction>
</simpleType>

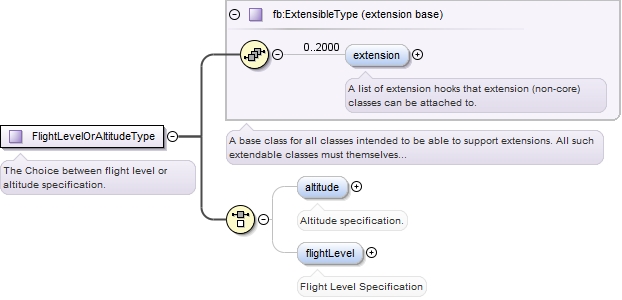

Complex Type fb:FlightLevelOrAltitudeType
Namespace http://www.fixm.aero/base/4.1
Annotations

The Choice between flight level or altitude specification.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_altitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_flightLevel
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , (fb:altitude{0,1} | fb:flightLevel{0,1})
Children fb:altitude, fb:extension, fb:flightLevel
Source

<complexType name="FlightLevelOrAltitudeType">
  <annotation>
    <documentation>The Choice between flight level or altitude specification.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <choice>
        <element name="altitude" type="fb:AltitudeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Altitude specification.</documentation>
          </annotation>
        </element>
        <element name="flightLevel" type="fb:FlightLevelType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Flight Level Specification</documentation>
          </annotation>
        </element>
      </choice>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:FlightLevelOrAltitudeChoiceType
Namespace http://www.fixm.aero/base/4.1
Annotations

The altitude choice allows to either represent a specific altitude or an altitude
range with a lower and upper bound
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType_flightLevelOrAltitudeRange RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType_flightLevelOrAltitudeValue
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , (fb:flightLevelOrAltitudeRange{0,1} | fb:flightLevelOrAltitudeValue{0,1})
Children fb:extension, fb:flightLevelOrAltitudeRange, fb:flightLevelOrAltitudeValue
Source

<complexType name="FlightLevelOrAltitudeChoiceType">
  <annotation>
    <documentation>The altitude choice allows to either represent a specific altitude or an altitude range with a lower and upper bound</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <choice>
        <element name="flightLevelOrAltitudeRange" type="fb:VerticalRangeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Altitude or Flight Level that can be expressed as a range between a lower and upper bound.</documentation>
          </annotation>
        </element>
        <element name="flightLevelOrAltitudeValue" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Altitude or Flight Level that is defined by a specific value</documentation>
          </annotation>
        </element>
      </choice>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:VerticalRangeType
Namespace http://www.fixm.aero/base/4.1
Annotations

Represents a vertical range from a lower bound altitude to an upper bound altitude.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#VerticalRangeType_lowerBound RangesAndChoices_xsd.tmp#VerticalRangeType_upperBound
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fb:lowerBound{0,1} , fb:upperBound{0,1}
Children fb:extension, fb:lowerBound, fb:upperBound
Source

<complexType name="VerticalRangeType">
  <annotation>
    <documentation>Represents a vertical range from a lower bound altitude to an upper bound altitude.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="lowerBound" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Lower bound altitude of the vertical range.</documentation>
          </annotation>
        </element>
        <element name="upperBound" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Upper bound altitude of the vertical range.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:TemporalChoiceType
Namespace http://www.fixm.aero/base/4.1
Annotations

Allows to specify either a time or a time range.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TemporalChoiceType_temporalRange RangesAndChoices_xsd.tmp#TemporalChoiceType_timeValue
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , (fb:temporalRange{0,1} | fb:timeValue{0,1})
Children fb:extension, fb:temporalRange, fb:timeValue
Source

<complexType name="TemporalChoiceType">
  <annotation>
    <documentation>Allows to specify either a time or a time range.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <choice>
        <element name="temporalRange" type="fb:TemporalRangeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Specified range of time.</documentation>
          </annotation>
        </element>
        <element name="timeValue" type="fb:TimeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Value of time specification.</documentation>
          </annotation>
        </element>
      </choice>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:TemporalRangeType
Namespace http://www.fixm.aero/base/4.1
Annotations

Temporal range resulting from assigned speed range.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TemporalRangeType_earliest RangesAndChoices_xsd.tmp#TemporalRangeType_latest
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
earliest fb:TimeType optional
lower bound of the temporal range.
latest fb:TimeType optional
Upper bound of the temporal range.
Source

<complexType name="TemporalRangeType">
  <annotation>
    <documentation>Temporal range resulting from assigned speed range.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <attribute name="earliest" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>lower bound of the temporal range.</documentation>
        </annotation>
      </attribute>
      <attribute name="latest" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>Upper bound of the temporal range.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:TrueAirspeedChoiceType
Namespace http://www.fixm.aero/base/4.1
Annotations

The true airspeed choice indicates that indicated airspeed can either be expressed
as specific with a speed condition or a speed range between lower and upper bounds.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TrueAirspeedChoiceType_airspeedRange RangesAndChoices_xsd.tmp#TrueAirspeedChoiceType_airspeedValue
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , (fb:airspeedRange{0,1} | fb:airspeedValue{0,1})
Children fb:airspeedRange, fb:airspeedValue, fb:extension
Source

<complexType name="TrueAirspeedChoiceType">
  <annotation>
    <documentation>The true airspeed choice indicates that indicated airspeed can either be expressed as specific with a speed condition or a speed range between lower and upper bounds.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <choice>
        <element name="airspeedRange" type="fb:TrueAirspeedRangeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The airspeed that can be expressed as a range between a lower and upper bound.</documentation>
          </annotation>
        </element>
        <element name="airspeedValue" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The airspeed can be expressed as a specific speed.</documentation>
          </annotation>
        </element>
      </choice>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:TrueAirspeedRangeType
Namespace http://www.fixm.aero/base/4.1
Annotations

The airspeed that can be expressed as a range between a lower and upper bound.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#TrueAirspeedRangeType_lowerSpeed RangesAndChoices_xsd.tmp#TrueAirspeedRangeType_upperSpeed
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fb:lowerSpeed{0,1} , fb:upperSpeed{0,1}
Children fb:extension, fb:lowerSpeed, fb:upperSpeed
Source

<complexType name="TrueAirspeedRangeType">
  <annotation>
    <documentation>The airspeed that can be expressed as a range between a lower and upper bound.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="lowerSpeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Lower bound of the speed range.</documentation>
          </annotation>
        </element>
        <element name="upperSpeed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Upper bound of the speed range</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Attribute fb:TemporalRangeType / @earliest
Namespace No namespace
Annotations

lower bound of the temporal range.
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Complex Type fb:TemporalRangeType
Source

<attribute name="earliest" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>lower bound of the temporal range.</documentation>
  </annotation>
</attribute>
Attribute fb:TemporalRangeType / @latest
Namespace No namespace
Annotations

Upper bound of the temporal range.
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Complex Type fb:TemporalRangeType
Source

<attribute name="latest" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>Upper bound of the temporal range.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
