The aircraft package describes the details about the aircraft that is servicing the
flight. [FIXM]
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

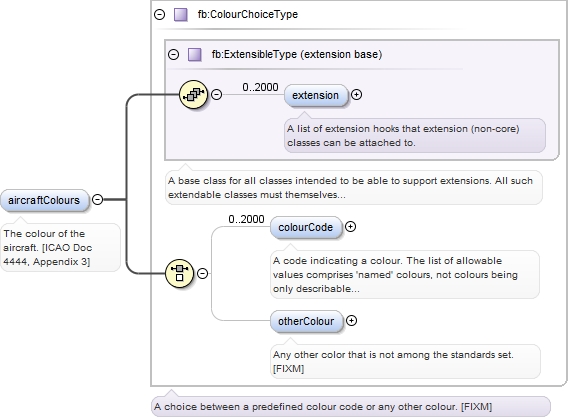

Element fx:AircraftType / fx:aircraftColours
Namespace http://www.fixm.aero/flight/4.1
Annotations
The colour of the aircraft. [ICAO Doc 4444, Appendix 3]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RangesAndChoices_xsd.tmp#ColourChoiceType_colourCode RangesAndChoices_xsd.tmp#ColourChoiceType_otherColour RangesAndChoices_xsd.tmp#ColourChoiceType
Type fb:ColourChoiceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , (fb:colourCode{0,2000} | fb:otherColour{0,1})
Children fb:colourCode, fb:extension, fb:otherColour
Instance
<fx:aircraftColours>
  <fb:extension>{0,2000}</fb:extension>
  <fb:colourCode>{0,2000}</fb:colourCode>
  <fb:otherColour>{0,1}</fb:otherColour>
</fx:aircraftColours>
Source
<element name="aircraftColours" type="fb:ColourChoiceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The colour of the aircraft. [ICAO Doc 4444, Appendix 3]</documentation>
  </annotation>
</element>

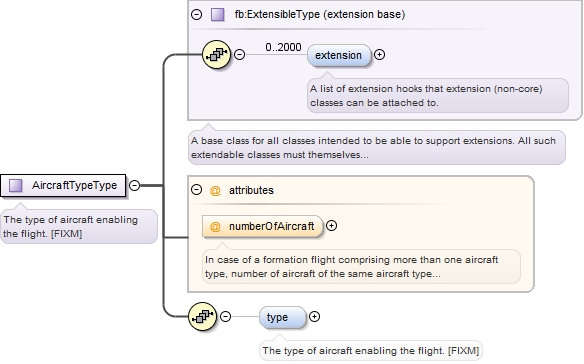

Element fx:AircraftType / fx:aircraftType
Namespace http://www.fixm.aero/flight/4.1
Annotations
The type of aircraft enabling the flight. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeType_numberOfAircraft Aircraft_xsd.tmp#AircraftTypeType_type Aircraft_xsd.tmp#AircraftTypeType
Type fx:AircraftTypeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2000
Model fb:extension{0,2000} , fx:type{0,1}
Children fb:extension, fx:type
Instance
<fx:aircraftType numberOfAircraft="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:type>{0,1}</fx:type>
</fx:aircraftType>
Attributes
QName Type Fixed Default Use Annotation
numberOfAircraft fb:CountType optional
In case of a formation flight comprising more than one aircraft type, number of aircraft
of the same aircraft type within the formation. [FIXM]
Source
<element name="aircraftType" type="fx:AircraftTypeType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>The type of aircraft enabling the flight. [FIXM]</documentation>
  </annotation>
</element>

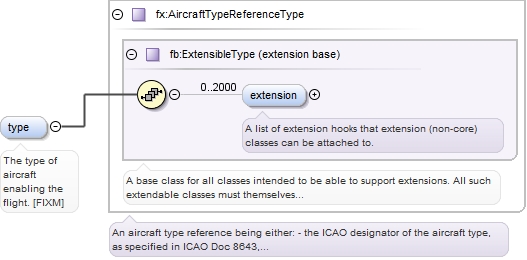

Element fx:AircraftTypeType / fx:type
Namespace http://www.fixm.aero/flight/4.1
Annotations
The type of aircraft enabling the flight. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeReferenceType
Type fx:AircraftTypeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000}
Children fb:extension
Instance
<fx:type>
  <fb:extension>{0,2000}</fb:extension>
</fx:type>
Source
<element name="type" type="fx:AircraftTypeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The type of aircraft enabling the flight. [FIXM]</documentation>
  </annotation>
</element>

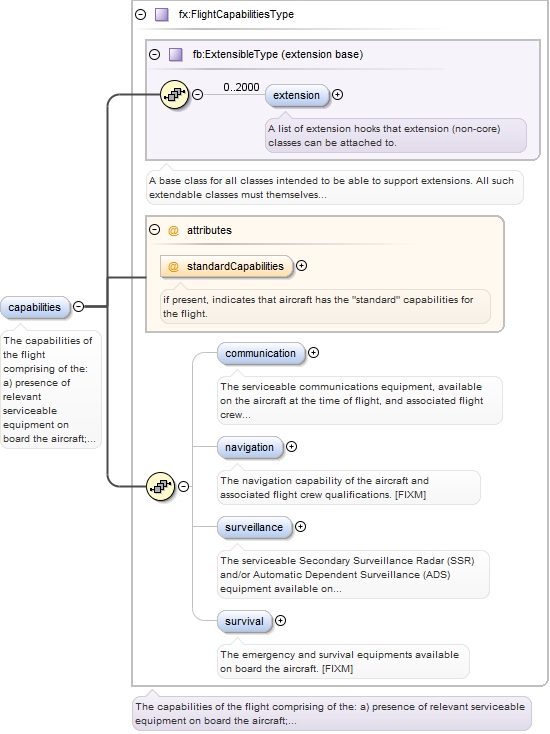

Element fx:AircraftType / fx:capabilities
Namespace http://www.fixm.aero/flight/4.1
Annotations
The capabilities of the flight comprising of the:
a) presence of relevant serviceable equipment on board the aircraft;
b) equipment and capabilities commensurate with flight crew qualifications; and
c) where applicable, authorization from the appropriate authority.
[FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Capability_xsd.tmp#FlightCapabilitiesType_standardCapabilities Capability_xsd.tmp#FlightCapabilitiesType_communication Capability_xsd.tmp#FlightCapabilitiesType_navigation Capability_xsd.tmp#FlightCapabilitiesType_surveillance Capability_xsd.tmp#FlightCapabilitiesType_survival Capability_xsd.tmp#FlightCapabilitiesType
Type fx:FlightCapabilitiesType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:communication{0,1} , fx:navigation{0,1} , fx:surveillance{0,1} , fx:survival{0,1}
Children fb:extension, fx:communication, fx:navigation, fx:surveillance, fx:survival
Instance
<fx:capabilities standardCapabilities="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:communication otherCommunicationCapabilities="" otherDatalinkCapabilities="" selectiveCallingCode="">{0,1}</fx:communication>
  <fx:navigation otherNavigationCapabilities="">{0,1}</fx:navigation>
  <fx:surveillance otherSurveillanceCapabilities="">{0,1}</fx:surveillance>
  <fx:survival survivalEquipmentRemarks="">{0,1}</fx:survival>
</fx:capabilities>
Attributes
QName Type Fixed Default Use Annotation
standardCapabilities fx:StandardCapabilitiesIndicatorType optional
if present, indicates that aircraft has the "standard" capabilities for the flight.
Source
<element name="capabilities" type="fx:FlightCapabilitiesType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The capabilities of the flight comprising of the: a) presence of relevant serviceable equipment on board the aircraft; b) equipment and capabilities commensurate with flight crew qualifications; and c) where applicable, authorization from the appropriate authority. [FIXM]</documentation>
  </annotation>
</element>

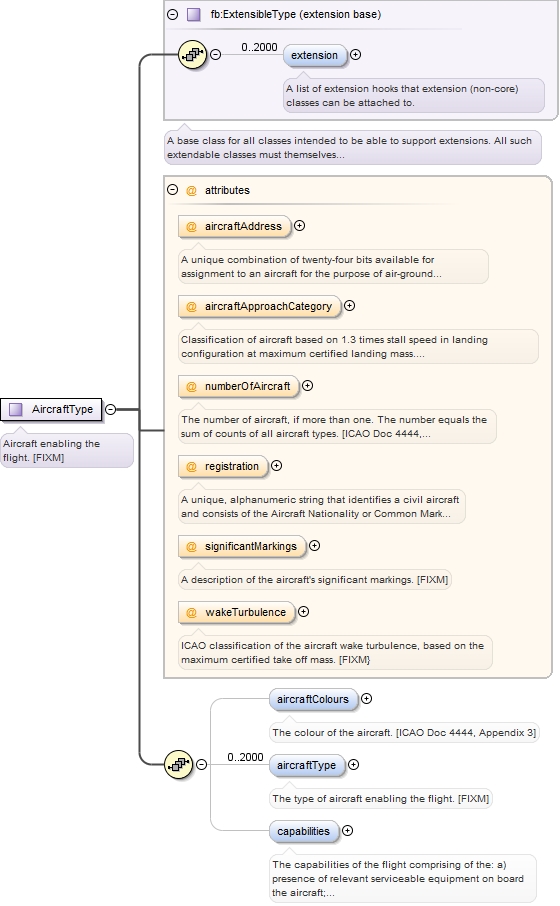

Element fx:Aircraft
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftAddress Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftApproachCategory Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_numberOfAircraft Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_registration Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_significantMarkings Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_wakeTurbulence Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftColours Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftType Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_capabilities Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType Extension_xsd.tmp#Extensible
Type fx:AircraftType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:aircraftColours{0,1} , fx:aircraftType{0,2000} , fx:capabilities{0,1}
Children fb:extension, fx:aircraftColours, fx:aircraftType, fx:capabilities
Instance
<fx:Aircraft aircraftAddress="" aircraftApproachCategory="" numberOfAircraft="" registration="" significantMarkings="" wakeTurbulence="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:aircraftColours>{0,1}</fx:aircraftColours>
  <fx:aircraftType numberOfAircraft="">{0,2000}</fx:aircraftType>
  <fx:capabilities standardCapabilities="">{0,1}</fx:capabilities>
</fx:Aircraft>
Attributes
QName Type Fixed Default Use Annotation
aircraftAddress fx:AircraftAddressType optional
A unique combination of twenty-four bits available for assignment to an aircraft
for the purpose of air-ground communications, navigation and surveillance. [ICAO
Doc 4444]
aircraftApproachCategory fx:AircraftApproachCategoryType optional
Classification of aircraft based on 1.3 times stall speed in landing configuration
at maximum certified landing mass. [AIXM 5.1]
numberOfAircraft restriction of fb:CountType optional
The number of aircraft, if more than one. The number equals the sum of counts of
all aircraft types.  [ICAO Doc 4444, Appendix 2, ITEM 9]
registration fx:AircraftRegistrationType optional
A unique, alphanumeric string that identifies a civil aircraft and consists of the
Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration
mark, assigned by the state of registry or common mark registering authority. [FIXM]
significantMarkings fb:CharacterStringType optional
A description of the aircraft's significant markings. [FIXM]
wakeTurbulence fx:WakeTurbulenceCategoryType optional
ICAO classification of the aircraft wake turbulence, based on the maximum certified
take off mass. [FIXM}
Source
<element name="Aircraft" type="fx:AircraftType" substitutionGroup="fb:Extensible"/>
Element fx:AircraftType
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeType_numberOfAircraft Aircraft_xsd.tmp#AircraftTypeType_type Aircraft_xsd.tmp#AircraftTypeType Extension_xsd.tmp#Extensible
Type fx:AircraftTypeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:type{0,1}
Children fb:extension, fx:type
Instance
<fx:AircraftType numberOfAircraft="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:type>{0,1}</fx:type>
</fx:AircraftType>
Attributes
QName Type Fixed Default Use Annotation
numberOfAircraft fb:CountType optional
In case of a formation flight comprising more than one aircraft type, number of aircraft
of the same aircraft type within the formation. [FIXM]
Source
<element name="AircraftType" type="fx:AircraftTypeType" substitutionGroup="fb:Extensible"/>

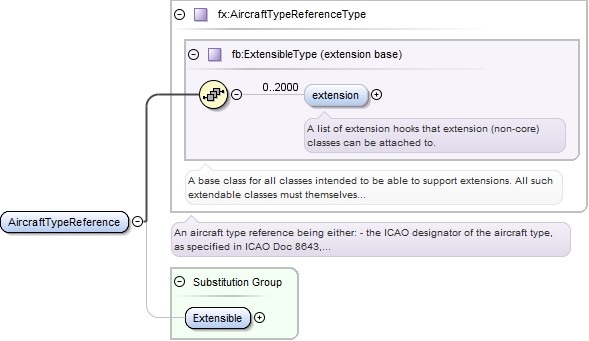

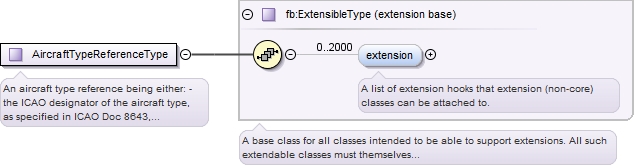

Element fx:AircraftTypeReference
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeReferenceType Extension_xsd.tmp#Extensible
Type fx:AircraftTypeReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance
<fx:AircraftTypeReference>
  <fb:extension>{0,2000}</fb:extension>
</fx:AircraftTypeReference>
Source
<element name="AircraftTypeReference" type="fx:AircraftTypeReferenceType" substitutionGroup="fb:Extensible"/>

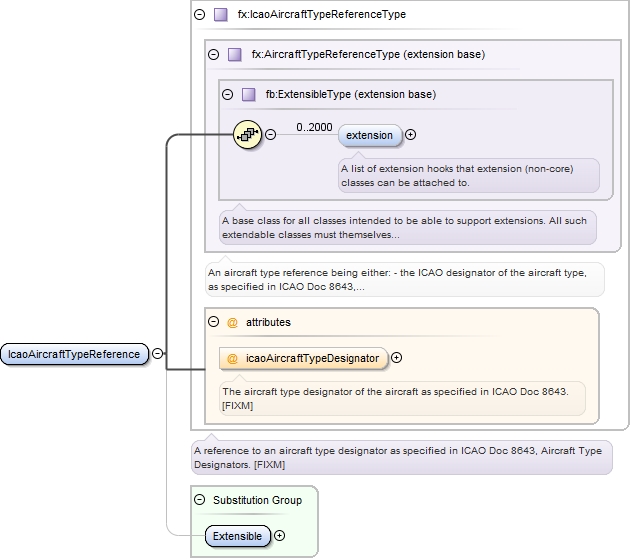

Element fx:IcaoAircraftTypeReference
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeReferenceType Aircraft_xsd.tmp#IcaoAircraftTypeReferenceType_icaoAircraftTypeDesignator Aircraft_xsd.tmp#IcaoAircraftTypeReferenceType Extension_xsd.tmp#Extensible
Type fx:IcaoAircraftTypeReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance
<fx:IcaoAircraftTypeReference icaoAircraftTypeDesignator="">
  <fb:extension>{0,2000}</fb:extension>
</fx:IcaoAircraftTypeReference>
Attributes
QName Type Fixed Default Use Annotation
icaoAircraftTypeDesignator fb:AircraftTypeDesignatorType optional
The aircraft type designator of the aircraft as specified in ICAO Doc 8643. [FIXM]
Source
<element name="IcaoAircraftTypeReference" type="fx:IcaoAircraftTypeReferenceType" substitutionGroup="fb:Extensible"/>

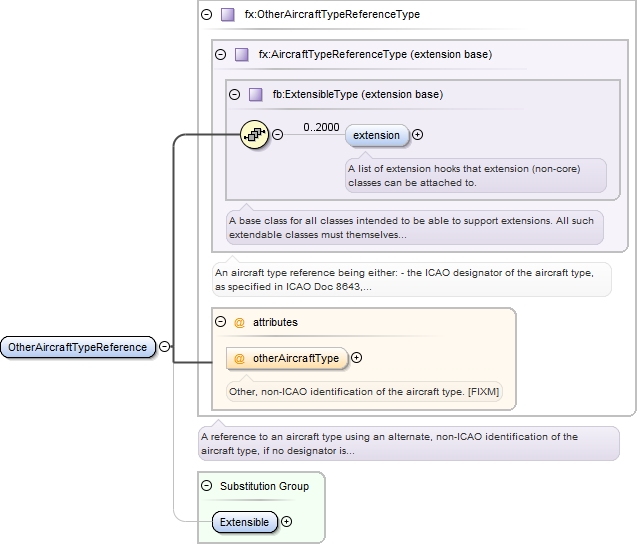

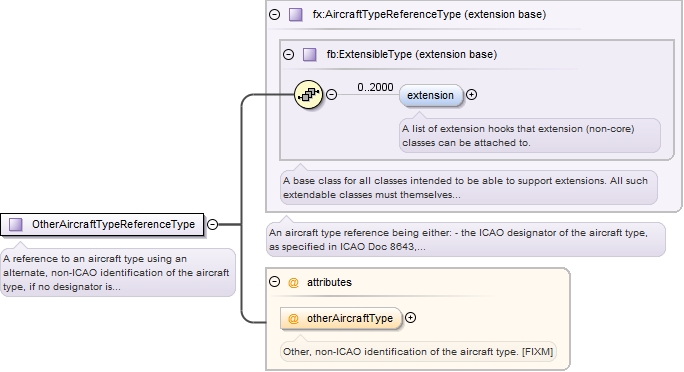

Element fx:OtherAircraftTypeReference
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeReferenceType Aircraft_xsd.tmp#OtherAircraftTypeReferenceType_otherAircraftType Aircraft_xsd.tmp#OtherAircraftTypeReferenceType Extension_xsd.tmp#Extensible
Type fx:OtherAircraftTypeReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance
<fx:OtherAircraftTypeReference otherAircraftType="">
  <fb:extension>{0,2000}</fb:extension>
</fx:OtherAircraftTypeReference>
Attributes
QName Type Fixed Default Use Annotation
otherAircraftType fb:CharacterStringType optional
Other, non-ICAO identification of the aircraft type. [FIXM]
Source
<element name="OtherAircraftTypeReference" type="fx:OtherAircraftTypeReferenceType" substitutionGroup="fb:Extensible"/>
Complex Type fx:AircraftType
Namespace http://www.fixm.aero/flight/4.1
Annotations
Aircraft enabling the flight. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftAddress Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftApproachCategory Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_numberOfAircraft Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_registration Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_significantMarkings Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_wakeTurbulence Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftColours Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_aircraftType Aircraft_xsd.tmp#http___www.fixm.aero_flight_4.1_AircraftType_capabilities
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:aircraftColours{0,1} , fx:aircraftType{0,2000} , fx:capabilities{0,1}
Children fb:extension, fx:aircraftColours, fx:aircraftType, fx:capabilities
Attributes
QName Type Fixed Default Use Annotation
aircraftAddress fx:AircraftAddressType optional
A unique combination of twenty-four bits available for assignment to an aircraft
for the purpose of air-ground communications, navigation and surveillance. [ICAO
Doc 4444]
aircraftApproachCategory fx:AircraftApproachCategoryType optional
Classification of aircraft based on 1.3 times stall speed in landing configuration
at maximum certified landing mass. [AIXM 5.1]
numberOfAircraft restriction of fb:CountType optional
The number of aircraft, if more than one. The number equals the sum of counts of
all aircraft types.  [ICAO Doc 4444, Appendix 2, ITEM 9]
registration fx:AircraftRegistrationType optional
A unique, alphanumeric string that identifies a civil aircraft and consists of the
Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration
mark, assigned by the state of registry or common mark registering authority. [FIXM]
significantMarkings fb:CharacterStringType optional
A description of the aircraft's significant markings. [FIXM]
wakeTurbulence fx:WakeTurbulenceCategoryType optional
ICAO classification of the aircraft wake turbulence, based on the maximum certified
take off mass. [FIXM}
Source
<complexType name="AircraftType">
  <annotation>
    <documentation>Aircraft enabling the flight. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="aircraftColours" type="fb:ColourChoiceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The colour of the aircraft. [ICAO Doc 4444, Appendix 3]</documentation>
          </annotation>
        </element>
        <element name="aircraftType" type="fx:AircraftTypeType" minOccurs="0" maxOccurs="2000">
          <annotation>
            <documentation>The type of aircraft enabling the flight. [FIXM]</documentation>
          </annotation>
        </element>
        <element name="capabilities" type="fx:FlightCapabilitiesType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The capabilities of the flight comprising of the: a) presence of relevant serviceable equipment on board the aircraft; b) equipment and capabilities commensurate with flight crew qualifications; and c) where applicable, authorization from the appropriate authority. [FIXM]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="aircraftAddress" type="fx:AircraftAddressType" use="optional">
        <annotation>
          <documentation>A unique combination of twenty-four bits available for assignment to an aircraft for the purpose of air-ground communications, navigation and surveillance. [ICAO Doc 4444]</documentation>
        </annotation>
      </attribute>
      <attribute name="aircraftApproachCategory" type="fx:AircraftApproachCategoryType" use="optional">
        <annotation>
          <documentation>Classification of aircraft based on 1.3 times stall speed in landing configuration at maximum certified landing mass. [AIXM 5.1]</documentation>
        </annotation>
      </attribute>
      <attribute name="numberOfAircraft" use="optional">
        <annotation>
          <documentation>The number of aircraft, if more than one. The number equals the sum of counts of all aircraft types. [ICAO Doc 4444, Appendix 2, ITEM 9]</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:CountType">
            <minInclusive value="2"/>
          </restriction>
        </simpleType>
      </attribute>
      <attribute name="registration" type="fx:AircraftRegistrationType" use="optional">
        <annotation>
          <documentation>A unique, alphanumeric string that identifies a civil aircraft and consists of the Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration mark, assigned by the state of registry or common mark registering authority. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="significantMarkings" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>A description of the aircraft's significant markings. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="wakeTurbulence" type="fx:WakeTurbulenceCategoryType" use="optional">
        <annotation>
          <documentation>ICAO classification of the aircraft wake turbulence, based on the maximum certified take off mass. [FIXM}</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:AircraftTypeType
Namespace http://www.fixm.aero/flight/4.1
Annotations
The type of aircraft enabling the flight. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeType_numberOfAircraft Aircraft_xsd.tmp#AircraftTypeType_type
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:type{0,1}
Children fb:extension, fx:type
Attributes
QName Type Fixed Default Use Annotation
numberOfAircraft fb:CountType optional
In case of a formation flight comprising more than one aircraft type, number of aircraft
of the same aircraft type within the formation. [FIXM]
Source
<complexType name="AircraftTypeType">
  <annotation>
    <documentation>The type of aircraft enabling the flight. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="type" type="fx:AircraftTypeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The type of aircraft enabling the flight. [FIXM]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="numberOfAircraft" type="fb:CountType" use="optional">
        <annotation>
          <documentation>In case of a formation flight comprising more than one aircraft type, number of aircraft of the same aircraft type within the formation. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:AircraftTypeReferenceType
Namespace http://www.fixm.aero/flight/4.1
Annotations
An aircraft type reference being either:
- the ICAO designator of the aircraft type, as specified in ICAO Doc 8643, Aircraft
Type Designators.
- if no such designator has been assigned, any other identification of the aircraft
type.
[FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType
Type extension of fb:ExtensibleType
Type hierarchy
Properties
abstract: true
Used by
Model fb:extension{0,2000}
Children fb:extension
Source
<complexType abstract="true" name="AircraftTypeReferenceType">
  <annotation>
    <documentation>An aircraft type reference being either: - the ICAO designator of the aircraft type, as specified in ICAO Doc 8643, Aircraft Type Designators. - if no such designator has been assigned, any other identification of the aircraft type. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType"/>
  </complexContent>
</complexType>
Simple Type fx:AircraftAddressType
Namespace http://www.fixm.aero/flight/4.1
Annotations
A unique combination of twenty-four bits available for assignment to an aircraft
for the purpose of air-ground communications, navigation and surveillance. [ICAO
Doc 4444]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [0-9A-F]{6}
Used by
Source
<simpleType name="AircraftAddressType">
  <annotation>
    <documentation>A unique combination of twenty-four bits available for assignment to an aircraft for the purpose of air-ground communications, navigation and surveillance. [ICAO Doc 4444]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[0-9A-F]{6}"/>
  </restriction>
</simpleType>
Simple Type fx:AircraftApproachCategoryType
Namespace http://www.fixm.aero/flight/4.1
Annotations
Classification of aircraft based on 1.3 times stall speed in landing configuration
at maximum certified landing mass. [AIXM 5.1]
Diagram
Diagram
Type restriction of string
Facets
enumeration A
less than 169 km/h (91 kt) indicated airspeed (IAS) [ICAO Doc 8168, Vol. I, chapter
1.3.5]
enumeration B
169 km/h (91 kt) or more but less than 224 km/h (121 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration C
224 km/h (121 kt) or more but less than 261 km/h (141 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration D
261 km/h (141 kt) or more but less than 307 km/h (166 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration E
307 km/h (166 kt) or more but less than 391 km/h (211 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration H
Helicopters [ICAO Doc 8168, Vol. I, chapter 1.3.5]
Used by
Source
<simpleType name="AircraftApproachCategoryType">
  <annotation>
    <documentation>Classification of aircraft based on 1.3 times stall speed in landing configuration at maximum certified landing mass. [AIXM 5.1]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="A">
      <annotation>
        <documentation>less than 169 km/h (91 kt) indicated airspeed (IAS) [ICAO Doc 8168, Vol. I, chapter 1.3.5]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="B">
      <annotation>
        <documentation>169 km/h (91 kt) or more but less than 224 km/h (121 kt) IAS [ICAO Doc 8168, Vol. I, chapter 1.3.5]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="C">
      <annotation>
        <documentation>224 km/h (121 kt) or more but less than 261 km/h (141 kt) IAS [ICAO Doc 8168, Vol. I, chapter 1.3.5]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="D">
      <annotation>
        <documentation>261 km/h (141 kt) or more but less than 307 km/h (166 kt) IAS [ICAO Doc 8168, Vol. I, chapter 1.3.5]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="E">
      <annotation>
        <documentation>307 km/h (166 kt) or more but less than 391 km/h (211 kt) IAS [ICAO Doc 8168, Vol. I, chapter 1.3.5]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="H">
      <annotation>
        <documentation>Helicopters [ICAO Doc 8168, Vol. I, chapter 1.3.5]</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:AircraftRegistrationType
Namespace http://www.fixm.aero/flight/4.1
Annotations
A unique, alphanumeric string that identifies a civil aircraft and consists of the
Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration
mark, assigned by the state of registry or common mark registering authority. [FIXM]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Z0-9]{1,7}
Used by
Source
<simpleType name="AircraftRegistrationType">
  <annotation>
    <documentation>A unique, alphanumeric string that identifies a civil aircraft and consists of the Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration mark, assigned by the state of registry or common mark registering authority. [FIXM]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Z0-9]{1,7}"/>
  </restriction>
</simpleType>
Simple Type fx:WakeTurbulenceCategoryType
Namespace http://www.fixm.aero/flight/4.1
Annotations
ICAO classification of the aircraft wake turbulence, based on the maximum certified
take off mass. [FIXM}
Diagram
Diagram
Type restriction of string
Facets
enumeration L
An aircraft type with a maximum certified take-off mass of 7000 kg or less. [ICAO
Doc 4444, Appendix 2, ITEM M]
enumeration M
An aircraft type with a maximum certified take-off mass of less than 136000 kg. but
more than 7000 kg. [ICAO Doc 4444, Appendix 2, ITEM M]
enumeration H
An aircraft type with a maximum certified take-off mass of 136000 kg or more. [ICAO
Doc 4444, Appendix 2, ITEM M]
enumeration J
A super heavy aircraft type e.g. the Airbus A380-800. (In the order of 560,000kg).
[FIXM]
Used by
Source
<simpleType name="WakeTurbulenceCategoryType">
  <annotation>
    <documentation>ICAO classification of the aircraft wake turbulence, based on the maximum certified take off mass. [FIXM}</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="L">
      <annotation>
        <documentation>An aircraft type with a maximum certified take-off mass of 7000 kg or less. [ICAO Doc 4444, Appendix 2, ITEM M]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="M">
      <annotation>
        <documentation>An aircraft type with a maximum certified take-off mass of less than 136000 kg. but more than 7000 kg. [ICAO Doc 4444, Appendix 2, ITEM M]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="H">
      <annotation>
        <documentation>An aircraft type with a maximum certified take-off mass of 136000 kg or more. [ICAO Doc 4444, Appendix 2, ITEM M]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="J">
      <annotation>
        <documentation>A super heavy aircraft type e.g. the Airbus A380-800. (In the order of 560,000kg). [FIXM]</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>

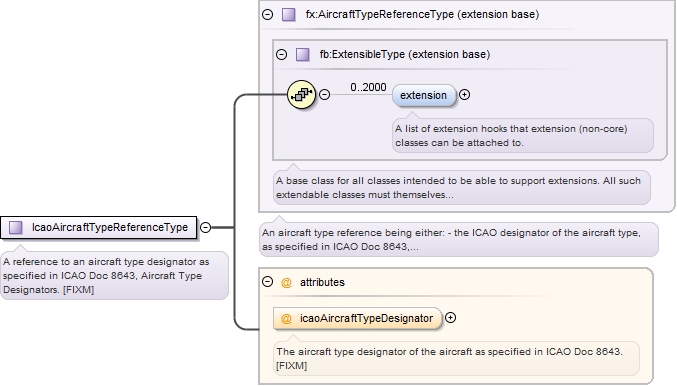

Complex Type fx:IcaoAircraftTypeReferenceType
Namespace http://www.fixm.aero/flight/4.1
Annotations
A reference to an aircraft type designator as specified in ICAO Doc 8643, Aircraft
Type Designators. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeReferenceType Aircraft_xsd.tmp#IcaoAircraftTypeReferenceType_icaoAircraftTypeDesignator
Type extension of fx:AircraftTypeReferenceType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
icaoAircraftTypeDesignator fb:AircraftTypeDesignatorType optional
The aircraft type designator of the aircraft as specified in ICAO Doc 8643. [FIXM]
Source
<complexType name="IcaoAircraftTypeReferenceType">
  <annotation>
    <documentation>A reference to an aircraft type designator as specified in ICAO Doc 8643, Aircraft Type Designators. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fx:AircraftTypeReferenceType">
      <attribute name="icaoAircraftTypeDesignator" type="fb:AircraftTypeDesignatorType" use="optional">
        <annotation>
          <documentation>The aircraft type designator of the aircraft as specified in ICAO Doc 8643. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:OtherAircraftTypeReferenceType
Namespace http://www.fixm.aero/flight/4.1
Annotations
A reference to an aircraft type using an alternate, non-ICAO identification of the
aircraft type, if no designator is assigned in ICAO Doc 8643. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aircraft_xsd.tmp#AircraftTypeReferenceType Aircraft_xsd.tmp#OtherAircraftTypeReferenceType_otherAircraftType
Type extension of fx:AircraftTypeReferenceType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
otherAircraftType fb:CharacterStringType optional
Other, non-ICAO identification of the aircraft type. [FIXM]
Source
<complexType name="OtherAircraftTypeReferenceType">
  <annotation>
    <documentation>A reference to an aircraft type using an alternate, non-ICAO identification of the aircraft type, if no designator is assigned in ICAO Doc 8643. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fx:AircraftTypeReferenceType">
      <attribute name="otherAircraftType" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>Other, non-ICAO identification of the aircraft type. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fx:AircraftTypeType / @numberOfAircraft
Namespace No namespace
Annotations
In case of a formation flight comprising more than one aircraft type, number of aircraft
of the same aircraft type within the formation. [FIXM]
Type fb:CountType
Properties
use: optional
Facets
minInclusive 0
Used by
Complex Type fx:AircraftTypeType
Source
<attribute name="numberOfAircraft" type="fb:CountType" use="optional">
  <annotation>
    <documentation>In case of a formation flight comprising more than one aircraft type, number of aircraft of the same aircraft type within the formation. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:AircraftType / @aircraftAddress
Namespace No namespace
Annotations
A unique combination of twenty-four bits available for assignment to an aircraft
for the purpose of air-ground communications, navigation and surveillance. [ICAO
Doc 4444]
Type fx:AircraftAddressType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [0-9A-F]{6}
Used by
Complex Type fx:AircraftType
Source
<attribute name="aircraftAddress" type="fx:AircraftAddressType" use="optional">
  <annotation>
    <documentation>A unique combination of twenty-four bits available for assignment to an aircraft for the purpose of air-ground communications, navigation and surveillance. [ICAO Doc 4444]</documentation>
  </annotation>
</attribute>
Attribute fx:AircraftType / @aircraftApproachCategory
Namespace No namespace
Annotations
Classification of aircraft based on 1.3 times stall speed in landing configuration
at maximum certified landing mass. [AIXM 5.1]
Type fx:AircraftApproachCategoryType
Properties
use: optional
Facets
enumeration A
less than 169 km/h (91 kt) indicated airspeed (IAS) [ICAO Doc 8168, Vol. I, chapter
1.3.5]
enumeration B
169 km/h (91 kt) or more but less than 224 km/h (121 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration C
224 km/h (121 kt) or more but less than 261 km/h (141 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration D
261 km/h (141 kt) or more but less than 307 km/h (166 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration E
307 km/h (166 kt) or more but less than 391 km/h (211 kt) IAS [ICAO Doc 8168, Vol.
I, chapter 1.3.5]
enumeration H
Helicopters [ICAO Doc 8168, Vol. I, chapter 1.3.5]
Used by
Complex Type fx:AircraftType
Source
<attribute name="aircraftApproachCategory" type="fx:AircraftApproachCategoryType" use="optional">
  <annotation>
    <documentation>Classification of aircraft based on 1.3 times stall speed in landing configuration at maximum certified landing mass. [AIXM 5.1]</documentation>
  </annotation>
</attribute>
Attribute fx:AircraftType / @numberOfAircraft
Namespace No namespace
Annotations
The number of aircraft, if more than one. The number equals the sum of counts of
all aircraft types.  [ICAO Doc 4444, Appendix 2, ITEM 9]
Type restriction of fb:CountType
Type hierarchy
Properties
use: optional
Facets
minInclusive 2
Used by
Complex Type fx:AircraftType
Source
<attribute name="numberOfAircraft" use="optional">
  <annotation>
    <documentation>The number of aircraft, if more than one. The number equals the sum of counts of all aircraft types. [ICAO Doc 4444, Appendix 2, ITEM 9]</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CountType">
      <minInclusive value="2"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:AircraftType / @registration
Namespace No namespace
Annotations
A unique, alphanumeric string that identifies a civil aircraft and consists of the
Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration
mark, assigned by the state of registry or common mark registering authority. [FIXM]
Type fx:AircraftRegistrationType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z0-9]{1,7}
Used by
Complex Type fx:AircraftType
Source
<attribute name="registration" type="fx:AircraftRegistrationType" use="optional">
  <annotation>
    <documentation>A unique, alphanumeric string that identifies a civil aircraft and consists of the Aircraft Nationality or Common Mark and an additional alphanumeric string, the registration mark, assigned by the state of registry or common mark registering authority. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:AircraftType / @significantMarkings
Namespace No namespace
Annotations
A description of the aircraft's significant markings. [FIXM]
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:AircraftType
Source
<attribute name="significantMarkings" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A description of the aircraft's significant markings. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:AircraftType / @wakeTurbulence
Namespace No namespace
Annotations
ICAO classification of the aircraft wake turbulence, based on the maximum certified
take off mass. [FIXM}
Type fx:WakeTurbulenceCategoryType
Properties
use: optional
Facets
enumeration L
An aircraft type with a maximum certified take-off mass of 7000 kg or less. [ICAO
Doc 4444, Appendix 2, ITEM M]
enumeration M
An aircraft type with a maximum certified take-off mass of less than 136000 kg. but
more than 7000 kg. [ICAO Doc 4444, Appendix 2, ITEM M]
enumeration H
An aircraft type with a maximum certified take-off mass of 136000 kg or more. [ICAO
Doc 4444, Appendix 2, ITEM M]
enumeration J
A super heavy aircraft type e.g. the Airbus A380-800. (In the order of 560,000kg).
[FIXM]
Used by
Complex Type fx:AircraftType
Source
<attribute name="wakeTurbulence" type="fx:WakeTurbulenceCategoryType" use="optional">
  <annotation>
    <documentation>ICAO classification of the aircraft wake turbulence, based on the maximum certified take off mass. [FIXM}</documentation>
  </annotation>
</attribute>
Attribute fx:IcaoAircraftTypeReferenceType / @icaoAircraftTypeDesignator
Namespace No namespace
Annotations
The aircraft type designator of the aircraft as specified in ICAO Doc 8643. [FIXM]
Type fb:AircraftTypeDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z0-9]{2,4}
Used by
Source
<attribute name="icaoAircraftTypeDesignator" type="fb:AircraftTypeDesignatorType" use="optional">
  <annotation>
    <documentation>The aircraft type designator of the aircraft as specified in ICAO Doc 8643. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:OtherAircraftTypeReferenceType / @otherAircraftType
Namespace No namespace
Annotations
Other, non-ICAO identification of the aircraft type. [FIXM]
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source
<attribute name="otherAircraftType" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Other, non-ICAO identification of the aircraft type. [FIXM]</documentation>
  </annotation>
</attribute>
