This package contains classes that model information about organizations and units,
including contact information. [FIXM]
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

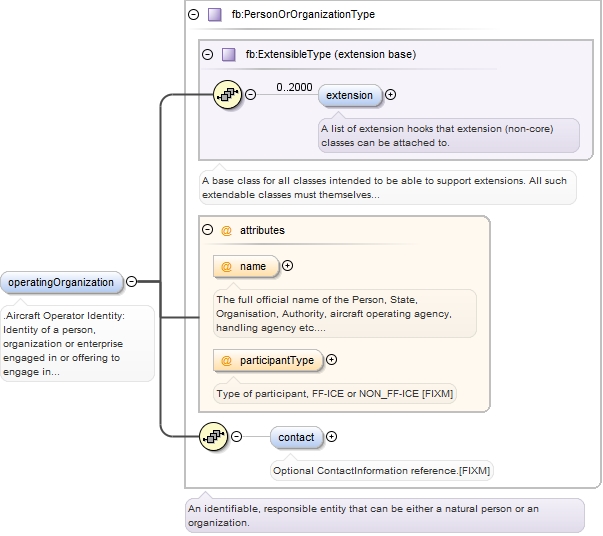

Element fb:AircraftOperatorType / fb:operatingOrganization
Namespace http://www.fixm.aero/base/4.1
Annotations

.Aircraft Operator Identity: Identity of a person, organization or enterprise engaged
in or offering to engage in aircraft operation.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType
Type fb:PersonOrOrganizationType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:contact{0,1}
Children fb:contact, fb:extension
Instance

<fb:operatingOrganization name="" participantType="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:contact name="" title="">{0,1}</fb:contact>
</fb:operatingOrganization>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="operatingOrganization" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Aircraft Operator Identity: Identity of a person, organization or enterprise engaged in or offering to engage in aircraft operation.</documentation>
  </annotation>
</element>

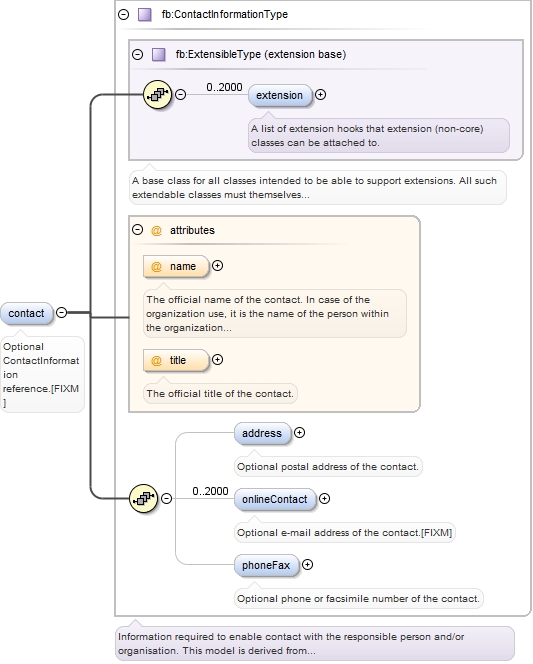

Element fb:PersonOrOrganizationType / fb:contact
Namespace http://www.fixm.aero/base/4.1
Annotations

Optional ContactInformation reference.[FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Address_xsd.tmp#ContactInformationType_name Address_xsd.tmp#ContactInformationType_title Address_xsd.tmp#ContactInformationType_address Address_xsd.tmp#ContactInformationType_onlineContact Address_xsd.tmp#ContactInformationType_phoneFax Address_xsd.tmp#ContactInformationType
Type fb:ContactInformationType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:address{0,1} , fb:onlineContact{0,2000} , fb:phoneFax{0,1}
Children fb:address, fb:extension, fb:onlineContact, fb:phoneFax
Instance

<fb:contact name="" title="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:address administrativeArea="" city="" countryCode="" countryName="" deliveryPoint="" postalCode="">{0,1}</fb:address>
  <fb:onlineContact email="" linkage="" network="">{0,2000}</fb:onlineContact>
  <fb:phoneFax facsimile="" voice="">{0,1}</fb:phoneFax>
</fb:contact>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The official name of the contact. In case of the organization use, it is the name
of the person within the organization who is the contact point.

If the usage of  ContactInformation is associated with a person, this field should
not be used, insead, the Person class' name should be used instead.
title fb:TextNameType optional
The official title of the contact.
Source

<element name="contact" type="fb:ContactInformationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Optional ContactInformation reference.[FIXM]</documentation>
  </annotation>
</element>

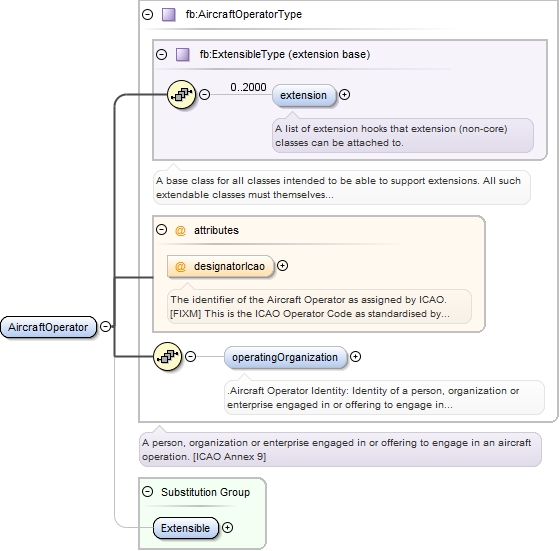

Element fb:AircraftOperator
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AircraftOperatorType_designatorIcao Organization_xsd.tmp#AircraftOperatorType_operatingOrganization Organization_xsd.tmp#AircraftOperatorType Extension_xsd.tmp#Extensible
Type fb:AircraftOperatorType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fb:operatingOrganization{0,1}
Children fb:extension, fb:operatingOrganization
Instance

<fb:AircraftOperator designatorIcao="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:operatingOrganization name="" participantType="">{0,1}</fb:operatingOrganization>
</fb:AircraftOperator>
Attributes
QName Type Fixed Default Use Annotation
designatorIcao fb:AircraftOperatorDesignatorType optional
The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Source

<element name="AircraftOperator" type="fb:AircraftOperatorType" substitutionGroup="fb:Extensible"/>

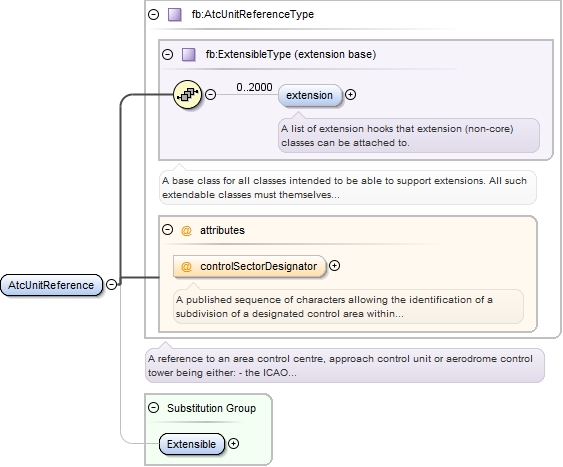

Element fb:AtcUnitReference
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Extension_xsd.tmp#Extensible
Type fb:AtcUnitReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:AtcUnitReference controlSectorDesignator="">
  <fb:extension>{0,2000}</fb:extension>
</fb:AtcUnitReference>
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<element name="AtcUnitReference" type="fb:AtcUnitReferenceType" substitutionGroup="fb:Extensible"/>

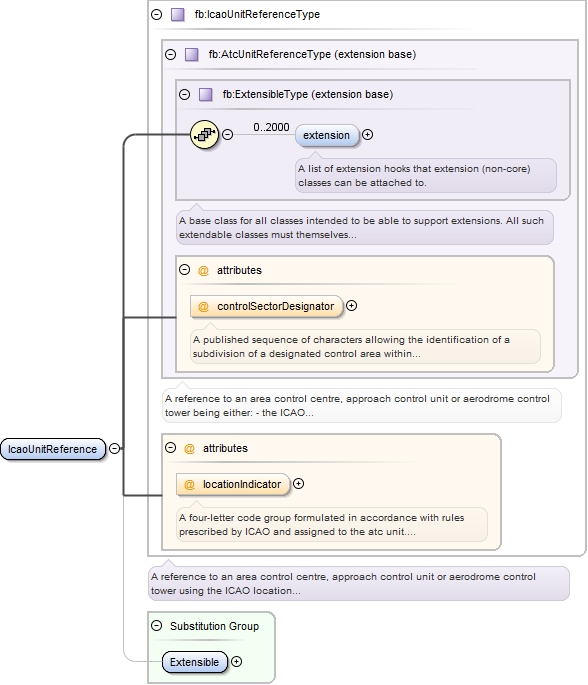

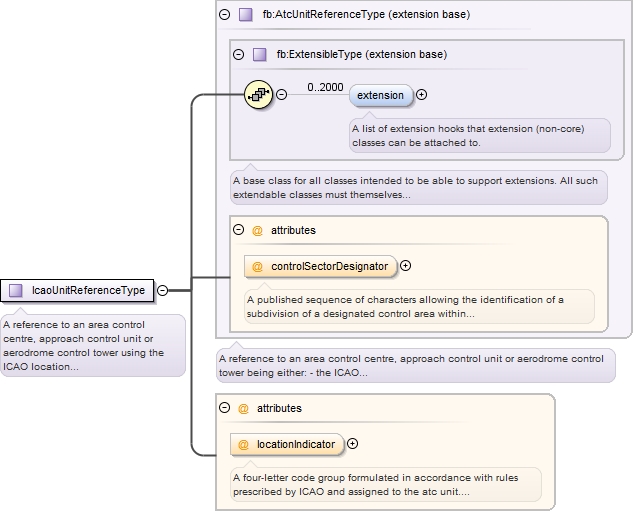

Element fb:IcaoUnitReference
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReferenceType_locationIndicator Organization_xsd.tmp#IcaoUnitReferenceType Extension_xsd.tmp#Extensible
Type fb:IcaoUnitReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000}
Children fb:extension
Instance

<fb:IcaoUnitReference controlSectorDesignator="" locationIndicator="">
  <fb:extension>{0,2000}</fb:extension>
</fb:IcaoUnitReference>
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
locationIndicator fb:LocationIndicatorType optional
A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Source

<element name="IcaoUnitReference" type="fb:IcaoUnitReferenceType" substitutionGroup="fb:Extensible"/>

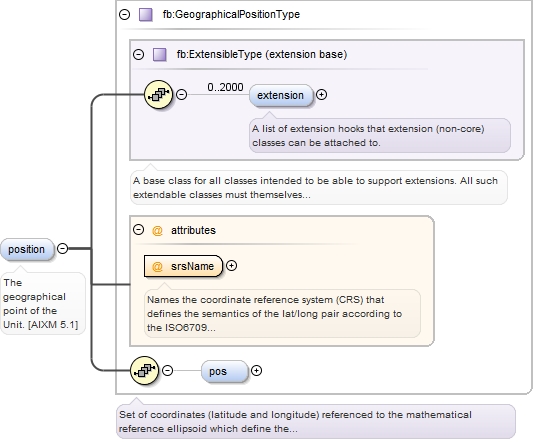

Element fb:OtherUnitReferenceType / fb:position
Namespace http://www.fixm.aero/base/4.1
Annotations

The geographical point of the Unit. [AIXM 5.1]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Airspace_xsd.tmp#GeographicalPositionType_srsName Airspace_xsd.tmp#GeographicalPositionType_pos Airspace_xsd.tmp#GeographicalPositionType
Type fb:GeographicalPositionType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:pos{0,1}
Children fb:extension, fb:pos
Instance

<fb:position srsName="urn:ogc:def:crs:EPSG::4326">
  <fb:extension>{0,2000}</fb:extension>
  <fb:pos>{0,1}</fb:pos>
</fb:position>
Attributes
QName Type Fixed Default Use Annotation
srsName string urn:ogc:def:crs:EPSG::4326 required
Names the coordinate reference system (CRS) that defines the semantics of the
lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
Source

<element name="position" type="fb:GeographicalPositionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The geographical point of the Unit. [AIXM 5.1]</documentation>
  </annotation>
</element>

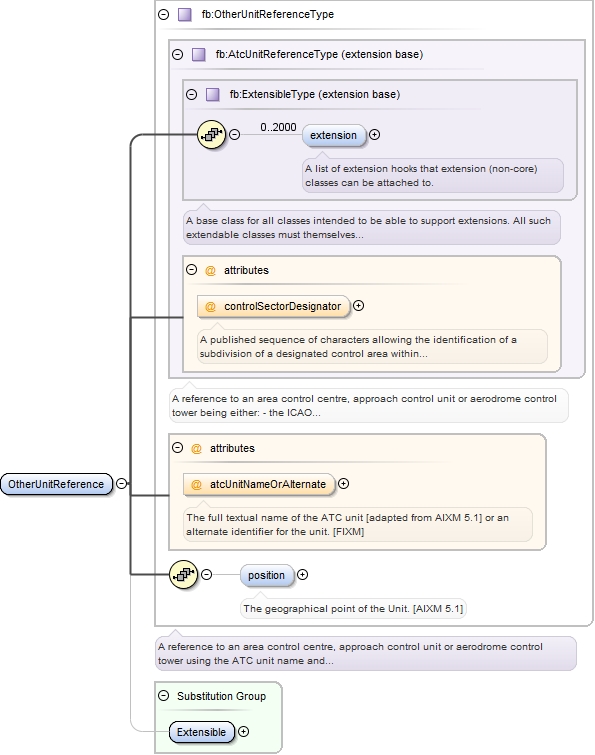

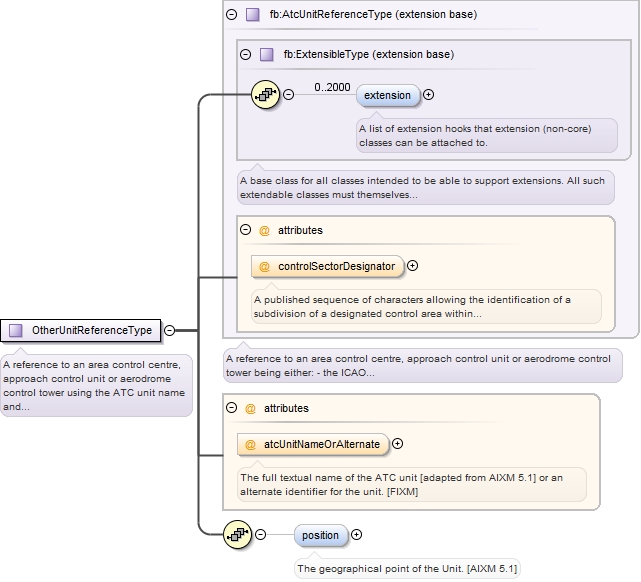

Element fb:OtherUnitReference
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#OtherUnitReferenceType_atcUnitNameOrAlternate Organization_xsd.tmp#OtherUnitReferenceType_position Organization_xsd.tmp#OtherUnitReferenceType Extension_xsd.tmp#Extensible
Type fb:OtherUnitReferenceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fb:position{0,1}
Children fb:extension, fb:position
Instance

<fb:OtherUnitReference atcUnitNameOrAlternate="" controlSectorDesignator="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:position srsName="urn:ogc:def:crs:EPSG::4326">{0,1}</fb:position>
</fb:OtherUnitReference>
Attributes
QName Type Fixed Default Use Annotation
atcUnitNameOrAlternate fb:TextNameType optional
The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier
for the unit. [FIXM]
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<element name="OtherUnitReference" type="fb:OtherUnitReferenceType" substitutionGroup="fb:Extensible"/>

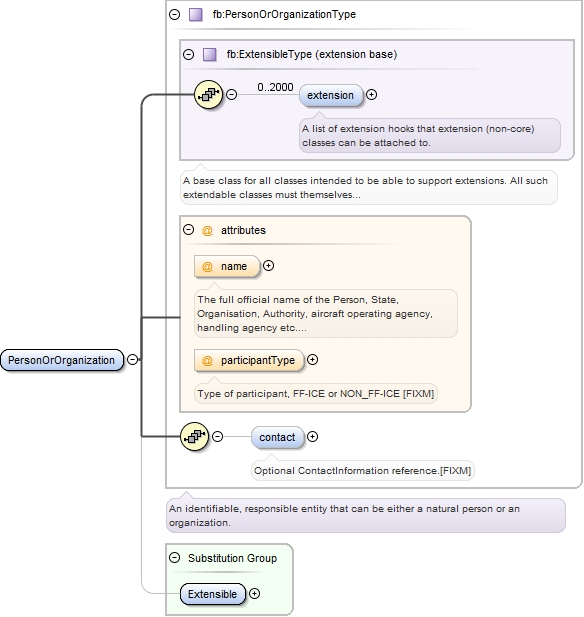

Element fb:PersonOrOrganization
Namespace http://www.fixm.aero/base/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact Organization_xsd.tmp#PersonOrOrganizationType Extension_xsd.tmp#Extensible
Type fb:PersonOrOrganizationType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fb:contact{0,1}
Children fb:contact, fb:extension
Instance

<fb:PersonOrOrganization name="" participantType="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:contact name="" title="">{0,1}</fb:contact>
</fb:PersonOrOrganization>
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<element name="PersonOrOrganization" type="fb:PersonOrOrganizationType" substitutionGroup="fb:Extensible"/>

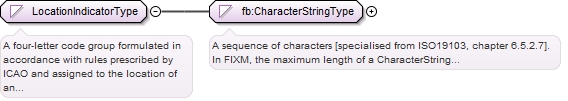

Simple Type fb:LocationIndicatorType
Namespace http://www.fixm.aero/base/4.1
Annotations

A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the location of an aeronautical fixed station. [ICAO Doc 4444]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Z]{4}
Used by
Source

<simpleType name="LocationIndicatorType">
  <annotation>
    <documentation>A four-letter code group formulated in accordance with rules prescribed by ICAO and assigned to the location of an aeronautical fixed station. [ICAO Doc 4444]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Z]{4}"/>
  </restriction>
</simpleType>

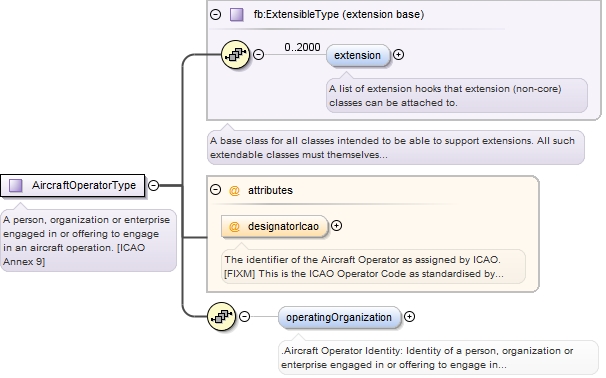

Complex Type fb:AircraftOperatorType
Namespace http://www.fixm.aero/base/4.1
Annotations

A person, organization or enterprise engaged in or offering to engage in an aircraft
operation. [ICAO Annex 9]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AircraftOperatorType_designatorIcao Organization_xsd.tmp#AircraftOperatorType_operatingOrganization
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fb:operatingOrganization{0,1}
Children fb:extension, fb:operatingOrganization
Attributes
QName Type Fixed Default Use Annotation
designatorIcao fb:AircraftOperatorDesignatorType optional
The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Source

<complexType name="AircraftOperatorType">
  <annotation>
    <documentation>A person, organization or enterprise engaged in or offering to engage in an aircraft operation. [ICAO Annex 9]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="operatingOrganization" type="fb:PersonOrOrganizationType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>.Aircraft Operator Identity: Identity of a person, organization or enterprise engaged in or offering to engage in aircraft operation.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="designatorIcao" type="fb:AircraftOperatorDesignatorType" use="optional">
        <annotation>
          <documentation>The identifier of the Aircraft Operator as assigned by ICAO. [FIXM] This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators for Aircraft Operating Agencies, Aeronautical Authorities and Services.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>

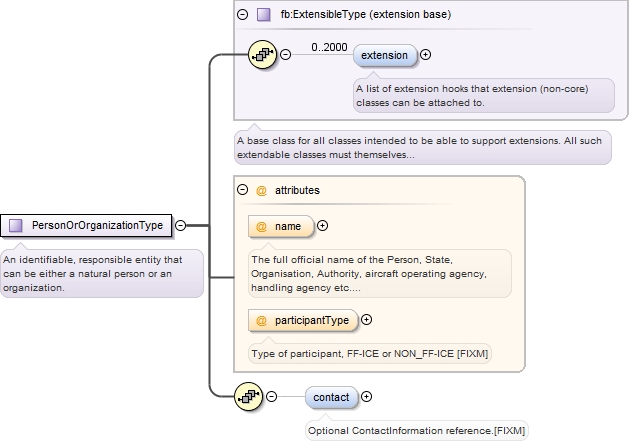

Complex Type fb:PersonOrOrganizationType
Namespace http://www.fixm.aero/base/4.1
Annotations

An identifiable, responsible entity that can be either a natural person or an organization.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#PersonOrOrganizationType_name Organization_xsd.tmp#PersonOrOrganizationType_participantType Organization_xsd.tmp#PersonOrOrganizationType_contact
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fb:contact{0,1}
Children fb:contact, fb:extension
Attributes
QName Type Fixed Default Use Annotation
name fb:TextNameType optional
The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
participantType fb:ParticipantTypeType optional
Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Source

<complexType name="PersonOrOrganizationType">
  <annotation>
    <documentation>An identifiable, responsible entity that can be either a natural person or an organization.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="contact" type="fb:ContactInformationType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Optional ContactInformation reference.[FIXM]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="name" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The full official name of the Person, State, Organisation, Authority, aircraft operating agency, handling agency etc. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="participantType" type="fb:ParticipantTypeType" use="optional">
        <annotation>
          <documentation>Type of participant, FF-ICE or NON_FF-ICE [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Simple Type fb:ParticipantTypeType
Namespace http://www.fixm.aero/base/4.1
Annotations

Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Diagram
Diagram
Type restriction of string
Facets
enumeration FFICE_PARTICIPANT
enumeration NON_FFICE_PARTICIPANT
Used by
Source

<simpleType name="ParticipantTypeType">
  <annotation>
    <documentation>Type of participant, FF-ICE or NON_FF-ICE [FIXM]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="FFICE_PARTICIPANT"/>
    <enumeration value="NON_FFICE_PARTICIPANT"/>
  </restriction>
</simpleType>
Simple Type fb:AircraftOperatorDesignatorType
Namespace http://www.fixm.aero/base/4.1
Annotations

The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Z]{3}
Used by
Source

<simpleType name="AircraftOperatorDesignatorType">
  <annotation>
    <documentation>The identifier of the Aircraft Operator as assigned by ICAO. [FIXM] This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators for Aircraft Operating Agencies, Aeronautical Authorities and Services.</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Z]{3}"/>
  </restriction>
</simpleType>

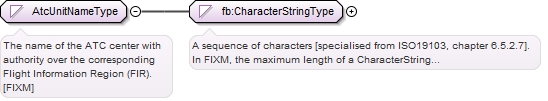

Simple Type fb:AtcUnitNameType
Namespace http://www.fixm.aero/base/4.1
Annotations

The name of the ATC center with authority over the corresponding Flight Information
Region (FIR). [FIXM]
Diagram
Diagram Types_xsd.tmp#CharacterStringType
Type restriction of fb:CharacterStringType
Type hierarchy
Facets
minLength 0
maxLength 4096
pattern [A-Za-z0-9]{1,}
Used by
Source

<simpleType name="AtcUnitNameType">
  <annotation>
    <documentation>The name of the ATC center with authority over the corresponding Flight Information Region (FIR). [FIXM]</documentation>
  </annotation>
  <restriction base="fb:CharacterStringType">
    <pattern value="[A-Za-z0-9]{1,}"/>
  </restriction>
</simpleType>

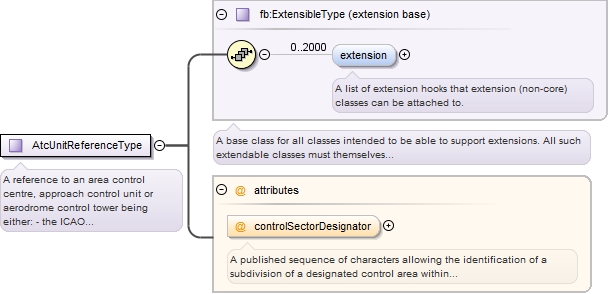

Complex Type fb:AtcUnitReferenceType
Namespace http://www.fixm.aero/base/4.1
Annotations

A reference to an area control centre, approach control unit or aerodrome control
tower being either:
- the ICAO location indicator of the atc unit, as listed in ICAO Doc 7910
- if no ICAO location indicator is available, the ATC unit name and optionally its
geographical position. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator
Type extension of fb:ExtensibleType
Type hierarchy
Properties
abstract: true
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<complexType abstract="true" name="AtcUnitReferenceType">
  <annotation>
    <documentation>A reference to an area control centre, approach control unit or aerodrome control tower being either: - the ICAO location indicator of the atc unit, as listed in ICAO Doc 7910 - if no ICAO location indicator is available, the ATC unit name and optionally its geographical position. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <attribute name="controlSectorDesignator" type="fb:AirspaceDesignatorType" use="optional">
        <annotation>
          <documentation>A published sequence of characters allowing the identification of a subdivision of a designated control area within which responsibility is assigned to one controller or to a small group of controllers.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:IcaoUnitReferenceType
Namespace http://www.fixm.aero/base/4.1
Annotations

A reference to an area control centre, approach control unit or aerodrome control
tower using the ICAO location indicator of the atc unit, as listed in ICAO DOC 7910.
[FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReferenceType_locationIndicator
Type extension of fb:AtcUnitReferenceType
Type hierarchy
Used by
Model fb:extension{0,2000}
Children fb:extension
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
locationIndicator fb:LocationIndicatorType optional
A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Source

<complexType name="IcaoUnitReferenceType">
  <annotation>
    <documentation>A reference to an area control centre, approach control unit or aerodrome control tower using the ICAO location indicator of the atc unit, as listed in ICAO DOC 7910. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:AtcUnitReferenceType">
      <attribute name="locationIndicator" type="fb:LocationIndicatorType" use="optional">
        <annotation>
          <documentation>A four-letter code group formulated in accordance with rules prescribed by ICAO and assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location indicators is provided by ICAO Doc 7910.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fb:OtherUnitReferenceType
Namespace http://www.fixm.aero/base/4.1
Annotations

A reference to an area control centre, approach control unit or aerodrome control
tower using the ATC unit name and optionally its geographical position, if no ICAO
location indicator is available. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#OtherUnitReferenceType_atcUnitNameOrAlternate Organization_xsd.tmp#OtherUnitReferenceType_position
Type extension of fb:AtcUnitReferenceType
Type hierarchy
Used by
Model fb:extension{0,2000} , fb:position{0,1}
Children fb:extension, fb:position
Attributes
QName Type Fixed Default Use Annotation
atcUnitNameOrAlternate fb:TextNameType optional
The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier
for the unit. [FIXM]
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Source

<complexType name="OtherUnitReferenceType">
  <annotation>
    <documentation>A reference to an area control centre, approach control unit or aerodrome control tower using the ATC unit name and optionally its geographical position, if no ICAO location indicator is available. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:AtcUnitReferenceType">
      <sequence>
        <element name="position" type="fb:GeographicalPositionType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The geographical point of the Unit. [AIXM 5.1]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="atcUnitNameOrAlternate" type="fb:TextNameType" use="optional">
        <annotation>
          <documentation>The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier for the unit. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fb:PersonOrOrganizationType / @name
Namespace No namespace
Annotations

The full official name of the Person, State, Organisation, Authority, aircraft operating
agency, handling agency etc. [FIXM]
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="name" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The full official name of the Person, State, Organisation, Authority, aircraft operating agency, handling agency etc. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:PersonOrOrganizationType / @participantType
Namespace No namespace
Annotations

Type of participant, FF-ICE or NON_FF-ICE [FIXM]
Type fb:ParticipantTypeType
Properties
use: optional
Facets
enumeration FFICE_PARTICIPANT
enumeration NON_FFICE_PARTICIPANT
Used by
Source

<attribute name="participantType" type="fb:ParticipantTypeType" use="optional">
  <annotation>
    <documentation>Type of participant, FF-ICE or NON_FF-ICE [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fb:AircraftOperatorType / @designatorIcao
Namespace No namespace
Annotations

The identifier of the Aircraft Operator as assigned by ICAO. [FIXM]
This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators
for Aircraft Operating Agencies, Aeronautical Authorities and Services.
Type fb:AircraftOperatorDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z]{3}
Used by
Source

<attribute name="designatorIcao" type="fb:AircraftOperatorDesignatorType" use="optional">
  <annotation>
    <documentation>The identifier of the Aircraft Operator as assigned by ICAO. [FIXM] This is the ICAO Operator Code as standardised by ICAO Doc 8585 Manual on Designators for Aircraft Operating Agencies, Aeronautical Authorities and Services.</documentation>
  </annotation>
</attribute>
Attribute fb:AtcUnitReferenceType / @controlSectorDesignator
Namespace No namespace
Annotations

A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
Type fb:AirspaceDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 10
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="controlSectorDesignator" type="fb:AirspaceDesignatorType" use="optional">
  <annotation>
    <documentation>A published sequence of characters allowing the identification of a subdivision of a designated control area within which responsibility is assigned to one controller or to a small group of controllers.</documentation>
  </annotation>
</attribute>
Attribute fb:IcaoUnitReferenceType / @locationIndicator
Namespace No namespace
Annotations

A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Type fb:LocationIndicatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z]{4}
Used by
Source

<attribute name="locationIndicator" type="fb:LocationIndicatorType" use="optional">
  <annotation>
    <documentation>A four-letter code group formulated in accordance with rules prescribed by ICAO and assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location indicators is provided by ICAO Doc 7910.</documentation>
  </annotation>
</attribute>
Attribute fb:OtherUnitReferenceType / @atcUnitNameOrAlternate
Namespace No namespace
Annotations

The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier
for the unit. [FIXM]
Type fb:TextNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !"&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
Used by
Source

<attribute name="atcUnitNameOrAlternate" type="fb:TextNameType" use="optional">
  <annotation>
    <documentation>The full textual name of the ATC unit [adapted from AIXM 5.1] or an alternate identifier for the unit. [FIXM]</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
