The Emergency Package describes any emergency filed during the flight.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

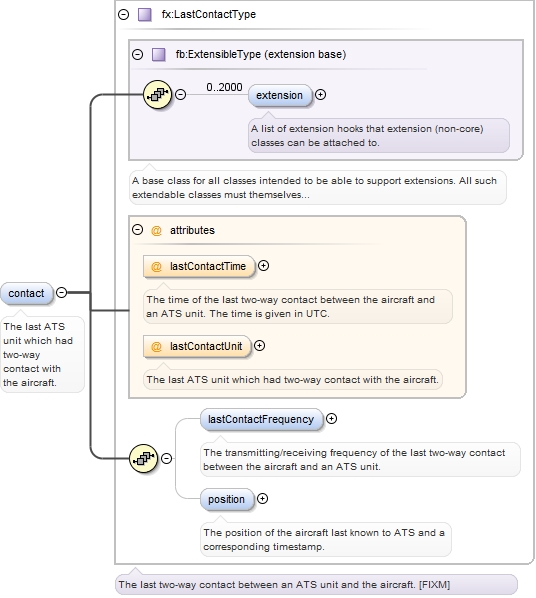

Element fx:FlightEmergencyType / fx:lastContact
Namespace http://www.fixm.aero/flight/4.1
Annotations

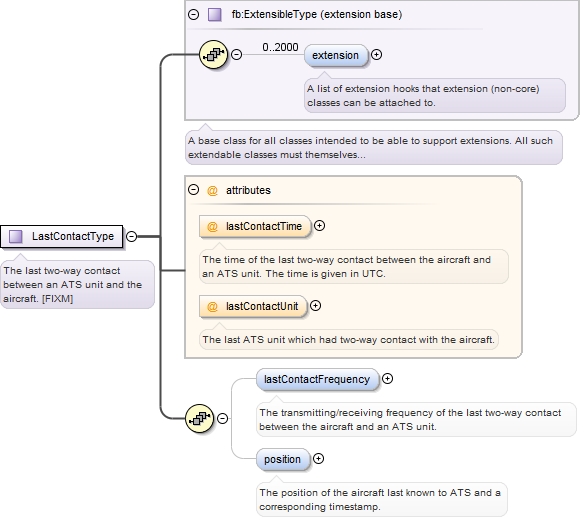

The last two-way contact between an ATS unit and the aircraft. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_position Emergency_xsd.tmp#LastContactType
Type fx:LastContactType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:lastContactFrequency{0,1} , fx:position{0,1}
Children fb:extension, fx:lastContactFrequency, fx:position
Instance

<fx:lastContact lastContactTime="" lastContactUnit="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:lastContactFrequency uom="">{0,1}</fx:lastContactFrequency>
  <fx:position determinationMethod="" timeAtPosition="">{0,1}</fx:position>
</fx:lastContact>
Attributes
QName Type Fixed Default Use Annotation
lastContactTime fb:TimeType optional
The time of the last two-way contact between the aircraft and an ATS unit. The time
is given in UTC.
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<element name="lastContact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The last two-way contact between an ATS unit and the aircraft. [FIXM]</documentation>
  </annotation>
</element>
Element fx:LastContactType / fx:lastContactFrequency
Namespace http://www.fixm.aero/flight/4.1
Annotations

The transmitting/receiving frequency of the last two-way contact between the aircraft
and an ATS unit.
Diagram
Diagram Measures_xsd.tmp#RestrictedFrequencyType Measures_xsd.tmp#FrequencyType_uom Measures_xsd.tmp#FrequencyType
Type fb:FrequencyType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomFrequencyType required
Unit of measure
Source

<element name="lastContactFrequency" type="fb:FrequencyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The transmitting/receiving frequency of the last two-way contact between the aircraft and an ATS unit.</documentation>
  </annotation>
</element>

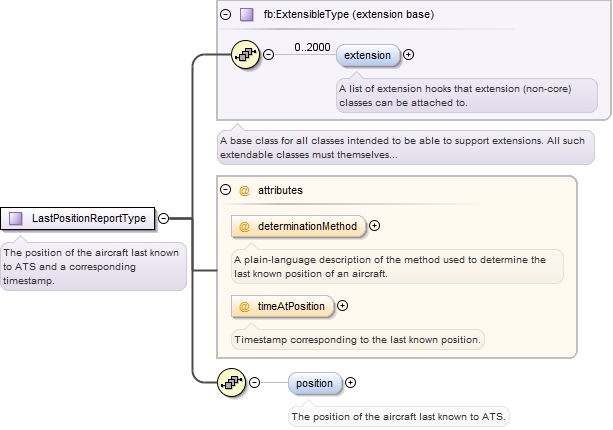

Element fx:LastContactType / fx:position
Namespace http://www.fixm.aero/flight/4.1
Annotations

The position of the aircraft last known to ATS and a corresponding timestamp.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastPositionReportType_determinationMethod Emergency_xsd.tmp#LastPositionReportType_timeAtPosition Emergency_xsd.tmp#LastPositionReportType_position Emergency_xsd.tmp#LastPositionReportType
Type fx:LastPositionReportType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:position{0,1}
Children fb:extension, fx:position
Instance

<fx:position determinationMethod="" timeAtPosition="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:position>{0,1}</fx:position>
</fx:position>
Attributes
QName Type Fixed Default Use Annotation
determinationMethod fb:CharacterStringType optional
A plain-language description of the method used to determine the last known position
of an aircraft.
timeAtPosition fb:TimeType optional
Timestamp corresponding to the last known position.
Source

<element name="position" type="fx:LastPositionReportType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</documentation>
  </annotation>
</element>

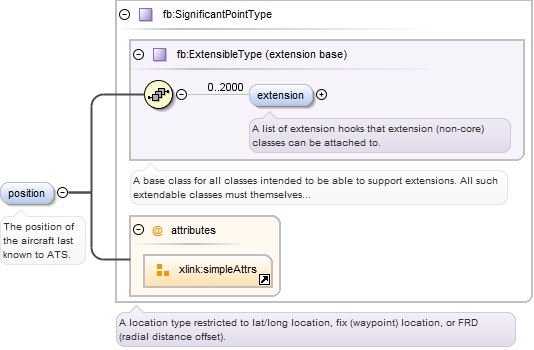

Element fx:LastPositionReportType / fx:position
Namespace http://www.fixm.aero/flight/4.1
Annotations

The position of the aircraft last known to ATS.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Airspace_xsd.tmp#SignificantPointType
Type fb:SignificantPointType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000}
Children fb:extension
Instance

<fx:position>
  <fb:extension>{0,2000}</fb:extension>
</fx:position>
Source

<element name="position" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The position of the aircraft last known to ATS.</documentation>
  </annotation>
</element>
Element fx:FlightEmergencyType / fx:originator
Namespace http://www.fixm.aero/flight/4.1
Annotations

The ICAO identifier of the ATS unit originating the emergency message.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Organization_xsd.tmp#AtcUnitReferenceType_controlSectorDesignator Organization_xsd.tmp#AtcUnitReferenceType Organization_xsd.tmp#IcaoUnitReferenceType_locationIndicator Organization_xsd.tmp#IcaoUnitReferenceType
Type fb:IcaoUnitReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000}
Children fb:extension
Instance

<fx:originator controlSectorDesignator="" locationIndicator="">
  <fb:extension>{0,2000}</fb:extension>
</fx:originator>
Attributes
QName Type Fixed Default Use Annotation
controlSectorDesignator fb:AirspaceDesignatorType optional
A published sequence of characters allowing the identification of a subdivision of
a designated control area within which responsibility is assigned to one controller
or to a small group of controllers.
locationIndicator fb:LocationIndicatorType optional
A four-letter code group formulated in accordance with rules prescribed by ICAO and
assigned to the atc unit. [Specialised from ICAO Annex 10] The list of ICAO location
indicators is provided by ICAO Doc 7910.
Source

<element name="originator" type="fb:IcaoUnitReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The ICAO identifier of the ATS unit originating the emergency message.</documentation>
  </annotation>
</element>

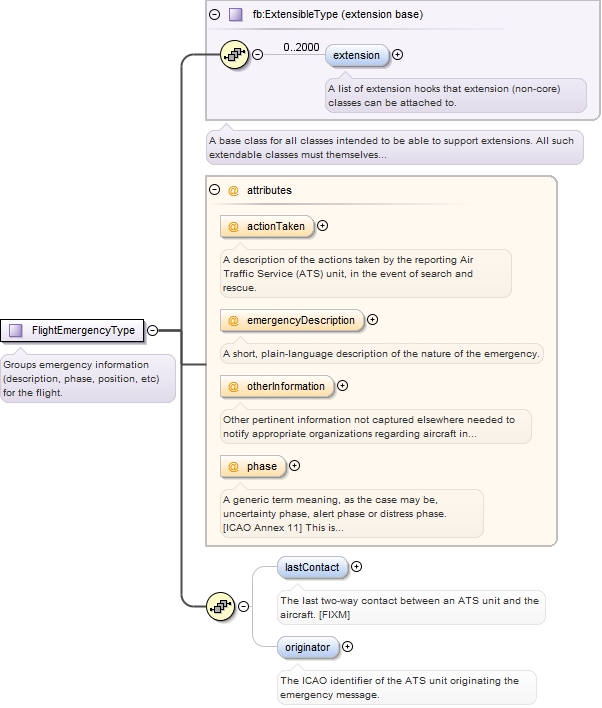

Element fx:FlightEmergency
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#FlightEmergencyType_actionTaken Emergency_xsd.tmp#FlightEmergencyType_emergencyDescription Emergency_xsd.tmp#FlightEmergencyType_otherInformation Emergency_xsd.tmp#FlightEmergencyType_phase Emergency_xsd.tmp#FlightEmergencyType_lastContact Emergency_xsd.tmp#FlightEmergencyType_originator Emergency_xsd.tmp#FlightEmergencyType Extension_xsd.tmp#Extensible
Type fx:FlightEmergencyType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:lastContact{0,1} , fx:originator{0,1}
Children fb:extension, fx:lastContact, fx:originator
Instance

<fx:FlightEmergency actionTaken="" emergencyDescription="" otherInformation="" phase="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:lastContact lastContactTime="" lastContactUnit="">{0,1}</fx:lastContact>
  <fx:originator controlSectorDesignator="" locationIndicator="">{0,1}</fx:originator>
</fx:FlightEmergency>
Attributes
QName Type Fixed Default Use Annotation
actionTaken fb:CharacterStringType optional
A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
emergencyDescription fb:CharacterStringType optional
A short, plain-language description of the nature of the emergency.
otherInformation fb:CharacterStringType optional
Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.

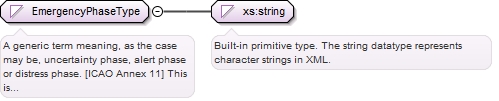

phase fx:EmergencyPhaseType optional
A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Source

<element name="FlightEmergency" type="fx:FlightEmergencyType" substitutionGroup="fb:Extensible"/>
Element fx:LastContact
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_position Emergency_xsd.tmp#LastContactType Extension_xsd.tmp#Extensible
Type fx:LastContactType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:lastContactFrequency{0,1} , fx:position{0,1}
Children fb:extension, fx:lastContactFrequency, fx:position
Instance

<fx:LastContact lastContactTime="" lastContactUnit="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:lastContactFrequency uom="">{0,1}</fx:lastContactFrequency>
  <fx:position determinationMethod="" timeAtPosition="">{0,1}</fx:position>
</fx:LastContact>
Attributes
QName Type Fixed Default Use Annotation
lastContactTime fb:TimeType optional
The time of the last two-way contact between the aircraft and an ATS unit. The time
is given in UTC.
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<element name="LastContact" type="fx:LastContactType" substitutionGroup="fb:Extensible"/>

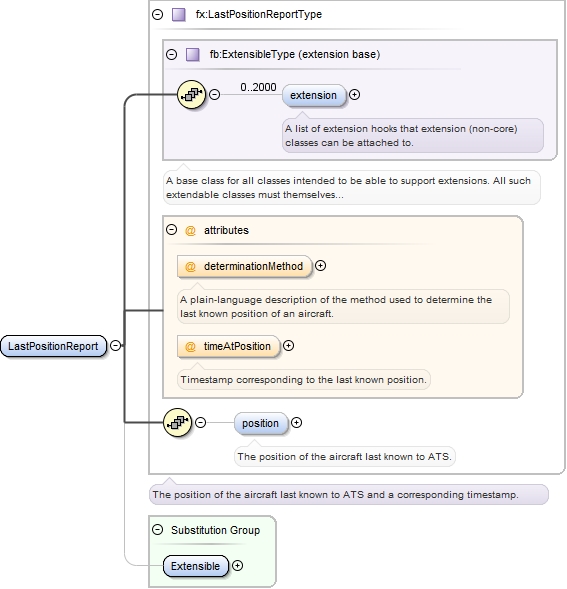

Element fx:LastPositionReport
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastPositionReportType_determinationMethod Emergency_xsd.tmp#LastPositionReportType_timeAtPosition Emergency_xsd.tmp#LastPositionReportType_position Emergency_xsd.tmp#LastPositionReportType Extension_xsd.tmp#Extensible
Type fx:LastPositionReportType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:position{0,1}
Children fb:extension, fx:position
Instance

<fx:LastPositionReport determinationMethod="" timeAtPosition="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:position>{0,1}</fx:position>
</fx:LastPositionReport>
Attributes
QName Type Fixed Default Use Annotation
determinationMethod fb:CharacterStringType optional
A plain-language description of the method used to determine the last known position
of an aircraft.
timeAtPosition fb:TimeType optional
Timestamp corresponding to the last known position.
Source

<element name="LastPositionReport" type="fx:LastPositionReportType" substitutionGroup="fb:Extensible"/>

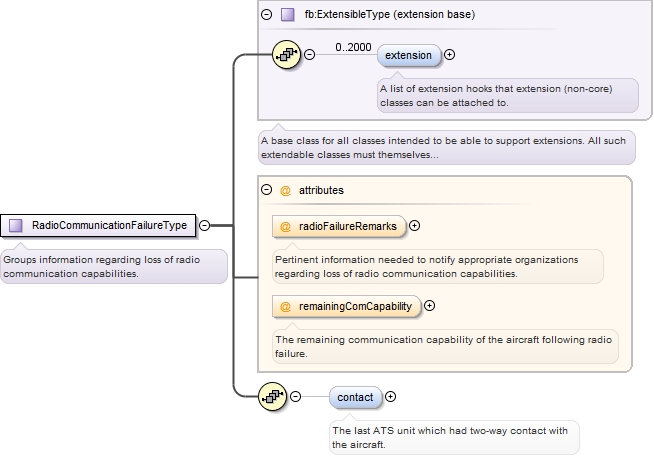

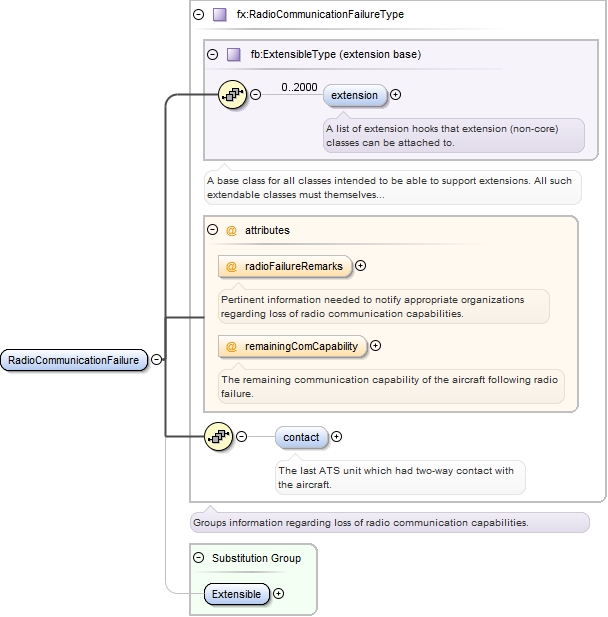

Element fx:RadioCommunicationFailureType / fx:contact
Namespace http://www.fixm.aero/flight/4.1
Annotations

The last ATS unit which had two-way contact with the aircraft.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_position Emergency_xsd.tmp#LastContactType
Type fx:LastContactType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:lastContactFrequency{0,1} , fx:position{0,1}
Children fb:extension, fx:lastContactFrequency, fx:position
Instance

<fx:contact lastContactTime="" lastContactUnit="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:lastContactFrequency uom="">{0,1}</fx:lastContactFrequency>
  <fx:position determinationMethod="" timeAtPosition="">{0,1}</fx:position>
</fx:contact>
Attributes
QName Type Fixed Default Use Annotation
lastContactTime fb:TimeType optional
The time of the last two-way contact between the aircraft and an ATS unit. The time
is given in UTC.
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<element name="contact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
  </annotation>
</element>
Element fx:RadioCommunicationFailure
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#RadioCommunicationFailureType_radioFailureRemarks Emergency_xsd.tmp#RadioCommunicationFailureType_remainingComCapability Emergency_xsd.tmp#RadioCommunicationFailureType_contact Emergency_xsd.tmp#RadioCommunicationFailureType Extension_xsd.tmp#Extensible
Type fx:RadioCommunicationFailureType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:contact{0,1}
Children fb:extension, fx:contact
Instance

<fx:RadioCommunicationFailure radioFailureRemarks="" remainingComCapability="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:contact lastContactTime="" lastContactUnit="">{0,1}</fx:contact>
</fx:RadioCommunicationFailure>
Attributes
QName Type Fixed Default Use Annotation
radioFailureRemarks fb:CharacterStringType optional
Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
remainingComCapability fb:CharacterStringType optional
The remaining communication capability of the aircraft following radio failure.
Source

<element name="RadioCommunicationFailure" type="fx:RadioCommunicationFailureType" substitutionGroup="fb:Extensible"/>
Simple Type fx:EmergencyPhaseType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]
This is the stage of emergency the flight is currently under, as designated by an
ATS unit. [FIXM]
Diagram
Diagram
Type restriction of string
Facets
enumeration INCERFA
The code word used to designate an uncertainty phase. [ICAO Annex 11]
enumeration ALERFA
The code word used to designate an alert phase. [ICAO Annex 11]
enumeration DETRESFA
The code word used to designate a distress phase. [ICAO Annex 11]
Used by
Source

<simpleType name="EmergencyPhaseType">
  <annotation>
    <documentation>A generic term meaning, as the case may be, uncertainty phase, alert phase or distress phase. [ICAO Annex 11] This is the stage of emergency the flight is currently under, as designated by an ATS unit. [FIXM]</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="INCERFA">
      <annotation>
        <documentation>The code word used to designate an uncertainty phase. [ICAO Annex 11]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="ALERFA">
      <annotation>
        <documentation>The code word used to designate an alert phase. [ICAO Annex 11]</documentation>
      </annotation>
    </enumeration>
    <enumeration value="DETRESFA">
      <annotation>
        <documentation>The code word used to designate a distress phase. [ICAO Annex 11]</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type fx:FlightEmergencyType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Groups emergency information (description, phase, position, etc) for the flight.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#FlightEmergencyType_actionTaken Emergency_xsd.tmp#FlightEmergencyType_emergencyDescription Emergency_xsd.tmp#FlightEmergencyType_otherInformation Emergency_xsd.tmp#FlightEmergencyType_phase Emergency_xsd.tmp#FlightEmergencyType_lastContact Emergency_xsd.tmp#FlightEmergencyType_originator
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:lastContact{0,1} , fx:originator{0,1}
Children fb:extension, fx:lastContact, fx:originator
Attributes
QName Type Fixed Default Use Annotation
actionTaken fb:CharacterStringType optional
A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
emergencyDescription fb:CharacterStringType optional
A short, plain-language description of the nature of the emergency.
otherInformation fb:CharacterStringType optional
Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.
phase fx:EmergencyPhaseType optional
A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Source

<complexType name="FlightEmergencyType">
  <annotation>
    <documentation>Groups emergency information (description, phase, position, etc) for the flight.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="lastContact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The last two-way contact between an ATS unit and the aircraft. [FIXM]</documentation>
          </annotation>
        </element>
        <element name="originator" type="fb:IcaoUnitReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The ICAO identifier of the ATS unit originating the emergency message.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="actionTaken" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>A description of the actions taken by the reporting Air Traffic Service (ATS) unit, in the event of search and rescue.</documentation>
        </annotation>
      </attribute>
      <attribute name="emergencyDescription" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>A short, plain-language description of the nature of the emergency.</documentation>
        </annotation>
      </attribute>
      <attribute name="otherInformation" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>Other pertinent information not captured elsewhere needed to notify appropriate organizations regarding aircraft in need of search and rescue.</documentation>
        </annotation>
      </attribute>
      <attribute name="phase" type="fx:EmergencyPhaseType" use="optional">
        <annotation>
          <documentation>A generic term meaning, as the case may be, uncertainty phase, alert phase or distress phase. [ICAO Annex 11] This is the stage of emergency the flight is currently under or an indication the emergency has been cancelled, as designated by an ATS unit. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:LastContactType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The last two-way contact between an ATS unit and the aircraft. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastContactType_lastContactTime Emergency_xsd.tmp#LastContactType_lastContactUnit Emergency_xsd.tmp#LastContactType_lastContactFrequency Emergency_xsd.tmp#LastContactType_position
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:lastContactFrequency{0,1} , fx:position{0,1}
Children fb:extension, fx:lastContactFrequency, fx:position
Attributes
QName Type Fixed Default Use Annotation
lastContactTime fb:TimeType optional
The time of the last two-way contact between the aircraft and an ATS unit. The time
is given in UTC.
lastContactUnit fb:AtcUnitNameType optional
The last ATS unit which had two-way contact with the aircraft.
Source

<complexType name="LastContactType">
  <annotation>
    <documentation>The last two-way contact between an ATS unit and the aircraft. [FIXM]</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="lastContactFrequency" type="fb:FrequencyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The transmitting/receiving frequency of the last two-way contact between the aircraft and an ATS unit.</documentation>
          </annotation>
        </element>
        <element name="position" type="fx:LastPositionReportType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="lastContactTime" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>The time of the last two-way contact between the aircraft and an ATS unit. The time is given in UTC.</documentation>
        </annotation>
      </attribute>
      <attribute name="lastContactUnit" type="fb:AtcUnitNameType" use="optional">
        <annotation>
          <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:LastPositionReportType
Namespace http://www.fixm.aero/flight/4.1
Annotations

The position of the aircraft last known to ATS and a corresponding timestamp.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#LastPositionReportType_determinationMethod Emergency_xsd.tmp#LastPositionReportType_timeAtPosition Emergency_xsd.tmp#LastPositionReportType_position
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:position{0,1}
Children fb:extension, fx:position
Attributes
QName Type Fixed Default Use Annotation
determinationMethod fb:CharacterStringType optional
A plain-language description of the method used to determine the last known position
of an aircraft.
timeAtPosition fb:TimeType optional
Timestamp corresponding to the last known position.
Source

<complexType name="LastPositionReportType">
  <annotation>
    <documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="position" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The position of the aircraft last known to ATS.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="determinationMethod" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>A plain-language description of the method used to determine the last known position of an aircraft.</documentation>
        </annotation>
      </attribute>
      <attribute name="timeAtPosition" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>Timestamp corresponding to the last known position.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:RadioCommunicationFailureType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Groups information regarding loss of radio communication capabilities.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Emergency_xsd.tmp#RadioCommunicationFailureType_radioFailureRemarks Emergency_xsd.tmp#RadioCommunicationFailureType_remainingComCapability Emergency_xsd.tmp#RadioCommunicationFailureType_contact
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:contact{0,1}
Children fb:extension, fx:contact
Attributes
QName Type Fixed Default Use Annotation
radioFailureRemarks fb:CharacterStringType optional
Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
remainingComCapability fb:CharacterStringType optional
The remaining communication capability of the aircraft following radio failure.
Source

<complexType name="RadioCommunicationFailureType">
  <annotation>
    <documentation>Groups information regarding loss of radio communication capabilities.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="contact" type="fx:LastContactType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="radioFailureRemarks" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.</documentation>
        </annotation>
      </attribute>
      <attribute name="remainingComCapability" type="fb:CharacterStringType" use="optional">
        <annotation>
          <documentation>The remaining communication capability of the aircraft following radio failure.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fx:LastPositionReportType / @determinationMethod
Namespace No namespace
Annotations

A plain-language description of the method used to determine the last known position
of an aircraft.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="determinationMethod" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A plain-language description of the method used to determine the last known position of an aircraft.</documentation>
  </annotation>
</attribute>
Attribute fx:LastPositionReportType / @timeAtPosition
Namespace No namespace
Annotations

Timestamp corresponding to the last known position.
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Source

<attribute name="timeAtPosition" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>Timestamp corresponding to the last known position.</documentation>
  </annotation>
</attribute>
Attribute fx:LastContactType / @lastContactTime
Namespace No namespace
Annotations

The time of the last two-way contact between the aircraft and an ATS unit. The time
is given in UTC.
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Complex Type fx:LastContactType
Source

<attribute name="lastContactTime" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>The time of the last two-way contact between the aircraft and an ATS unit. The time is given in UTC.</documentation>
  </annotation>
</attribute>
Attribute fx:LastContactType / @lastContactUnit
Namespace No namespace
Annotations

The last ATS unit which had two-way contact with the aircraft.
Type fb:AtcUnitNameType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Za-z0-9]{1,}
Used by
Complex Type fx:LastContactType
Source

<attribute name="lastContactUnit" type="fb:AtcUnitNameType" use="optional">
  <annotation>
    <documentation>The last ATS unit which had two-way contact with the aircraft.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @actionTaken
Namespace No namespace
Annotations

A description of the actions taken by the reporting Air Traffic Service (ATS) unit,
in the event of search and rescue.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="actionTaken" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A description of the actions taken by the reporting Air Traffic Service (ATS) unit, in the event of search and rescue.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @emergencyDescription
Namespace No namespace
Annotations

A short, plain-language description of the nature of the emergency.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="emergencyDescription" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A short, plain-language description of the nature of the emergency.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @otherInformation
Namespace No namespace
Annotations

Other pertinent information not captured elsewhere needed to notify appropriate organizations
regarding aircraft in need of search and rescue.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="otherInformation" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Other pertinent information not captured elsewhere needed to notify appropriate organizations regarding aircraft in need of search and rescue.</documentation>
  </annotation>
</attribute>
Attribute fx:FlightEmergencyType / @phase
Namespace No namespace
Annotations

A generic term meaning, as the case may be, uncertainty phase, alert phase or distress
phase. [ICAO Annex 11]

This is the stage of emergency the flight is currently under or an indication the
emergency has been cancelled, as designated by an ATS unit. [FIXM]
Type fx:EmergencyPhaseType
Properties
use: optional
Facets
enumeration INCERFA
The code word used to designate an uncertainty phase. [ICAO Annex 11]
enumeration ALERFA
The code word used to designate an alert phase. [ICAO Annex 11]
enumeration DETRESFA
The code word used to designate a distress phase. [ICAO Annex 11]
Used by
Complex Type fx:FlightEmergencyType
Source

<attribute name="phase" type="fx:EmergencyPhaseType" use="optional">
  <annotation>
    <documentation>A generic term meaning, as the case may be, uncertainty phase, alert phase or distress phase. [ICAO Annex 11] This is the stage of emergency the flight is currently under or an indication the emergency has been cancelled, as designated by an ATS unit. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:RadioCommunicationFailureType / @radioFailureRemarks
Namespace No namespace
Annotations

Pertinent information needed to notify appropriate organizations regarding loss of
radio communication capabilities.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="radioFailureRemarks" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.</documentation>
  </annotation>
</attribute>
Attribute fx:RadioCommunicationFailureType / @remainingComCapability
Namespace No namespace
Annotations

The remaining communication capability of the aircraft following radio failure.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="remainingComCapability" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The remaining communication capability of the aircraft following radio failure.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
