complexType RouteDesignatorType

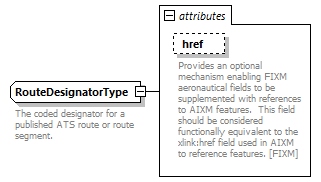

diagram
namespace	http://www.fixm.aero/base/4.2
type	extension of fb:RestrictedRouteDesignatorType
properties	base  fb:RestrictedRouteDesignatorType
used by	element  RouteDesignatorToNextElementChoiceType/routeDesignator
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z][A-Z0-9]{1,7}
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The coded designator for a published ATS route or route segment.
source	<xs:complexType name="RouteDesignatorType">   <xs:annotation>     <xs:documentation>The coded designator for a published ATS route or route segment.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="fb:RestrictedRouteDesignatorType">       <xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">         <xs:annotation>           <xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute RouteDesignatorType/@href

type	fb:HypertextReferenceType
properties	use  optional
annotation	documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
source	<xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">   <xs:annotation>     <xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>   </xs:annotation> </xs:attribute>
