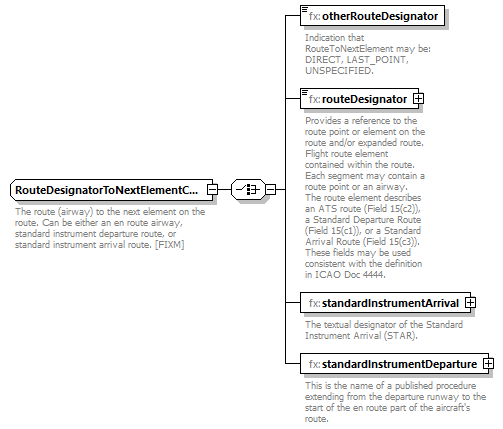

complexType RouteDesignatorToNextElementChoiceType
diagram Fixm_diagrams/Fixm_p452.png
namespace http://www.fixm.aero/flight/4.2
children fx:otherRouteDesignator fx:routeDesignator fx:standardInstrumentArrival fx:standardInstrumentDeparture
used by
element RouteTrajectoryElementType/routeDesignatorToNextElement
annotation
documentation
The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]
source <xs:complexType name="RouteDesignatorToNextElementChoiceType">

<xs:annotation>

<xs:documentation>The route (airway) to the next element on the route. Can be either an en route airway, standard instrument departure route, or standard instrument arrival route. [FIXM]</xs:documentation>

</xs:annotation>

<xs:choice>

<xs:element name="otherRouteDesignator" type="fx:OtherRouteDesignatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Indication that RouteToNextElement may be: DIRECT, LAST_POINT, UNSPECIFIED.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="routeDesignator" type="fb:RouteDesignatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Provides a reference to the route point or element on the route and/or expanded route.
Flight route element  contained within the route. Each segment may contain a route point or an airway.
The route element describes an ATS route (Field 15(c2)), a Standard Departure Route (Field 15(c1)), or a Standard Arrival Route (Field 15(c3)). These fields may be used consistent with the definition in ICAO Doc 4444.
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="standardInstrumentArrival" type="fb:SidStarReferenceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>The textual designator of the Standard Instrument Arrival (STAR). </xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="standardInstrumentDeparture" type="fb:SidStarReferenceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>This is the name of a published procedure extending from the departure runway to the start of the en route part of the aircraft's route. </xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>
</xs:complexType>

element RouteDesignatorToNextElementChoiceType/otherRouteDesignator
diagram Fixm_diagrams/Fixm_p453.png
namespace http://www.fixm.aero/flight/4.2
type fx:OtherRouteDesignatorType
properties
content simple
facets
Kind Value Annotation
enumeration DIRECT
documentation
When the element is direct, "Direct" must be specified. [FF-ICE]
enumeration UNSPECIFIED
documentation
If the element is a delay segment, the route to next element should be labeled as "Unspecified". [FF-ICE]
enumeration LAST_POINT
documentation
When the element is the last point of the flight, "Last Point" must be specified. [FF-ICE]
annotation
documentation
Indication that RouteToNextElement may be: DIRECT, LAST_POINT, UNSPECIFIED.
source <xs:element name="otherRouteDesignator" type="fx:OtherRouteDesignatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Indication that RouteToNextElement may be: DIRECT, LAST_POINT, UNSPECIFIED.</xs:documentation>

</xs:annotation>
</xs:element>

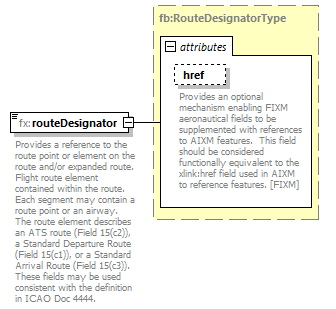

element RouteDesignatorToNextElementChoiceType/routeDesignator
diagram Fixm_diagrams/Fixm_p454.png
namespace http://www.fixm.aero/flight/4.2
type fb:RouteDesignatorType
properties
content complex
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Z][A-Z0-9]{1,7}
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
Provides a reference to the route point or element on the route and/or expanded route.
Flight route element  contained within the route. Each segment may contain a route point or an airway.
The route element describes an ATS route (Field 15(c2)), a Standard Departure Route (Field 15(c1)), or a Standard Arrival Route (Field 15(c3)). These fields may be used consistent with the definition in ICAO Doc 4444.
source <xs:element name="routeDesignator" type="fb:RouteDesignatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Provides a reference to the route point or element on the route and/or expanded route.
Flight route element  contained within the route. Each segment may contain a route point or an airway.
The route element describes an ATS route (Field 15(c2)), a Standard Departure Route (Field 15(c1)), or a Standard Arrival Route (Field 15(c3)). These fields may be used consistent with the definition in ICAO Doc 4444.
</xs:documentation>

</xs:annotation>
</xs:element>

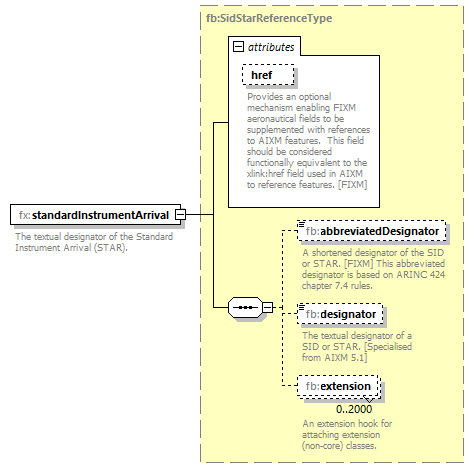

element RouteDesignatorToNextElementChoiceType/standardInstrumentArrival
diagram Fixm_diagrams/Fixm_p455.png
namespace http://www.fixm.aero/flight/4.2
type fb:SidStarReferenceType
properties
content complex
children fb:abbreviatedDesignator fb:designator fb:extension
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
The textual designator of the Standard Instrument Arrival (STAR).
source <xs:element name="standardInstrumentArrival" type="fb:SidStarReferenceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>The textual designator of the Standard Instrument Arrival (STAR). </xs:documentation>

</xs:annotation>
</xs:element>

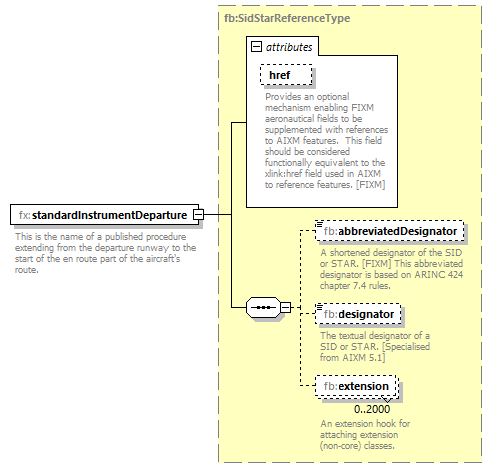

element RouteDesignatorToNextElementChoiceType/standardInstrumentDeparture
diagram Fixm_diagrams/Fixm_p456.png
namespace http://www.fixm.aero/flight/4.2
type fb:SidStarReferenceType
properties
content complex
children fb:abbreviatedDesignator fb:designator fb:extension
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
This is the name of a published procedure extending from the departure runway to the start of the en route part of the aircraft's route.
source <xs:element name="standardInstrumentDeparture" type="fb:SidStarReferenceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>This is the name of a published procedure extending from the departure runway to the start of the en route part of the aircraft's route. </xs:documentation>

</xs:annotation>
</xs:element>
