complexType LevelConstraintType

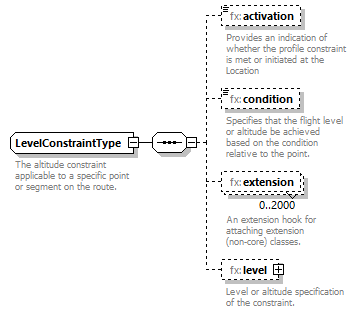

diagram Fixm_diagrams/Fixm_p503.png
namespace http://www.fixm.aero/flight/4.2
children fx:activation fx:condition fx:extension fx:level
used by
element RouteTrajectoryConstraintType/level
annotation
documentation
The altitude constraint applicable to a specific point or segment on the route.
source <xs:complexType name="LevelConstraintType">

<xs:annotation>

<xs:documentation>The altitude constraint applicable to a specific point or segment on the route. </xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="activation" type="fx:ActivationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Provides an indication of whether the profile constraint is met or initiated at the Location</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="condition" type="fx:LevelConditionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies that the flight level or altitude be achieved based on the condition relative to the point.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:LevelConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="level" type="fb:FlightLevelOrAltitudeOrRangeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Level or altitude specification of the constraint.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element LevelConstraintType/activation
diagram Fixm_diagrams/Fixm_p504.png
namespace http://www.fixm.aero/flight/4.2
type fx:ActivationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration PLAN_TO_ATTAIN
enumeration PLAN_TO_COMMENCE
annotation
documentation
Provides an indication of whether the profile constraint is met or initiated at the Location
source <xs:element name="activation" type="fx:ActivationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Provides an indication of whether the profile constraint is met or initiated at the Location</xs:documentation>

</xs:annotation>
</xs:element>

element LevelConstraintType/condition
diagram Fixm_diagrams/Fixm_p505.png
namespace http://www.fixm.aero/flight/4.2
type fx:LevelConditionType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration AT
enumeration AT_OR_ABOVE
enumeration AT_OR_BELOW
enumeration BETWEEN
annotation
documentation
Specifies that the flight level or altitude be achieved based on the condition relative to the point.
source <xs:element name="condition" type="fx:LevelConditionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies that the flight level or altitude be achieved based on the condition relative to the point.</xs:documentation>

</xs:annotation>
</xs:element>

element LevelConstraintType/extension
diagram Fixm_diagrams/Fixm_p506.png
namespace http://www.fixm.aero/flight/4.2
type fb:LevelConstraintExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:LevelConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element LevelConstraintType/level

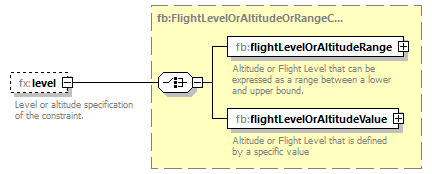

diagram Fixm_diagrams/Fixm_p507.png
namespace http://www.fixm.aero/flight/4.2
type fb:FlightLevelOrAltitudeOrRangeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:flightLevelOrAltitudeRange fb:flightLevelOrAltitudeValue
annotation
documentation
Level or altitude specification of the constraint.
source <xs:element name="level" type="fb:FlightLevelOrAltitudeOrRangeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Level or altitude specification of the constraint.</xs:documentation>

</xs:annotation>
</xs:element>
