complexType FlightLevelOrAltitudeOrRangeChoiceType

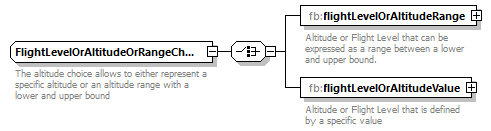

diagram Fixm_diagrams/Fixm_p172.png
namespace http://www.fixm.aero/base/4.2
children fb:flightLevelOrAltitudeRange fb:flightLevelOrAltitudeValue
used by
elements LevelConstraintType/level CruiseClimbStartType/level
annotation
documentation
The altitude choice allows to either represent a specific altitude or an altitude range with a lower and upper bound
source <xs:complexType name="FlightLevelOrAltitudeOrRangeChoiceType">

<xs:annotation>

<xs:documentation>The altitude choice allows to either represent a specific altitude or an altitude range with a lower and upper bound</xs:documentation>

</xs:annotation>

<xs:choice>

<xs:element name="flightLevelOrAltitudeRange" type="fb:VerticalRangeType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Altitude or Flight Level that can be expressed as a range between a lower and upper bound.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="flightLevelOrAltitudeValue" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Altitude or Flight Level that is defined by a specific value</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>
</xs:complexType>

element FlightLevelOrAltitudeOrRangeChoiceType/flightLevelOrAltitudeRange

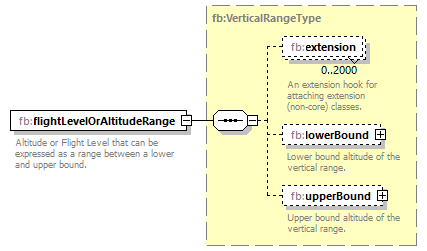

diagram Fixm_diagrams/Fixm_p173.png
namespace http://www.fixm.aero/base/4.2
type fb:VerticalRangeType
properties
content complex
children fb:extension fb:lowerBound fb:upperBound
annotation
documentation
Altitude or Flight Level that can be expressed as a range between a lower and upper bound.
source <xs:element name="flightLevelOrAltitudeRange" type="fb:VerticalRangeType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Altitude or Flight Level that can be expressed as a range between a lower and upper bound.</xs:documentation>

</xs:annotation>
</xs:element>

element FlightLevelOrAltitudeOrRangeChoiceType/flightLevelOrAltitudeValue

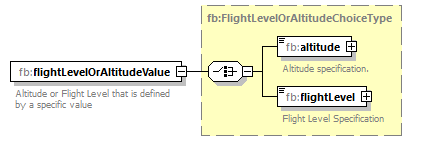

diagram Fixm_diagrams/Fixm_p174.png
namespace http://www.fixm.aero/base/4.2
type fb:FlightLevelOrAltitudeChoiceType
properties
content complex
children fb:altitude fb:flightLevel
annotation
documentation
Altitude or Flight Level that is defined by a specific value
source <xs:element name="flightLevelOrAltitudeValue" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Altitude or Flight Level that is defined by a specific value</xs:documentation>

</xs:annotation>
</xs:element>
