complexType TfdmArrivalType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:ArrivalExtensionType
properties	base  fb:ArrivalExtensionType
children	nas:taxiOperationsMetrics
annotation	documentation Contains TFDM-specific flight arrival information.
source	<xs:complexType name="TfdmArrivalType">   <xs:annotation>     <xs:documentation>Contains TFDM-specific flight arrival information.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:ArrivalExtensionType">       <xs:sequence>         <xs:element name="taxiOperationsMetrics" type="nas:ArrivalTaxiOperationsMetricsType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Provides phase of taxi operations metrics for arrival flights.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element TfdmArrivalType/taxiOperationsMetrics

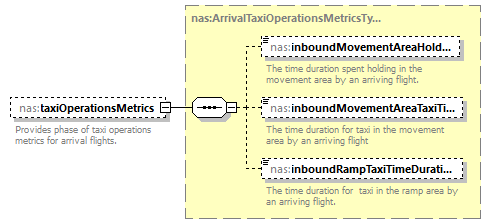

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ArrivalTaxiOperationsMetricsType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:inboundMovementAreaHoldTimeDuration nas:inboundMovementAreaTaxiTimeDuration nas:inboundRampTaxiTimeDuration
annotation	documentation Provides phase of taxi operations metrics for arrival flights.
source	<xs:element name="taxiOperationsMetrics" type="nas:ArrivalTaxiOperationsMetricsType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Provides phase of taxi operations metrics for arrival flights.</xs:documentation>   </xs:annotation> </xs:element>
