complexType SurvivalCapabilitiesType

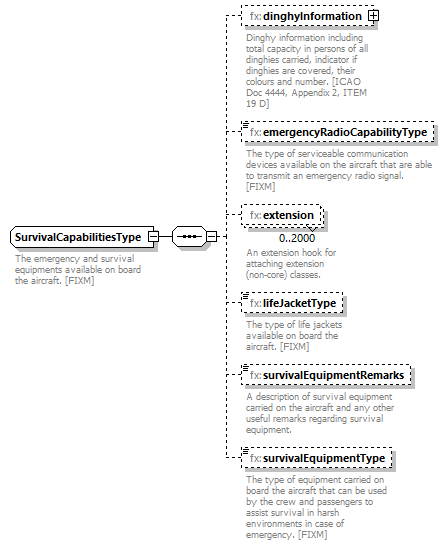

diagram Nas_diagrams/Nas_p907.png
namespace http://www.fixm.aero/flight/4.2
children fx:dinghyInformation fx:emergencyRadioCapabilityType fx:extension fx:lifeJacketType fx:survivalEquipmentRemarks fx:survivalEquipmentType
used by
element FlightCapabilitiesType/survival
annotation
documentation
The emergency and survival equipments available on board the aircraft. [FIXM]
source <xs:complexType name="SurvivalCapabilitiesType">

<xs:annotation>

<xs:documentation>The emergency and survival equipments available on board the aircraft. [FIXM]</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="dinghyInformation" type="fx:DinghiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Dinghy information including total capacity in persons of all dinghies carried, indicator if dinghies are covered, their colours and number. [ICAO Doc 4444, Appendix 2, ITEM 19 D]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="emergencyRadioCapabilityType" type="fx:EmergencyRadioCapabilityTypeListType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The type of serviceable communication devices available on the aircraft that are able to transmit an emergency radio signal. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:SurvivalCapabilitiesExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="lifeJacketType" type="fx:LifeJacketTypeListType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The type of life jackets available on board the aircraft. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="survivalEquipmentRemarks" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A description of survival equipment carried on the aircraft and any other useful remarks regarding survival equipment.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="survivalEquipmentType" type="fx:SurvivalEquipmentTypeListType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The type of equipment carried on board the aircraft that can be used by the crew and passengers to assist survival in harsh environments in case of emergency. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element SurvivalCapabilitiesType/dinghyInformation

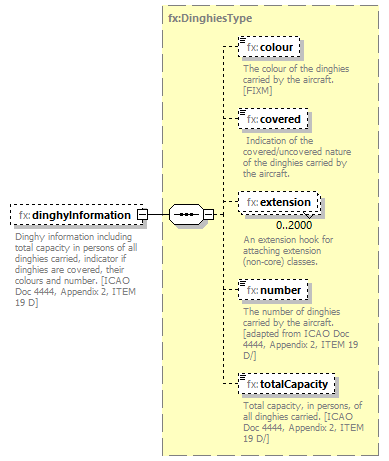

diagram Nas_diagrams/Nas_p908.png
namespace http://www.fixm.aero/flight/4.2
type fx:DinghiesType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:colour fx:covered fx:extension fx:number fx:totalCapacity
annotation
documentation
Dinghy information including total capacity in persons of all dinghies carried, indicator if dinghies are covered, their colours and number. [ICAO Doc 4444, Appendix 2, ITEM 19 D]
source <xs:element name="dinghyInformation" type="fx:DinghiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Dinghy information including total capacity in persons of all dinghies carried, indicator if dinghies are covered, their colours and number. [ICAO Doc 4444, Appendix 2, ITEM 19 D]</xs:documentation>

</xs:annotation>
</xs:element>

element SurvivalCapabilitiesType/emergencyRadioCapabilityType
diagram Nas_diagrams/Nas_p909.png
namespace http://www.fixm.aero/flight/4.2
type fx:EmergencyRadioCapabilityTypeListType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The type of serviceable communication devices available on the aircraft that are able to transmit an emergency radio signal. [FIXM]
source <xs:element name="emergencyRadioCapabilityType" type="fx:EmergencyRadioCapabilityTypeListType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The type of serviceable communication devices available on the aircraft that are able to transmit an emergency radio signal. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element SurvivalCapabilitiesType/extension
diagram Nas_diagrams/Nas_p910.png
namespace http://www.fixm.aero/flight/4.2
type fb:SurvivalCapabilitiesExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:SurvivalCapabilitiesExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element SurvivalCapabilitiesType/lifeJacketType
diagram Nas_diagrams/Nas_p911.png
namespace http://www.fixm.aero/flight/4.2
type fx:LifeJacketTypeListType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The type of life jackets available on board the aircraft. [FIXM]
source <xs:element name="lifeJacketType" type="fx:LifeJacketTypeListType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The type of life jackets available on board the aircraft. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element SurvivalCapabilitiesType/survivalEquipmentRemarks
diagram Nas_diagrams/Nas_p912.png
namespace http://www.fixm.aero/flight/4.2
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
A description of survival equipment carried on the aircraft and any other useful remarks regarding survival equipment.
source <xs:element name="survivalEquipmentRemarks" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A description of survival equipment carried on the aircraft and any other useful remarks regarding survival equipment.</xs:documentation>

</xs:annotation>
</xs:element>

element SurvivalCapabilitiesType/survivalEquipmentType
diagram Nas_diagrams/Nas_p913.png
namespace http://www.fixm.aero/flight/4.2
type fx:SurvivalEquipmentTypeListType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The type of equipment carried on board the aircraft that can be used by the crew and passengers to assist survival in harsh environments in case of emergency. [FIXM]
source <xs:element name="survivalEquipmentType" type="fx:SurvivalEquipmentTypeListType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The type of equipment carried on board the aircraft that can be used by the crew and passengers to assist survival in harsh environments in case of emergency. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>
