complexType SupplementaryDataType

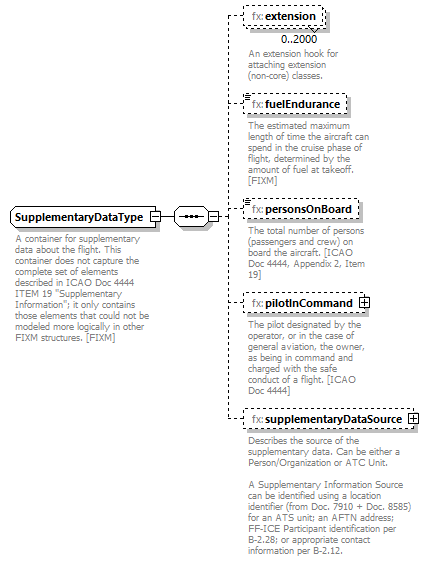

diagram Nas_diagrams/Nas_p1006.png
namespace http://www.fixm.aero/flight/4.2
children fx:extension fx:fuelEndurance fx:personsOnBoard fx:pilotInCommand fx:supplementaryDataSource
used by
element FlightType/supplementaryData
annotation
documentation
A container for supplementary data about the flight. This container does not capture the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information"; it only contains those elements that could not be modeled more logically in other FIXM structures. [FIXM]
source <xs:complexType name="SupplementaryDataType">

<xs:annotation>

<xs:documentation>A container for supplementary data about the flight. This container does not capture the complete set of elements described in ICAO Doc 4444 ITEM 19 "Supplementary Information"; it only contains those elements that could not be modeled more logically in other FIXM structures. [FIXM]</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="extension" type="fb:SupplementaryDataExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="fuelEndurance" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The estimated maximum length of time the aircraft can spend in the cruise phase of flight, determined by the amount of fuel at takeoff. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="personsOnBoard" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc 4444, Appendix 2, Item 19]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="pilotInCommand" type="fb:PersonOrOrganizationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The pilot designated by the operator, or in the case of general aviation, the owner, as being in command and charged with the safe conduct of a flight. [ICAO Doc 4444]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="supplementaryDataSource" type="fx:SupplementaryDataSourceChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Describes the source of the supplementary data. Can be either a Person/Organization or ATC Unit.

A Supplementary Information Source can be identified using a location identifier (from Doc. 7910 + Doc. 8585) for an ATS unit; an AFTN address; FF-ICE Participant identification per B-2.28; or appropriate contact information per B-2.12.
</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element SupplementaryDataType/extension
diagram Nas_diagrams/Nas_p1007.png
namespace http://www.fixm.aero/flight/4.2
type fb:SupplementaryDataExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:SupplementaryDataExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element SupplementaryDataType/fuelEndurance
diagram Nas_diagrams/Nas_p1008.png
namespace http://www.fixm.aero/flight/4.2
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
The estimated maximum length of time the aircraft can spend in the cruise phase of flight, determined by the amount of fuel at takeoff. [FIXM]
source <xs:element name="fuelEndurance" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The estimated maximum length of time the aircraft can spend in the cruise phase of flight, determined by the amount of fuel at takeoff. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element SupplementaryDataType/personsOnBoard
diagram Nas_diagrams/Nas_p1009.png
namespace http://www.fixm.aero/flight/4.2
type fb:CountType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minInclusive 0
annotation
documentation
The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc 4444, Appendix 2, Item 19]
source <xs:element name="personsOnBoard" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total number of persons (passengers and crew) on board the aircraft. [ICAO Doc 4444, Appendix 2, Item 19]</xs:documentation>

</xs:annotation>
</xs:element>

element SupplementaryDataType/pilotInCommand
diagram Nas_diagrams/Nas_p1010.png
namespace http://www.fixm.aero/flight/4.2
type fb:PersonOrOrganizationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:contact fb:extension fb:identifier fb:identifierDomain fb:name
annotation
documentation
The pilot designated by the operator, or in the case of general aviation, the owner, as being in command and charged with the safe conduct of a flight. [ICAO Doc 4444]
source <xs:element name="pilotInCommand" type="fb:PersonOrOrganizationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The pilot designated by the operator, or in the case of general aviation, the owner, as being in command and charged with the safe conduct of a flight. [ICAO Doc 4444]</xs:documentation>

</xs:annotation>
</xs:element>

element SupplementaryDataType/supplementaryDataSource
diagram Nas_diagrams/Nas_p1011.png
namespace http://www.fixm.aero/flight/4.2
type fx:SupplementaryDataSourceChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:personOrOrganization fx:unit
annotation
documentation
Describes the source of the supplementary data. Can be either a Person/Organization or ATC Unit.

A Supplementary Information Source can be identified using a location identifier (from Doc. 7910 + Doc. 8585) for an ATS unit; an AFTN address; FF-ICE Participant identification per B-2.28; or appropriate contact information per B-2.12.
source <xs:element name="supplementaryDataSource" type="fx:SupplementaryDataSourceChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Describes the source of the supplementary data. Can be either a Person/Organization or ATC Unit.

A Supplementary Information Source can be identified using a location identifier (from Doc. 7910 + Doc. 8585) for an ATS unit; an AFTN address; FF-ICE Participant identification per B-2.28; or appropriate contact information per B-2.12.
</xs:documentation>

</xs:annotation>
</xs:element>
