complexType SpeedConstraintType

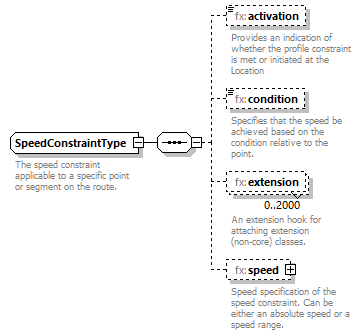

diagram Nas_diagrams/Nas_p1165.png
namespace http://www.fixm.aero/flight/4.2
children fx:activation fx:condition fx:extension fx:speed
used by
element RouteTrajectoryConstraintType/speed
annotation
documentation
The speed constraint applicable to a specific point or segment on the route.
source <xs:complexType name="SpeedConstraintType">

<xs:annotation>

<xs:documentation>The speed constraint applicable to a specific point or segment on the route.</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="activation" type="fx:ActivationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Provides an indication of whether the profile constraint is met or initiated at the Location</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="condition" type="fx:SpeedConditionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies that the speed be achieved based on the condition relative to the point.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:SpeedConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="speed" type="fb:TrueAirspeedChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Speed specification of the speed constraint. Can be either an absolute speed or a speed range.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element SpeedConstraintType/activation
diagram Nas_diagrams/Nas_p1166.png
namespace http://www.fixm.aero/flight/4.2
type fx:ActivationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration PLAN_TO_ATTAIN
enumeration PLAN_TO_COMMENCE
annotation
documentation
Provides an indication of whether the profile constraint is met or initiated at the Location
source <xs:element name="activation" type="fx:ActivationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Provides an indication of whether the profile constraint is met or initiated at the Location</xs:documentation>

</xs:annotation>
</xs:element>

element SpeedConstraintType/condition
diagram Nas_diagrams/Nas_p1167.png
namespace http://www.fixm.aero/flight/4.2
type fx:SpeedConditionType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration AT
enumeration AT_OR_GREATER
enumeration AT_OR_LESS
enumeration BETWEEN
annotation
documentation
Specifies that the speed be achieved based on the condition relative to the point.
source <xs:element name="condition" type="fx:SpeedConditionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies that the speed be achieved based on the condition relative to the point.</xs:documentation>

</xs:annotation>
</xs:element>

element SpeedConstraintType/extension
diagram Nas_diagrams/Nas_p1168.png
namespace http://www.fixm.aero/flight/4.2
type fb:SpeedConstraintExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:SpeedConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element SpeedConstraintType/speed

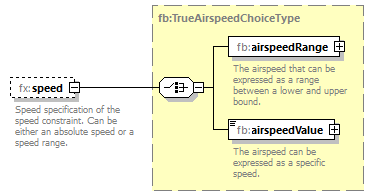

diagram Nas_diagrams/Nas_p1169.png
namespace http://www.fixm.aero/flight/4.2
type fb:TrueAirspeedChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:airspeedRange fb:airspeedValue
annotation
documentation
Speed specification of the speed constraint. Can be either an absolute speed or a speed range.
source <xs:element name="speed" type="fb:TrueAirspeedChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Speed specification of the speed constraint. Can be either an absolute speed or a speed range.</xs:documentation>

</xs:annotation>
</xs:element>
