complexType PredictedWaypointType

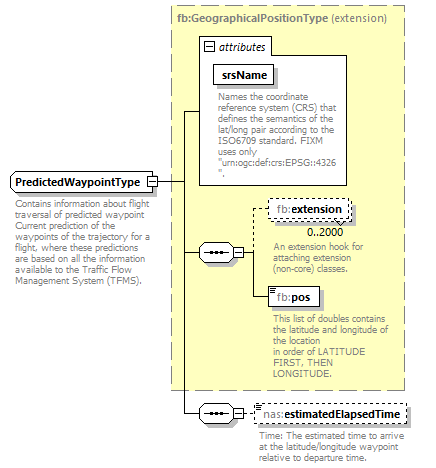

diagram Nas_diagrams/Nas_p443.png
namespace http://www.fixm.aero/ext/nas/4.3
type extension of fb:GeographicalPositionType
properties
base fb:GeographicalPositionType
children fb:extension fb:pos nas:estimatedElapsedTime
used by
element RouteImpactListType/predictedWaypoint
attributes
Name  Type  Use  Default  Fixed  Annotation
srsName  xs:string  required    urn:ogc:def:crs:EPSG::4326
documentation
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation
documentation
Contains information about flight traversal of predicted waypoint
Current prediction of the waypoints of the trajectory for a flight, where these predictions are based on all the information available to the Traffic Flow Management System (TFMS).
source <xs:complexType name="PredictedWaypointType">

<xs:annotation>

<xs:documentation>Contains information about flight traversal of predicted waypoint
Current prediction of the waypoints of the trajectory for a flight, where these predictions are based on all the information available to the Traffic Flow Management System (TFMS).
</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="fb:GeographicalPositionType">

<xs:sequence>

<xs:element name="estimatedElapsedTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Time: The estimated time to arrive at the latitude/longitude waypoint relative to departure time.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element PredictedWaypointType/estimatedElapsedTime
diagram Nas_diagrams/Nas_p444.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:DurationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
Time: The estimated time to arrive at the latitude/longitude waypoint relative to departure time.
source <xs:element name="estimatedElapsedTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Time: The estimated time to arrive at the latitude/longitude waypoint relative to departure time.</xs:documentation>

</xs:annotation>
</xs:element>
