complexType PredictedUnitType

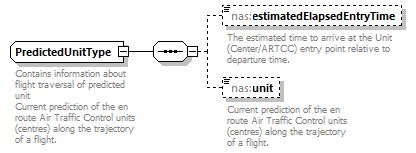

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:estimatedElapsedEntryTime nas:unit
used by	element  RouteImpactListType/predictedUnit
annotation	documentation Contains information about flight traversal of predicted unit Current prediction of the en route Air Traffic Control units (centres) along the trajectory of a flight.
source	<xs:complexType name="PredictedUnitType">   <xs:annotation>     <xs:documentation>Contains information about flight traversal of predicted unit Current prediction of the en route Air Traffic Control units (centres) along the trajectory of a flight.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="estimatedElapsedEntryTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated time to arrive at the Unit (Center/ARTCC) entry point relative to departure time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="unit" type="fb:AtcUnitNameType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Current prediction of the en route Air Traffic Control units (centres) along the trajectory of a flight.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PredictedUnitType/estimatedElapsedEntryTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The estimated time to arrive at the Unit (Center/ARTCC) entry point relative to departure time.
source	<xs:element name="estimatedElapsedEntryTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated time to arrive at the Unit (Center/ARTCC) entry point relative to departure time.</xs:documentation>   </xs:annotation> </xs:element>

element PredictedUnitType/unit

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AtcUnitNameType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Za-z0-9]{1,}
annotation	documentation Current prediction of the en route Air Traffic Control units (centres) along the trajectory of a flight.
source	<xs:element name="unit" type="fb:AtcUnitNameType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Current prediction of the en route Air Traffic Control units (centres) along the trajectory of a flight.</xs:documentation>   </xs:annotation> </xs:element>
