complexType PointoutType

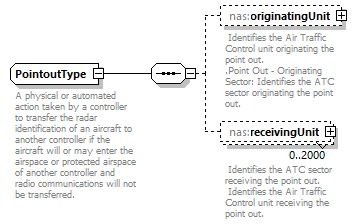

diagram Nas_diagrams/Nas_p249.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:originatingUnit nas:receivingUnit
used by
element NasEnRouteType/pointout
annotation
documentation
A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred.
source <xs:complexType name="PointoutType">

<xs:annotation>

<xs:documentation>A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred. </xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="originatingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation> Identifies the Air Traffic Control unit originating the point out.
.Point Out - Originating Sector: Identifies the ATC sector originating the point out.
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="receivingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation> Identifies the ATC sector receiving the point out.
Identifies the Air Traffic Control unit receiving the point out.
</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element PointoutType/originatingUnit

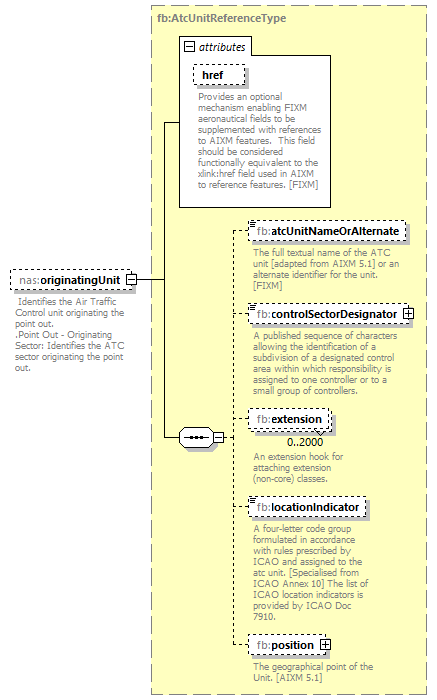

diagram Nas_diagrams/Nas_p250.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:AtcUnitReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
Identifies the Air Traffic Control unit originating the point out.
.Point Out - Originating Sector: Identifies the ATC sector originating the point out.
source <xs:element name="originatingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation> Identifies the Air Traffic Control unit originating the point out.
.Point Out - Originating Sector: Identifies the ATC sector originating the point out.
</xs:documentation>

</xs:annotation>
</xs:element>

element PointoutType/receivingUnit

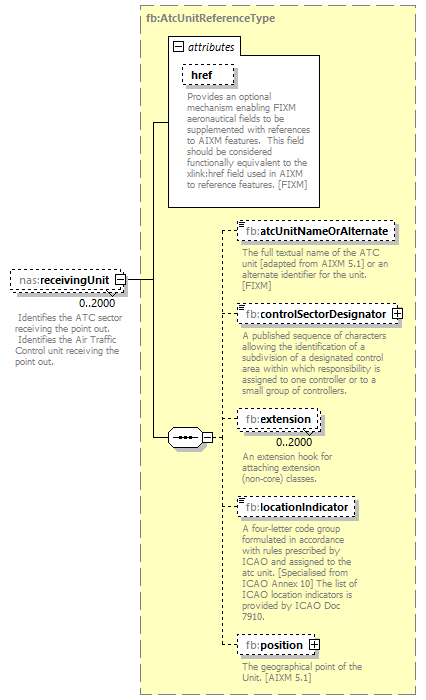

diagram Nas_diagrams/Nas_p251.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:AtcUnitReferenceType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
children fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
Identifies the ATC sector receiving the point out.
Identifies the Air Traffic Control unit receiving the point out.
source <xs:element name="receivingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation> Identifies the ATC sector receiving the point out.
Identifies the Air Traffic Control unit receiving the point out.
</xs:documentation>

</xs:annotation>
</xs:element>
