complexType NasRouteElementType

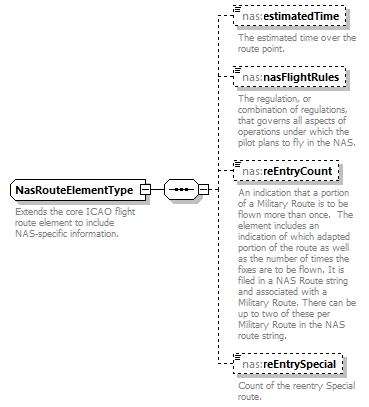

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:RouteTrajectoryElementExtensionType
properties	base  fb:RouteTrajectoryElementExtensionType
children	nas:estimatedTime nas:nasFlightRules nas:reEntryCount nas:reEntrySpecial
annotation	documentation Extends the core ICAO flight route element to include NAS-specific information.
source	<xs:complexType name="NasRouteElementType">   <xs:annotation>     <xs:documentation>Extends the core ICAO flight route element to include NAS-specific information.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:RouteTrajectoryElementExtensionType">       <xs:sequence>         <xs:element name="estimatedTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The estimated time over the route point. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="nasFlightRules" type="nas:NasFlightRulesType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The regulation, or combination of regulations, that governs all aspects of operations under which the pilot plans to fly in the NAS. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="reEntryCount" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>An indication that a portion of a Military Route is to be flown more than once.  The element includes an indication of which adapted portion of the route as well as the number of times the fixes are to be flown. It is filed in a NAS Route string and associated with a Military Route. There can be up to two of these per Military Route in the NAS route string. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="reEntrySpecial" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Count of the reentry Special route.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element NasRouteElementType/estimatedTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The estimated time over the route point.
source	<xs:element name="estimatedTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated time over the route point. </xs:documentation>   </xs:annotation> </xs:element>

element NasRouteElementType/nasFlightRules

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasFlightRulesType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  IFR documentation Instrument Flight Rules enumeration  VFR documentation Visual Flight Rules enumeration  DVFR documentation Defense Visual Flight Rules
annotation	documentation The regulation, or combination of regulations, that governs all aspects of operations under which the pilot plans to fly in the NAS.
source	<xs:element name="nasFlightRules" type="nas:NasFlightRulesType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The regulation, or combination of regulations, that governs all aspects of operations under which the pilot plans to fly in the NAS. </xs:documentation>   </xs:annotation> </xs:element>

element NasRouteElementType/reEntryCount

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation An indication that a portion of a Military Route is to be flown more than once.  The element includes an indication of which adapted portion of the route as well as the number of times the fixes are to be flown. It is filed in a NAS Route string and associated with a Military Route. There can be up to two of these per Military Route in the NAS route string.
source	<xs:element name="reEntryCount" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>An indication that a portion of a Military Route is to be flown more than once.  The element includes an indication of which adapted portion of the route as well as the number of times the fixes are to be flown. It is filed in a NAS Route string and associated with a Military Route. There can be up to two of these per Military Route in the NAS route string. </xs:documentation>   </xs:annotation> </xs:element>

element NasRouteElementType/reEntrySpecial

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Count of the reentry Special route.
source	<xs:element name="reEntrySpecial" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Count of the reentry Special route.</xs:documentation>   </xs:annotation> </xs:element>
